Hybrid Voltacon Solar Inverter 15000Watt 48V MPPT PV Power 22500W - Used

Ref: 002137-EX

£2,999.00

Price inc VAT

Bulk Savings £££
# Items	Our Price	Savings
6 Items	£2,909.03	Save 3%
12 Items	£2,819.06	Save 6%
24 Items	£2,759.08	Save 8%

Description

Specification

Description

Infinisolar Waterproof Hybrid Inverter 15kW – Three Phase | G99-UK Approved & ENA Registered.

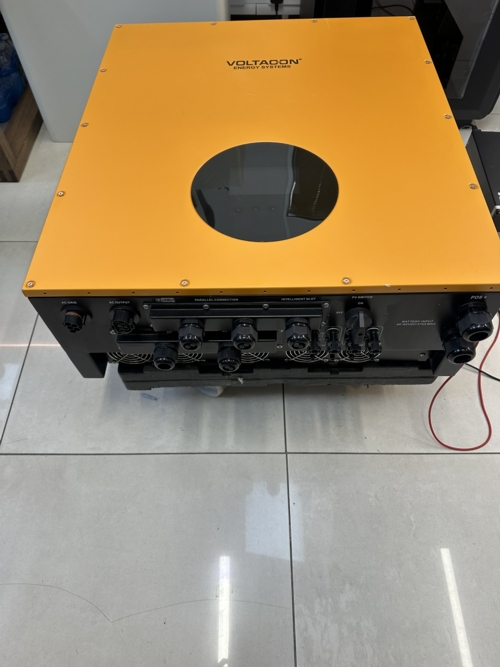

This unit has been used for one month, there is nothing wrong, the circumstances of the customer have changed and he wishes to sell it. The product still has a 12-month warranty and works fine!

The Infinisolar WP15kW Hybrid Inverter is the ultimate solution for high-performance energy conversion in demanding environments. This three-phase 400V inverter, with G99-UK approval and ENA registration, seamlessly combines advanced solar inverter technology with a powerful battery charger, offering an impressive 15kW output capacity.

New Touch Screen with easy-to-navigate menu. The inverter also has a built-in AC Timer to allow charging from the mains with a low-cost tariff.

The three-phase meter from Easton is included in case a self-consumption BESS system is required that fully controls the energy flow from and to the grid.

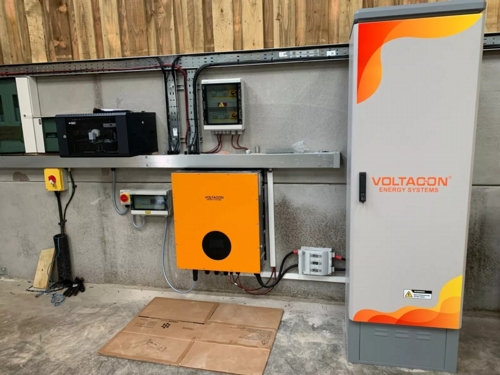

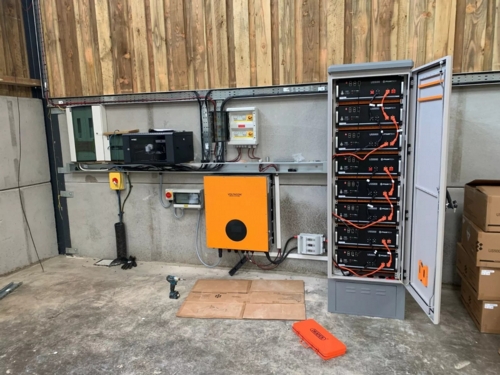

Pictures from the actual installation place: Only the inverter is for sale.

Infinisolar outdoor inverters generate electricity in extreme environmental conditions from -25°C to 60°C. Supports of unbalanced loads in three phases. Modern design with user-friendly round LED Display. Loaded with BMS, Modbus Card, Energy Meter, Wi-Fi.

With ingress protection IP65, the Infini Solar WP15kW is suitable for direct connection outdoors even without protection. Suppose space restrictions exist in your warehouse or the utility room. In that case, this inverter is the right solution because it can be installed in any environment even in dusty and harsh industrial conditions.

Main Features

IP65 waterproof and dust-proof housing. It works in harsh conditions indoors and outdoor
Built-in WiFi for remote monitoring via mobile applications
150% unbalanced load support
Dual outputs selected as either programmable output or generator input
Built-in AC coupled function
Use adjustable charging current and voltage
Reserved communication port for BMS (RS485)
Parallel operation with up to 6 units

EAN Code: 0604947936363

Specification

MODEL	InfiniSolar Three Phase 15KW
PHASE	3-phase in / 3-phase out
RATED OUTPUT POWER	15000 W
MAXIMUM CHARGING POWER	15000 W
GRID-TIE OPERATION
PV INPUT (DC)
Maximum PV Input Power	22500 W
Nominal DC Voltage / Maximum DC Voltage	720 VDC / 1000 VDC
Start-up Voltage / Initial Feeding Voltage	320 VDC / 350 VDC
MPP Voltage Range	350 VDC ~ 850 VDC
Number of MPP Trackers / Maximum Input Current	2 /A: 26A, B:26A
Numner of strings per MPPT	A: 2, B: 2
GRID OUTPUT (AC)
Nominal Output Voltage	230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range	184 - 265 VAC per phase
Nominal Output Current	21.7 A per phase
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	> 96%
European Efficiency@ Vnominal	> 95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range	170 - 280 VAC per phase
Maximum AC Input Current	40A
PV INPUT (DC)
Maximum DC Voltage	1000 VDC
MPP Voltage Range	350 VDC ~ 850 VDC
Number of MPP Trackers / Maximum Input Current	2 / 2 x 26A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	230 VAC (P-N) / 400 VAC (P-P)
Output Waveform	Pure Sinewave
Efficiency (DC to AC)	91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage	320 VDC / 350 VDC
MPP Voltage Range	350 VDC ~ 850 VDC
Number of MPP Trackers / Maximum Input Current	2 / 2 x 18.6A
GRID OUTPUT (AC)
Nominal Output Voltage	230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range	184 - 265 VAC per phase
Nominal Output Current	21.7 per phase
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range	170 - 280 VAC per phase
Maximum AC Input Current	25A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)	91%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC (40-62V DC)
Maximum Charging Current	300A (Adjustable)
GENERAL
PHYSICAL
Dimension, D X W X H (mm)	255 X 660 X 750
Net Weight (kgs)	75
INTERFACE
Communication Port	RS-232/USB and CAN Interface, Wi-Fi
Intelligent Slot	Optional SNMP, Modbus, and AS-400 cards available
ENVIRONMENT
Humidity	0 ~ 90% RH (No condensing)
Operating Temperature	-25 to 60°C
Altitude	0 ~ 1000 m*
