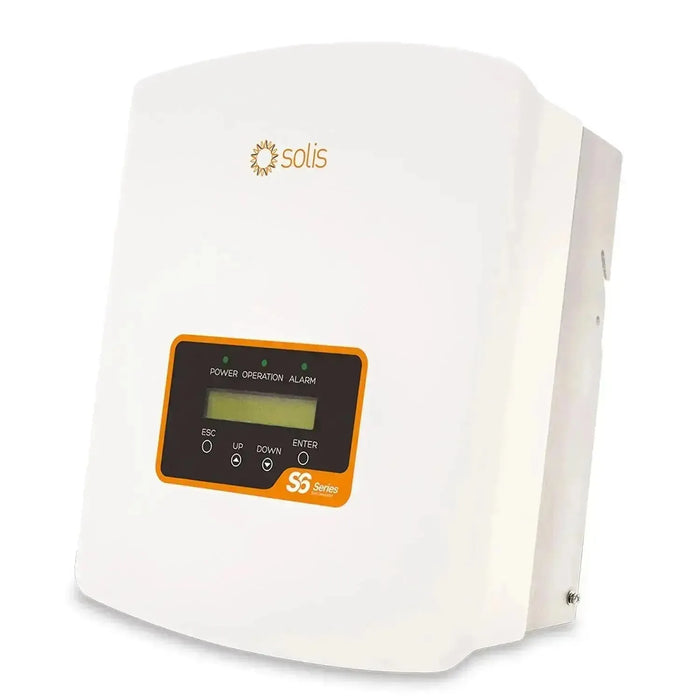

Solis S5 Series solar inverter with white casing and orange-trimmed control panel displaying power, operation, and alarm indi

Solis 3.6kW Single Phase Grid Tie Inverter | S6-GR1P3.6K-M-DC

£351.75
Skip to product information
Solis S5 Series solar inverter with white casing and orange-trimmed control panel displaying power, operation, and alarm indi
Solis 3.6kW Single Phase Grid Tie Inverter | S6-GR1P3.6K-M-DC

Solis 3.6kW Single Phase Grid Tie Inverter | S6-GR1P3.6K-M-DC

Vendor
Solis
SKU
S6-GR1P3.6K-M-DC
Availability
In stock
Weight
7.4 kg

£351.75inc VAT £293.13exc VAT

Delivery from £10.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Solis S6-GR1P3.6K-M-DC is a 3.6kW single phase grid tie inverter from the S6 Mini Series. It is fanless and compact, weighing 7.4kg, and supports a higher 19A maximum input current per string, making it suited to larger or high-output modules. The unit includes an export power manager, AFCI arc fault protection, an integrated DC switch and an IP66 rated enclosure.

Key features

  • Rated output, 3.6kW, single phase 230V
  • Input configuration, single MPPT, 19A maximum input current
  • Efficiency, 97.3% maximum
  • Protection, AFCI arc fault protection and integrated DC switch
  • Enclosure, IP66 rated, fanless natural cooling design
  • Dimensions and weight, 310 x 373 x 160mm, 7.4kg

Applications

This grid tie inverter suits residential rooftop solar PV systems, particularly installations using high-output modules that draw up to 19A of string current.

Installation notes

Grid connection requires G98 compliance in the UK, and installation must be carried out by a qualified MCS-accredited installer. An optional Wi-Fi dongle is available separately for SolisCloud remote monitoring.

Technical Specifications 16 rows Show

Technical Specifications

Part NumberS6-GR1P3.6K-M
Maximum PV Input Power5.4 kW
Maximum Input Voltage600 V
Start Up Voltage90 V
MPPT Voltage Range80 to 500 V
Maximum Input Current19 A
MPPT Number / Max Input Strings1 / 2
Rated Output Power3.6 kW
Maximum Output Power3.6 kW
Grid Voltage220 V / 230 V
Ingress ProtectionIP66
Cooling MethodNatural cooling
Noise LevelLess than 20 dB(A)
Dimensions310 x 373 x 160 mm
Weight7.7 kg
Warranty5 years extendable

Important Considerations

  • This inverter does not include a data logger or current transformer as standard
  • Additional accessories are required for monitoring and export control
  • For a single inverter installation, use CT model SOL-CT-100A-10M
  • For multiple inverter installations, an EPM1 unit is required or a separate data logger must be used

Smart Connectivity and Compliance

The S6-GR1P3.6K-M Mini Inverter supports modern monitoring and grid compliance requirements. It includes RS485 communication as standard and is compatible with optional S3-WIFI-ST data logging sticks for real-time remote monitoring through the Solis platform.

Manufacturer datasheet. Figures as published by the manufacturer.
