Solis 6kW Hybrid Solar Inverter with Wi-Fi | S6-EH1P6K-L-PLUS
£966.00
Skip to product information
Solis 6kW Hybrid Solar Inverter with Wi-Fi | S6-EH1P6K-L-PLUS
- Vendor
- Solis
- SKU
- S6-EH1P6K-L-PLUS
- Availability
- In stock
- Weight
- 23.0 kg
£966.00inc VAT £805.00exc VAT
Secure checkout
Talk to our sales team
Product Description

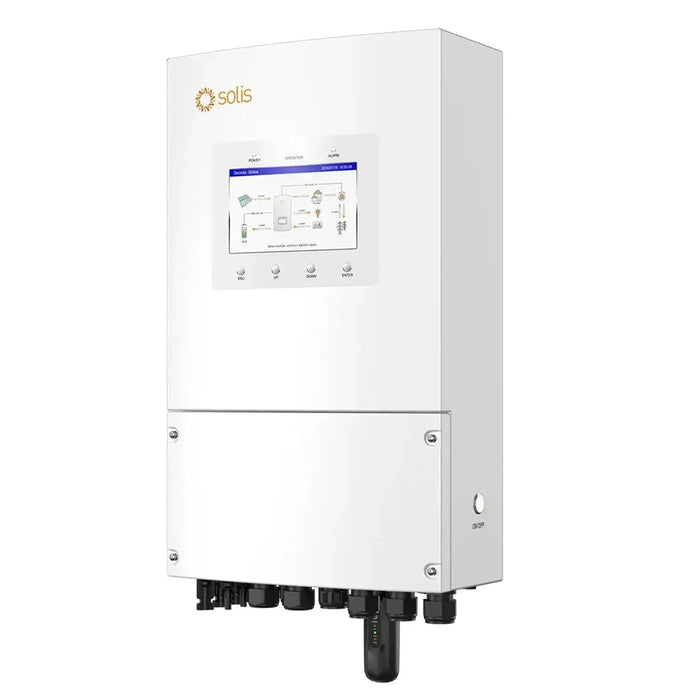

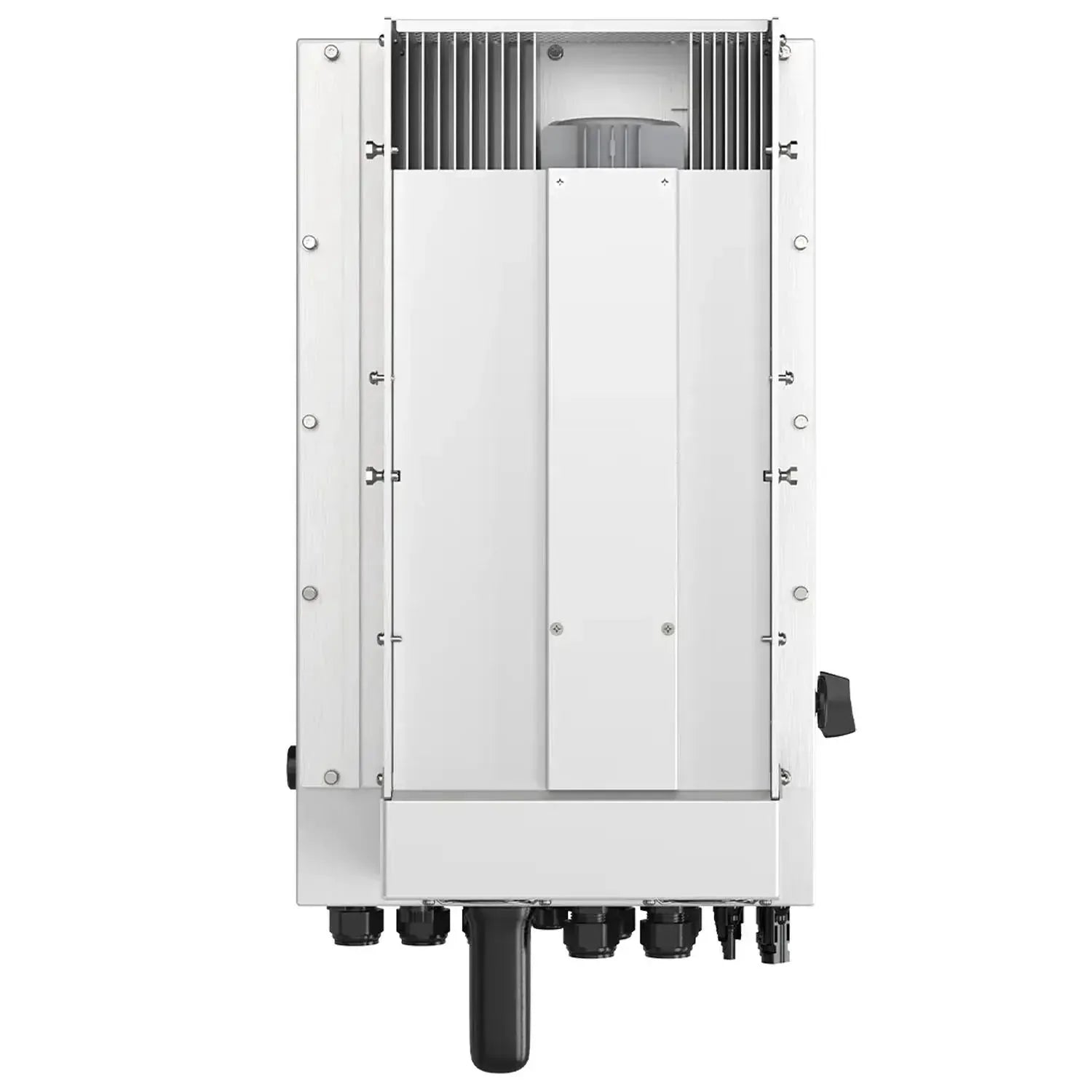

The Solis S6-EH1P6K-L-PLUS is a 6kW single phase hybrid solar inverter for residential solar and battery storage systems. It is G98 and G99 compliant and MCS certified, supporting full grid export, controlled export and 0W zero-export self-consumption. A Wi-Fi dongle and energy meter are supplied as standard.
Key features of this hybrid solar inverter
- Rated output, 6kW, single phase 230V
- Grid compliance, G98 and G99 compliant, MCS certified for UK grid connection
- Export control, full export, controlled export and 0W zero-export mode
- Charge scheduling, 6-stage timed charge and discharge, plus a smart AC timer for off-peak tariff charging
- Backup switching, under 4ms UPS-grade transfer time
- Overload capacity, 200% for 10 seconds
- Parallel operation, multiple units can be combined for up to 48kW combined output
The 6-stage timed charge and discharge function lets the battery charge overnight on a low-tariff period and discharge during peak hours, cutting grid import costs automatically. It works alongside the smart AC timer for time-of-use tariff management, including tariffs such as Octopus Agile or Economy 7.
Backup switching under 4ms is fast enough to keep power flowing to equipment that cannot tolerate an interruption, such as computers or NAS drives. Two backup ports allow smart load management, and a generator interface is included for sites needing a secondary power source.
Applications
Suited to residential solar PV and battery storage, grid-connected systems for self-consumption and peak shaving, time-of-use tariff optimisation, and properties needing UPS-grade backup for sensitive electronics. Parallel operation extends its use to small commercial single phase installations.
Installation notes
Grid connection requires G98 or G99 compliance depending on system size, and installation must be carried out by a qualified MCS-accredited installer. Battery type and BMS protocol need correct configuration before commissioning.
What's in the box
- 1 x Solis S6-EH1P6K-L-PLUS 6kW hybrid inverter
- Wi-Fi dongle for SolisCloud monitoring
- Energy meter
Technical Specifications 10 rows Show
| Solis S6-EH1P6K-L-PLUS 6kW hybrid inverter specifications | |
|---|---|
| DC input (PV side) | Recommended Max. PV Array Size: 12 kW Max. Usable PV Input Power: 10 kW Max. Input Voltage: 500 V Rated Voltage: 330 V Start-up Voltage: 90 V MPPT Voltage Range: 90 - 435 V Max. Input Current: 16 A / 16 A Max. Short Circuit Current: 20 A / 20 A MPPT Number / Max. Input Strings Number: 2 / 2 |
| Battery data | Battery Type: Li-ion / Lead-acid Battery Voltage Range: 40 - 60 V Max. Charge / Discharge Power: 6 kW Max. Charge / Discharge Current: 120 A |
| AC output (grid side) | Rated Output Power: 6 kW Max. Apparent Output Power:6 kVA Operation Phase: L/N/PE Rated Grid Voltage: 220 V / 230 V Rated Grid Frequency: 50 Hz / 60 Hz Rated Grid Output Current: 22.8 A / 21.8 A Max. Output Current: 22.8 A / 21.8 A Power Factor: > 0.99 (0.8 leading - 0.8 lagging) THDi: < 2% |
| AC input (grid side) | Input Voltage Range: 187 - 253 V Max. Input Current: 32 A Frequency Range: 45 - 55 Hz / 55 - 65 Hz |
| AC output (backup) | Rated Output Power: 6 kW Max. Apparent Output Power: 2 times of rated power, 10 s Back-up Switch Time: < 4 ms Rated Output Voltage: L/N/PE, 220 V / 230 V Rated Frequency: 50 Hz / 60 Hz Rated Output Current: 22.8 A / 21.8 A Max. AC Passthrough Current: 40 A THDv (@linear load): < 2% |
| Efficiency figures | Max. Efficiency: 96.2% EU Efficiency: 96.1% BAT Charged by PV / AC Max. Efficiency: 95.3% / 93.9% BAT Discharged to AC Max. Efficiency: 93.8% |
| Protection features | Ground Fault Monitoring: Yes DC Reverse-Polarity Protection: Yes Integrated AFCI 2.0: Optional Protection Class / Over Voltage Category: I / II (PV and BAT), III (MAINS and BACKUP and GEN) |
| General data | Dimensions (W × H × D): 335 × 560 × 253 mm Weight: 23 kg Topology: High frequency isolation (for battery) Operating Ambient Temperature Range: -40 ~ + 60°C Ingress Protection: IP66 Cooling Concept: Natural cooling, Intelligent fan-cooling Max. Operation Altitude: 3000 m |
| Features | |
| MC4 plug (PV port) / Terminal Block (BAT port) Terminal Block AC connection 7.0" LCD display & Bluetooth + APP communication RS485, CAN, Optional: Wi-Fi, GPRS, LAN | |
Manufacturer datasheet. Figures as published by the manufacturer.
