Sunny Tripower X 15kW 3-Phase Grid-Tie Inverter | SMA
£2,855.48
Skip to product information

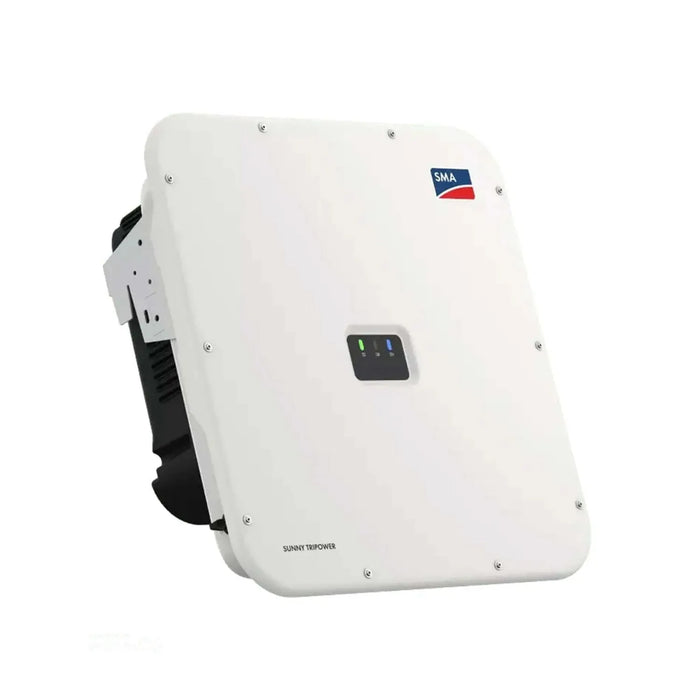

Sunny Tripower X 15kW 3-Phase Grid-Tie Inverter | SMA
- Vendor
- SMA
- SKU
- STP15-50
- Availability
- Sold out
- Weight
- 35.0 kg
£2,855.48inc VAT £2,379.57exc VAT
Sorry, this one is sold out
Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Secure checkout
Talk to our sales team
Product Description
The SMA Sunny Tripower X 15kW is a three phase grid-tied solar inverter built for commercial PV systems and larger residential installations. Three independent MPP trackers, a maximum input voltage of 1000VDC and an IP65 enclosure give it a specified platform for demanding solar projects.
Three phase grid tie inverter with independent string management
- Rated AC output, 15kW at 230V, 50Hz
- MPP trackers, three independent trackers
- Max input voltage, 1000VDC
- MPP voltage range, 260-800V
- Max input current per tracker, 24A
- Efficiency, 98.2% maximum, 97.8% European
- Enclosure, IP65, suitable for outdoor installation
Key features
- SMA ShadeFix optimises yield during partial shading at inverter level
- SMA ArcFix provides active DC arc-fault detection
- Integrated system manager monitors and controls up to 5 SMA inverters and one energy meter
- SMA Dynamic Power Control for active and reactive power management
- Ethernet, local WLAN and RS485 communication, with SMA Modbus and SunSpec Modbus protocols
- OptiCool thermal management
Product overview
This 15kW model sits within the Sunny Tripower X range, which spans 12kW to 25kW on a shared platform and installation footprint. The three MPP trackers let strings on different roof orientations or with different shading run independently, which helps yield across complex arrays. The system manager removes the need for a separate monitoring device on smaller commercial sites, coordinating up to five inverters, and connects directly to Sunny Portal via ennexOS for remote monitoring.
Applications
Commercial rooftop and ground-mounted PV, larger residential systems, multi-inverter installations with centralised monitoring, and sites with partial shading or multiple roof orientations.
Installation and safety notes
Installation must be carried out by a qualified electrical engineer or MCS-accredited solar installer. G99 notification and DNO approval are required at this power level in the UK. DC wiring, string fusing, AC protection and earthing must follow IET Wiring Regulations and SMA's installation manual, with commissioning via SMA tools before operation.
Technical Specifications 25 rows Show
| Parameter | STP-X 15kW |
|---|---|
| Max PV array power | 22500 Wp |
| Max input voltage | 1000 V |
| MPP voltage range | 260–800 V |
| Rated input voltage | 580 V |
| Min / initial input voltage | 150 V / 188 V |
| Max input current per MPP tracker | 24 A |
| Max short-circuit current per MPP tracker | 37.5 A |
| MPP trackers / strings per tracker | 3 / 2 |
| Rated output power | 15000 W |
| Rated / max apparent power | 15000 VA |
| Nominal AC voltage | 220/380 V; 230/400 V; 240/415 V |
| AC voltage range | 176–275 V / 304–477 V |
| Grid frequency / range | 50 Hz / 44–56 Hz; 60 Hz / 54–66 Hz |
| Rated output current | 21.7 A |
| THD | <3% |
| Max efficiency / EU efficiency | 98.2% / 97.8% |
| Ingress protection | IP65 |
| Dimensions (W x H x D) | 728 x 762 x 266 mm |
| Weight | 35 kg |
| Operating temperature | -25°C to +60°C |
| Max noise emission | 59 dB(A) |
| Self-consumption (night) | <5 W |
| Topology / cooling | Transformerless / OptiCool |
| Communication | Ethernet, local WLAN, RS485 |
| Data protocols | SMA Modbus, SunSpec Modbus, Speedwire |
Manufacturer datasheet. Figures as published by the manufacturer.
