Solis 2.5kW Dual MPPT Single Phase Grid-Tie Inverter | S6-GR1P2.5K-DC
£325.50
Skip to product information
Solis 2.5kW Dual MPPT Single Phase Grid-Tie Inverter | S6-GR1P2.5K-DC
- Vendor
- Solis
- SKU
- S6-GR1P2.5K-DC
- Availability
- In stock
- Weight
- 11.0 kg
£325.50inc VAT £271.25exc VAT
Secure checkout
Talk to our sales team
Product Description

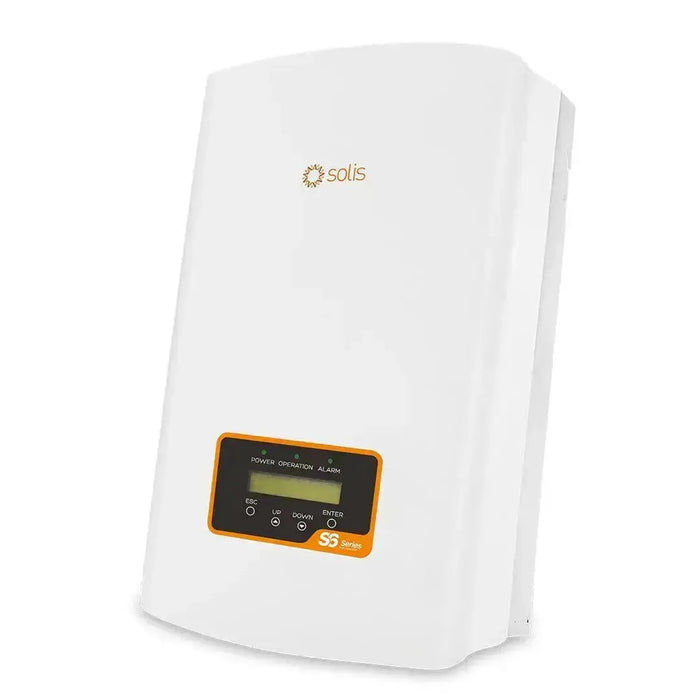

The Solis S6-GR1P2.5K-DC is a 2.5kW single phase grid-tie inverter with dual MPPT, built for small residential solar PV installations. The fanless design keeps it quiet, and it supports up to 14A input current per string, working with high-efficiency and bifacial modules. An integrated DC switch, export power manager and AFCI protection come as standard, and the enclosure is IP66 rated.
Key features of this grid tie inverter
- Rated output, 2.5kW, single phase 230V
- MPPT inputs, dual MPPT, maximum input current 14A per string
- Efficiency, maximum 97.3%
- Protection, AFCI arc fault protection with integrated DC switch
- Export control, integrated Export Power Manager (EPM)
- Build, fanless operation, IP66 rated enclosure, 11kg, 310 x 543 x 160mm
Applications
Suited to small residential rooftop solar PV systems, including grid-tied installations that need export limitation. As a grid tie power inverter it connects PV output directly to the domestic supply, feeding surplus generation back to the grid.
Installation notes
Grid connection requires G98 compliance in the UK, and installation must be carried out by a qualified MCS-accredited installer. A compatible Wi-Fi datalogger is available separately for SolisCloud remote monitoring.
Technical Specifications 21 rows Show
| Specification | Value |
|---|---|
| Model | S6-GR1P2.5K |
| Max. DC input voltage (Volts) | 550 |
| Rated DC voltage (Volts) | 250 |
| Startup voltage (Volts) | 60 |
| MPPT voltage range (Volts) | 50...450 |
| Max. input current (Amps) | 14+14 |
| Max short circuit input current (Amps) | 22+22 |
| MPPT count / max input strings | 2/2 |
| Rated output power (Watts) | 2500 |
| Max. output power (Watts) | 2800 |
| Rated grid voltage (Volts) | 1/N/PE, 220/230 |
| Rated output current (Amps) | 11.4/10.9 |
| Max. output current (Amps) | 13.3 |
| Max. efficiency | 97.3% |
| EU efficiency | 96.5% |
| Dimensions | 310W*543H*160D (mm) |
| Weight | 11kg |
| Ingress protection | IP66 |
| Max. operating altitude | 4000m |
| DC connection type | MC4 connector |
| Warranty terms | 5 Years (Extendable to 20 Years) |
Manufacturer datasheet. Figures as published by the manufacturer.
