All Single-Phase Hybrid Inverters

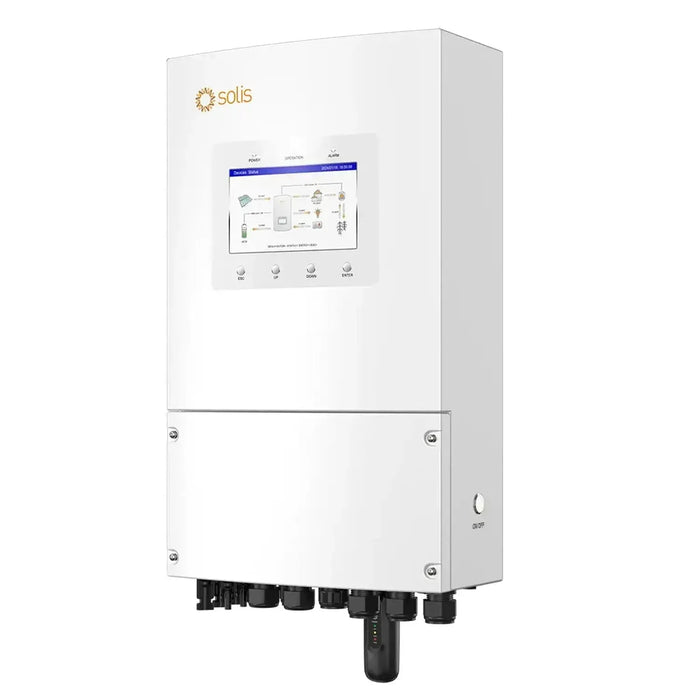

Solis hybrid solar inverter with white casing, display screen showing system diagram, and multiple connection ports at the ba

Solis S6-EH1P5K-L-PLUS 5kW Hybrid Solar Inverter Wi-Fi

£966.00
Skip to product information
Solis hybrid solar inverter with white casing, display screen showing system diagram, and multiple connection ports at the ba
Solis S6-EH1P5K-L-PLUS 5kW Hybrid Solar Inverter Wi-Fi

Solis S6-EH1P5K-L-PLUS 5kW Hybrid Solar Inverter Wi-Fi

Vendor
Solis
SKU
002763
Availability
Available to order
Weight
15.0 kg

Not in stock right now. We will confirm the lead time before dispatch.

£966.00inc VAT £805.00exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Solis S6-EH1P5K-L-PLUS is a 5kW single phase hybrid inverter built for residential solar and battery storage systems. It handles 32A MPPT input current, so it works with current high-output solar modules, and it is G98 and G99 compliant and MCS certified for UK grid connection. A Wi-Fi dongle and energy meter come included as standard.

Solis 5kW hybrid solar inverter features

  • Output, 5kW rated single phase, 230V
  • MPPT input current, 32A, suited to high-power solar modules
  • Charge and discharge control, 6-stage timed function plus a smart AC timer for off-peak tariff charging
  • Backup switching, under 4ms, UPS-grade
  • Overload capability, 200% for 10 seconds
  • Backup ports, dual, for separating critical and non-critical loads

Operation modes and connectivity

The inverter runs on-grid, hybrid or off-grid, with zero-export mode supported and an independent generator interface. Units can be paralleled up to 48kW combined output. Monitoring runs through SolisCloud via the included Wi-Fi dongle.

Tariff optimisation and backup

The 6-stage timed charge and discharge function lets the battery charge overnight from the grid at lower tariff rates, then discharge during peak hours, working alongside time-of-use tariffs such as Octopus Agile or Economy 7 without manual intervention. The sub-4ms backup switching keeps computers, NAS devices and other sensitive equipment running through a grid outage, with the dual backup ports letting critical loads draw on battery capacity ahead of non-essential circuits.

Applications

  • Residential solar PV and battery storage
  • Time-of-use tariff optimisation
  • UPS-grade backup for sensitive equipment
  • Self-consumption and export control
  • Properties with generator backup

What's in the box

  • 1 x Solis S6-EH1P5K-L-PLUS 5kW hybrid inverter
  • Wi-Fi dongle for SolisCloud monitoring
  • Energy meter

Installation notes

Grid connection requires G98 or G99 compliance in the UK, and installation must be carried out by a qualified MCS-accredited installer. Battery type, BMS protocol and export settings need to be configured on commissioning.

Technical Specifications 8 rows Show
Solis S6-EH1P5K-L-PLUS 5kW hybrid inverter specifications
DC input (PV side)Recommended Max. PV: 10 kW | Max. Usable PV: 8 kW | Max. Input Voltage: 500 V | Rated Voltage: 330 V | Start-up: 90 V | MPPT Range: 90-435 V | Max. Input Current: 16 A / 16 A | MPPT: 2 / 2
Battery connectionLi-ion / Lead-acid | 40-60 V | Max. Charge/Discharge: 5 kW / 112 A
AC output (grid)5 kW / 5 kVA | 220/230 V | 50/60 Hz | 22.8 A / 21.8 A | PF >0.99 | THDi <2%
AC input (grid)187-253 V | Max. 32 A | 45-55 Hz / 55-65 Hz
AC output (backup)5 kW rated | Switch time: <4 ms | 220/230 V | 22.8 A / 21.8 A | Max. AC passthrough: 40 A
Efficiency ratingsMax: 96.2% | EU: 96.1% | BAT Charged by PV/AC: 95.3% / 93.9% | BAT Discharged to AC: 93.8%
Physical and environmental335 x 560 x 253 mm | 23 kg | IP66 | -40 to +60°C | Max. Altitude: 3000 m
Connections and displayMC4 plug (PV) / Terminal Block (BAT) | 7.0" LCD | Bluetooth + APP | RS485, CAN, Wi-Fi optional

Manufacturer datasheet. Figures as published by the manufacturer.

Datasheets & documents
