Solis 3kW Dual MPPT Single Phase Grid-Tie Inverter | S6-GR1P3K-DC
£346.50
Skip to product information
Solis 3kW Dual MPPT Single Phase Grid-Tie Inverter | S6-GR1P3K-DC
- Vendor
- Solis
- SKU
- S6-GR1P3K-DC
- Availability
- In stock
- Weight
- 11.2 kg
£346.50inc VAT £288.75exc VAT
Secure checkout
Talk to our sales team
Product Description

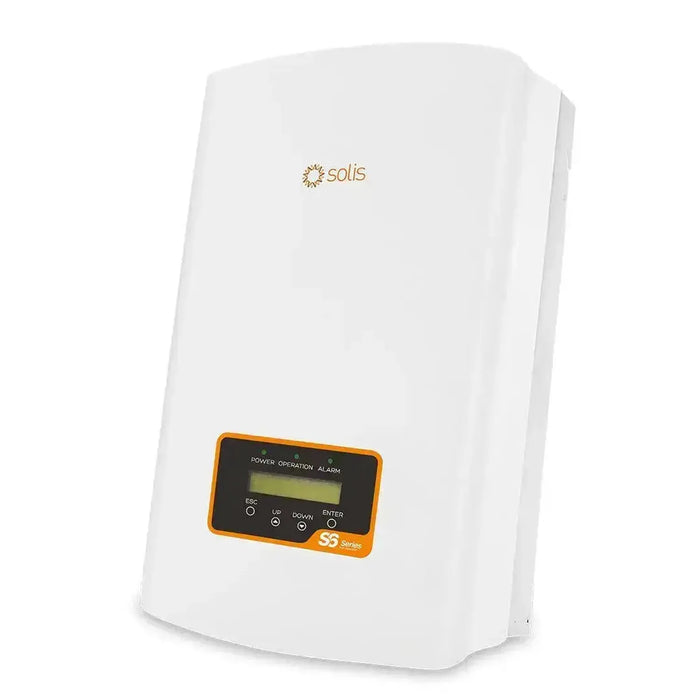

The Solis S6-GR1P3K-DC is a 3kW single phase grid-tied inverter with dual MPPT, built for residential solar PV installations. It weighs 11.2kg and accepts up to 14A per string, working with high-efficiency and bifacial modules. An integrated DC switch, export power manager and AFCI protection are built in, and the enclosure is IP66 rated.
Solis 3kW inverter key features
- Rated output, 3kW, single phase 230V
- MPPT inputs, dual MPPT, maximum input current 14A per string
- Efficiency, maximum 97.3%
- Protection, integrated Export Power Manager (EPM), AFCI arc fault protection and DC switch
- Enclosure, IP66 rated
- Size and weight, 310 x 543 x 160mm, 11.2kg
Applications
This inverter suits residential rooftop solar PV systems, including installations where export limitation is required by the network operator.
Installation notes
Grid connection must meet G98 compliance in the UK, and installation should be carried out by an MCS-accredited installer. A compatible Wi-Fi datalogger is available separately for SolisCloud remote monitoring.
Technical Specifications 35 rows Show
| Specification | Value |
|---|---|
| Model | S6-GR1P3K |
| Max DC input voltage (Volts) | 600 |
| Rated DC voltage (Volts) | 330 |
| Startup voltage (Volts) | 120 |
| MPPT voltage range (Volts) | 90...520 |
| Max input current (Amps) | 14+14 |
| Max short circuit input current (Amps) | 22+22 |
| MPPT count / max input strings | 2/2 |
| Rated output power (Watts) | 3000 |
| Max output power (Watts) | 3300 |
| Max apparent output power (VA) | 3300 |
| Rated grid voltage (Volts) | 1/N/PE, 220/230 |
| Rated output current (Amps) | 13.6/13 |
| Max output current (Amps) | 15.7 |
| Power factor (at rated output power) | >0.99 (0.8 leading - 0.8 lagging) |
| THDi (at rated output power) | <3% |
| Rated grid frequency (Hertz) | 50/60 |
| Operating frequency range (Hertz) | 45...55 or 55...65 |
| Max efficiency | 97.3% |
| EU efficiency | 96.6% |
| Dimensions | 310W*543H*160D (mm) |
| Weight | 11.2kg |
| Topology | Transformerless |
| Night self-consumption | <1 W |
| Operating ambient temperature range | -25°C to +60°C |
| Relative humidity | 0-100% |
| Ingress protection | IP66 |
| Typical noise emission | <20 dBA |
| Cooling concept | Natural convection |
| Max operation altitude | 4000m |
| DC connection | MC4 connector |
| AC connection | Quick connection plug |
| Display | LCD |
| Communication connections | RS485, Optional: Wi-Fi, GPRS |
| Warranty terms | 5 Years (Extendable to 20 Years) |
Manufacturer datasheet. Figures as published by the manufacturer.
