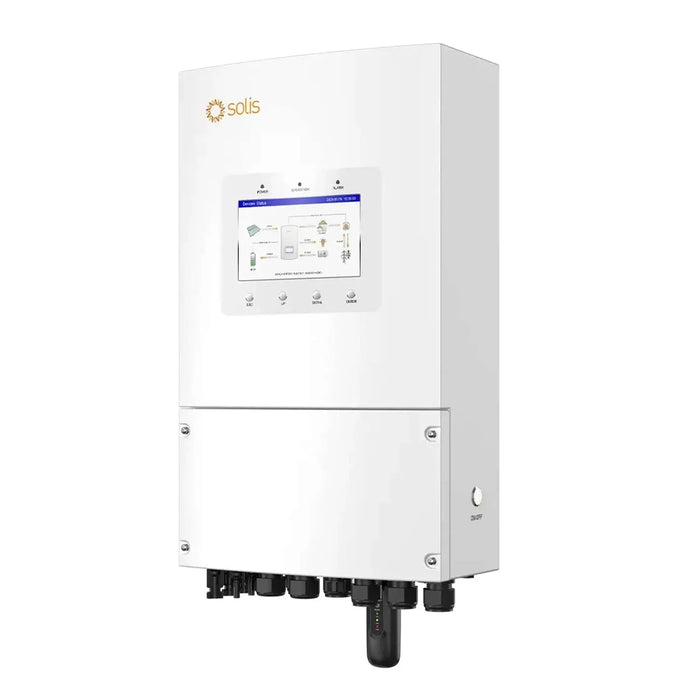

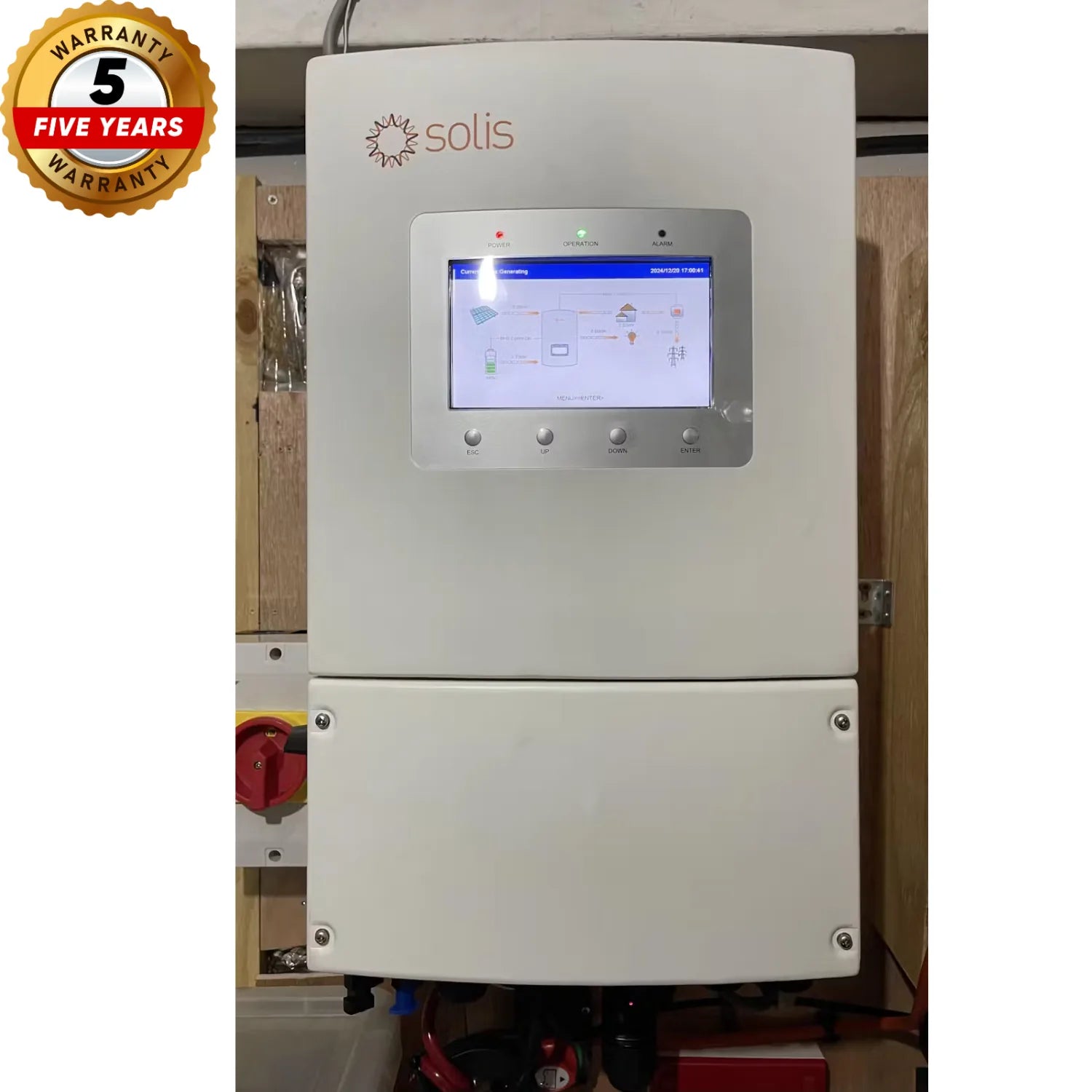

Solis 8kW Hybrid Solar Inverter 32A MPPT | S6-EH1P8K-L-Plus

The Solis S6-EH1P8K-L-PLUS is an 8kW single phase hybrid inverter for residential solar PV and battery storage. It uses dual MPPT trackers with 32A MPPT input current and supports a PV array of up to 16kW, making it suitable for larger domestic installations with high-output panels.

Key features

• Rated output, 8kW, single phase 230V
• MPPT design, dual trackers with 32A MPPT input current, supporting up to 16kW PV array
• Backup switching, under 4ms
• Overload capability, 200% for 10 seconds
• Charge and discharge, 6-stage timed control with independent generator interface
• Parallel operation, up to 48kW combined

Compliance and monitoring

The inverter is IP66 rated, G98 and G99 compliant, and MCS certified. A Wi-Fi dongle and energy meter are included for SolisCloud monitoring.

Time-of-use tariffs

The 6-stage timed charge function lets you set charging periods to align with low-tariff windows such as Octopus Agile or Economy 7, then set discharge for peak periods. Once configured, this runs automatically without manual intervention.

Applications

Suited to residential solar PV and battery storage, high-output panel installations requiring 32A string input, time-of-use tariff optimisation, backup power for essential household loads, and larger parallel installations up to 48kW combined.

What's in the box

• 1 x Solis S6-EH1P8K-L-PLUS 8kW hybrid inverter
• Wi-Fi dongle for SolisCloud monitoring
• Energy meter

Installation notes

Grid connection requires G98 or G99 compliance in the UK depending on system size. Installation must be carried out by a qualified MCS-accredited installer, with battery type, BMS protocol, export settings and CT clamp position configured and verified on commissioning.
