10kW Hybrid Solar Inverter 3-Phase Dual AC IP65 | Conversol

The Conversol 10kW hybrid solar inverter is a three-phase unit designed for installations that need outdoor mounting and flexible load management. It combines four independent MPPT inputs, dual AC input and output, and an IP65 rated enclosure, and it ships with an energy meter for self-consumption tracking.

Key features of this 10kW hybrid solar inverter

• Output: 10kW three-phase.
• MPPT inputs: 4 independent trackers, 26A maximum PV input current per MPPT.
• AC input: dual, supports grid and generator simultaneously.
• AC output: dual, for separating critical and non-critical loads.
• Enclosure: IP65 rated for outdoor installation.

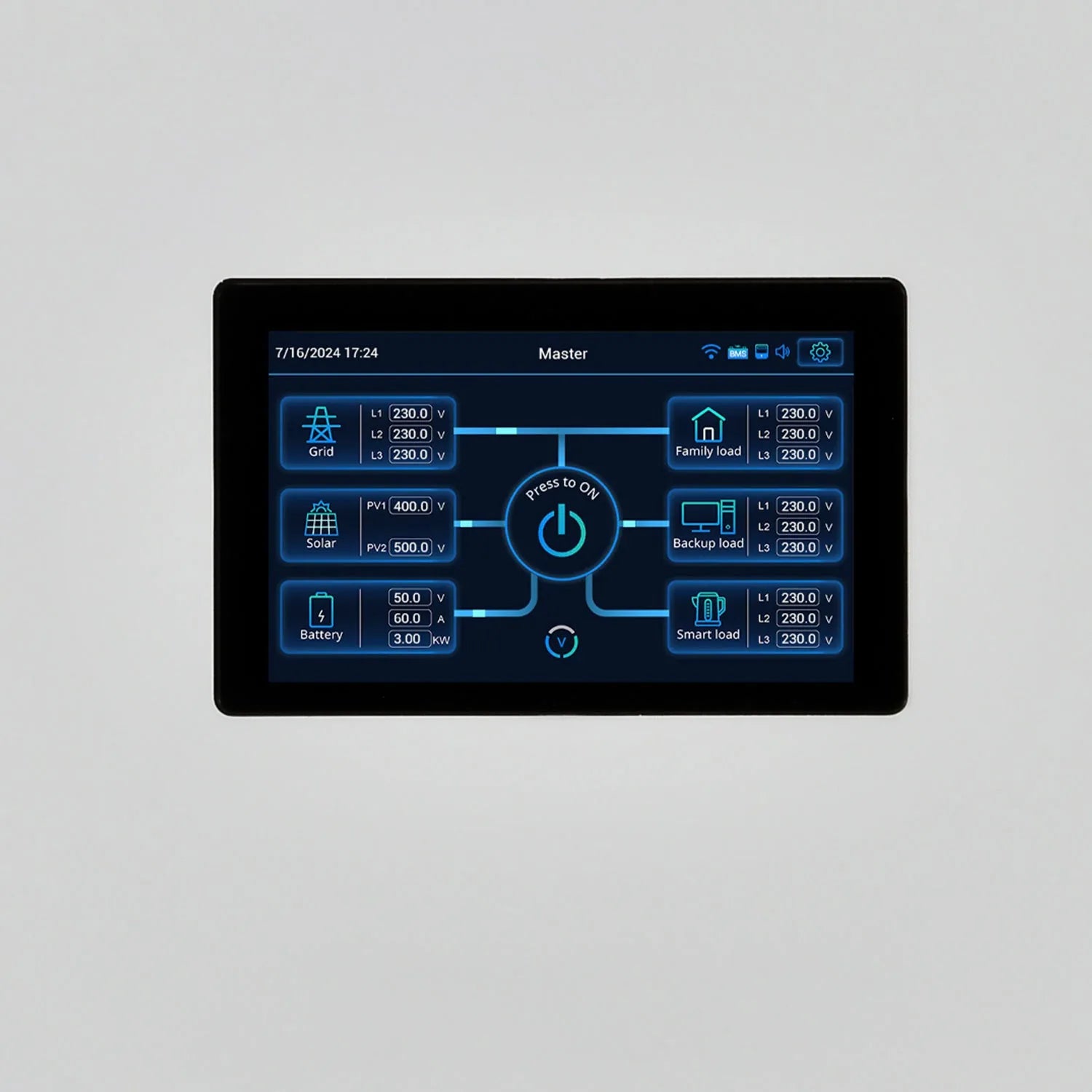

• Monitoring: built-in Wi-Fi and an HMI LCD touchscreen with five preset energy scenarios.

Applications

The dual AC input and output make this inverter suited to three-phase residential and commercial solar systems, off-grid and hybrid sites that need the unit mounted outdoors, and installations with generator backup. It supports 150% unbalanced load across the three phases and can be run in parallel with up to six units for larger systems.

Load management

Output 1 stays live at all times. Output 2 can be switched independently based on time, battery state or grid availability, which suits high-consumption circuits such as water heaters or EV chargers without touching the critical supply. An RS485 port handles BMS communication, the charging current is user-adjustable, and the included energy meter supports self-consumption mode.

Installation notes

Three-phase grid connection requires G99 compliance in the UK, and fitting should be carried out by a qualified MCS-accredited installer. Confirm battery compatibility and BMS protocol before commissioning. The IP65 enclosure allows outdoor or exposed placement without a separate weatherproof box.
