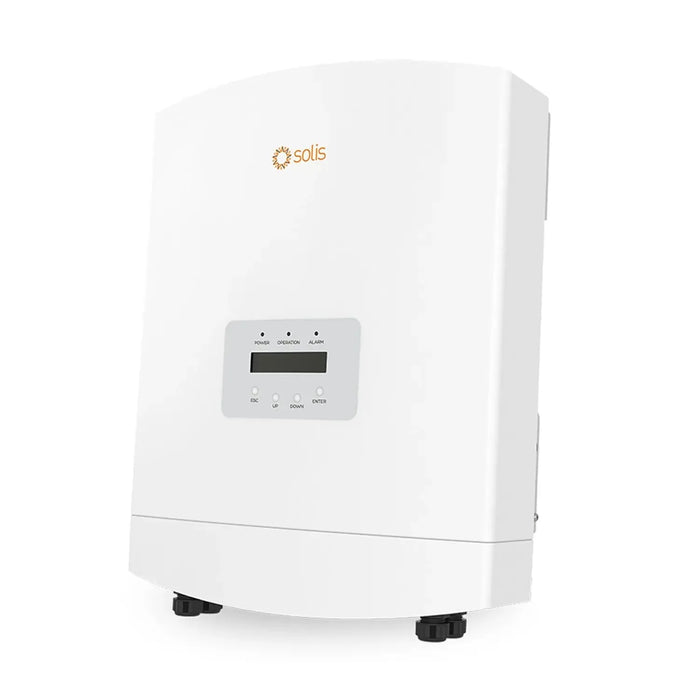

White Solis hybrid inverter with digital display panel showing power, operation, and alarm indicators, mounted on wall with b

Solis 3kW AC Coupled Hybrid Inverter | S5-EA1P3K-L

£833.49
Skip to product information
White Solis hybrid inverter with digital display panel showing power, operation, and alarm indicators, mounted on wall with b
Solis 3kW AC Coupled Hybrid Inverter | S5-EA1P3K-L

Solis 3kW AC Coupled Hybrid Inverter | S5-EA1P3K-L

Vendor
Solis
SKU
S5-EA1P3K-L
Availability
In stock
Weight
12.0 kg

£833.49inc VAT £694.58exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Solis S5-EA1P3K-L is a 3kW single phase AC coupled inverter that adds battery storage to an existing grid-tied solar PV system, or charges batteries directly from the mains grid. It does not need solar panels to operate, and works with both lithium-ion and lead-acid batteries. A CT current transformer is included for managing grid power flow.

Solis AC coupled inverter key features

  • Power, 3kW single phase AC coupled inverter and battery charger
  • Battery compatibility, lithium-ion and lead-acid, 40 to 60V, 50 to 2000Ah
  • Charge/discharge current, max 60A
  • Battery communication, CAN, for lithium battery BMS
  • Cooling, natural convection, no external fan
  • Grid compliance, G98/G99 for UK grid connection
  • Dimensions and weight, 405 x 510 x 150mm, 12.1kg

Product overview

The S5-EA1P3K-L lets homeowners and businesses with an existing grid-tied solar installation add battery storage without replacing their current inverter. It connects on the AC side of the system, charging the battery from solar generation or from the grid on an off-peak tariff, then discharging to supply loads during peak periods or a grid outage.

For properties without solar panels, the inverter can charge a battery bank purely from the mains at a low-cost overnight tariff and discharge during peak hours. No PV installation is required, and panels can be added later. Natural convection cooling removes the external fan found on many inverter-chargers, cutting noise and one common source of mechanical failure.

Applications

  • Adding battery storage to an existing grid-tied solar PV system
  • Off-peak tariff charging with peak-hour discharge, no solar panels needed
  • Self-consumption and backup power for residential and commercial properties
  • AC coupling with any brand of existing grid-tied inverter

Installation and safety notes

This inverter must be installed by a qualified electrician or MCS-accredited solar installer. G98 or G99 notification and DNO approval are required before grid connection. AC wiring, battery connections and earthing must comply with IET Wiring Regulations and the Solis installation manual, with CAN communication to the lithium battery BMS correctly configured before use.

Technical Specifications 21 rows Show
ParameterValue
ModelSolis S5-EA1P3K-L
Output Power3 kW
Max Apparent Power3 kVA
Phase1/N/PE (single phase)
Grid Voltage220 V / 230 V
Grid Voltage Range184–264 V
Grid Frequency50 Hz / 60 Hz
Grid Output Current13.6 A / 13 A
Max Output Current20 A
Power Factor>0.99 (0.8 leading to 0.8 lagging)
THDi<3%
Battery TypeLi-ion or lead-acid
Battery Voltage Range40–60 V
Battery Capacity Range50–2000 Ah
Max Charge / Discharge Current60 A
Battery CommunicationCAN
Max Battery Charge Efficiency94.0%
Max Battery Discharge Efficiency94.5%
Dimensions405 x 510 x 150 mm
Weight12.1 kg
Grid Connection StandardG98/G99 (UK), VDE-AR-N 4105, EN 50549-1 and others

Manufacturer datasheet. Figures as published by the manufacturer.
