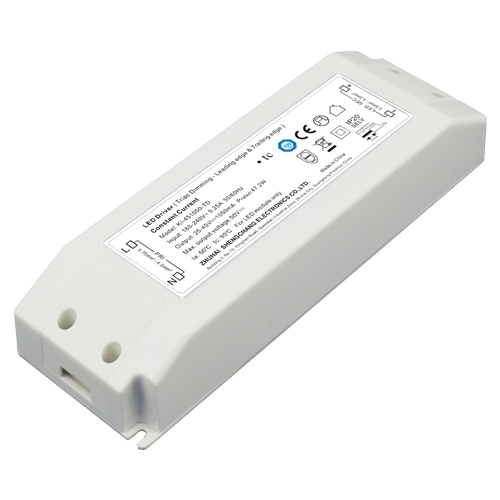

AC TRIAC LED Driver 47W. 1050mA Constant Current

Ref: VOL-451050-TD

£28.90

Price inc VAT

AC Triac LED Driver for Lead & Trailing Edge Dimming. 47W

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £28.03 Save 3%
12 Items £27.17 Save 6%
24 Items £26.59 Save 8%
Description
Specification
Downloads
Description

MAINS Dimmable LED Driver. AC TRIAC. 47Watt. Constant Current

VOLTACON power supplies are made quality electronics using high efficiency power electronics topologies. The new slim driver has only 35mm thickness and width 60mm, and fits in most lighting fixtures. The robust and slick plastic housing offers full protection and easy istallation. There are philips screws on each end of device: One side is connected directly to the mains voltage and the opposite side powers the LED arrays with DC voltage.

This product is certified by TUV, CE, EMC. It is safe to be used in indoor lighting applications.

Compatible with most dimmers

It is paramount to develope a driver that is widely acceptable in the LED lighting market. This LED driver is power from 180-240VAC voltage and works smoothly with almost all known trailing edge and leading edge switches.

This triac based power-supply has been successfully tested with Varilight, Lutron, Clipsal C-Bus System.

Constant Current Power Supply

The output voltage is 25-42Vdc with dc output current at 1040mA. Other versions are available on request

Product Feuatures

/media/blog/library/orange-led-tick.pngConstant current mode output with multiple levels selectable by dip switch

/media/blog/library/orange-led-tick.pngProtections: Short Circuit/ Over load/ Over Current

/media/blog/library/orange-led-tick.pngFull protection plastic housing easy installation

/media/blog/library/orange-led-tick.pngIP20 design for indoor installation

/media/blog/library/orange-led-tick.pngCooling by free air convection

/media/blog/library/orange-led-tick.pngDimming function: Triac dimmable Phase cut dimmable

Mechanical Dimmensions

180*60*35mm

Specification

Main Electrical Characteristic. Dimmable AC-Triac Driver. 47Watt

  • Rated Current: 1050mA
  • Output Voltage 25-45VDC
  • Rated Power : 47.52Watt
  • Frequency 47-63Hz
  • Power Factor Correction : 0.92
  • Efficiency 86%
  • AC Input Current 0.33A
  • Overload protection LESS than 120%

Protection Features:

  • Over Voltage Protection <50V
  • Short circuit protection
  • Working temperature -40-+60℃



Downloads

Technical Manual

AC TRIAC Led Driver 47W

Technical Specifications of 47W LED Dimmable Driver
