Philips Xitanium LED Driver 44W 0.9-1.05A 42V Constant Current Non-Dimmable
- Vendor
- Philips
- SKU
- 770033
- Availability
- In stock
- Weight
- 0.1 kg
£14.06inc VAT £11.72exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The Philips Xitanium 44W is a non-dimmable constant current LED driver for downlights, spotlights, panels and other luminaires. It runs COB and mid-power LEDs from any LED manufacturer, giving 30...42V DC output from a 220...240 Vac, 50...60 Hz supply.
Philips Xitanium LED driver features

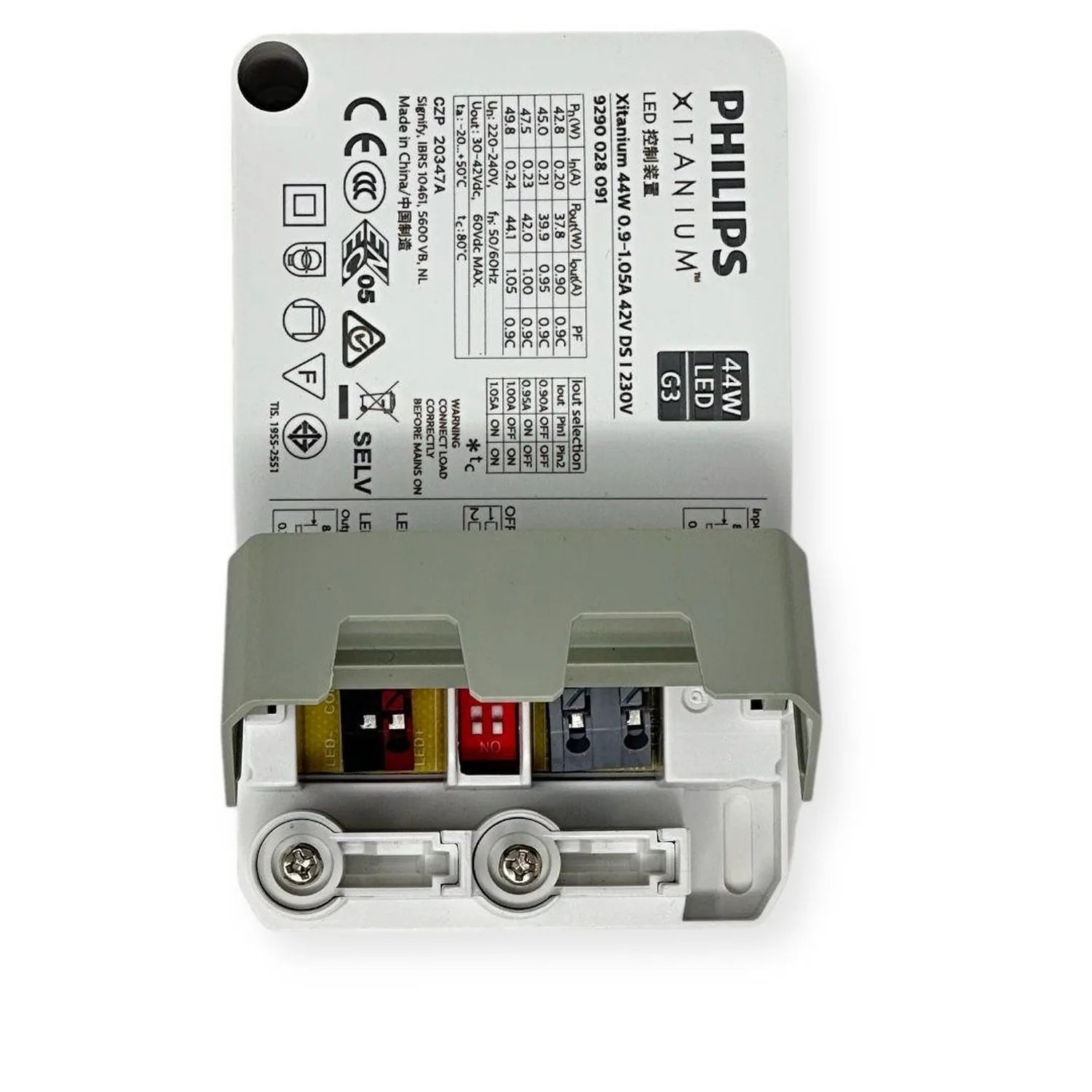

- Selectable output current: protected DIP switch with settings of 0.9, 0.95, 1.0 or 1.05A, set to 1050mA from the factory.
- Efficiency: 89%, with a power factor of 0.9.
- Current ripple: less than 1% on the output.
- Isolation: SELV output.
- Protection: open load, short circuit and over power protection, with automatic recovery.
- Lifetime: 50,000 hours.
Where it fits
Public buildings are a natural home for it. Airports, cinemas and exhibition halls all appear on the Philips list, alongside supermarkets, shops and offices. The driver sits in its own independent housing, so it can be installed stand-alone rather than inside the luminaire body. It suits luminaires of protection class I and II.
Installation notes

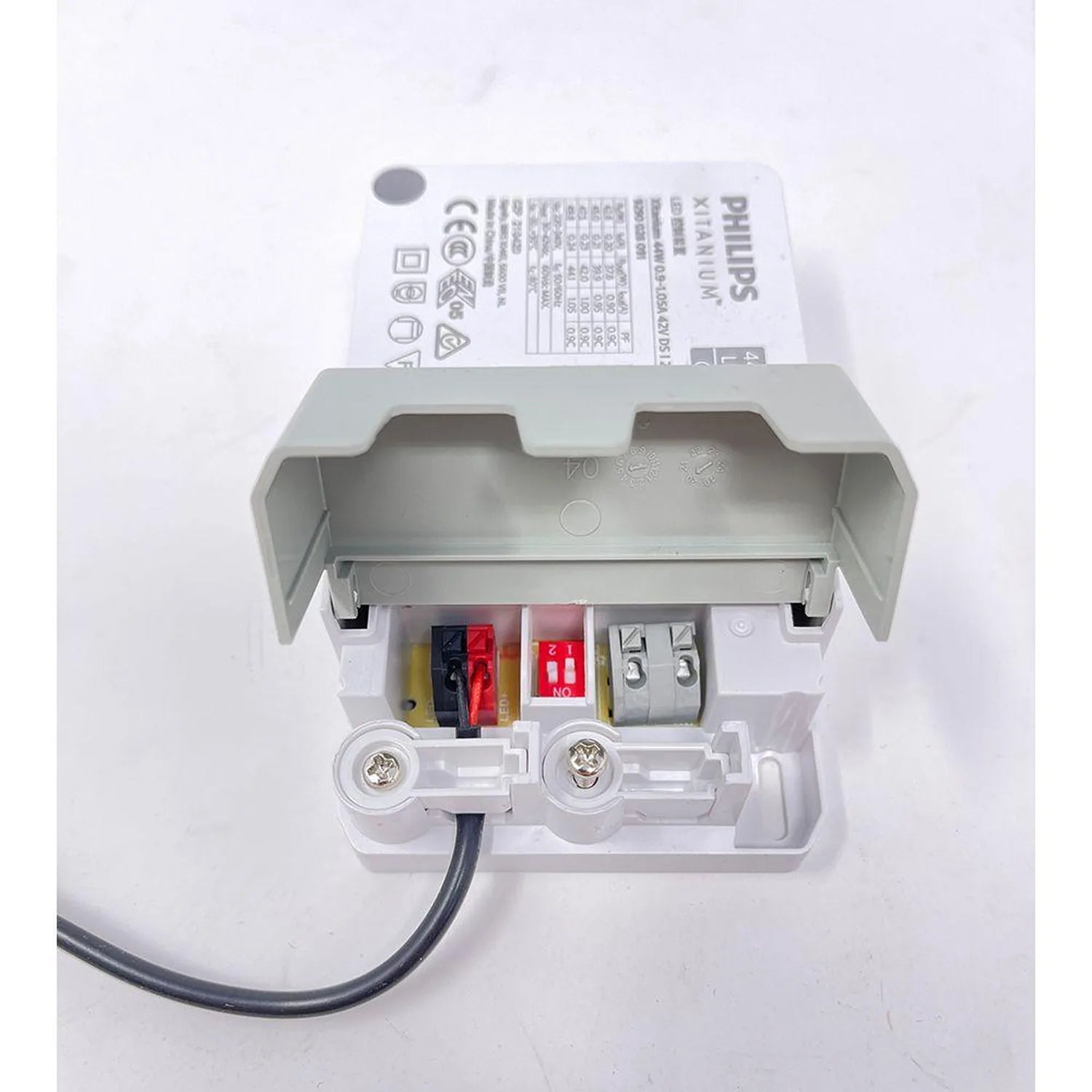

Installation must be done by a qualified electrician. Choose a well-ventilated place. Both input and output terminals accept 0.75...1.5 mm2 wire, solid or stranded, with a strip length of 8...9 mm, and the mounting holes are 3.6 mm in diameter. The housing is rated IP20, and the maximum cable length on the output side is 0.6 m.
About the lifetime figure
The 50,000 hour rating is quoted with the Tcase point at 70 C and a maximum of 10% failures. Keep that case temperature in mind when choosing a location, since a hot, enclosed space works against it.
Technical Specifications 38 rows Show
| Brand | Philips |

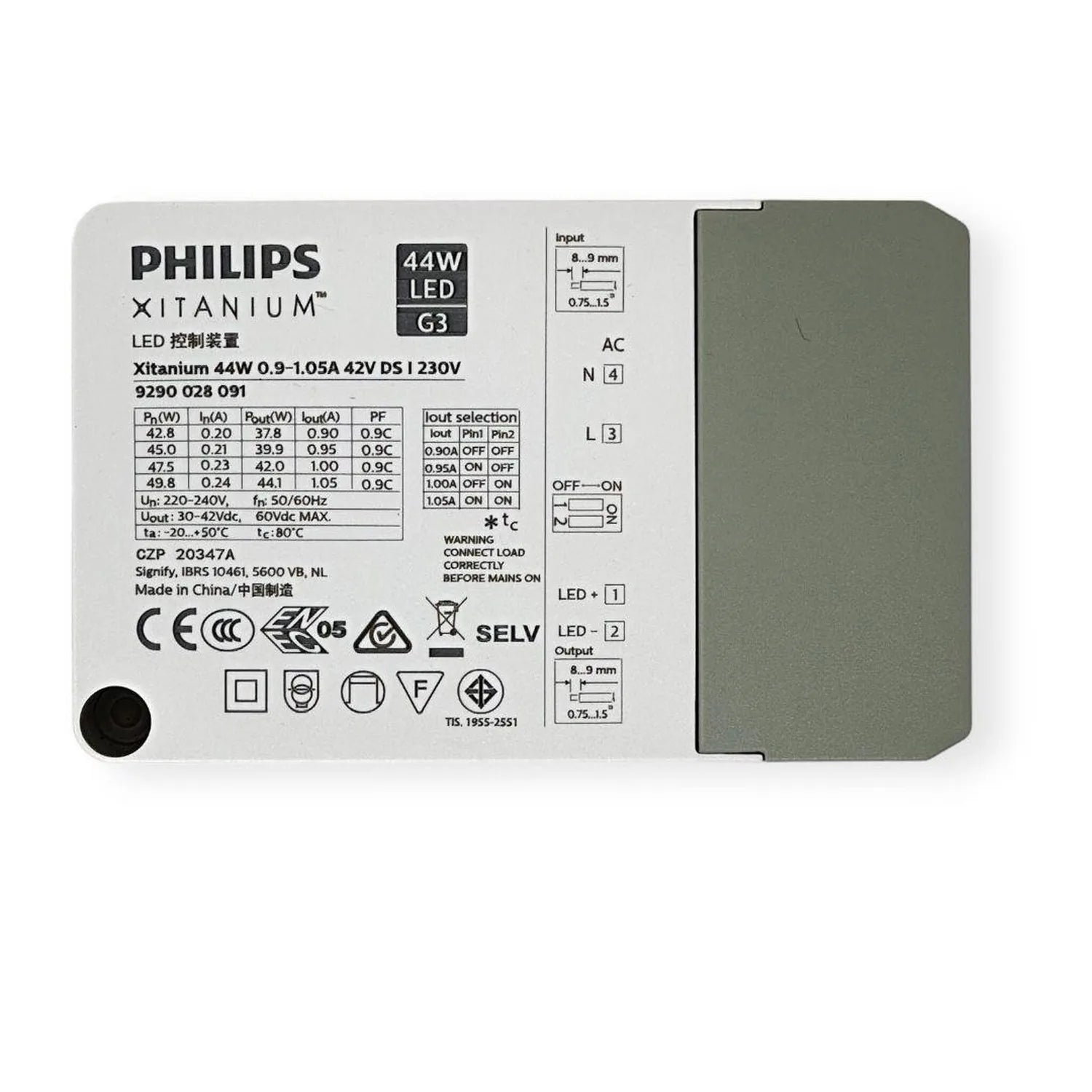

| Model | Xitanium 44W 0.9-1.05A 42V DS I 230V |
| Logistic code (12NC) | 9290 028 09106 |
| Rated input voltage range | 220...240 Vac |
| Input voltage AC range (operational) | 202...254 Vac |
| Rated input frequency range | 50...60 Hz |
| Rated input current | 0.24 A |
| Rated input power | 49.8 W |
| Power factor | 0.9 |
| Total harmonic distortion | 20 % |
| Efficiency | 89 % |
| Regulation method | Constant Current |
| Output current | 0.9 / 0.95 / 1.0 / 1.05 |
| Default output current | 1050 mA |
| Output voltage | 30...42 V |
| Output voltage max. | 60 V |
| Output power | 27...44.1 |
| Output current ripple | < 1 |
| Maximum cable length | 0.6 m |
| Isolation input to output | SELV |
| Protection | Open load, short circuit and over power protection, automatic recovering |
| Suitable for fixtures with protection class | I and II per IEC60598 |
| Hot wiring | No |
| Inrush current Ipeak | 19.5 A |
| Drivers per 16A type B MCB | 40 pcs |
| Ambient temperature | -20...+50 C |
| Tcase-max | 80 C |
| Tcase-life | 70 C |
| Relative humidity | 10...90 % |
| Driver lifetime | 50,000 hours |
| Dimensions | 108 x 68 x 32 mm |

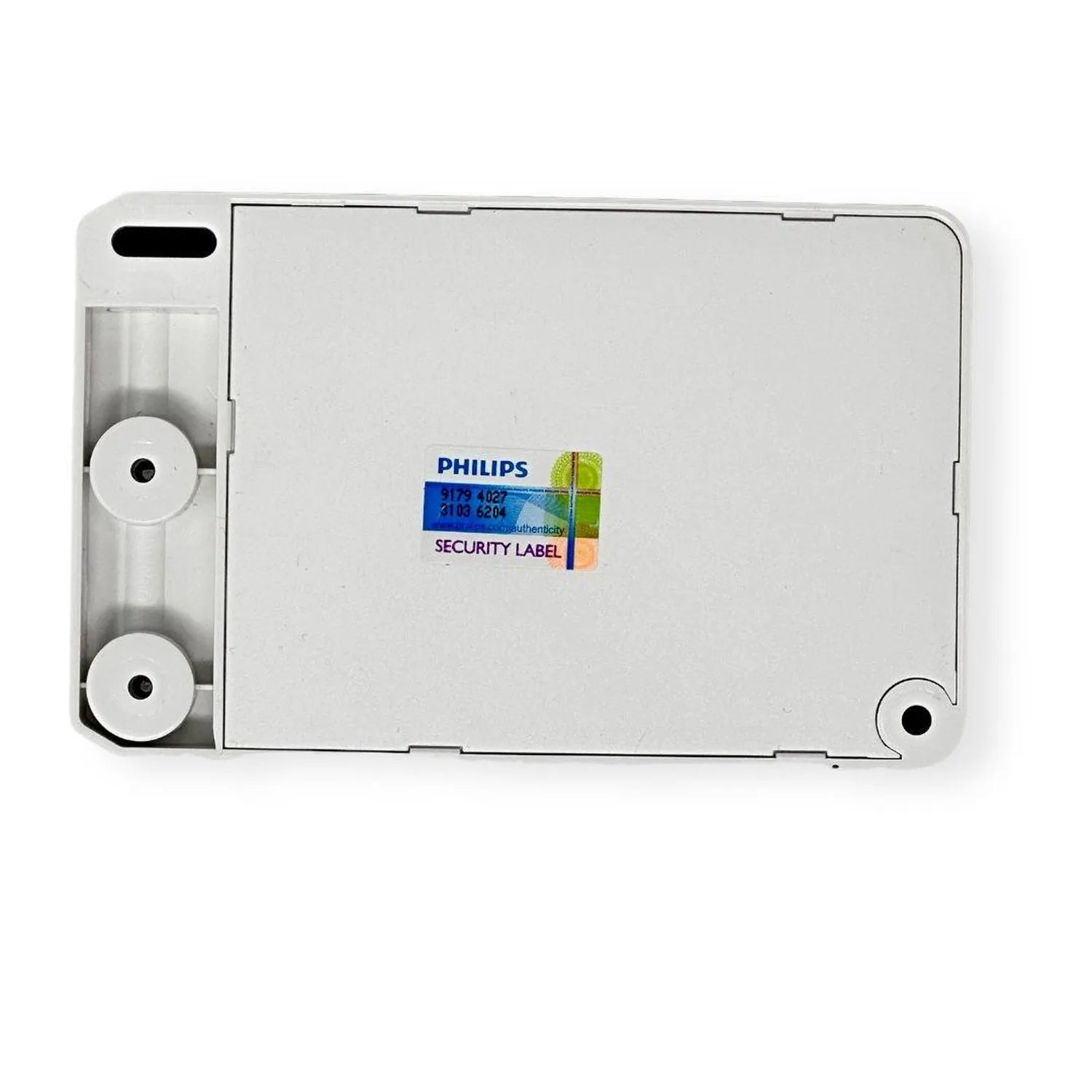

| Mounting hole diameter | 3.6 mm |
| Wire cross-section | 0.75...1.5 mm2, solid / stranded |
| Wire strip length | 8...9 mm |
| Weight | 134 gram |
| IP rating | IP20 |
| Mains surge immunity | 1 kV (diff. mode), 2 kV (comm. mode) |
| Approval marks | CB / CCC / CE / ENEC / KC / RCM / TISI |
Manufacturer datasheet. Figures as published by the manufacturer.
