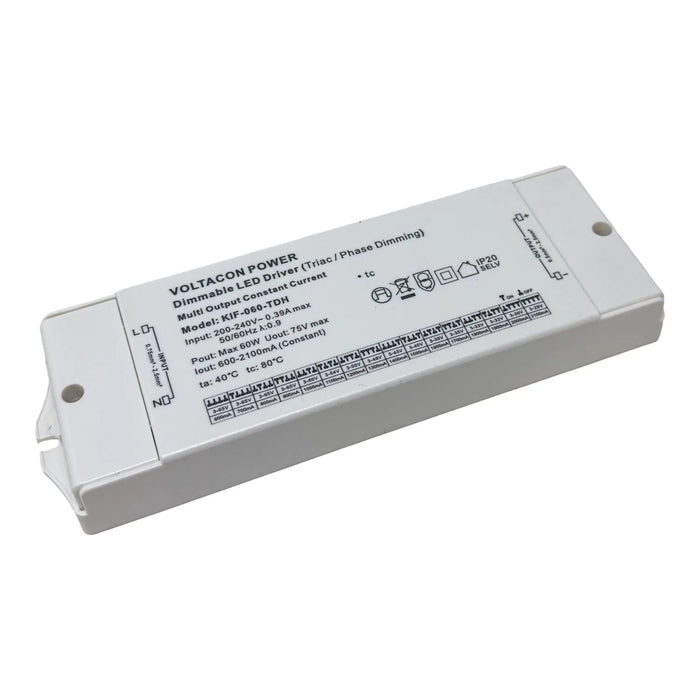

White rectangular LED driver unit with technical specifications and wiring diagram printed on top surface, shown at an angle

TRIAC Dimmable LED Driver 60W 0.6-2.1A Constant Current | Euchips

£26.20
Skip to product information
White rectangular LED driver unit with technical specifications and wiring diagram printed on top surface, shown at an angle

TRIAC Dimmable LED Driver 60W 0.6-2.1A Constant Current | Euchips

Vendor
Euchips
SKU
770009
Availability
In stock
Weight
0.1 kg

£26.20inc VAT £21.83exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 60W constant current driver powers LED downlights, spotlights, panels and ceiling lights, along with signage and display lighting. It works with standard phase-cut dimmers of both kinds: leading edge (TRIAC) and trailing edge (ELV). Output current is set on the DIP switches anywhere from 0.6A to 2.1A, so one driver can be matched to a range of LED loads.

TRIAC dimmable LED driver features

  • Output current: 0.6A to 2.1A constant current, selected by DIP switch
  • Current tolerance: ±5%
  • Dimming: leading and trailing edge phase-cut dimmers
  • Power factor: built-in active PFC, with efficiency up to 83%
  • Protection: short circuit, over current and over temperature, with automatic recovery
  • Construction: Class II design in a fully enclosed plastic housing, IP20, cooled by free air convection

Where it fits

The driver suits LED downlights and spotlights, panel and ceiling lights, and architectural or decorative schemes. Shops and showrooms can also use it for signage and display lighting. Because the current is adjustable, installers can carry a single unit for jobs with different LED loads rather than stocking a separate driver for each current rating.

Setting the current

Check the current rating of the LED load first. Then set the DIP switches to the matching value within the 0.6A to 2.1A range before powering up. Getting this right matters.

Installation notes

This is an indoor-only product, rated IP20. It should be fitted by a qualified person in a well-ventilated location, since cooling relies on free air convection and there is no fan. If a fault such as a short circuit or overheating occurs, the protection circuit shuts the output down and recovers automatically once the fault clears.

Technical Specifications 11 rows Show
TypeConstant current LED driver
PowerUp to 60W
Output current0.6A - 2.1A (Selectable via DIP switch)
Current tolerance±5%
Dimming typeTRIAC / Phase Cut (Leading & Trailing Edge)
Power factor correctionBuilt-in active PFC
EfficiencyUp to 83%
ProtectionShort circuit, over current, over temperature
CoolingFree air convection
ClassClass II, fully enclosed plastic housing
IP ratingIP20 (Indoor use)

Manufacturer datasheet. Figures as published by the manufacturer.
