Dimmable LED Driver 25W 700mA TRIAC 24-36V | Mean Well PCD-25-700B
- Vendor
- Meanwell
- SKU
- 770037
- Availability
- In stock
- Weight
- 0.1 kg
£27.25inc VAT £22.71exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

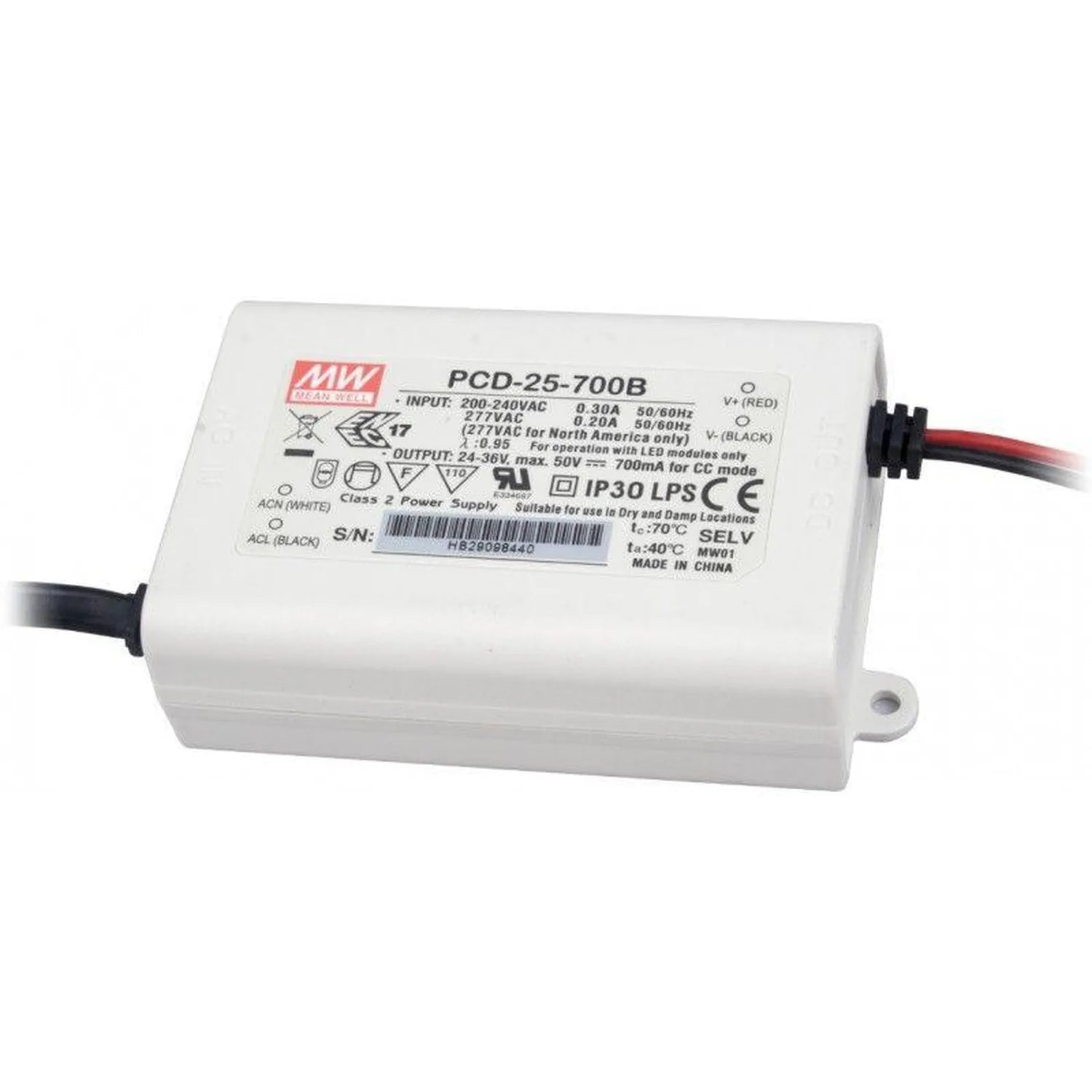

The Mean Well PCD-25-700B is a mains dimmable LED driver from the PCD-25 series. It takes its dimming signal straight from the mains supply, so a standard leading edge or trailing edge TRIAC dimmer switch controls it. Output is a constant 700mA across 24-36VDC, and the LED array runs without flicker.
Dimmable LED driver features
- Output current: 700mA constant current
- Operating voltage: 24 ~ 36V
- Rated power: 25.2W, with typical efficiency of 81%
- Input: 180~295VAC (B type), built-in active PFC with PF>0.9 at 230VAC
- Protection: short circuit and over temperature
- Housing: fully isolated plastic case, IP30 design, cooled by free air convection
Compatible lighting
Use it with LED tubes (T8/T5), PLG24 lamps, PLL2G11 lamps and any other LED light that needs a 700mA constant current driver. It is intended for indoor LED lighting only.
Installation notes
Wire the driver directly to the LEDs. It is not suitable for use alongside additional drivers. To comply with the ErP regulation for lighting fixtures, fit it behind a switch rather than leaving it permanently connected to the mains.
Dimming works with AC phase-cut controls, covering both leading edge and trailing edge TRIAC dimmers. That makes it a practical choice when an existing dimmer switch is staying on the wall and the lamps behind it are moving to LED. Mean Well covers the unit with a 3 years warranty.
Technical Specifications 31 rows Show
| Brand | Mean Well |
| Model | PCD-25-700B |
| Series | PCD-25 |
| Rated current | 700mA |
| Operating voltage range | 24 ~ 36V |
| Rated power | 25.2W |
| Current accuracy | 5.0% |
| Ripple and noise (max.) | 2.7Vp-p |
| No load output voltage (max.) | 50V |
| Input voltage (B type) | 180~ 295VAC |
| Frequency range | 47 ~ 63Hz |
| AC current (typ.) | 0.3A/230VAC |
| Power factor | PF>0.9/230VAC |
| Power factor correction | Built-in active PFC |
| Efficiency (typ.) | 81% |
| Setup time | 500ms / 230VAC |
| Inrush current (max.) | COLD START 10A(twidth=20s measured at 50% Ipeak) at 115VAC / 230VAC |
| Dimming | AC phase-cut, leading edge and trailing edge TRIAC dimmers |
| Conduction angle | 30 degrees(min.) / 180 degrees(max.) |
| Protections | Short circuit / Over temperature |
| Working temperature | -30 ~ +60 |
| Working humidity | 20 ~ 95% RH non-condensing |
| IP rating | IP30 |
| Housing | Fully isolated plastic case |
| Cooling | Free air convection |
| Class | Class 2 power unit |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Dimensions | 84*57*29.5mm (L*W*H) |
| Weight | 0.19Kg |
| MTBF | 906.5K hrs min. |
| Warranty | 3 years |
Manufacturer datasheet. Figures as published by the manufacturer.
