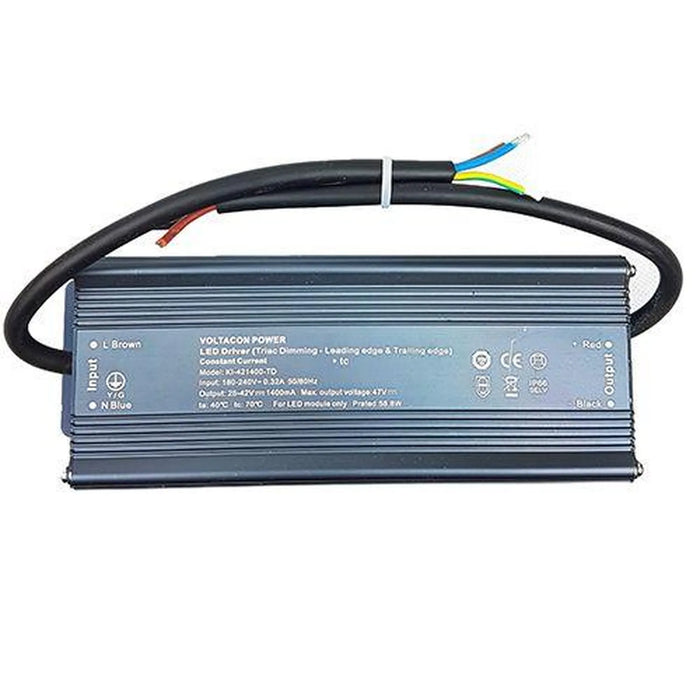

Voltacon Power LED driver with ribbed aluminum housing, input and output terminals, and black cable with exposed blue and yel

TRIAC Dimmable LED Driver 58W Constant Current 25-42V DC IP66 | Ledison

£35.65
Skip to product information
Voltacon Power LED driver with ribbed aluminum housing, input and output terminals, and black cable with exposed blue and yel

TRIAC Dimmable LED Driver 58W Constant Current 25-42V DC IP66 | Ledison

Vendor
Ledison
SKU
770013
Availability
In stock
Weight
1.0 kg

£35.65inc VAT £29.71exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 58W constant current LED driver dims from an ordinary mains wall dimmer. Mains goes in on one side. On the other, a 25-42Vdc output feeds your LED arrays.

Dimmable LED driver features

  • Output: 25-42Vdc, constant current, 1400mA
  • Power: 58W
  • Input: 180-240VAC
  • Power factor: 0.95 P.F. with active power factor correction
  • Peak efficiency: 90% at full load
  • Housing: IP66 aluminium

Dimmer compatibility

The driver accepts most leading edge and trailing edge dimmer switches, so it can go into a circuit that already has a TRIAC dimmer fitted. It has been tested with Varilight Vcom and VPro, with Lutron, and with the Clipsal C-Bus system. That gives installers a known starting point when pairing it with an existing dimming setup.

Build and certification

An aluminium case carries an IP66 rating. The unit is certified by TUV, CE and EMC. It measures 200 x 70 x 46mm and weighs 0.9kg, which is worth checking against the space available in a ceiling void or enclosure before you order.

Other versions

Further versions of this driver can be supplied on request. Get in touch if the 25-42Vdc output or 58W rating does not match your LED array.

Technical Specifications 15 rows Show
TypeConstant Current 58W LED Driver
Power58W
Dimmingtrailing edge and leading edge switches
Tested withVarilight Vcom and VPro, Lutron, Clipsal C-Bus System
Input voltage180-240VAC
Output voltage25-42Vdc
Output current1400mA
Power factor0.95 P.F.
Power factor correctionActive
Peak efficiency90% at full load
IP ratingIP66
Housingaluminium
CertificationTUV, CE, and EMC
Dimensions200 x 70 x 46mm
Weight0.9kg

Manufacturer datasheet. Figures as published by the manufacturer.
