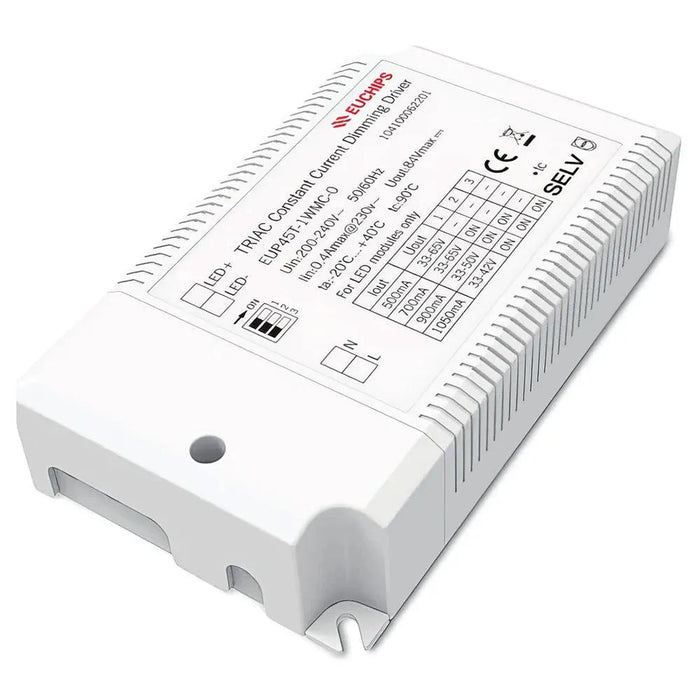

White rectangular LED driver with finned heat sink, top label showing Euchips branding and technical specifications including

45W AC Triac Dimmable LED Driver 230V Constant Current | Euchips

£25.73
Skip to product information
White rectangular LED driver with finned heat sink, top label showing Euchips branding and technical specifications including
45W AC Triac Dimmable LED Driver 230V Constant Current | Euchips

45W AC Triac Dimmable LED Driver 230V Constant Current | Euchips

Vendor
Euchips
SKU
770022
Availability
In stock
Weight
0.1 kg

£25.73inc VAT £21.44exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Euchips EUP45T-1WMC-0 is a constant current mode LED driver built for indoor lighting that needs smooth, flicker-free dimming. It runs from a 230V AC mains supply and works with both leading-edge (Triac) and trailing-edge (ELV) dimmers, so it drops into most existing dimming setups without extra gear.

Constant current led driver features

  • Selectable output current, 500/700/900/1050mA, set via the built-in DIP switch.
  • Dimmer compatibility, works with leading-edge (Triac) and trailing-edge (ELV) dimmers, including systems from Philips, Panasonic, Lutron, Simon, ABB and Siemens.
  • Dimming range, 40VAC to 240VAC.
  • Efficiency, up to 87%.
  • Power factor correction, built-in active PFC.
  • Housing, Class 2 power supply with a fully protective plastic enclosure.
  • Protection, short circuit, overload and over-temperature protection.

Applications

Suited to indoor LED fittings that need reliable dimming, such as downlights, spotlights and panel lights. The DIP switch current selection means one driver can cover several fitting types on a job, cutting down the number of SKUs an installer needs to stock.

Dimming performance

Smooth, flicker-free operation across the stated dimming range makes it a straightforward swap where an existing Triac or ELV dimmer needs to control constant current LED loads.

Technical Specifications 29 rows Show
Model EUP45T-1HMC-0
Output
Current 800mA, 850mA, 900mA, 950mA
Voltage 9-45VDC
Power 36W, 38.25W, 40.5W, 42.75W
Current 1000mA, 1050mA, 1100mA, 1150mA
Voltage 9-45VDC, 9-43VDC, 3-41VDC, 3-39VDC
Power 45W, 45.15W, 45.1W, 44.85W
Current accuracy ±5%
No load output voltage 55VDC Max
Output LF current ripple (<120 Hz) <3%
Channels 1
Input
Voltage 220-240VAC
Frequency 50/60Hz
Current 0.26A max @ 230VAC
Power factor >0.9 @ 230VAC, full load
THD <20% @ 230VAC, full load
Efficiency 85% @ 230VAC, full load
Inrush current Cold start, 40A (twidth = 24us measured at 50% Ipeak) @ 230VAC
Protection
Short circuit protection Closes output, recovers automatically after fault is removed
Overload protection Output current decreases when voltage is exceeded, recovers automatically when load is reduced
Over temperature protection Shuts down the output, recovers automatically when temperature returns to normal
Other Specifications
Dimming Triac/ELV
Dimensions 137*82*31 mm (L*W*H)
G.W. 240g
Working temperature -20℃ to 50℃
Relative humidity 20%-90% RH

Manufacturer datasheet. Figures as published by the manufacturer.
