TRIAC Dimmable LED Driver 20W 350-700mA | Euchips EUP20T-1HMC-0
- Vendor
- Euchips
- SKU
- 770024
- Availability
- In stock
- Weight
- 0.1 kg
£25.15inc VAT £20.96exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

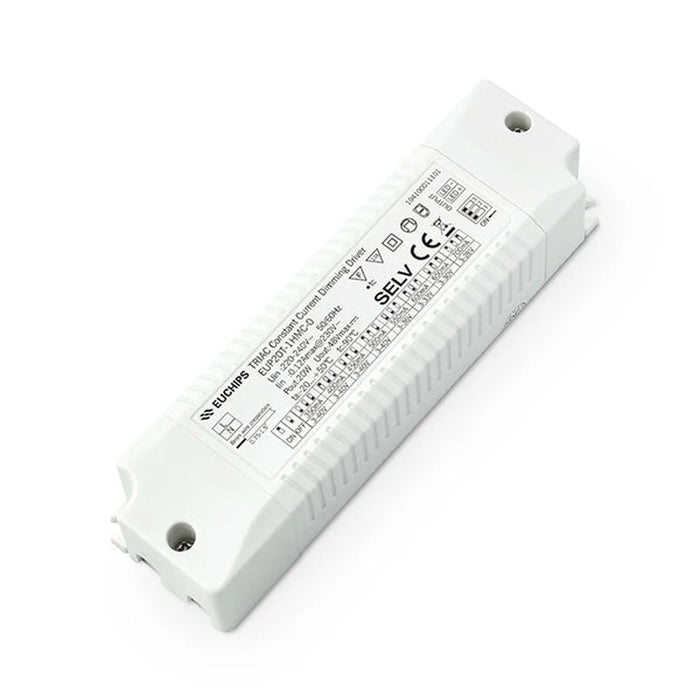

The Euchips EUP20T-1HMC-0 is a 20W constant current LED driver that dims from both leading edge (TRIAC) and trailing edge (ELV) dimmers. It suits downlights, spotlights and panel lights. A built-in DIP switch sets the output current anywhere from 350mA to 700mA, so one driver can be matched to the LED fitting in front of you.
TRIAC dimmable LED driver features
- Output current: 350mA to 700mA, selected by DIP switch, with ±5% current accuracy.
- Output voltage: 9-40V DC, rising to a maximum of 48V with no load.
- Mains input: 220-240V AC at 50/60Hz.
- Dimming: TRIAC (leading edge) or ELV (trailing edge), with a dimming range from 40VAC to 240VAC.
- Power factor and efficiency: power factor of ≥0.95 and efficiency up to 81%.
- Protection: short circuit, overload and over temperature, in a fully enclosed Class 2 housing rated IP20.
Where it fits
Use it to drive LED downlights, spotlights and panel lights, or for decorative and architectural lighting schemes. It works in homes as well as commercial buildings. The specification lists compatibility with dimming systems from Philips, Panasonic, Lutron, ABB and Siemens, which helps when the driver is going onto an existing control setup.
Installation notes
This is an indoor driver. The IP20 rating means that any outdoor installation needs a suitable waterproof enclosure around it. Leave space for airflow. Good ventilation matters, and the operating temperature range is given as -20°C to +50°C.
Measuring 150 x 43 x 29 mm, the housing is compact enough for most ceiling voids and fitting cavities. Before wiring, set the DIP switch to the current your LEDs are rated for. Getting this wrong is the usual cause of a dim or overdriven fitting.
Technical Specifications 20 rows Show
| Brand | Euchips |
| Model | EUP20T-1HMC-0 |
| Power | Up to 20W |
| Output current | 350mA - 700mA (Selectable via DIP switch) |
| Output voltage | 9 - 40V DC (Max 48V no load) |
| Input voltage | 220 - 240V AC |
| Frequency | 50 / 60Hz |
| Dimming type | TRIAC (Leading Edge) / ELV (Trailing Edge) |
| Dimming range | 40VAC to 240VAC |
| Compatible dimming systems | Philips, Panasonic, Lutron, ABB, Siemens |
| Power factor | ≥0.95 |
| Efficiency | Up to 81% |
| Current accuracy | ±5% |
| Protection | Short circuit, overload, over temperature |
| Power supply class | Class 2, fully enclosed protective housing |
| IP rating | IP20 |
| Operating temperature | -20°C to +50°C |
| Lifetime | Up to 50,000 hours |
| Dimensions | 150 x 43 x 29 mm |
| Weight | Approx. 130g |
Manufacturer datasheet. Figures as published by the manufacturer.
