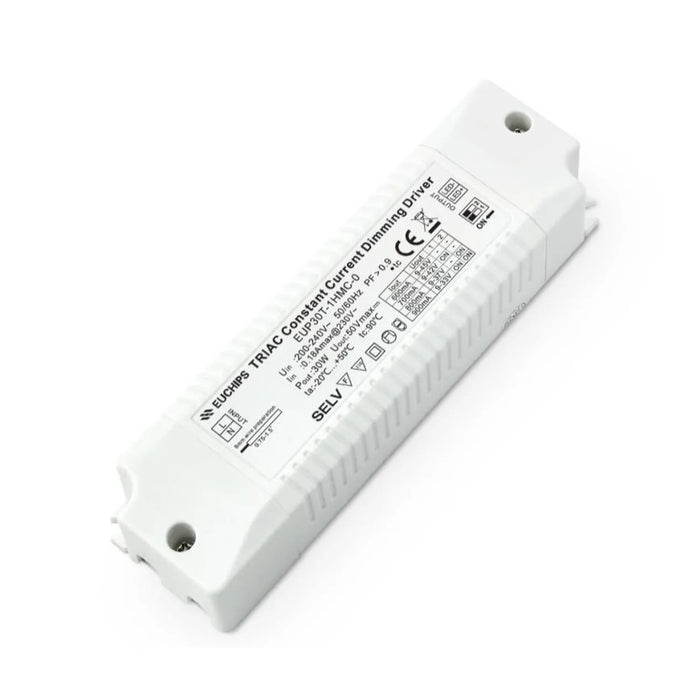

White rectangular LED driver with mounting holes, technical specifications and CE marking visible on label.

LED Dimmable Driver 30W TRIAC Constant Current | Euchips EUP30T-1HMC-0

£27.46
Skip to product information
White rectangular LED driver with mounting holes, technical specifications and CE marking visible on label.
LED Dimmable Driver 30W TRIAC Constant Current | Euchips EUP30T-1HMC-0

LED Dimmable Driver 30W TRIAC Constant Current | Euchips EUP30T-1HMC-0

Vendor
Euchips
SKU
770017
Availability
In stock
Weight
0.1 kg

£27.46inc VAT £22.88exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Euchips EUP30T-1HMC-0 is a 30W constant current LED driver built for dimmable lighting circuits. It supports both TRIAC (leading edge) and ELV (trailing edge) dimmers, so it works with the control gear already fitted in most homes and offices.

Key features of this led dimmable driver

  • Output current, selectable from 550mA to 900mA via a built-in DIP switch
  • Output voltage, 9 to 42V DC
  • Input voltage, 220 to 240V AC
  • Power factor, greater than 0.9
  • Efficiency, up to 82%
  • Current accuracy, ±5%

Dimming performance

The dimming voltage range runs from 40VAC to 240VAC, and the driver has been tested for compatibility with dimmers from Philips, Panasonic, Lutron, ABB and Siemens. This gives flicker-free control and stable output across that range.

Protection and build

The driver includes protection against short circuit, overload and over temperature, with automatic recovery once conditions return to normal. It operates between -20°C and +50°C, and comes in a fully enclosed plastic housing with a Class 2 power supply design.

Dimensions and weight

The unit measures 185 x 42.5 x 28.5mm and weighs 150g.

Applications

Suited to LED downlights, spotlights, panel lights and architectural fittings in residential and commercial installations.

Installation note

This driver is for indoor use only. If fitted outdoors it needs a suitable waterproof enclosure, and good ventilation is recommended around the unit.
