TRIAC Dimmable LED Driver 15W 280-450mA | Euchips EUP15T-1HMC-0
- Vendor
- Euchips
- SKU
- 770016
- Availability
- In stock
- Weight
- 0.1 kg
£19.37inc VAT £16.14exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

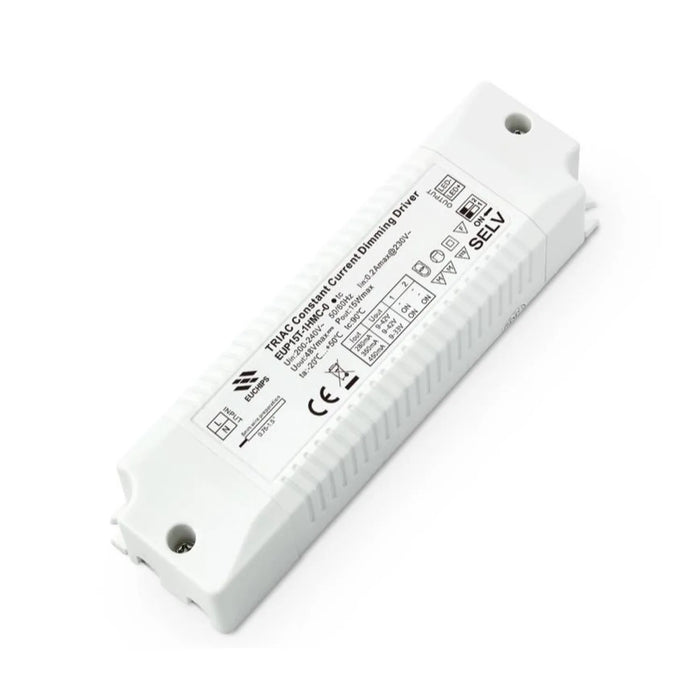

The Euchips EUP15T-1HMC-0 is a 15W constant current LED driver for downlights, spotlights and panel lights. It dims smoothly and without flicker on leading edge (TRIAC) and trailing edge (ELV) dimmers. You pick the output current on a DIP switch.
TRIAC dimmable LED driver features
- Selectable current: 280mA, 350mA, 380mA or 450mA by DIP switch. With both switches off it defaults to 280mA.
- Output voltage: 9-42VDC at 280mA and 350mA, 9-39VDC at 380mA, 9-33VDC at 450mA.
- Mains input: 200VAC - 240VAC, 50/60Hz, with a dimming range of 40VAC to 240VAC.
- Efficiency: 80% at full load.
- Accuracy: 5% current accuracy and 3% output ripple.
- Protection: short circuit, overload and over temperature, with automatic recovery.
Dimmer compatibility
The driver is listed as compatible with dimming systems from Philips, Panasonic, Lutron, Simon, ABB, Siemens and Dalitek. Both TRIAC and ELV dimmer types are supported.
Applications
Use it with LED downlights and spotlights, LED panel lights, and track or decorative lighting. It has a single output channel.
Installation notes
Installation and servicing must be done by a qualified person. Wire the input and output terminals with PVC or rubber cord of 0.75-2.5mm2, because flat power cord is not suitable.
The housing is a Class 2 power supply in fully protective plastic, rated IP20. It is not waterproof. For outdoor installations, mount the driver inside a waterproof enclosure. Wherever it goes, give it good ventilation.
Technical Specifications 26 rows Show
| Brand | Euchips |
| Model | EUP15T-1HMC-0 |
| Output current | 280mA 350mA 380mA 450mA |
| Output voltage | 9-42VDC 9-42VDC 9-39VDC 9-33VDC |
| Rated power | 11.76W 14.7W 14.82W 14.85W |
| Default setting | 280mA (@switch are all OFF state) |
| No load output voltage | 48VDC |
| Current accuracy | 5% |
| Output LF current ripple (< 120 Hz) | 3% |
| Channels | 1 |
| Input voltage | 200VAC - 240VAC |
| Frequency | 50/60Hz |
| Input current | 0.2Amax@230VAC |
| Dimming voltage range | 40-240VAC |
| Efficiency | 80%@230VAC,full load |
| Inrush current | Cold start,15A(twidth=22us measured at 50% Ipeak) @230VAC |
| Protection | Short circuit, over load, over temperature; recovers automatically |
| Dimming | Triac/ELV |
| Compatible dimming systems | Philips, Panasonic, Lutron, Simon, ABB, Siemens, Dalitek |
| Dimensions | 150 *43*29 mmL*W*H |
| Weight | 130g |
| Housing | Class 2 power supply, full protective plastic housing |
| IP rating | IP20 |
| Working temperature | -20 ~ 50 |
| Relative humidity | 20~90% RH |
| Lifetime | Up to 50,000 hours |
Manufacturer datasheet. Figures as published by the manufacturer.
