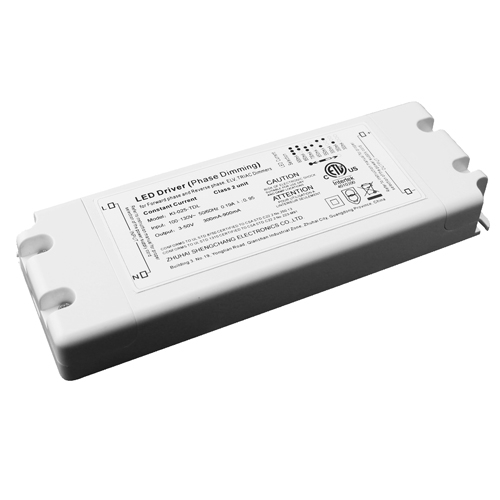

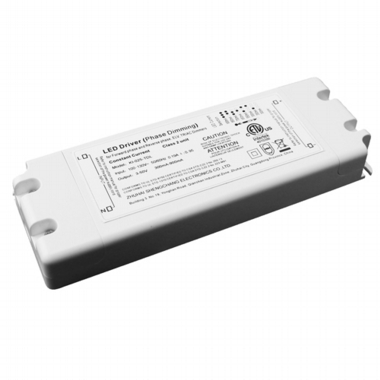

AC TRIAC LED Driver 25W. Adjustable Current 300-900mA

Ref: VOL-025-TD

£26.90

Price inc VAT

Multi-Current, Lead & Trailing Edge Dimmable Driver. 25W

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £26.09 Save 3%
12 Items £25.29 Save 6%
24 Items £24.75 Save 8%
Description
Specification
Downloads
Description

AC-TRIAC Dimmable Constant Current LED Driver. 25Watt

VOLTACON power supplies are made quality electronics using high efficiency power electronics topologies. The new slim driver has only 20mm thickness and width 54mm, and fits in most lighting fixtures. The robust and slick plastic housing offers full protection and easy istallation. There are philips screws on each end of device: One side is connected directly to the mains voltage and the opposite side powers the LED arrays with DC voltage.

Compatible with most dimmers

It is paramount to develope a driver that is widely acceptable in the LED lighting market. This LED driver is power from 180-240VAC voltage and works smoothly with almost all known trailing edge and leading edge switches.

This triac based power-supply has been successfully tested with Varilight, Lutron, Clipsal C-Bus System.

Multiple Current Level

The following output current steps are selectable by dip-switches:

900mA, 850mA, 700mA, 650mA, 550mA, 350mA, 300mA

Product Feuatures

/media/blog/library/orange-led-tick.pngConstant current mode output with multiple levels selectable by dip switch

/media/blog/library/orange-led-tick.pngProtections: Short Circuit/ Over load/ Over Current

/media/blog/library/orange-led-tick.pngFull protection plastic housing easy installation

/media/blog/library/orange-led-tick.pngIP20 design for indoor installation

/media/blog/library/orange-led-tick.pngCooling by free air convection

/media/blog/library/orange-led-tick.pngDimming function: Triac dimmable Phase cut dimmable

Mechanical Dimmensions

155x54x20mm

Specification

Technical Characteristics

  • Constant Current Output
  • Universal AC input : 100-130V /AC or 180-240V/AC
  • High effciency: up to 83%
  • Dimming by PWM output;
  • Mini loading 5% is OK.
  • Different color LED could dim in synchronous;
  • Forward edge(leading edge ) could match forward dimmer perfectly; lowest noise.
  • Compliance to worldwide safety regulations for lighting
  • Protections:short circuit/over loading/over current
Downloads

Technical Manual

Voltacon LED Dimmable Driver 25W. Mains Dimming

300-900mA Constant Current Dimmable LED Driver

Download
