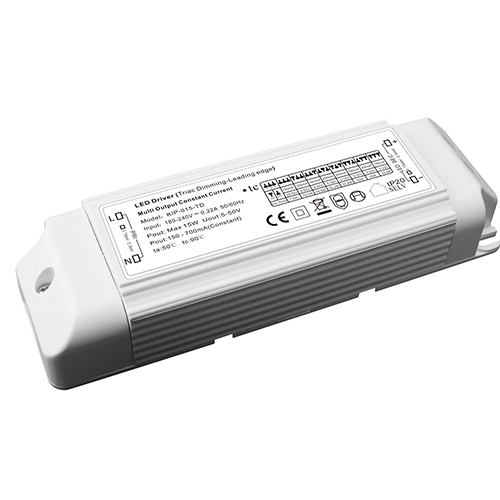

AC-TRIAC Dimmable Constant Current LED Driver. 15Watt

VOLTACON power supplies are made quality electronics using high efficiency power electronics topologies. The new slim driver has only 27mm thickness and width 45mm, and fits in most lighting fixtures. The robust and slick plastic housing offers full protection and easy istallation. There are philips screws on each end of device: One side is connected directly to the mains voltage and the opposite side powers the LED arrays with DC voltage.

Compatible with most dimmers

It is paramount to develope a driver that is widely acceptable in the LED lighting market. This LED driver is power from 180-240VAC voltage and works smoothly with almost all known trailing edge and leading edge switches.

This triac based power-supply has been successfully tested with Varilight, Lutron, Clipsal C-Bus System.

Constant Current Power Supply

The output voltage is 3-50Vdc with adjustable current settings. The DC output Amps can be controlled using the dip-switches. There are 6 different levels: 250mA, 350mA, 400mA, 450mA, 500mA, 600mA, 700mA.

Product Feuatures

Constant current mode output with multiple levels selectable by dip switch

Protections: Short Circuit/ Over load/ Over Current

Full protection plastic housing easy installation

IP20 design for indoor installation

Cooling by free air convection

Dimming function: Triac dimmable Phase cut dimmable

Mechanical Dimmensions

140*45*27mm

IP Rating 20.  That is non-waterproof led driver in plastic casing.
