Elios Solar Grid Tied Inverter 5000Watt 230VAC Dual MPPT G99

Ref: PH50-5000M

£699.00

Price inc VAT

Bulk Savings £££
# Items	Our Price	Savings
6 Items	£678.03	Save 3%
12 Items	£657.06	Save 6%
24 Items	£643.08	Save 8%

Description

Specification

Description

ELIOS 5000WATT SOLAR GRID TIE INVERTER G100 COMPLIANT

A solar inverter is a crucial step in maintaining a balanced energy flow between your solar grid, your home, and the regular power grid. After all, most solar systems are designed to support and minimize traditional power use, not to replace it completely.

Your solar inverter monitors the flow of power between your solar grid and your home, and your home and the regular power grid. When your solar grid is generating enough power, it doesn’t pull from the traditional grid; when power drops, it pulls in the power needed to run your home.

Remember that when it comes to solar grids, bigger is not automatically better. Carefully match the wattage of your inverter to your grid, or you will create inefficiency.

This inverter also features anti-islanding protection to ensure energy is not fed back to the grid or the house when the grid fails.

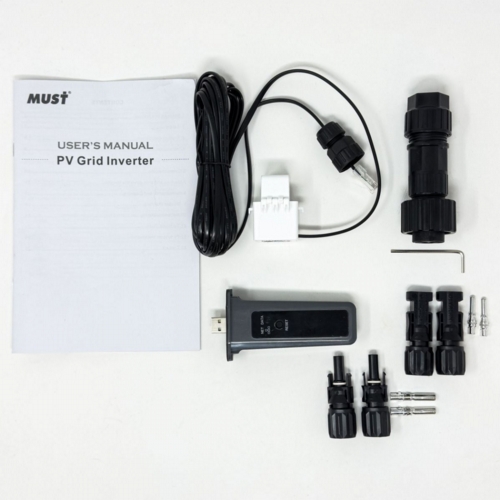

Current Sensor - Why do I need one?

If your DNO (the network operator) requires to limit the exported energy, the clamp current sensor is used to measure the actual energy consumption. Using this information the inverter will export back to the grid or the house from 0W to 5kW. If there is no power demand from the home appliances the inverter can stop the generation from solar. This feature is adjustable and can be switched on or off.

FEATURES

High Frequency On Grid Solar Inverter
Pure sine wave output
Rated power: 5KW
MPPT efficiency up to 99.50%
Configurable AC/Solar input priority via LCD setting
Multiple communications: USB,WIFI etc
Monitoring inverters freely via mobile phones APP
Fanless low-noise design
IP65 waterproof and dust-proof

Specification

MODEL		PH50-3000	PH50-3600M	PH50-4200M	PH50-5000M	PH50-6000M
RATED POWER(W)		3000	3600	4200	5000	6000
PV INPUT(DC)	Maximum recommended DC power(W)	3450	4100	4800	5750	7000
	Nominal DC operating voltage(V)	360
	Maximum DC voltage(V)	550
	Start voltage(V)	100
	MPPT voltage range(V)	80~550
	Maximum input current(A)	11	11/11	11/11	11/11	11/11
	No.of MPP tracker	1	2
	Strings per MPP tracker	1
GRID OUTPUT(AC)	Nominal AC output power(W)	3000	3600	4200	5000	6000
	Maximum AC output power(VA)	3000	3600	4200	5000	6000
	Nominal output voltage(V);range(V)	220/230/240;180-280
	AC grid frequency(Hz);range(Hz)	50/60;45~55/55-65
	Nominal output current(A)	13	15.7	18.3	21.8	26.1
	Maximum output current(A)	13.7	16.4	19.1	22.8	27.3
	Total harmonic distortion i(THDi)	<3%
	Power factor at rated power	1
	Displacement power factor	0.8leading ～ 0.8lagging
	AC connection	Single phase
EFFICIENCY	Maximum efficiency	97.2%	97.4%	97.4%	97.4%	97.4%
	Euro-efficiency	96.8%	97.0%	97.0%	97.0%	97.0%
	MPPT efficiency	99.5%
	Self-Consumption night(W)	<1
PROTECTION DEVICES	DC reverse polarity protection	Yes
	DC switch rating for each MPPT	Yes(opt.)
	Output over current protection	Yes
	Output overvoltage protection-varistor	Yes
	Ground fault monitoring	Yes
	Grid monitoring	Yes
	Integrated all-pole sensitive leakage current	Yes

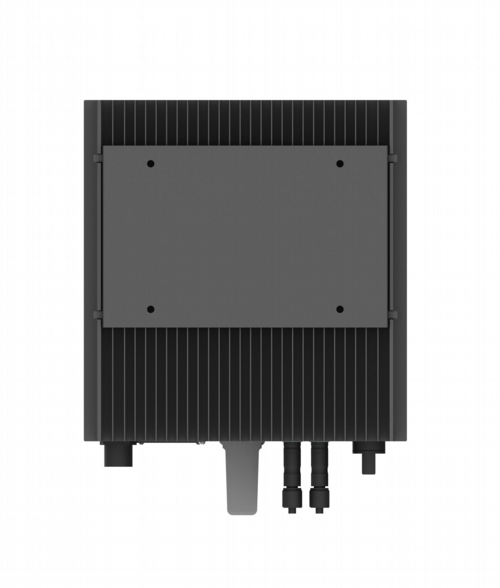

PHYSICAL	Dimension(W/H/D)(mm)	262368155	355412153	355412153	355412173	355412201
PHYSICAL	Net weight (kg)	10	13.5	13.5	14.5	16.5
INTERFACE	DC connection	H4/MC4
	AC connection	Connector
	Display	LED
	Communication interfaces	Wi-Fi/USB/GPRS
ENVIRONMENT	Ingress protection rating	IP65
	Humidity	0~95% RH (No condensing)
	Operating temperature range	-25℃ ~+60℃ With derating above 45℃
	Cooling concept	Natural
	Noise emission(typical)[dB]	≤25
	Altitude	<4000m
OTHERS	Topology	transformerless
	Warranty	Standard 5years/10 years(opt.)
	Certificatesand approvals	CE/IEC62109	CE / IEC62109 / CQC
