5kW Solar Grid Tie Inverter MPPT Wi-Fi IP65 | Elios
£472.50
Skip to product information
5kW Solar Grid Tie Inverter MPPT Wi-Fi IP65 | Elios
- Vendor
- Elios
- SKU
- 9005111
- Availability
- In stock
- Weight
- 14.0 kg
£472.50inc VAT £393.75exc VAT
Secure checkout
Talk to our sales team
Product Description

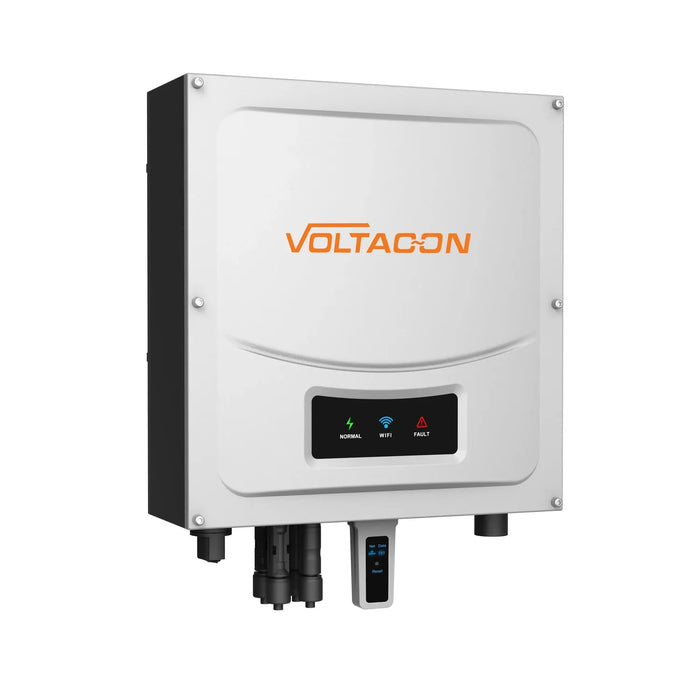

The Elios 5000W solar grid tie inverter turns DC power from a solar array into 230V/50Hz AC for use in the property or export to the grid. It uses high-efficiency MPPT tracking, gives a pure sine wave output, and carries an IP65 rating for outdoor mounting. A fanless design keeps operation quiet, and built-in anti-islanding protection disconnects the unit automatically if the grid fails.
Key features of this solar grid tie inverter
- Rated output, 5kW (5000W)
- MPPT efficiency, up to 99.5%
- Output waveform, pure sine wave
- Weatherproofing, IP65 rated for outdoor installation
- Cooling, fanless, natural convection
- Monitoring, Wi-Fi and USB communications, viewable via mobile app
Export control and grid safety
Anti-islanding protection shuts the inverter down automatically on grid failure, stopping backfeed to the network. Where a DNO requires export limitation, the included current sensor clamp measures household consumption in real time and modulates output between 0W and 5kW, with the option to set export to zero. AC input priority is configurable via the LCD.
Applications
Suited to residential and small commercial on-grid solar PV systems, including installations where export limiting is required by the DNO, and outdoor locations where the IP65 rating matters.
Installation notes
This is grid-connected equipment and must be installed by a qualified electrician or solar installer. UK installations must meet G98 or G99 notification requirements, with DC isolators, AC protection and earthing carried out to BS 7671 and MCS standards. Not for DIY installation.
Technical Specifications 45 rows Show
| Parameter | Value |
|---|---|
| Model | PH50-5000M |
| Rated power (W) | 5000 |
| Maximum recommended DC power (W) | 5750 |
| Nominal DC operating voltage (V) | 360 |
| Maximum DC voltage (V) | 550 |
| Start voltage (V) | 100 |
| MPPT voltage range (V) | 80~550 |
| Maximum input current (A) | 11/11 |
| Number of MPP trackers | 2 |
| Strings per MPP tracker | 1 |
| Nominal AC output power (W) | 5000 |
| Maximum AC output power (VA) | 5000 |
| Nominal output voltage (V); range (V) | 220/230/240;180-280 |
| AC grid frequency (Hz); range (Hz) | 50/60;45~55/55-65 |
| Nominal output current (A) | 21.8 |
| Maximum output current (A) | 22.8 |
| Total harmonic distortion i (THDi) | <3% |
| Power factor at rated power | 1 |
| Displacement power factor | 0.8leading ~ 0.8lagging |
| AC connection type | Single phase |
| Maximum efficiency | 97.4% |
| Euro-efficiency | 97.0% |
| MPPT efficiency | 99.5% |
| Self-consumption at night (W) | <1 |
| DC reverse polarity protection | Yes |
| DC switch rating for each MPPT | Yes(opt.) |
| Output over current protection | Yes |
| Output overvoltage protection, varistor | Yes |
| Ground fault monitoring | Yes |
| Grid monitoring | Yes |
| Integrated all-pole sensitive leakage current | Yes |
| Dimensions W/H/D (mm) | 355*412*173 |
| Net weight (kg) | 14.5 |
| DC connector type | H4/MC4 |
| AC connector type | Connector |
| Display | LED |
| Communication interfaces | Wi-Fi/USB/GPRS |
| Ingress protection rating | IP65 |
| Operating temperature range | -25°C to +60°C |
| Cooling concept | Natural |
| Noise emission (typical) [dB] | ≤25 |
| Altitude | <4000m |
| Topology | transformerless |
| Warranty | Standard 5years/10 years(opt.) |
| Certificates and approvals | CE / IEC62109 / CQC |
Manufacturer datasheet. Figures as published by the manufacturer.
