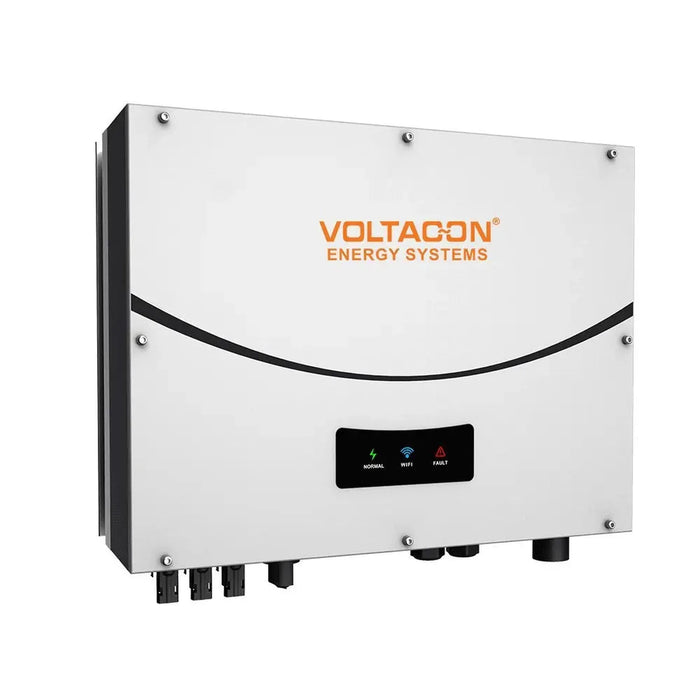

Voltacon Energy Systems white wall-mounted inverter with curved black accent, status indicator lights, and connection ports a

11kW Three-Phase On-Grid Solar Inverter IP65 | Elios

£1,422.23
Skip to product information
Voltacon Energy Systems white wall-mounted inverter with curved black accent, status indicator lights, and connection ports a
11kW Three-Phase On-Grid Solar Inverter IP65 | Elios

11kW Three-Phase On-Grid Solar Inverter IP65 | Elios

Vendor
Elios
SKU
PH50-11000TM
Availability
In stock
Weight
23.0 kg

£1,422.23inc VAT £1,185.19exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Elios 11kW is a three-phase on-grid solar inverter built for commercial and industrial PV systems on a 400VAC supply. It converts solar DC power for self-consumption or grid export, with built-in export limitation via three-phase CT current sensors and Wi-Fi monitoring for remote diagnostics.

Three-phase grid tie inverter features

  • Output, 11kW rated power at three-phase 400VAC
  • Peak efficiency, 98.3% at full load
  • DC input range, 160V to 1000V
  • Controller, DSP for grid management
  • Monitoring, integrated Wi-Fi, plus USB and RS485 communications
  • Export control, three-phase CT current transformer sensors, with a zero-export mode for full self-consumption
  • Protection, IP65 rated for outdoor mounting, with an integrated DC solar isolator

LED indicators in green, amber and red show operating status at a glance, and DC connections use standard MC4 connectors.

Applications

Suited to commercial and industrial three-phase grid-connected solar PV installations, particularly where the DNO requires export limitation or zero export. The three-phase CT sensor fits in the consumer unit and measures consumption across all three phases, so the inverter can throttle output to stay within the agreed limit. It also meets UK and European anti-islanding requirements, shutting down automatically if the grid supply is interrupted. The unit is G100 compliant.

Installation notes

Installation must be carried out by a qualified electrician or MCS-accredited solar installer. Three-phase grid-connected inverters in the UK require a G99 application and DNO approval before connection. DC isolators, AC protection, surge protection and earthing must comply with BS 7671, and CT sensors must be fitted in the consumer unit by a qualified electrician. This is not a DIY installation.

Technical Specifications 28 rows Show
ParameterValue
ModelPH50- 11000TM
Rated AC output power11000W
Max. AC apparent power12100VA
Max. output current17.5A
Nominal AC voltage230V \ 400V
AC voltage range184Vac-300Vac
AC grid frequency range50±5Hz
AC grid frequency range60±5Hz
Power factor at rated power1
Adjustable displacement power factor0.8leading. 0.8lagging
THDi at full load< 3%
AC grid connection type3W+N+PE
Max. DC power13200W
Max. DC voltage1000V
DC operating voltage range160-1000V
Start voltage160V
Max. MPPT input current3x11A
Number of MPPT trackers3
MPPT voltage range200-1000V
Max. short-circuit current per MPPT13.75A
Number of DC inputs6
Max. efficiency98.3%
Euro efficiency97.5%
MPPT efficiency>99.5%
IP ratingIP65
Operating temperature-25 to +60 deg C
Weight18.5kg
Dimensions (W x H x D mm)450 x 390 x 180

Manufacturer datasheet. Figures as published by the manufacturer.
