Pack of 3 Pylontech US5000 Lithium Ion Batteries with Racks

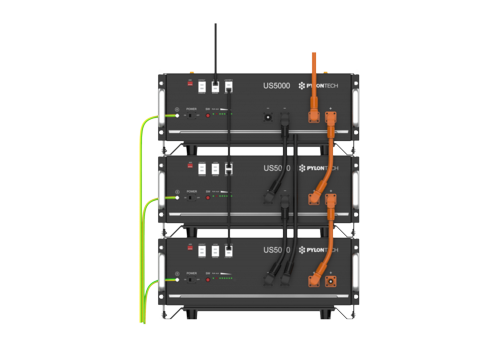

Energy Storage Rack with 3x Pylontech US5000 and Protection Fuses

The new Pylontech US5000 lithium battery offers easy expansion with vertical installation of 39kg consoles. Using server racks or mounting brackets, it takes only seconds to add more energy storage. Fully sealed and insulated units are safe to install in any place around the house or commercial property.

Despite the high capacity of 4.8kWh (at nominal voltage) and peak capacity up to 5.12kWh, the battery is flexible enough to be installed in any orientation (vertically or horizontally).

The actual stored capacity is 14.4kWh with the dimension nearly the size of an under-counter fridge.

Easy Expansion

If your energy demand increases, the other cabinets will be seamlessly integrated into the existing system. Starting from a 5th battery or up to 16 batteries without additional communication hardware.

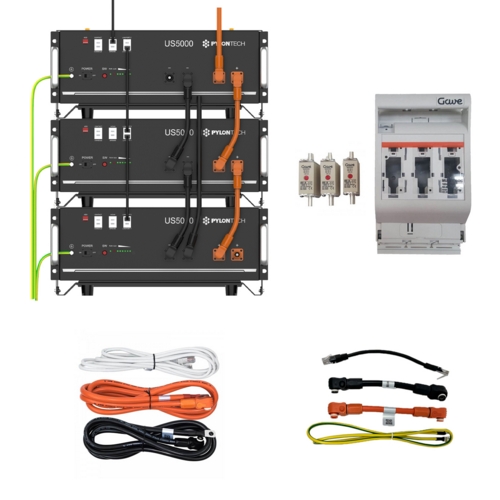

Content of the cabinet

• 3x US5000 Batteries

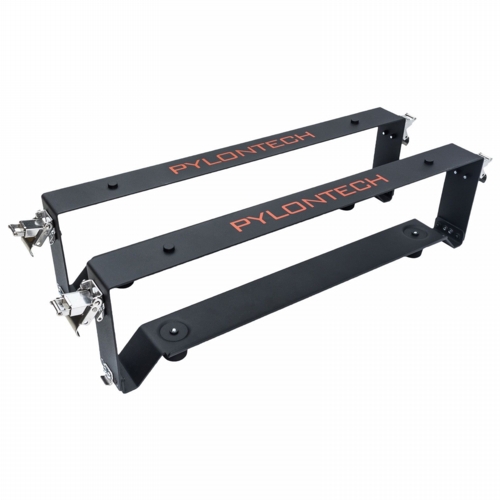

• 3x original metallic racks
• 1 pairs of 2 meter battery cables
• Fuse disconnector 160A
• Short power cables from the fuse disconnector to your inverter/charger

Main features.

The battery communicates with the majority of well-known brands of solar inverters both hybrid and off-grid. The BMS system protects the battery and prolongs the life expectancy, the user is not required to set up manually the charging and discharging parameters or any cut-off voltage.

Important Notice: It is not permitted to mount more than 3 batteries using metallic racks. The structure will be unstable if 4 batteries are installed in one stack.

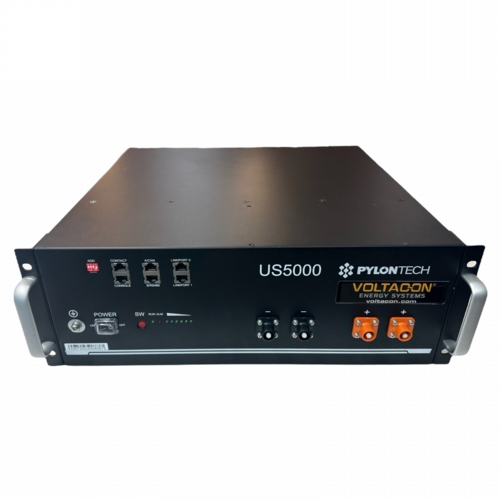

Battery Specifications - Per Module

Supplier Part No: US5000

• Weight: 39 kg
• Battery Type: Lithium Ion
• Nominal Energy: 4800 Wh
• Depth of discharge: 95.00 %
• Voltage: 48 V
• Continuous Discharge Rate (Normal Use): 2400 W
• Maximum Discharge Rate (5 Minutes): 4800 W
• Surge Discharge Rate (15 Seconds): 5808 W
• Maximum Charge Rate (5 Minutes): 4800 W
