Pylontech A300 219kWh Commercial Hybrid Battery Storage

£36,225.00
Skip to product information
Pylontech commercial hybrid battery storage unit with white exterior, cooling vents, control panel with red button and warnin
Pylontech A300 219kWh Commercial Hybrid Battery Storage

Pylontech A300 219kWh Commercial Hybrid Battery Storage

Vendor
Pylontech
SKU
A300-HY-219KWH
Availability
In stock
Weight
999.0 kg

£36,225.00inc VAT £30,187.50exc VAT

Delivery from £350.00 to mainland UK Sent on a pallet, booked in with you first. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

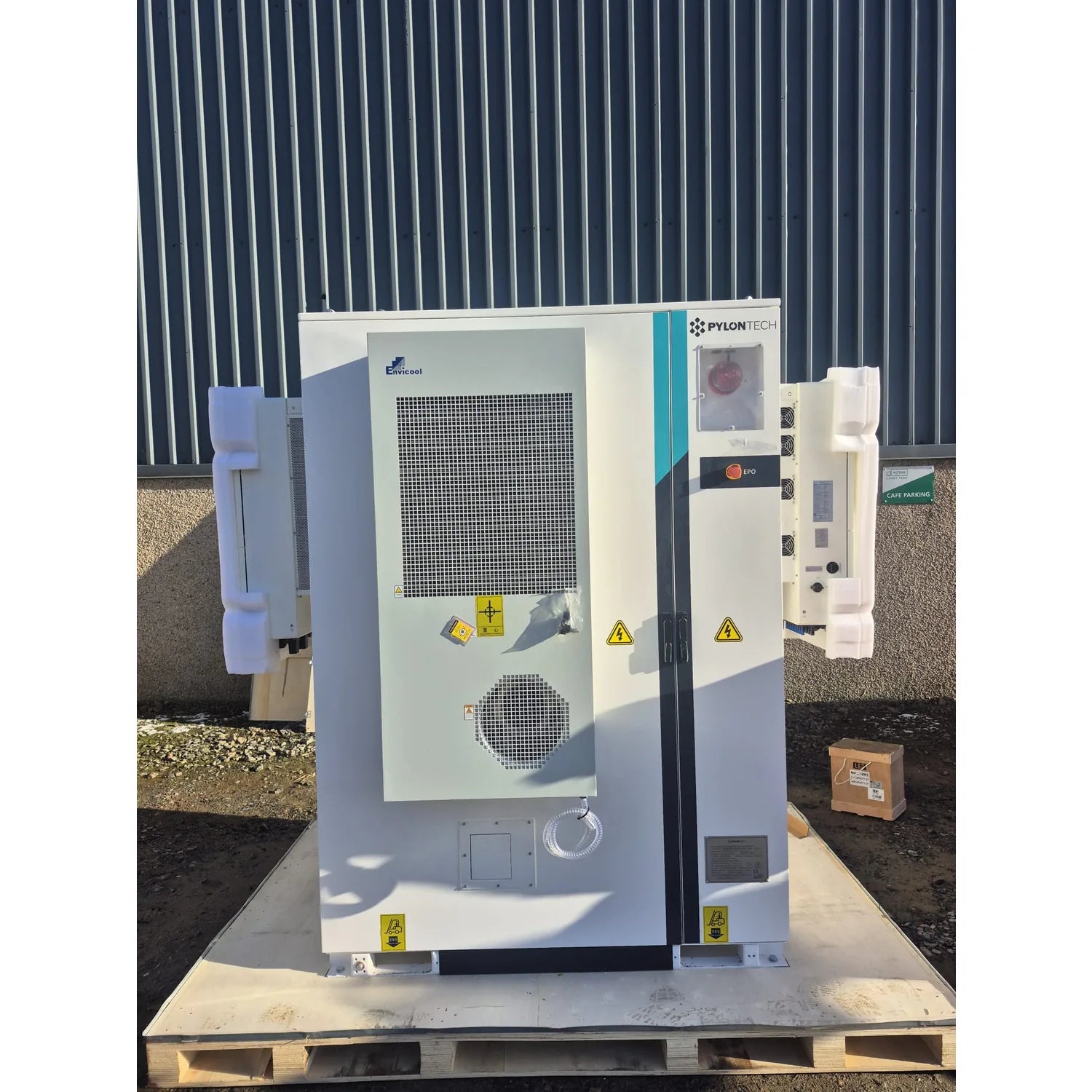

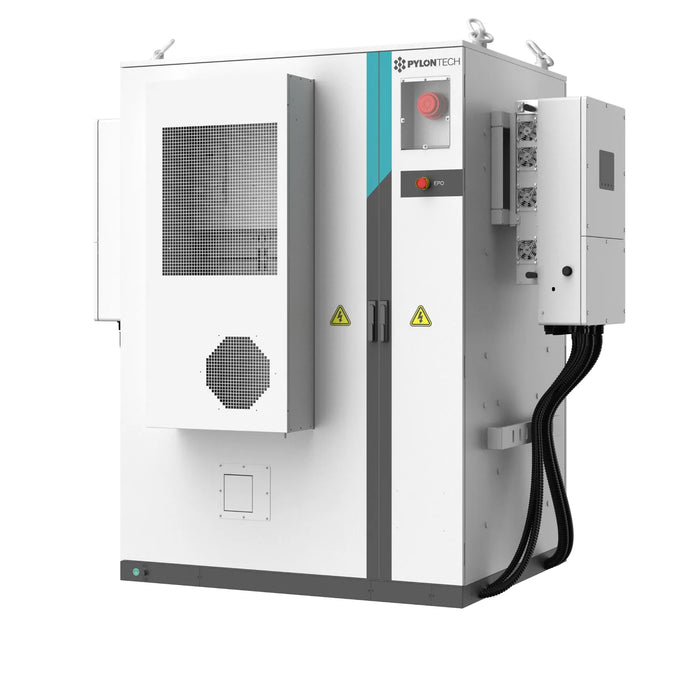

The Pylontech A300 is a 219kWh commercial hybrid battery storage system delivered as a factory-assembled cabinet, ready to connect on site. It suits businesses looking to reduce electricity costs, use more of their own solar generation, and keep running during grid outages or peak demand periods.

Key features of this commercial battery storage system

  • Capacity, 219kWh LFP battery in a single factory-assembled cabinet
  • Inverter options, available with 1 or 2 hybrid inverters depending on site power needs
  • Enclosure, IP55-rated outdoor cabinet with integrated active cooling
  • Control, integrated EMS for charge and discharge management
  • Safety, built-in fire protection and battery management system
  • Use cases, solar self-consumption, peak shaving, electricity arbitrage and grid backup

Product overview

At 219kWh the A300 gives sites with heavy daily consumption a large energy reserve. It stores energy when solar output is high or import tariffs are lower, then discharges it during expensive peak periods or when the grid drops out, cutting bills and adding resilience.

A single inverter covers most standard storage and self-consumption applications. The dual inverter configuration is for sites with higher peak loads, faster charging needs, or where stronger backup is required for critical circuits.

Battery modules, BMS, cooling, safety protection and energy management are all integrated and factory tested before the cabinet leaves the factory, so there's no need to source and wire individual components on site.

Applications

  • Commercial premises: offices, warehouses, factories and retail sites
  • Agricultural sites and farms with solar PV
  • EV charging hubs needing grid buffering or off-peak charge storage
  • Industrial sites with high peak demand requiring load smoothing
  • Microgrid and partial off-grid commercial installations
  • Sites needing long-duration backup for critical loads

Installation notes

This system must be installed by a qualified electrical engineer experienced in commercial battery storage. Site assessment, load analysis, grid connection compliance and commissioning need to be handled by a certified installer. Get in touch to discuss inverter configuration and site suitability before ordering.

Technical Specifications 34 rows Show

Technical Specifications

General Data

ModelM5 300kWh 1000V
Dimensions (W x D x H)1500 x 1300 x 2200 mm (without inverter)
Weight3.5 tons
Working Temperature Range-20°C to 55°C (derating below 10°C or above 40°C)
Protection ClassIP55
Altitude≤3000 m
Humidity0 to 95%
Fire ExtinguishingAerosol
Cooling SystemAir Cooling
Cooling Consumption (Cooling/Heating)5 kW / 6.4 kW
Auxiliary Power Consumption (continuous/peak)2.35 kW / 4 kW (incl. HVAC)
Max Parallel Systems5
Anti CorrosionC3

Battery Data

Battery TypeLi-ion (LFP)
Nominal Capacity313 kWh
Continuous Operation C-rate0.5C
Max Operation Current180 A x 2
Depth of Discharge98% (single string)
Cycle Life>7000
DC Voltage Range560 to 720 Vdc (single string)
Nominal Operation Current122.5 A x 2
Round-trip Efficiency @ 0.5C96%

Hybrid Inverter Data (On-grid Mode)

Rated AC Power50 kW / 100 kW
Rated AC Output Voltage400 Vac
Rated AC Output Frequency50 / 60 Hz
Max AC Current76 A (linear load)
Overload Capacity110%
AC Power Factor>0.99 (0.8 leading to 0.8 lagging)
CEC Efficiency97.4% (max 97.8%)
Isolation TypeNon isolation
Response Time (on-grid to off-grid)<10 ms

Communication and Operation

Communication TypeRS485 (Modbus RTU) / LAN (Modbus TCP/IP) / CAN
Operation LogicPeak Shaving, Energy Shifting, Self-consumption, Backup

Certifications

UN38.3, UN 3480, IEC62619, IEC62040-1, CE, UKCA (EMC/RED), VDE2510-50, UL1973, UL9540A, G99, VDE-AR-N 4105, EN 50549-1, EN 50549-10, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530

Manufacturer datasheet. Figures as published by the manufacturer.
