LiFePO4 Lithium Battery 2.5kWh 24V IP65 | Voltacon LIO-II-2410
£934.50
Skip to product information
LiFePO4 Lithium Battery 2.5kWh 24V IP65 | Voltacon LIO-II-2410
- Vendor
- Voltacon
- SKU
- LIOII-2410E
- Availability
- In stock
- Weight
- 26.0 kg
£934.50inc VAT £778.75exc VAT
Secure checkout
Talk to our sales team
Product Description

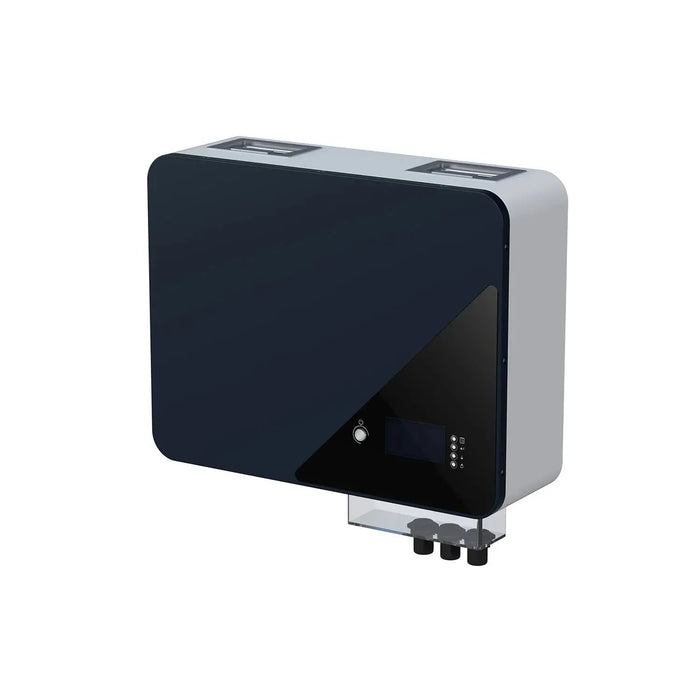

A 24V lithium iron phosphate battery storing 2.5kWh, built with active cell balancing and a BMS to protect against overvoltage, undervoltage, overcurrent and temperature faults. The IP65 aluminium enclosure allows indoor or outdoor wall mounting, and up to 16 units can be linked in parallel for larger battery banks. Model LIO-II-2410.
Key features of this lithium battery storage unit
- Capacity, 2.5kWh, 100Ah at 25.6V DC
- Active cell balancing, improves usable capacity and reduces charge time and heat
- Protection, built-in BMS for overvoltage, undervoltage, overcurrent and temperature
- Enclosure, IP65 aluminium, suitable for indoor or outdoor wall mounting
- Expandable, up to 16 units in parallel
- Discharge rating, 50A continuous, 100A peak

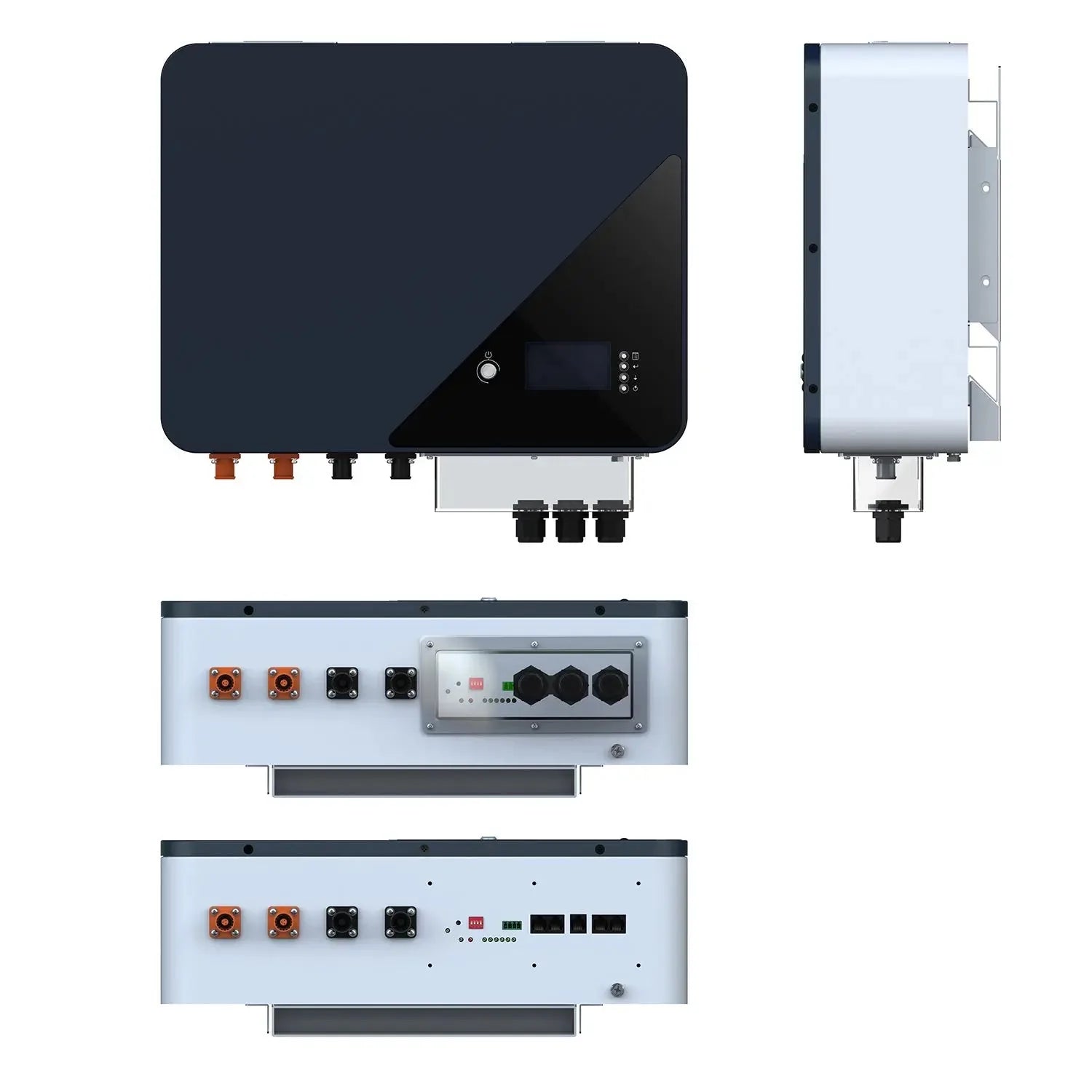

Dimensions are 165 x 375 x 400mm and it weighs 26kg.
Applications

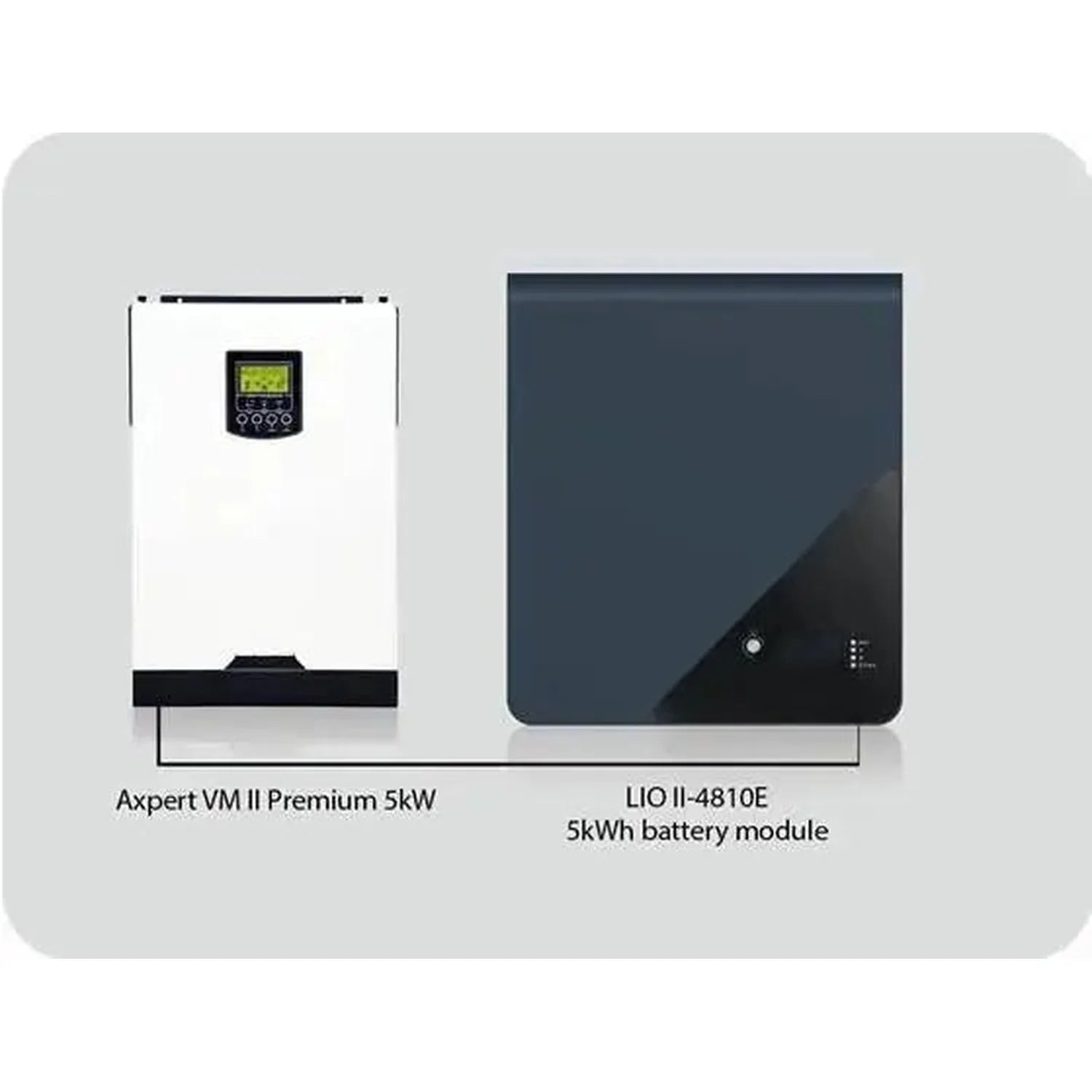

Built for use with Voltacon and Voltronic off-grid and hybrid inverters rated from 3000W to 5500W. It suits off-grid solar systems, hybrid inverter storage, backup power for essential loads, and battery banks that need to grow over time by adding further parallel units.
Installation notes
Check inverter compatibility and battery protocol settings before connecting. DC connections must be made by a qualified installer, and this battery should not be mixed with other brands on the same bus. Follow the manufacturer's wiring guide for parallel connection sequence and fusing.
What's in the box
- 1 x LIO-II-2410 2.5kWh 24V lithium battery
Technical Specifications 18 rows Show
| Specification | Value |
|---|---|
| Model | LIO II-2410E |
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 25.6 V |
| Capacity | 100 Ah |
| Energy Rating | 2.5 kWh |
| Max Charge / Discharge Current | 50 A / 100 A @ 0.2C, 25°C |
| Max Charging Voltage | 29.2 V |
| Max Discharging Voltage | 20 V |
| Max Units in Parallel | 16 |
| Dimensions (D x W x H) | 165 x 375 x 400 mm |
| Weight | 26 kg |
| Cycle Life | ≥5000 cycles @ 25°C, 0.5C, 80% DoD |
| Charge Temperature Range | 0°C to 45°C |
| Discharge Temperature Range | -20°C to 60°C (>45°C derating) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Ingress Protection | IP65 |

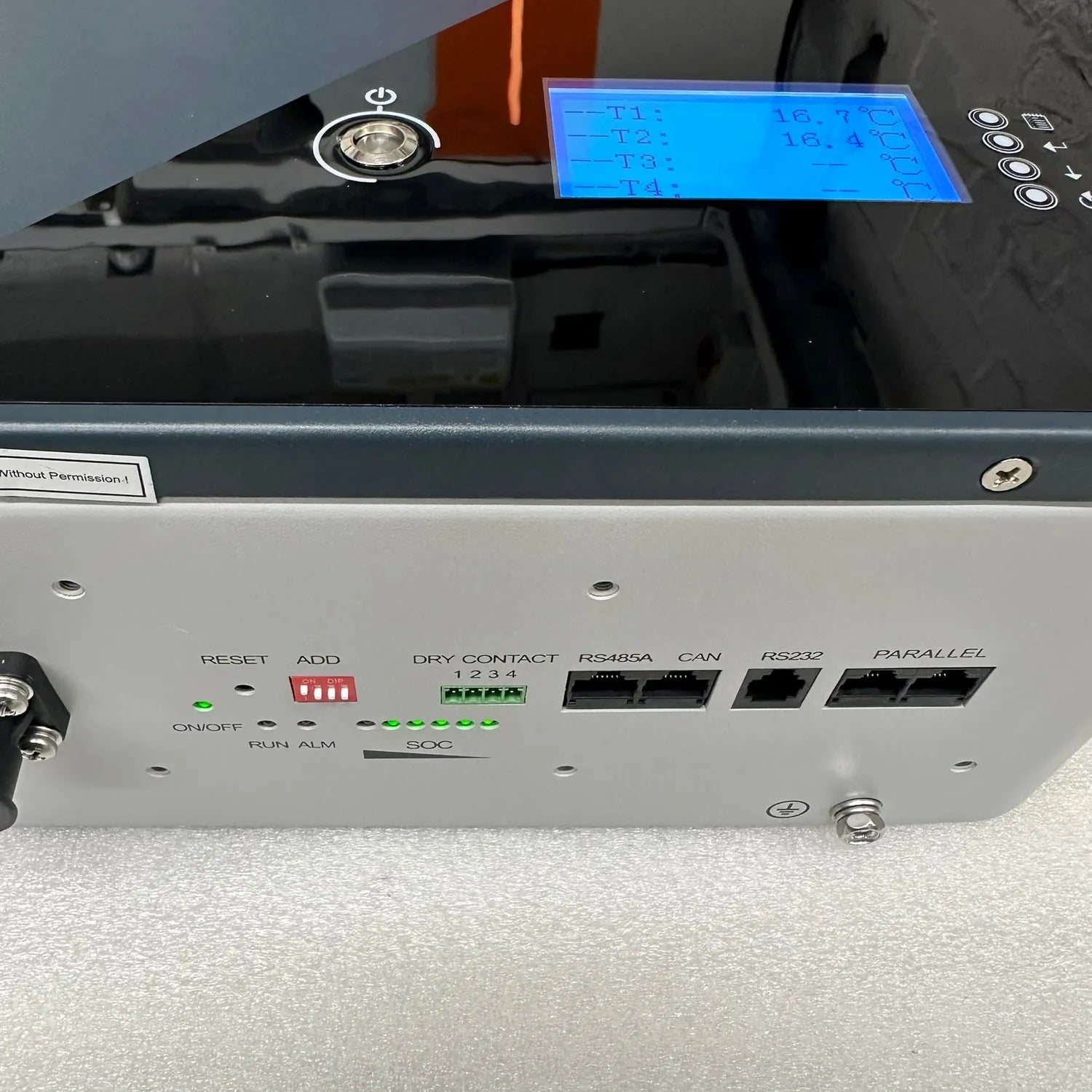

| Communication Ports | RS485, RS232, CAN |
| Safety Standards | EN IEC 61000-6-3, EN IEC 61000-6-1, EN IEC 61000-3-2, IEC 61000-3-3, IEC 62619, UN38.3 |
Manufacturer datasheet. Figures as published by the manufacturer.
