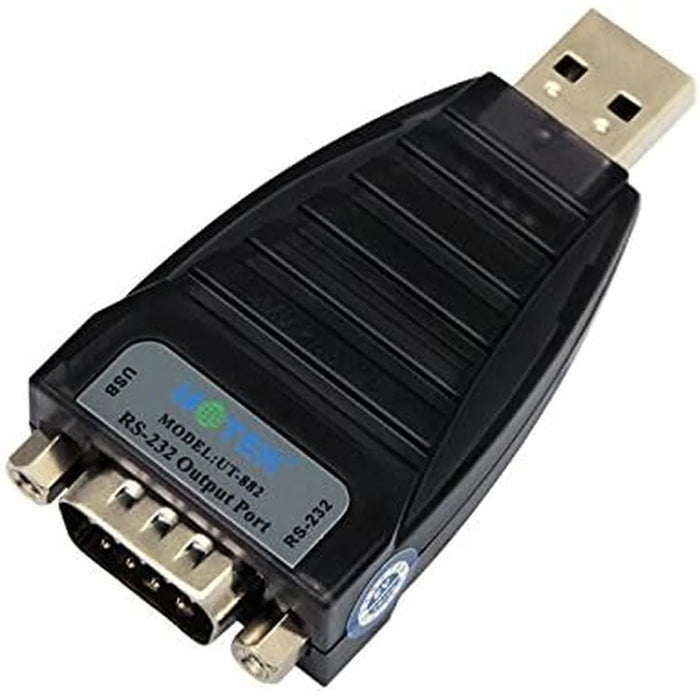

USB to RS-232 Converter for Solar Inverters | UOTEK UT-882

The UOTEK UT-882 is a USB to RS-232 converter that gives point-to-point serial communication with solar inverters, energy meters and other devices fitted with an RS-232 port. It is plug and play, needs no external power, and works across Windows, Mac and Linux.

Key features

• USB standards, USB 1.0, 1.1 and 2.0
• Baud rate, 300 to 460,800bps with auto detection
• Working mode, asynchronous full duplex with automatic traffic direction control
• Connector, USB-A female to DB9 male
• ESD protection, ±15kV
• Dimensions, 50 x 33 x 16mm

Operating system compatibility

Works with Windows 2000, 2003, 2008, 2012, XP, Vista, 7, 8, 8.1, 10 and CE, as well as Mac OS and Linux.

Applications

Used for RS-232 communication and monitoring on solar inverters, and for connecting energy meters or dataloggers to a PC or laptop. Suitable for any point-to-point RS-232 device that needs a USB connection.

Signal indicators

PWR, TXD and RXD indicators show power and data activity on the connection. Transmission distance is up to 5m on both the USB and RS-232 ports.

What's in the box

• 1 x UOTEK UT-882 USB to RS-232 converter
