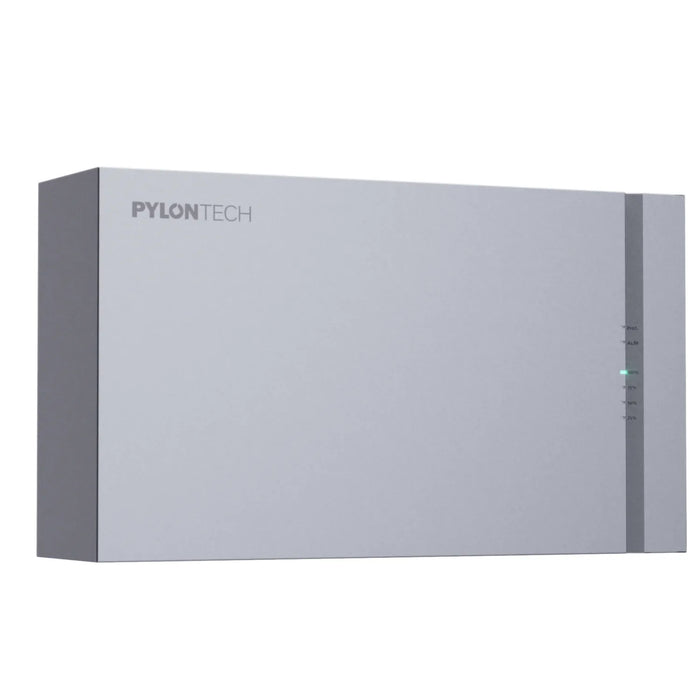

Pylontech Fidus Pro 5.12kWh LiFePO4 Battery IP65 Self Heating

The Pylontech Fidus Pro FB-L-5.12-EU-Pro is a low-voltage lithium battery for solar storage, built on the LiFePO4 chemistry that underpins the well-known US5000C platform. It adds stronger environmental protection, self-heating, modern monitoring and an IP65 anti-corrosive housing for installations that go beyond a standard indoor rack.

Nominal capacity is 5.12kWh with intelligent BMS protection, suiting residential solar storage, off-grid systems, backup power, hybrid inverter setups, garages, outbuildings and plant rooms.

Pylontech Fidus Pro key features

• Capacity, 5.12kWh nominal, 51.2V low-voltage LiFePO4
• Self-heating, integrated heating function for cold weather operation, enabled by default and manageable via battery controls or the app
• Operating range, -20°C to 55°C on the Pro heating model
• Housing, IP65-rated enclosure with C5-M anti-corrosion protection for indoor, outdoor and humid environments
• Communication, CAN and RS485 for compatible low-voltage hybrid and off-grid inverters, plus Wi-Fi, LED and Bluetooth monitoring options
• Current, 100A continuous charge and discharge, peak 120A for 2 minutes and 200A for 15 seconds
• Cycle life, 8000 cycles at 25°C / 0.5C per manufacturer data
• Expandable, up to 20 batteries in one string and up to 6 strings with suitable system design

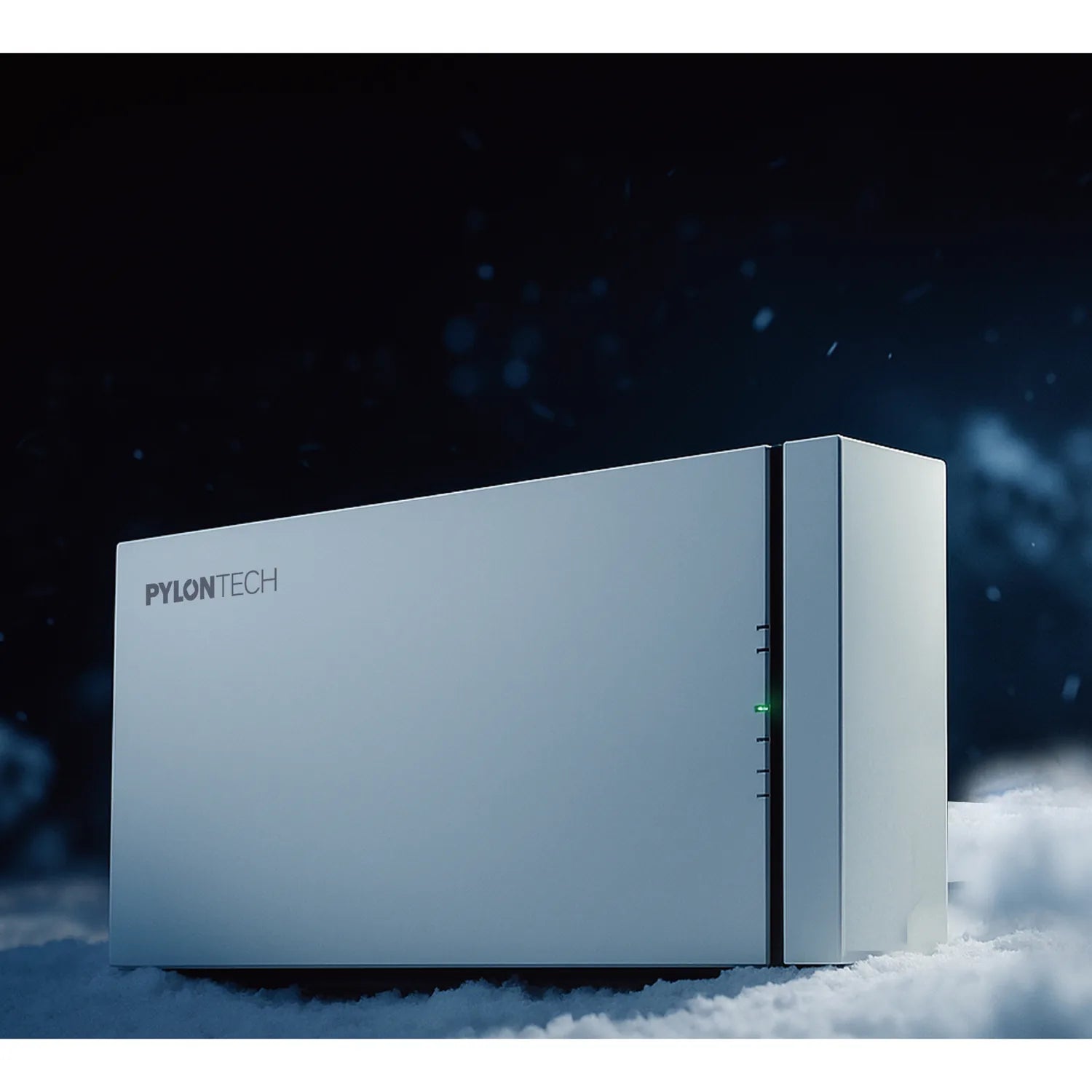

Cold weather and housing

The heating system can bring the battery from -20°C to at least 5°C in approximately 2 hours, depending on system power availability and operating conditions. The IP65 housing and C5-M anti-corrosion coating suit garages, utility rooms, outbuildings, workshops and covered outdoor or dusty locations where a standard indoor-only battery would struggle.

Installation and expansion

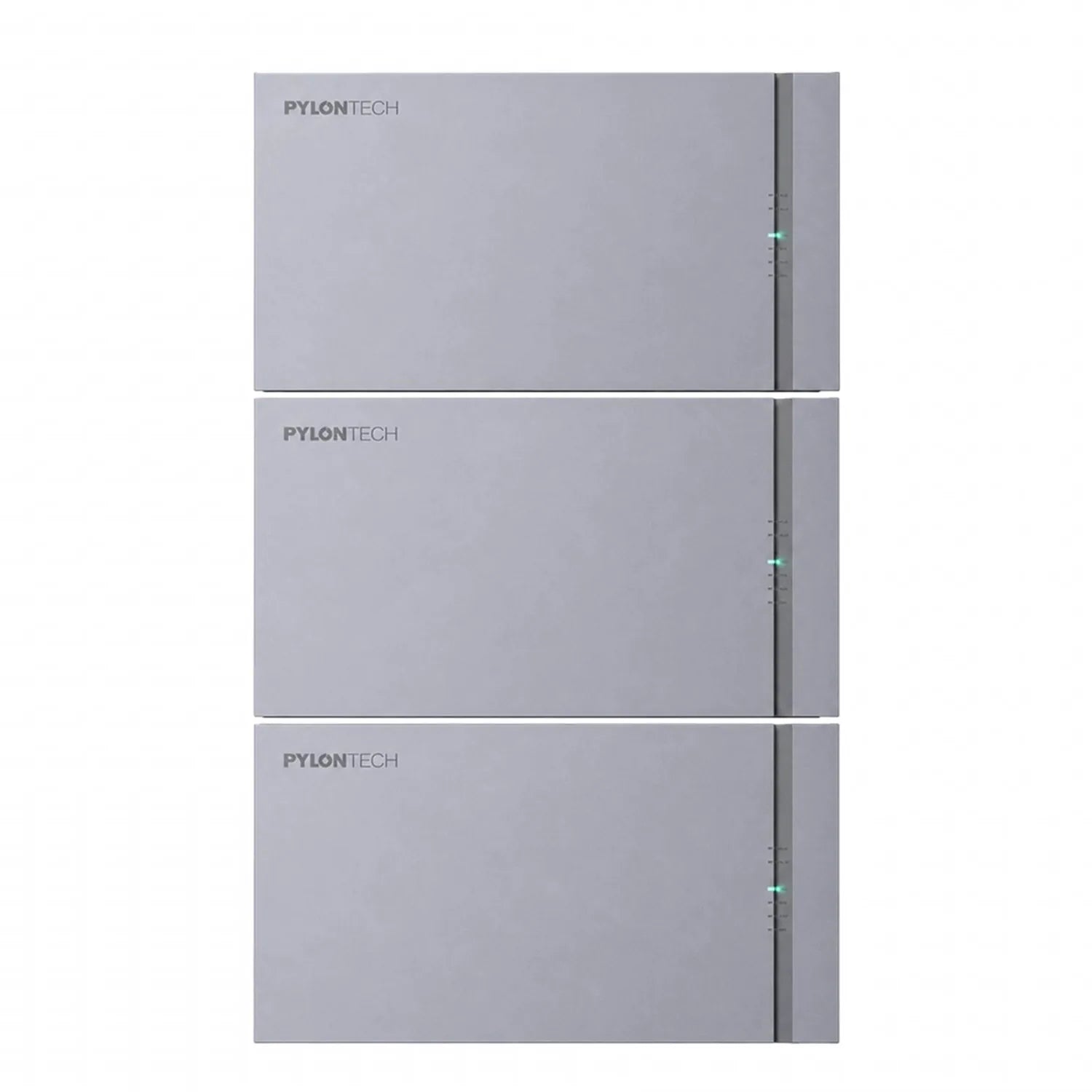

The Fidus Pro can be wall-mounted, rack-mounted or installed in a floor-standing stacked arrangement, depending on accessories used. One unit gives 5.12kWh; larger systems can combine up to 20 batteries per string and up to 6 strings with the correct communication hub.

Applications

• Residential solar battery storage
• Hybrid inverter systems
• Off-grid solar PV systems
• Backup power systems
• Garage, plant room and outbuilding installations
• Expandable battery banks for larger storage projects

Installation notes

• Installation must be carried out by a competent and qualified installer
• Must not be connected directly to AC power
• 51.2V DC low-voltage system, must not be connected in series
• The battery system must be correctly grounded
• Battery, inverter and communication settings must be compatible before commissioning
• A Pylontech LV-Hub may be required for multi-string systems
