Pylontech FH10050 5.12kWh High Voltage LiFePO4 Battery Module

The Pylontech FH10050 is a 5.12kWh high voltage battery module built with lithium iron phosphate (LiFePO4) cells. It forms part of the Pylontech Force H3 and Force H3X high voltage battery platform, with a nominal module voltage of 102.4V and a stackable design that lets installers build larger battery banks for residential and small commercial solar storage.

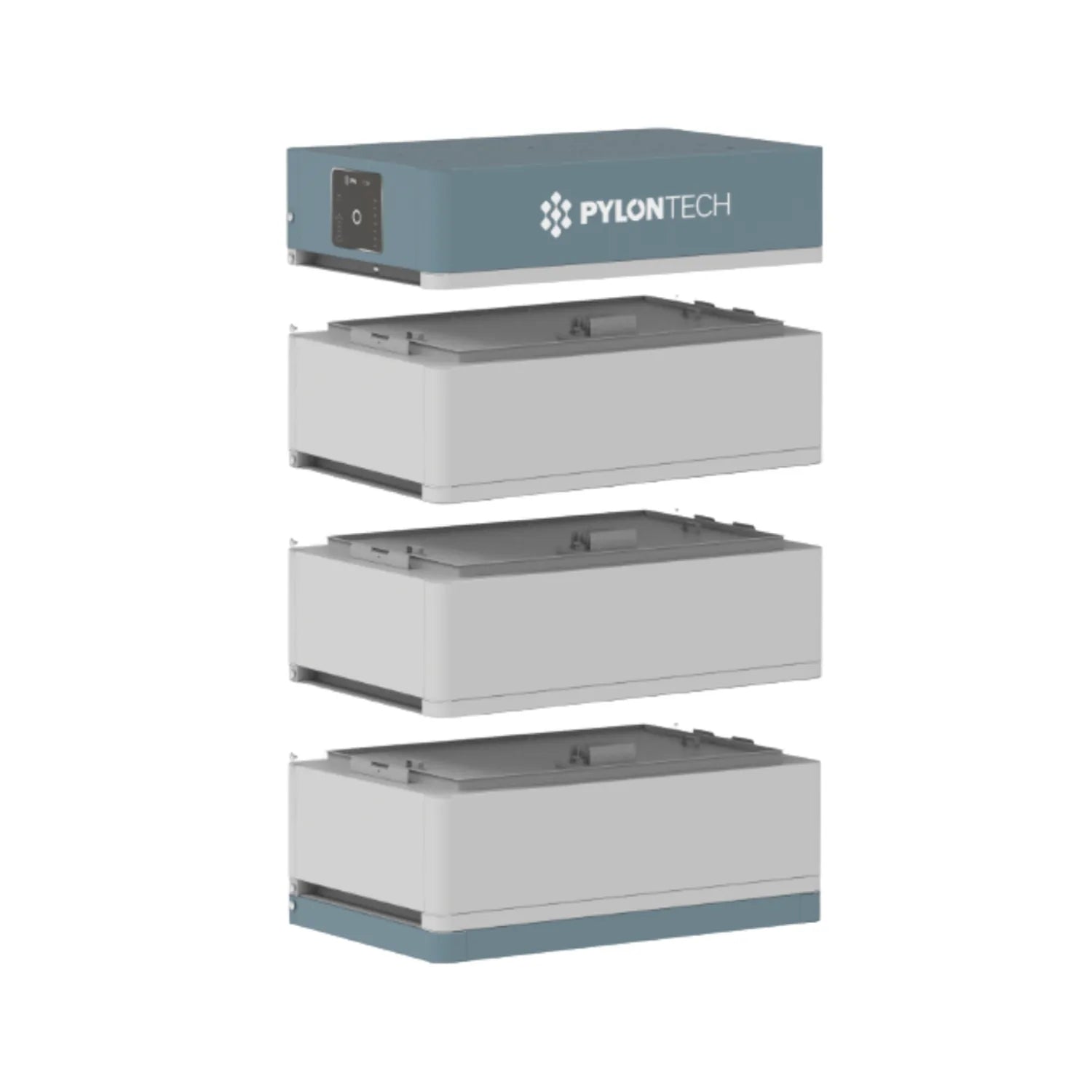

High voltage battery module for Force H3 / H3X systems

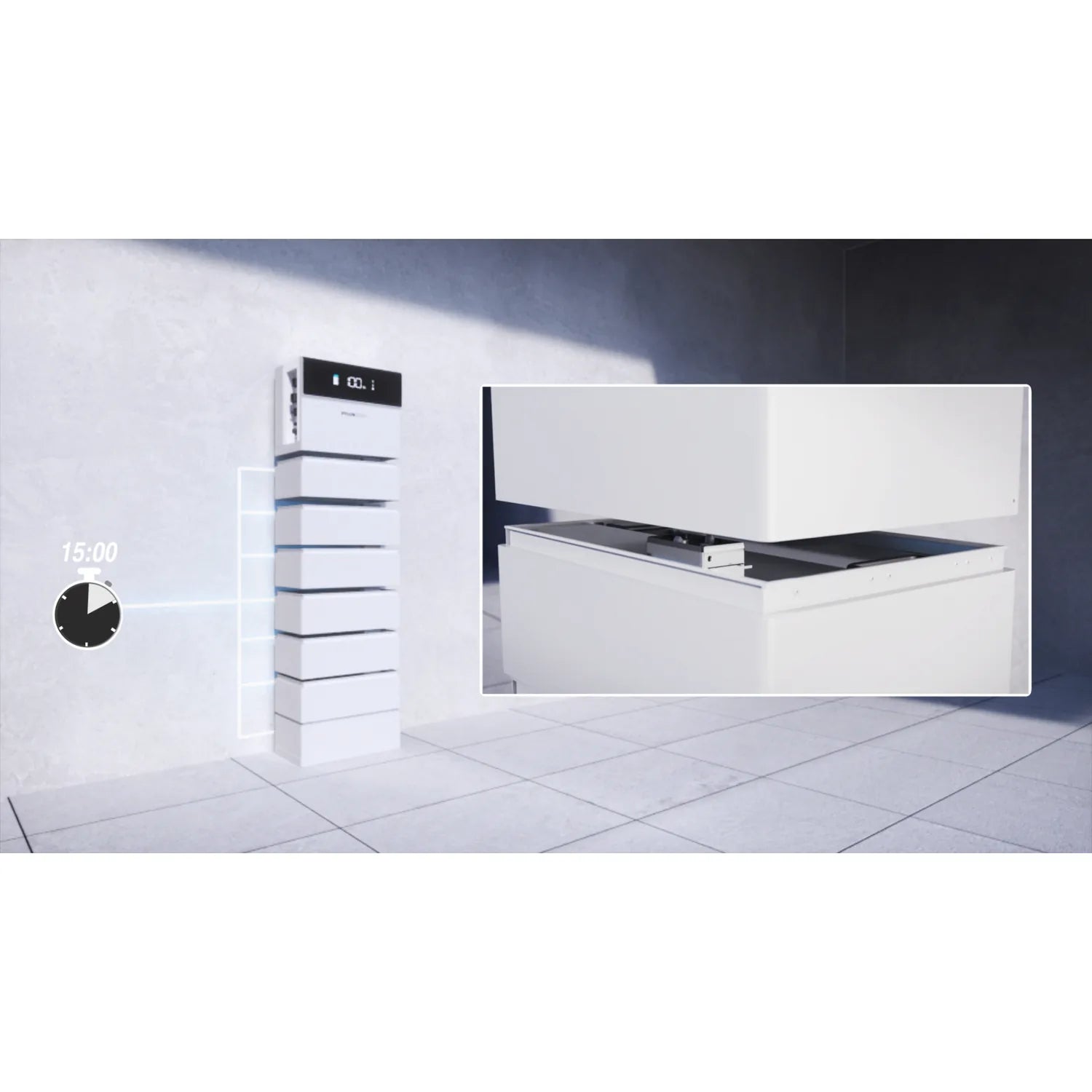

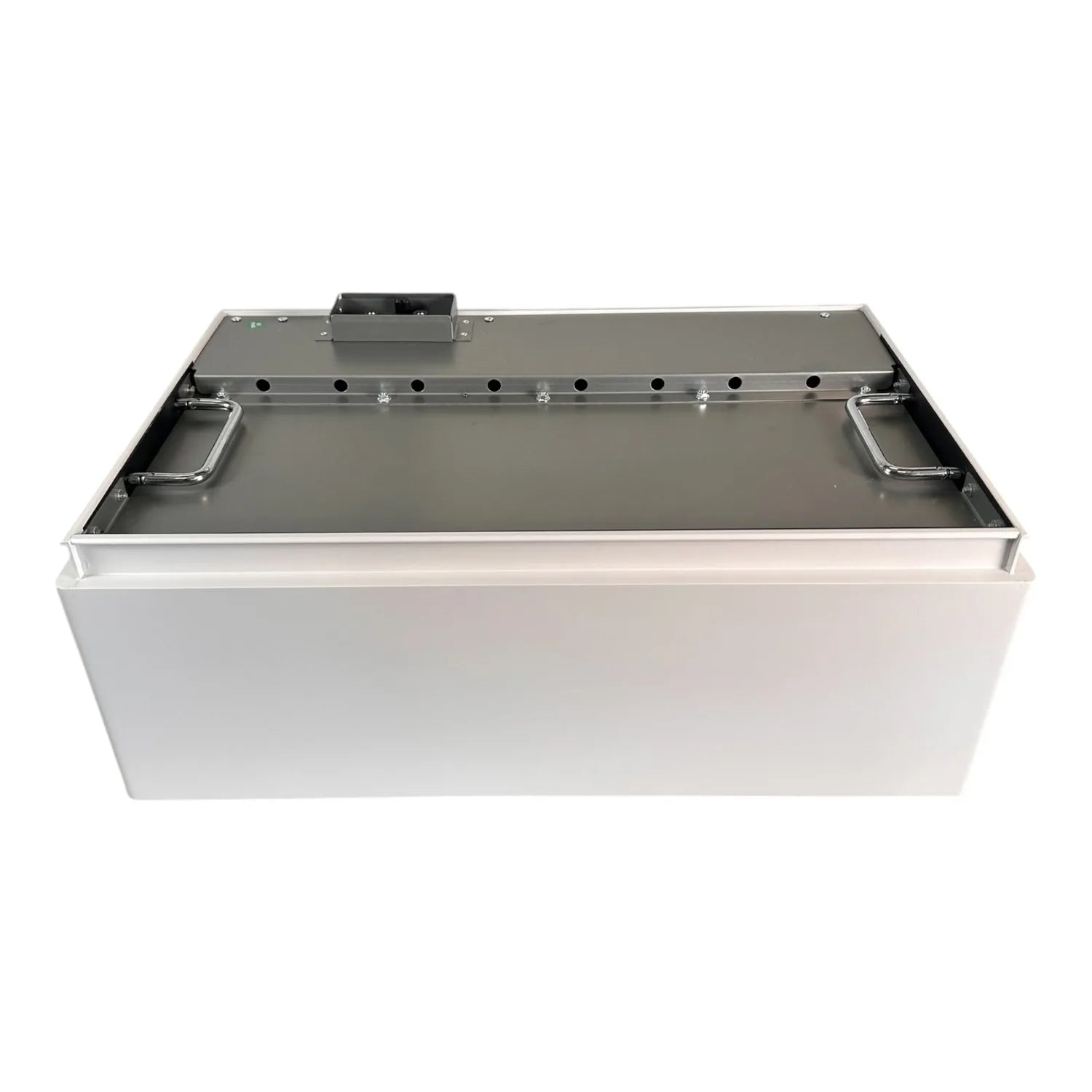

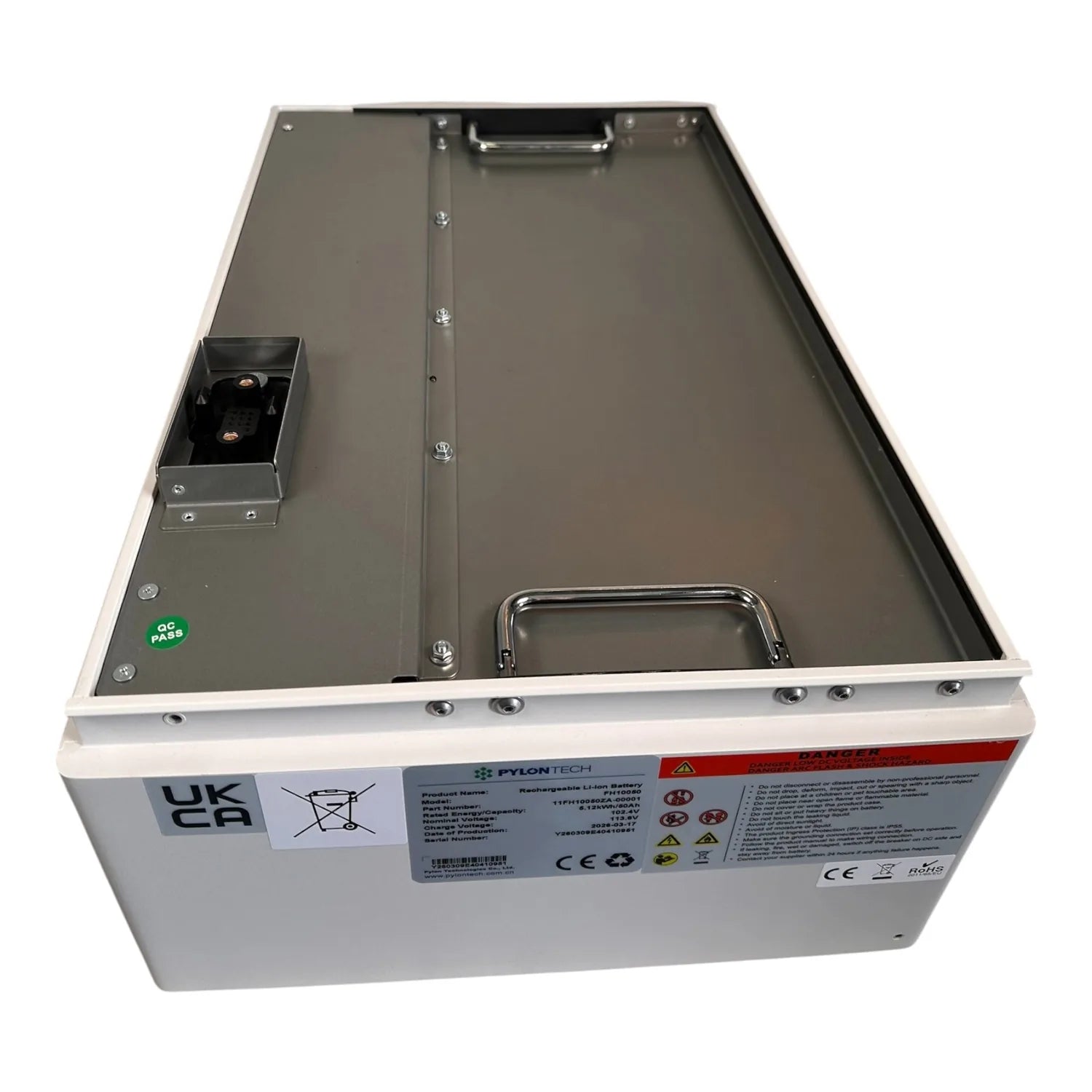

Modules connect using an internal bus-bar system rather than external cabling, so a stack of FH10050 units links together without loose wiring between them. This keeps installation tidy and supports vertical expansion within an approved system configuration.

Key features

• 5.12kWh energy per module, 102.4V nominal voltage
• 50Ah battery module capacity
• Lithium iron phosphate (LiFePO4) cell chemistry
• Stackable, wire-free bus-bar interconnection between modules
• Design life of 15+ years
• Up to 8,000 cycles under defined operating conditions
• Module dimensions 540 x 350 x 170mm

Applications

Used for solar PV self-consumption, hybrid inverter battery storage, residential and small commercial energy storage, and time-of-use tariff shifting. Backup power operation is possible where the connected inverter supports it.

A compatible BMS and inverter are required. This module works with the Pylontech FH3X-8K-HY-1P-EU, FH3X-10K-HY-3P-EU, FH3X-12K-HY-3P-EU and FH3X-15K-HY-3P-EU inverters. For stand-alone storage with Solis or other compatible inverters, the external FH2 BMS (FC0500M) is required.

Important installation note

This is a high voltage battery module for use only within an approved Pylontech Force H3 or Force H3X system. It is not a 48V low voltage battery and must not be wired directly to low voltage inverters. Installation must follow the official Pylontech manual and approved inverter compatibility list, carried out by a qualified installer.

What's in the box

• 1 x Pylontech FH10050 high voltage battery module
• Manufacturer documentation where supplied

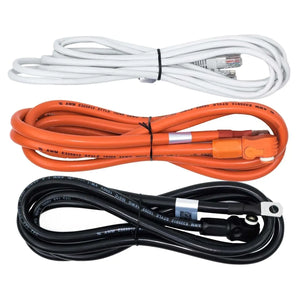

Controller, inverter, base, power cables and communication accessories may be needed depending on the full system and are not included unless stated in the product options.
