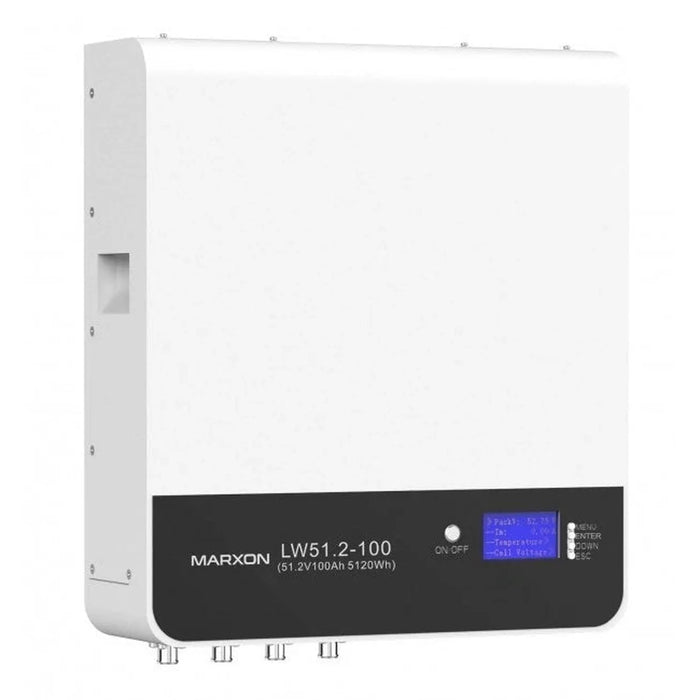

Marxon LW51.2-100 lithium battery unit with white casing, black control panel with blue display screen, and connection termin

Leoch 5.12kWh 48V LiFePO4 Lithium Battery IP65 | LW51.2

£829.50
Skip to product information
Marxon LW51.2-100 lithium battery unit with white casing, black control panel with blue display screen, and connection termin
Leoch 5.12kWh 48V LiFePO4 Lithium Battery IP65 | LW51.2

Leoch 5.12kWh 48V LiFePO4 Lithium Battery IP65 | LW51.2

Vendor
Voltacon
SKU
MKS-HW51100L1
Availability
In stock
Weight
43.0 kg

£829.50inc VAT £691.25exc VAT

Delivery from £49.00 to mainland UK Sent on a pallet, booked in with you first. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Leoch LW51.2 is a 51.2V LiFePO4 battery with 5.12kWh of usable energy and 100Ah capacity, built for hybrid and off-grid solar systems. Active cell balancing keeps every cell working evenly, and the built-in BMS tracks voltage, current and temperature throughout operation. The IP65 enclosure allows wall mounting indoors or outdoors.

Key features of this 48v lithium battery

  • Capacity, 5.12kWh, 51.2V nominal, 100Ah
  • Cell balancing, active balancing equalises energy across all cells
  • Protection, built-in BMS monitors voltage, current and temperature
  • Enclosure, IP65 rated for indoor or outdoor wall mounting
  • Current handling, 50A maximum charging current, 100A maximum continuous discharge
  • Discharge voltage range, 43.2V to 51.2V

Cycle life and operating range

Leoch rates the LW51.2 for over 4000 cycles at 80% depth of discharge, with a design life of over 15 years. Charging is supported from 0°C to +60°C, and discharging from -20°C to +60°C. Up to 15 units can be wired in parallel to build a larger battery bank.

Inverter compatibility

The LW51.2 has been tested with a range of 48V hybrid and off-grid inverters, including Voltacon, Solis, Growatt, GoodWe, SMA, Victron, Deye, LuxPowerTek, INVT, Sunsynk, Schneider Electric, SRNE and Sorotec. Check your specific inverter model and firmware with your installer before purchase.

Applications

  • Residential solar energy storage
  • Hybrid and off-grid inverter battery systems
  • Outdoor and unheated space installations
  • Expandable battery banks

Installation notes

Fit the battery in a suitable wall-mounted location and follow the Leoch installation guide for parallel wiring sequence, fusing and BMS protocol settings. Connections must be made by a qualified installer, and inverter BMS communication compatibility should be confirmed before commissioning.

Technical Specifications 19 rows Show
SpecificationValue
ModelLIO II-4810E (LW51)
Battery Cell TechnologyLithium Iron Phosphate (LiFePO4)
Nominal Voltage51.2 V
Battery Capacity100 Ah
Nominal Energy5.12 kWh
Max Continuous Charge / Discharge Current100 A @ 0.2C, 25°C
Max Charging Voltage57.6 V
Max Discharging Voltage43.2 V
Max Parallel Units16
Dimensions (D x W x H)140 x 450 x 500 mm
Net Weight43 kg
Cycle Life≥5000 cycles @ 25°C, 0.5C, 80% DoD
Operation Temperature (Charge)0°C to 45°C
Operation Temperature (Discharge)-20°C to 60°C (>45°C derating)
Operation Humidity5% to 95% RH (non-condensing)
IP RatingIP65
BMS CommunicationRS485, RS232, CAN
Safety StandardsEN IEC 61000-6-3, EN IEC 61000-6-1, EN IEC 61000-3-2, IEC 61000-3-3, UN38.3

Manufacturer datasheet. Figures as published by the manufacturer.
