Pylontech Fidus PRO Battery Stacking Bracket Kit 4-Piece Steel

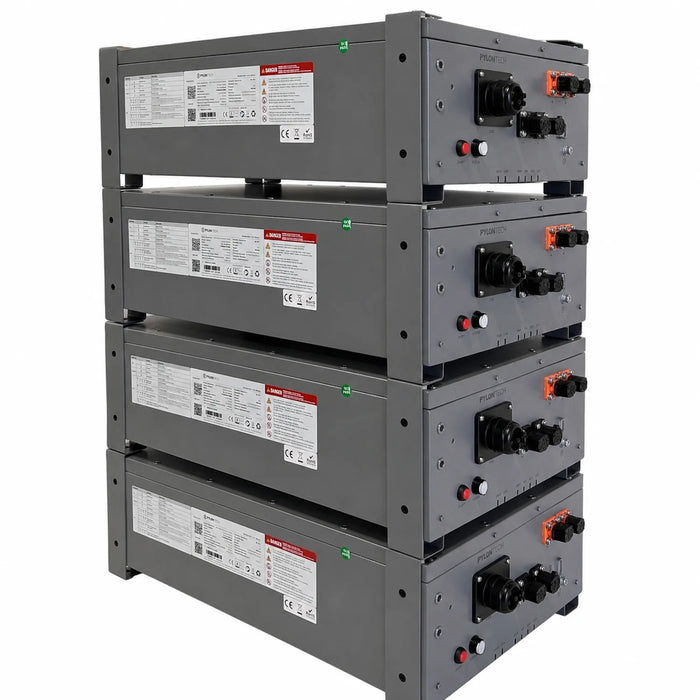

This is the stacking bracket kit for a floor-mounted Pylontech Fidus PRO 5.12 LV battery tower. Each additional module stacked above the base needs one kit, made up of four steel brackets, two left and two right, that bolt each module to the one beneath it and stop the stack shifting.

Key features

• Compatibility, designed for Pylontech Fidus PRO 5.12 LV battery modules
• Kit contents, 4 steel brackets: 2 left and 2 right, with fixing screws
• Material, steel construction
• Fixing, screw fixed, no drilling into the batteries required
• Coverage, one kit is needed per additional module above the base unit

Product overview

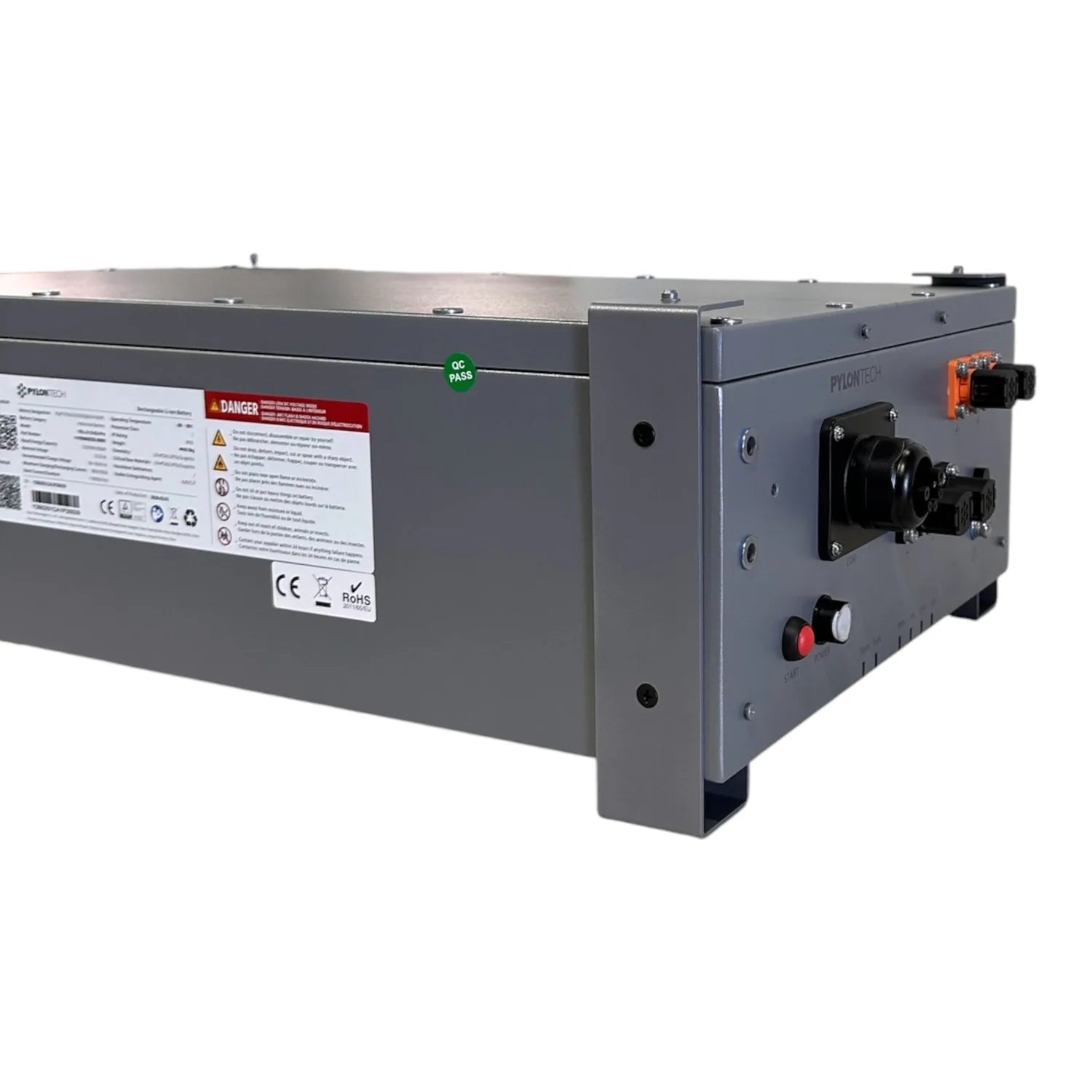

The brackets fit at the sides of each Fidus PRO module and lock it to the module directly below. Without them, stacked modules aren't mechanically joined to each other, which isn't suitable for a permanent installation. Fitting involves screwing the brackets into the sides of the battery housings, following the Pylontech Fidus PRO installation guide for the correct torque and sequence.

Applications

Used on Pylontech Fidus PRO 5.12 LV multi-module towers in residential and light commercial solar energy storage systems.

Installation notes

Modules need to sit on a level, solid floor before the brackets go on. Electrical connections should be made by a qualified installer, and the maximum stack height set by Pylontech should not be exceeded.

What's in the box

• 4 x steel stacking brackets (2 left, 2 right)
• Fixing screws
