Hytronik HC009S-KD Microwave Sensor
Ref: LDN-HC009S-KD£26.90
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £26.09 | Save 3% |
| 12 Items | £25.29 | Save 6% |
| 24 Items | £24.75 | Save 8% |
Product Description

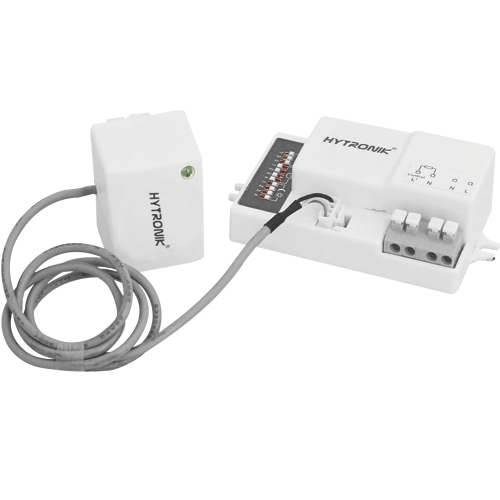

This sensor is designed for light fittings where the space is very limited for a big sensor (i.e LED bulkhead, 2D lamp and LED tubes). In such application, only the detached small antenna is needed on the outer surface, while the sensor body and the drivers can be hidden behind the panel.

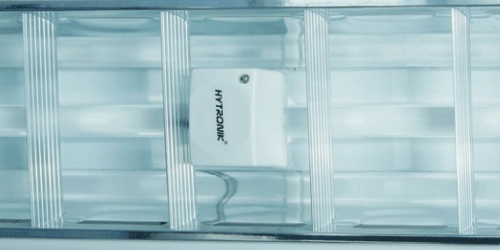

Most of the linear office light have metal louvre, where microwave cannot penetrate through. An easy alternative solution is to use this detachacble sensor antenna on the T5 and T8 tube and put the sensor main body behind the metal plate fo the light fixture. The antenna can be clamped on the LED tube.
Wiring Diagram & Instructions Manual.
For more information visit download section (next tab).
Technical Specifications
|
Operating Volts |
220-240V |
|
Switched Power |
400W |
|
Standby Power |
0.6W |
|
Operation Power |
1.2W |
|
Detection area |
10/25/50/75/100% |
|
Hold Time |
10s/30s/90s/6min/20min/30min |
|
Sensor Principle |
Microwave motion detector |
|
Daylight threshold |
5-50lux daylight/twilight/darkness |
|
Microwave Frequency |
5.8GHz +/- 75MHz |
|
Microwave Power |
<1mW |
|
Detection Range |
Max: 18m x12m |
|
Detection Angle |
30-150 deg |
|
Mounting Height |
Max 12m |
|
Operating Temperature |
-10deg t0 +60 deg |
|
IP Rating |
IP20 |
Technical Manual
