Hytronik HC005S Microwave Motion Sensor with Daylight Sensor 220-240V
- Vendor
- Hytronik
- SKU
- 112015
- Availability
- In stock
- Weight
- 0.05 kg
£20.99inc VAT £17.49exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

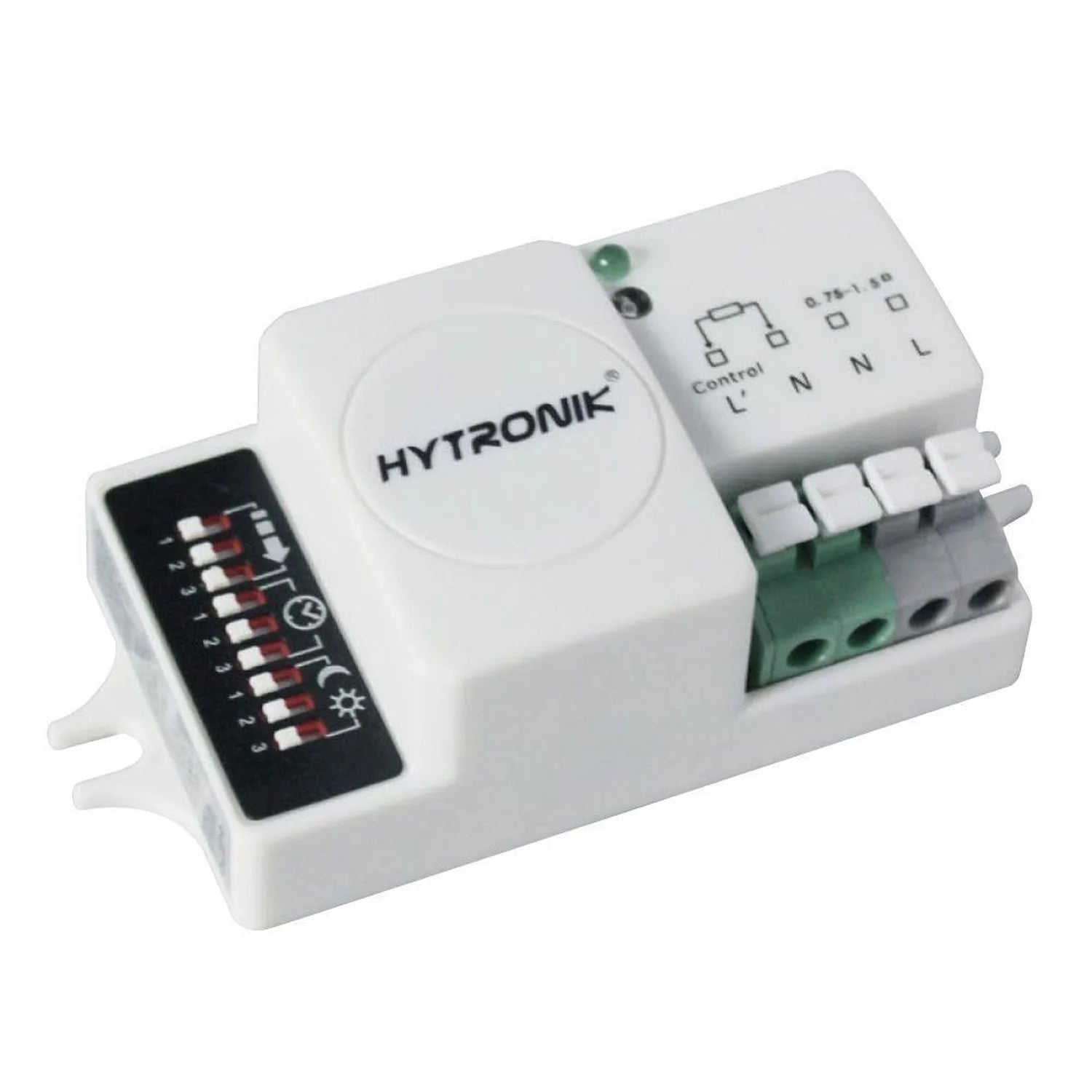

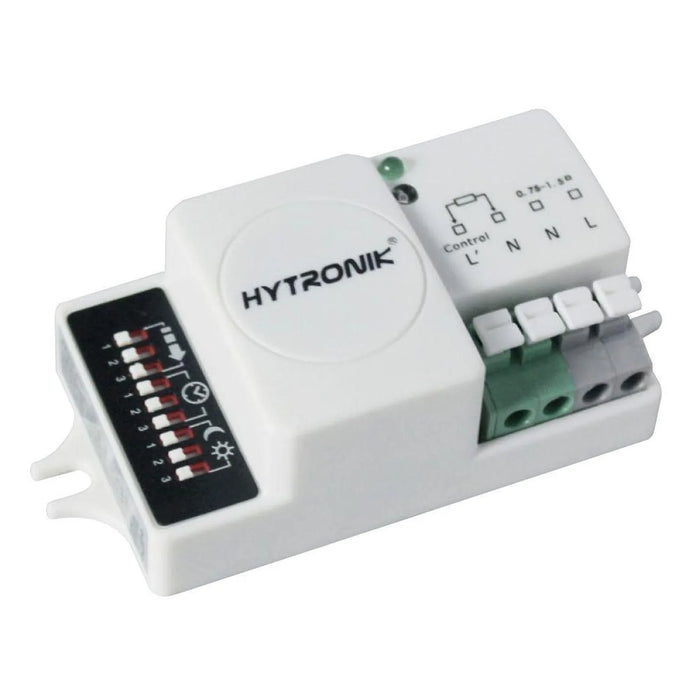

The Hytronik HC005S is a super-compact microwave motion sensor built to fit inside a light fitting. When it picks up movement, the light comes on. Once the hold time you have chosen runs out, it switches off again, and the built-in daylight sensor keeps the light off while there is enough natural light in the room. It runs on 220-240V and provides simple on/off control.
Every setting is made on the sensor itself using DIP switches.
Hytronik HC005S microwave motion sensor features
- Control: on/off, 220-240V
- Switched load: 800W resistive, 400W capacitive
- Detection range: Max. (ØxH): 12m x 6m, with the detection area set to 10%, 30%, 50%, 75% or 100%
- Hold time: 5s to 30min, plus a walk test setting
- Daylight threshold: 2 to 50 lux, or disabled
- Mounting height: max 6m, for indoor use
Where it is used
Offices and commercial lighting are the obvious fit. It also suits meeting rooms and classrooms, and its small body makes it a good choice for new luminaire designs.
Installation notes
The sensor has loop-in and loop-out terminals. Zero-crossing switching cuts in-rush current and protects the relay. Pair it with switch-dim control gear and you get tri-level (corridor) control.
Mount the antenna module at least 80mm away from any dimming ballast or driver.
Before you fit it
The sensor is IP20. Where waterproofing is needed, fit it inside an IP65 box. Hytronik covers the HC005S with a 5 Year, 50,000hr Warranty.
Technical Specifications 30 rows Show
| Brand | Hytronik |
| Model | HC005S |
| Operating volts | 220-240V |
| Switched power | Max. 400W (capacitive) Max.800W(resistive) |
| Standby power | <0.5W |
| Operation power | 1.2W |
| Sensor principle | Microwave motion detector |
| Microwave frequency | 5.8GHz +/- 75MHz |
| Microwave power | <0.2mW |
| Detection area | 10/30/50/75/100%, can be customized |
| Detection range | Max. (ØxH): 12m x 6m |
| Detection angle | 30-150 deg |
| Hold time | 5s ~ 30min (selectable) |
| Daylight threshold | 2 ~ 50 lux, disabled |
| Mounting height | Max 6m |
| Certification | Semko, CB, CE , EMC, RED, RCM |
| Warranty | 5 Year, 50,000hr Warranty |
| IP rating | IP20 (sensor only; fit it in an IP65 box if it needs waterproofing) |
| Control function | On/off |
| Warm-up time | 10 s |
| Product length | 80.5 mm |
| Product width | 36.5 mm |
| Product height | 26.0 mm |
| Mounting hole | 4.2 mm |
| Weight | 40.0 g |
| Humidity | 10 ~ 90% |
| Maximum case temperature | 80.0 C |
| EMC standard | EN 55015, EN 61000 |
| LVD standard | AS/NZS 60669, EN60669 |
| RED standard | EN 300440, EN301489, EN 62479 |
Manufacturer datasheet. Figures as published by the manufacturer.
