Hytronik Microwave Motion Sensor HC005S/BT Bluetooth 400W IP20
- Vendor
- Hytronik
- SKU
- 112005
- Availability
- In stock
- Weight
- 0.05 kg
£53.50inc VAT £44.58exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

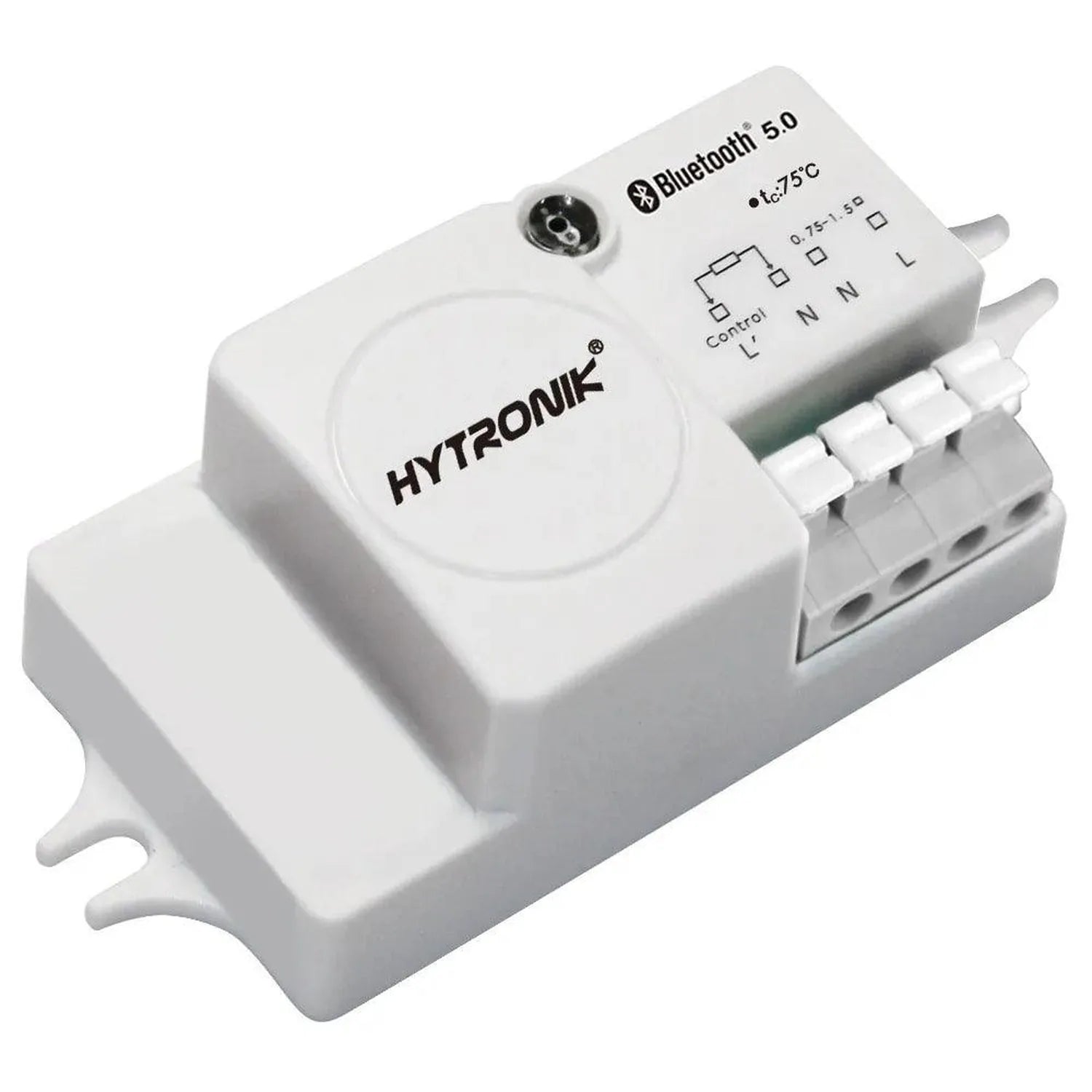

The Hytronik HC005S/BT is a microwave motion sensor with Bluetooth that is built into or fitted to a luminaire. When it detects people, the light switches on. It goes off again once the hold time you have chosen runs out. An integrated daylight sensor keeps the light off when there is enough natural light in the space.
Microwave motion sensor features
- Switched power: 400W
- Supply voltage: 220-240V
- Microwave frequency: 5.8GHz
- Detection angle: 30-150 deg
- Daylight threshold: 5-50lux
- Ingress protection: IP20
Set up from your phone
Commissioning is done in the Koolmesh app over 5.0 SIG Mesh, with a Bluetooth range of 10 - 30m (indoors). Lights can be grouped across the mesh network without running extra wiring.
- Grouping of luminaires over the mesh network
- 3 types of scenes
- Detailed motion sensor settings
- Time and date schedules, plus an astro timer for sunrise and sunset
- Memory against power loss and offline commissioning
- Over the air (OTA) firmware updates
Where it is used
Offices and classrooms are typical sites. So are car parks, warehouses and other commercial or industrial areas where lighting only needs to run when someone is present.
Installation notes

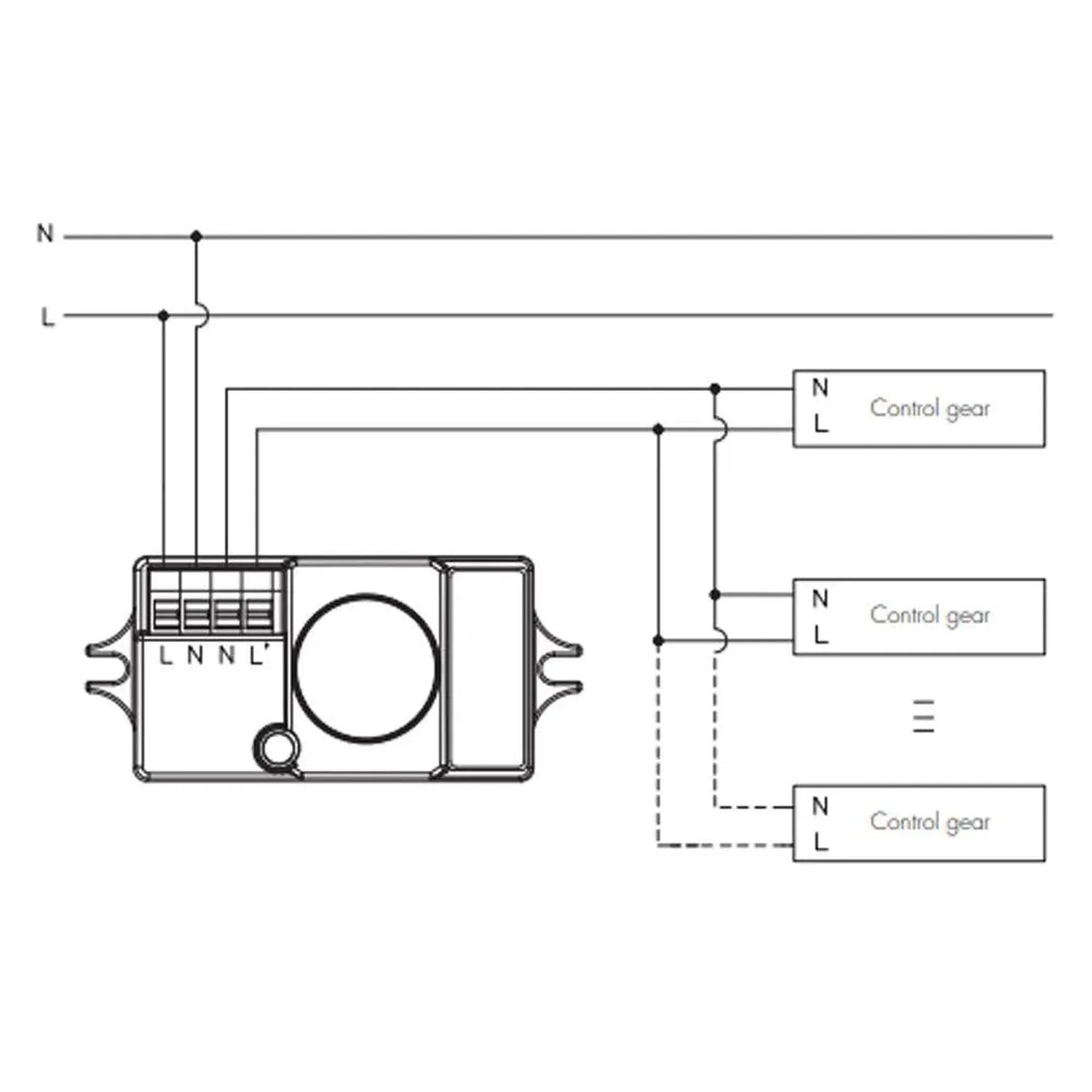

The sensor has loop-in and loop-out terminals and a zero-crossing detection circuit. Maximum mounting height is 6m. With an IP20 rating, it is intended for dry indoor locations.
Technical Specifications 23 rows Show
| Brand | Hytronik |
| Model | HC005S/BT |
| Type | Microwave motion sensor with Bluetooth |
| Operating volts | 220-240V |
| Switched power | 400W |
| Standby power | 0.6W |
| Operation power | 1.2W |
| Sensor principle | Microwave motion detector/ Bluetooth |
| Microwave frequency | 5.8GHz +/- 75MHz |
| Microwave power | <1mW |
| Detection area | 10/25/50/75/100% |
| Detection angle | 30-150 deg |
| Hold time | 10s/30s/90s/6min/20min/30min |
| Daylight sensor | Integrated photocell, its function can be enabled or disabled |
| Daylight threshold | 5-50lux daylight/twilight/darkness |

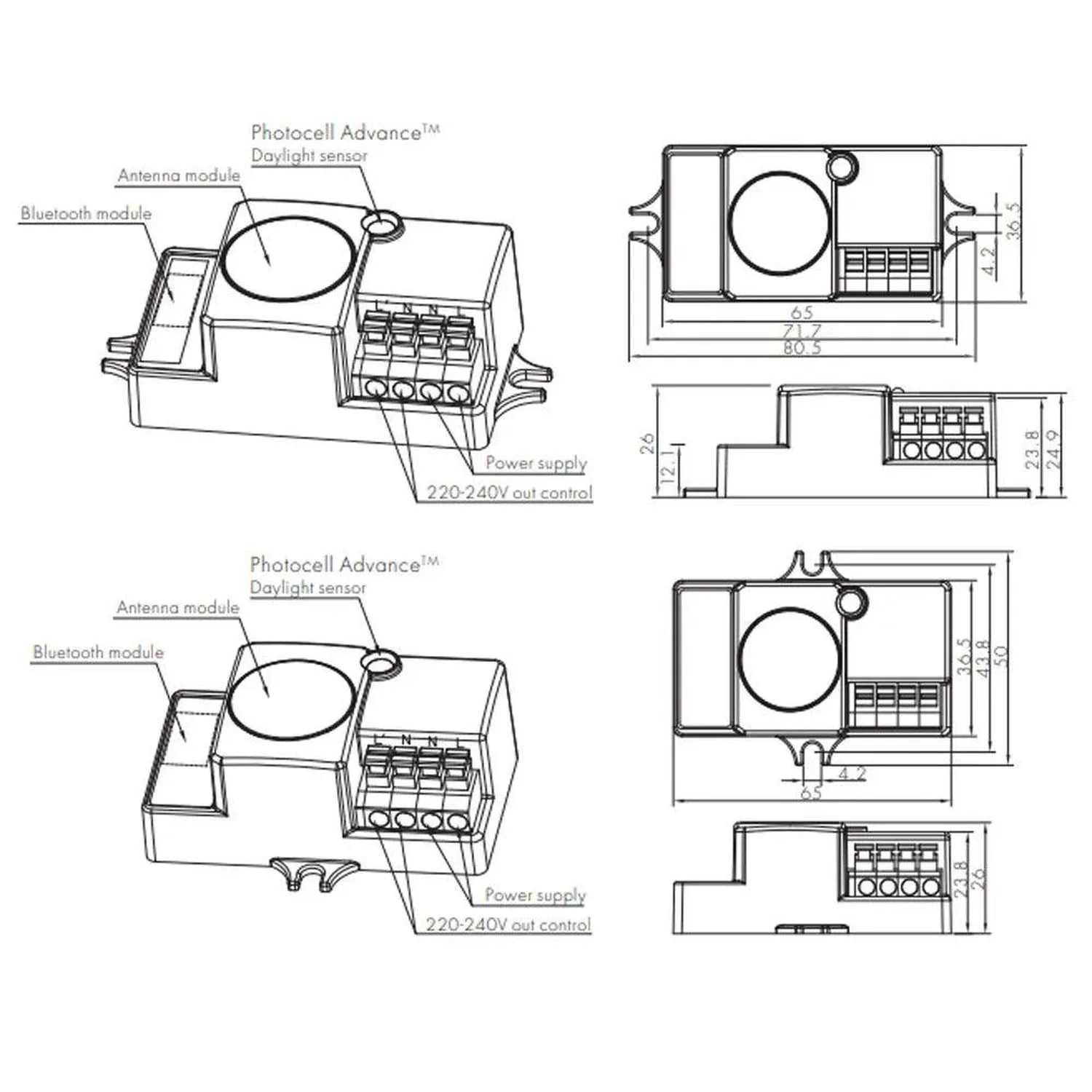

| Mounting height | Max 6m |
| Bluetooth protocol | 5.0 SIG mesh |
| Bluetooth frequency | 2.4 Ghz - 2.483 Ghz |
| Bluetooth range | 10 - 30m (indoors) |
| App | Koolmesh |
| Terminals | Loop-in and Loop-out terminals |
| Operating temperature | -10deg t0 +60 deg |
| IP rating | IP20 |
Manufacturer datasheet. Figures as published by the manufacturer.
