Staircase LED Light Controller 32 Channel 5-24V | Skydance ES32

No
£106.04
Skip to product information

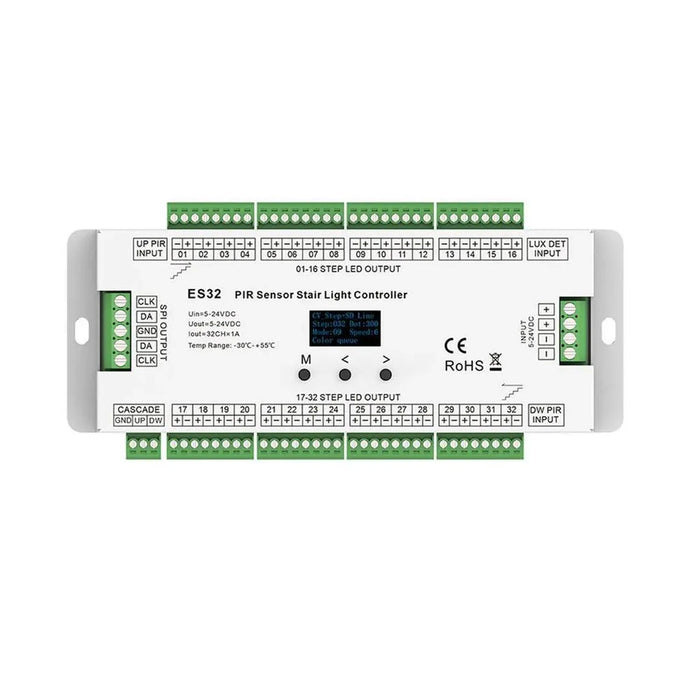

ES32 PIR Sensor Stair Light Controller with 32 LED output channels, terminal blocks, and control buttons on white background.

Staircase LED Light Controller 32 Channel 5-24V | Skydance ES32

Vendor
Skydance
SKU
601043
Availability
In stock
Weight
0.45 kg

£106.04inc VAT £88.37exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Skydance ES32 is a staircase LED light controller that switches LED strips on one step at a time as someone walks onto the stairs, then turns them off once no motion is detected. A daylight sensor stops it running during the day. Two PIR sensors come with the kit.

Staircase LED light controller features

  • Channels: 32 constant voltage outputs, max. 1A per channel
  • Input: 5-24V
  • Digital output: dual SPI (TTL) for 28 types of digital RGB LED strip, including TM1804, UCS1903, WS2811, WS2812 and SK9822, up to 960 pixels
  • Set-up: OLED display with 3 buttons
  • Adjustment: light modes with speed and brightness in 1-8 levels
  • Daylight threshold: 10, 30, 50, 100, 150, 200lux or OFF

Sensing and control

Each PIR sensor reaches up to 3m across a 120 deg angle. Once the induction process is over, the light turns off after 10s. If an LED fails, you can disable any of the 32 channels individually. A built-in self-test is included. Two controllers can also be cascaded.

Where to use it

Staircases are the main job. The ES32 also works on pathways and corridors, and on architectural LED displays where a step-by-step lighting sequence is wanted. The controller is IP20 rated and certified to CE, EMC and LVD.

In the kit

  • Skydance ES32 staircase controller
  • 2 PIR sensors
Technical Specifications 22 rows Show
BrandSkydance
ModelES32
Input voltage5-24V
Output voltage32x 5-24V
Output current32CH/ 1A per channel
Output power32x 5-24W
Output typeconstant voltage
Sensor rangeup to 3m
Sensor angle120 deg
Size205 x 130 x 45mm
Weight520g
IP ratingIP20
Operating temperature-30C - +55C
Sensors included2 sensors
Digital output2 groups SPI (TTL) for digital RGB LED strip
Max pixelsMax 960 pixels
Daylight sensor threshold10, 30, 50, 100, 150, 200lux or OFF
Speed1-8 grade adjustable
DisplayOLED display and 3 buttons
CascadeTwo controllers can cascade
Auto offLight turns off after 10s when the induction process is over
CertificationCE,EMC,LVD

Manufacturer datasheet. Figures as published by the manufacturer.

  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Alan C.
Stair light led controller

Good piece of kit. Easy to install. Instructions a bit basic but you get used to them. Only using 13 channels of the 32 and not using the pixel led part of the controller. Movement sensors are nice and neat and discrete. They sense well at top and bottom of stairs.

m
mehmet b.
Excelent Customer Service

I recently purchased an LED controller and was impressed with both the product and service. My order arrived promptly the next day. After the sale, I realized I needed additional sensors. Thanks to Michael in customer support, I was able to order the extra parts without any hassle. Their quick delivery and excellent customer service have made me a satisfied customer.
