LED Driver with Motion Sensor 350-900mA 25W | Hytronik HEC9025 SensorDIM
- Vendor
- Hytronik
- SKU
- 112010
- Availability
- In stock
- Weight
- 0.05 kg
£48.29inc VAT £40.24exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

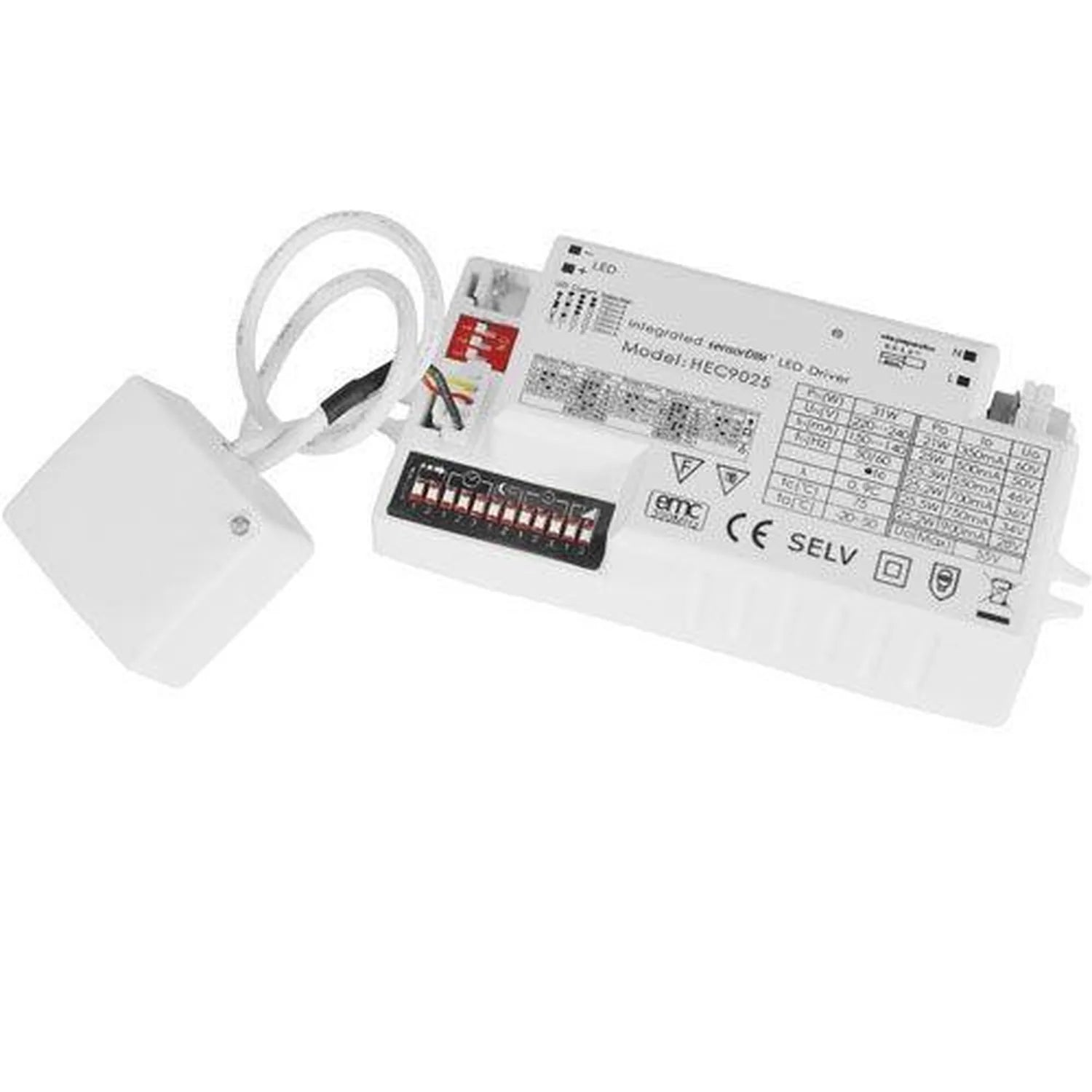

The Hytronik HEC9025 SensorDIM combines a constant current LED driver and a microwave motion sensor in one unit. It powers LED lights and LED boards up to 25W, and DIP switches set the output current anywhere from 350mA to 900mA. Because the flat antenna sits apart from the driver, it takes up very little room on the LED panel.
LED driver with motion sensor and corridor dimming
Someone walks in and the light comes up to 100%. Once the space empties, the output drops to a stand-by level of 10%, 20%, 30% or 50%, then switches off. This 3-step sequence is known as the corridor function.
- Output current: 350mA, 500mA, 550mA, 700mA, 750mA or 900mA
- Hold time: 5s to 30min
- Daylight threshold: 2, 10 or 50 Lux, or disabled
- Detection range: Max. 12m x 6m
- Input power: 31W (Max.)
- IP rating: IP20
Built-in functions
A few switching shortcuts let you change behaviour on site without touching the DIP settings.
- Daylight learning: switch twice within 2 seconds and the driver stores the room's current lux level as its daylight threshold
- Manual on: switch the fitting off and on 3 times within 3 seconds for 8 hours manual on mode
- Sensor OFF: disables detection so the unit runs as an ordinary driver
Where to fit it
Corridors, stairwells and other spaces that sit empty for long periods are the obvious fit. The SAM4 antenna accepts a side or back cable entry, and the sensor works at mounting heights up to Max.6m. With an IP20 rating, this is a driver for dry indoor fittings. A 5-Year Warranty covers the unit.
Technical Specifications 37 rows Show
| Brand | Hytronik |
| Model | HEC9025 |
| Operating voltage | 220~240VAC |
| Input current | 0.15A |
| Input power | 31W (Max.) |
| Warm-up time | 20s |
| Detection area | Sensor OFF/50/75/100%, can be customized |
| Hold time | 5s/30s/1min/5min/10min/20min/30min, can be customized |
| Daylight threshold | 2lux/10Lux/50Lux /disable, can be customized |
| Stand-by period | 0s/10s/1min/5min/10min/30min/1H/+, can be customized |
| Stand-by dimming level | 10%/20%/30%/50%, can be customized |
| Microwave frequency | 5.8GHz+/-75MHz |
| Microwave power | <0.2mW |
| Detection range | Max. (oxH): 12m x 6m |
| Mounting height | Max.6m |
| Output LED current | 350mA/500mA/550mA/700mA/750mA/900mA |
| Maximum load | 3.5~15W (350mA) 5~21W (500mA) 5.5~22W (550mA) 7~25W (700mA) 7~25W (750mA) 9~25W (900mA) |
| Maximum voltage | 10~43V (350mA) 10~42V (500mA) 10~40V (550mA) 10~36V (700mA) 10~34V (750mA) 10~28V (900mA) |
| Antenna | Model SAM4, cable side entry or back entry |
| IP rating | IP20 |
| Operating temperature | Ta: -20C to +50C |
| Output type | Constant current |
| Light levels | 100% > dimmed light (10%, 20%, 30%, 50%) > off |
| Manual mode | 8 hours manual on mode |
| Detection angle | 30° ~ 150° |
| Off load voltage | 55V |
| Power factor | >0.9 |
| Efficiency | 85% (Max.) |
| In-rush current | 48A |
| Drivers per 16A Type B breaker | 42 |
| Maximum case temperature | Tc: +80°C |
| Protection | Output short-circuit protection |
| Dielectric strength | Input→output: 3750VAC / 5mA /1min |
| EMC standard | EN55015, EN61547, EN6100-2/3 |
| Safety standard | EN61347-1, EN61347-2-13 |
| Certification | Semko, CB, CE , EMC, RED, RCM , SELV |
| Warranty | 5-Year Warranty |
Manufacturer datasheet. Figures as published by the manufacturer.
