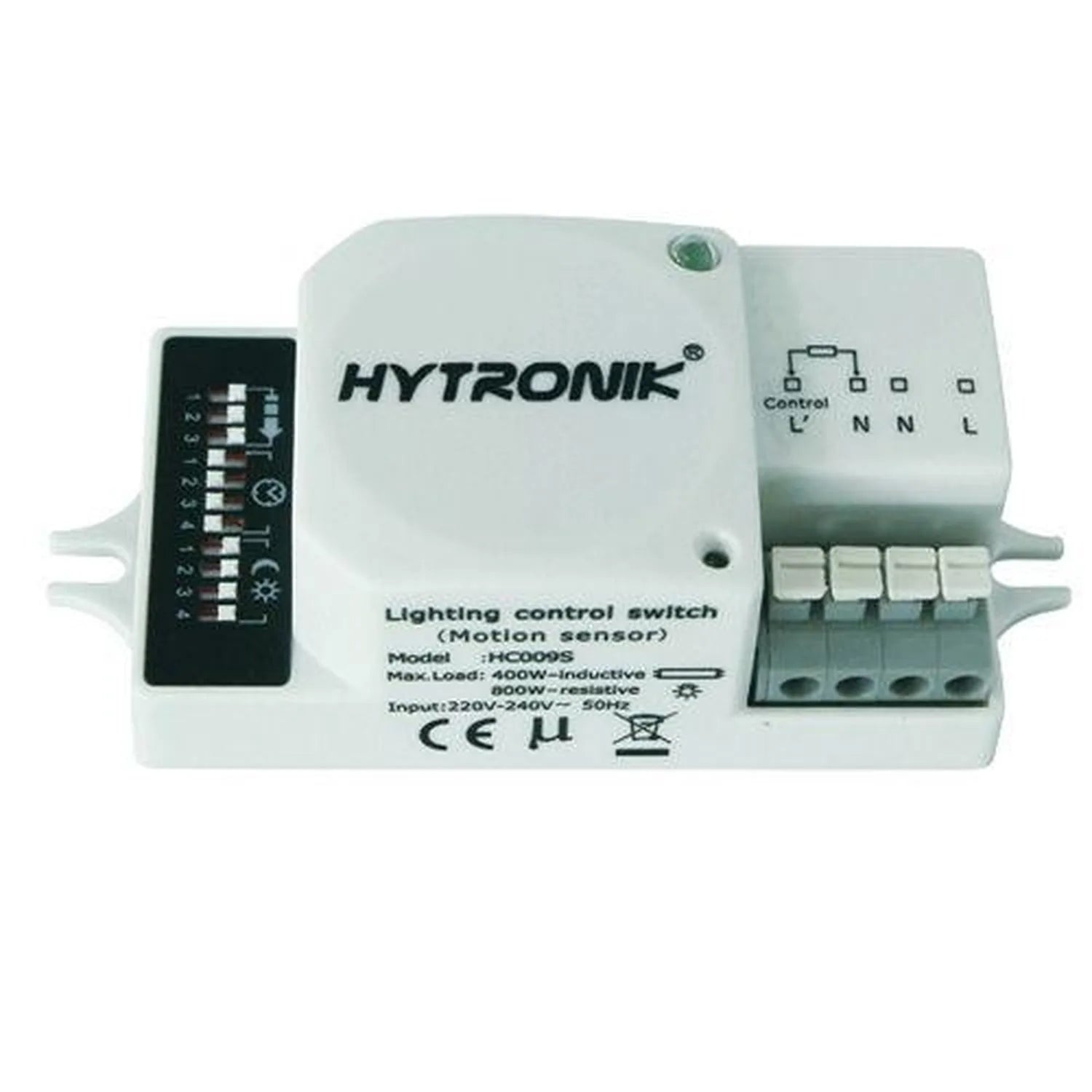

Hytronik HC009S lighting control switch with motion sensor, white rectangular device with terminal connections and indicator

Hytronik HC009S Microwave Motion Sensor with Daylight Sensor 800W

£26.24
Skip to product information
Hytronik HC009S lighting control switch with motion sensor, white rectangular device with terminal connections and indicator

Hytronik HC009S Microwave Motion Sensor with Daylight Sensor 800W

Vendor
Hytronik
SKU
112003
Availability
In stock
Weight
0.05 kg

£26.24inc VAT £21.87exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Hytronik HC009S is a microwave motion sensor for indoor lighting. It turns the light on when someone is detected and turns it off once your chosen hold time has passed. A built-in daylight sensor keeps the light off when there is already enough natural light in the room. Every setting is made on the sensor itself using DIP switches.

Hytronik HC009S microwave motion sensor features

  • Switched load: 800W resistive, 400W capacitive
  • Hold time: 10s, 30s, 90s, 6, 20 or 30 minutes
  • Daylight threshold: 5, 10, 30 or 50 lux, or disabled
  • Detection area: 10/25/50/75/100%
  • Detection range: max 12m x 6m
  • Mounting height: max 6m, indoor use

Functions

Fluorescent lamps can be run through a 100 hour burn-in mode before normal sensor control starts. You can also teach the HC009S a new daylight threshold. Switch it off and on twice within 2 seconds and it learns the room's current lux level.

For group installations there is a condominium function. Link the L' terminals and every fitting in the group lights up together. Paired with Tridonic switchDIM ballasts or drivers, the sensor gives 2-step dimming.

Installation

Loop-in and loop-out terminals make wiring between fittings simpler. The relay uses zero-cross switching. That gives it a longer life.

Where it fits

The HC009S is an on/off sensor for indoor use, suited to spaces where lights should only run while people are present and only when daylight is not doing the job already.

Technical Specifications 26 rows Show
BrandHytronik
ModelHC009S
Operating volts220-240VAC 50/60Hz
Switched power800W (resistive), 400W (capacitive load)
Standby power<0.5W
Warm-up time20s
Sensor principleMicrowave motion detector
Microwave frequency5.8GHz +/- 75MHz
Microwave power<0.2mW
Detection area10/25/50/75/100%
Detection rangeMax. (ØxH): 12m x 6m
Detection angle30-150 deg
Hold time10s / 30s / 90s / 6 minutes / 20 minutes / 30 minutes
Daylight threshold5 / 10 / 30 / 50 lux, or disabled
Mounting heightMax 6m
Operating temperatureTa: -20 C to +60 C
Maximum case temperatureTc: +80 C
IP ratingIP20
CertificationENEC, CB, CE, EMC, RED, RCM
Warranty5 Year, 50,000hr Warranty
EMC standardEN55015, EN61000
LVD standardEN60669-2-1, AS/NZS60669
RED standardEN300440, EN301489, EN62479
Control functionOn/off
Dimming option2-step dimming with a Tridonic switchDIM ballast/driver
UseIndoor

Manufacturer datasheet. Figures as published by the manufacturer.
