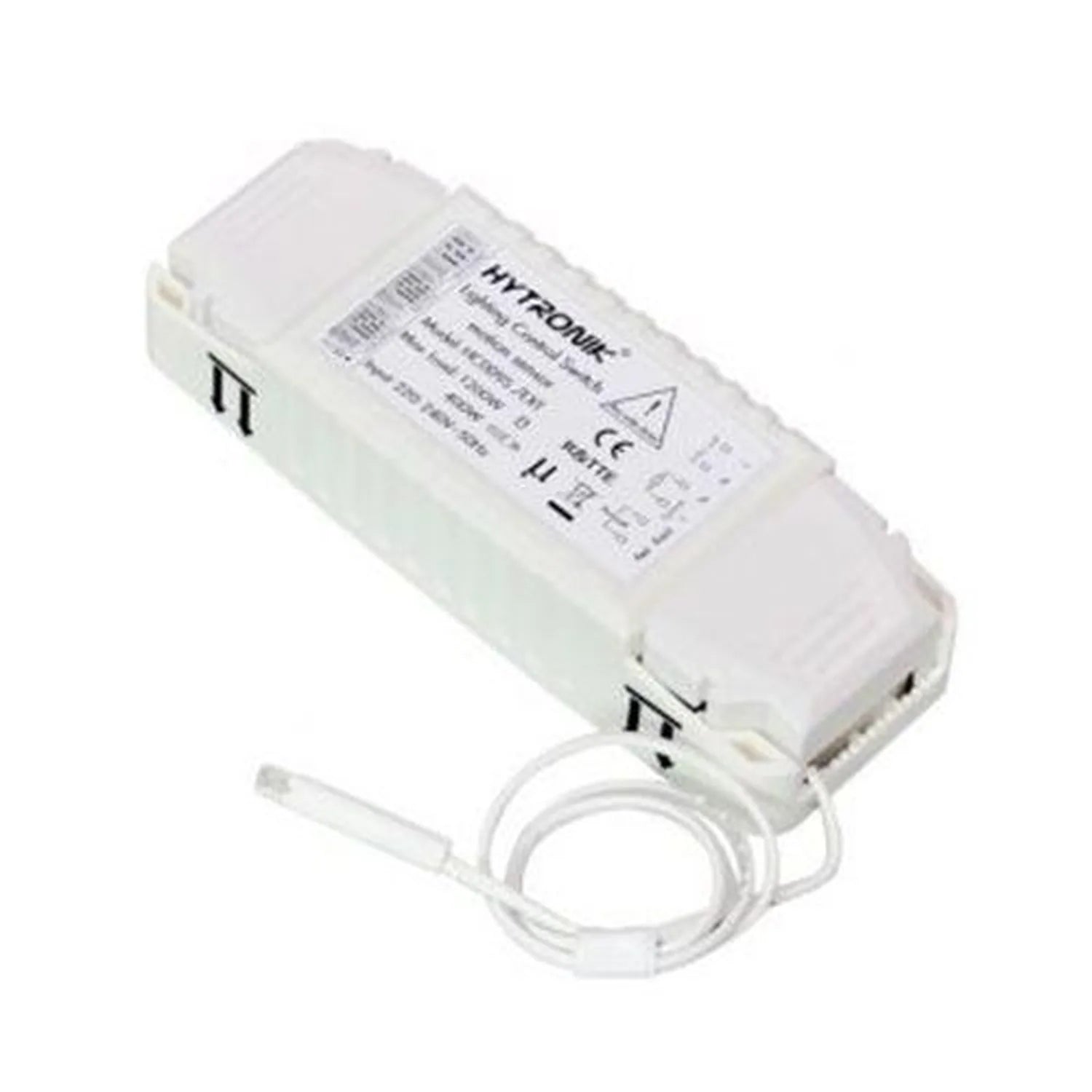

White rectangular microwave sensor device with label and attached white cable, product alone against white background.

Microwave Sensor with Daylight Sensor 1200W | Hytronik HC009S/EXT

£29.35
Skip to product information
White rectangular microwave sensor device with label and attached white cable, product alone against white background.

Microwave Sensor with Daylight Sensor 1200W | Hytronik HC009S/EXT

Vendor
Hytronik
SKU
112017
Availability
In stock
Weight
0.05 kg

£29.35inc VAT £24.46exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

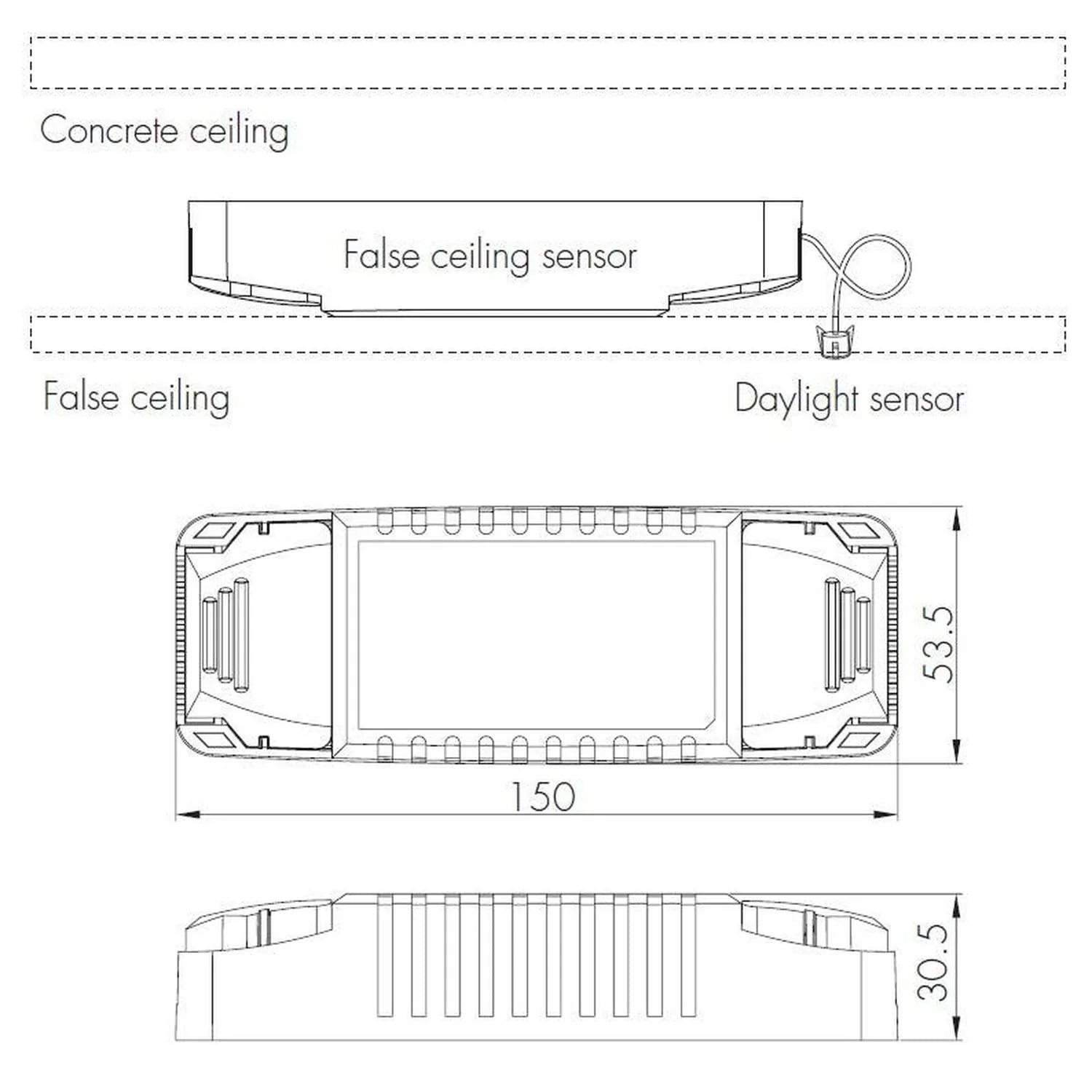

The Hytronik HC009S/EXT is a microwave motion sensor that mounts out of sight above a false or plasterboard ceiling. Microwaves travel through the ceiling board, so nobody sees the motion sensor at all. The only visible sign is a small hole for the built-in daylight sensor. It switches up to 1200W resistive or 400W capacitive loads.

Hytronik microwave sensor features

  • Control: on/off switching with built-in daylight sensor
  • Switched load: 1200W resistive, 400W capacitive
  • Detection range: Max. 12m x 3m
  • Detection angle: 30 to 150 degrees
  • Hold time: 5s, 30s, 1min, 5min, 15min or 30min
  • Daylight threshold: 2, 5, 10, 30 or 50 Lux, or disabled

Where it fits

Retrofit work is the obvious use. Many light fittings are too small to take a sensor inside, and an office lit by 600x600 LED panels is a typical case. Put this unit in the void above the ceiling and the panels come on when movement is detected, then go off once the hold time you have chosen runs out. The sensor is rated IP20.

Installation notes

  • Loop-in and loop-out terminals
  • Zero-crossing switching cuts in-rush current and protects the relay
  • Link the L' terminals of several sensors so they switch as a group
  • All settings are made on DIP switches

Setting up a group is simple. Wire the L' terminals together and every linked sensor turns the lights on at once, which keeps a large open-plan space evenly lit rather than switching in patches.

Warranty

Hytronik covers the HC009S/EXT with a 5 Year, 50,000hr Warranty.

Technical Specifications 16 rows Show
BrandHytronik
ModelHC009S/EXT
Mains voltage220_240VAC 50/60Hz
Stand-by power<0.5W
Switched power400W (capacitive), 1200W (resistive)
Sensor principleHigh Frequency (microwave)
Operation frequency5.8GHz +/- 75MHz
Transmission power<0.2mW
Detection rangeMax. 12m x 3m
Detection angle30 ~ 150
Hold time5s / 30s / 1min / 5min / 15min / 30min
Daylight threshold2Lux / 5 Lux / 10 Lux / 30 Lux / 50 Lux / Disabled
Ambient temperatureTa: -20 ~ +60
Warming-up20s
IP ratingIP20
Warranty5 Year, 50,000hr Warranty

Manufacturer datasheet. Figures as published by the manufacturer.
