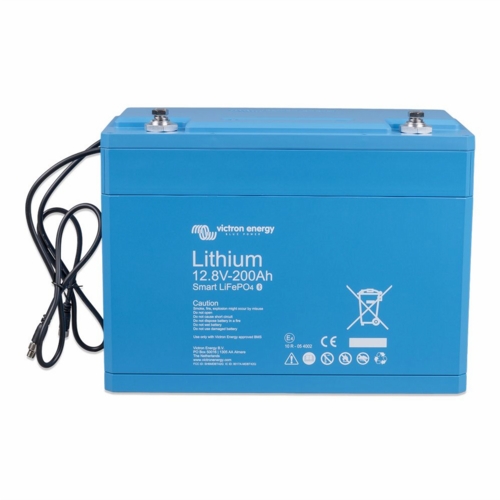

Victron Lithium SuperPack 12,8V/200Ah (M8) BAT512120705

Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of a LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery therefore consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.

• With integrated cell balancing
• Can be parallel and series connected
• Bluetooth app available to monitor cell voltage and temperature.

A LFP battery:

• Does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid.

• Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
LFP is therefore the chemistry of choice for demanding applications.

Carton size: 43x31x20 cm

Nominal capacity 200Ah at 25°C

Nominal capacity 160Ah at 0°C

80% DoD 2500 cycles
70% DoD 3000 cycles
50% DoD 5000 cycles

Charge voltage 14.4V
Float voltage 13.5V
