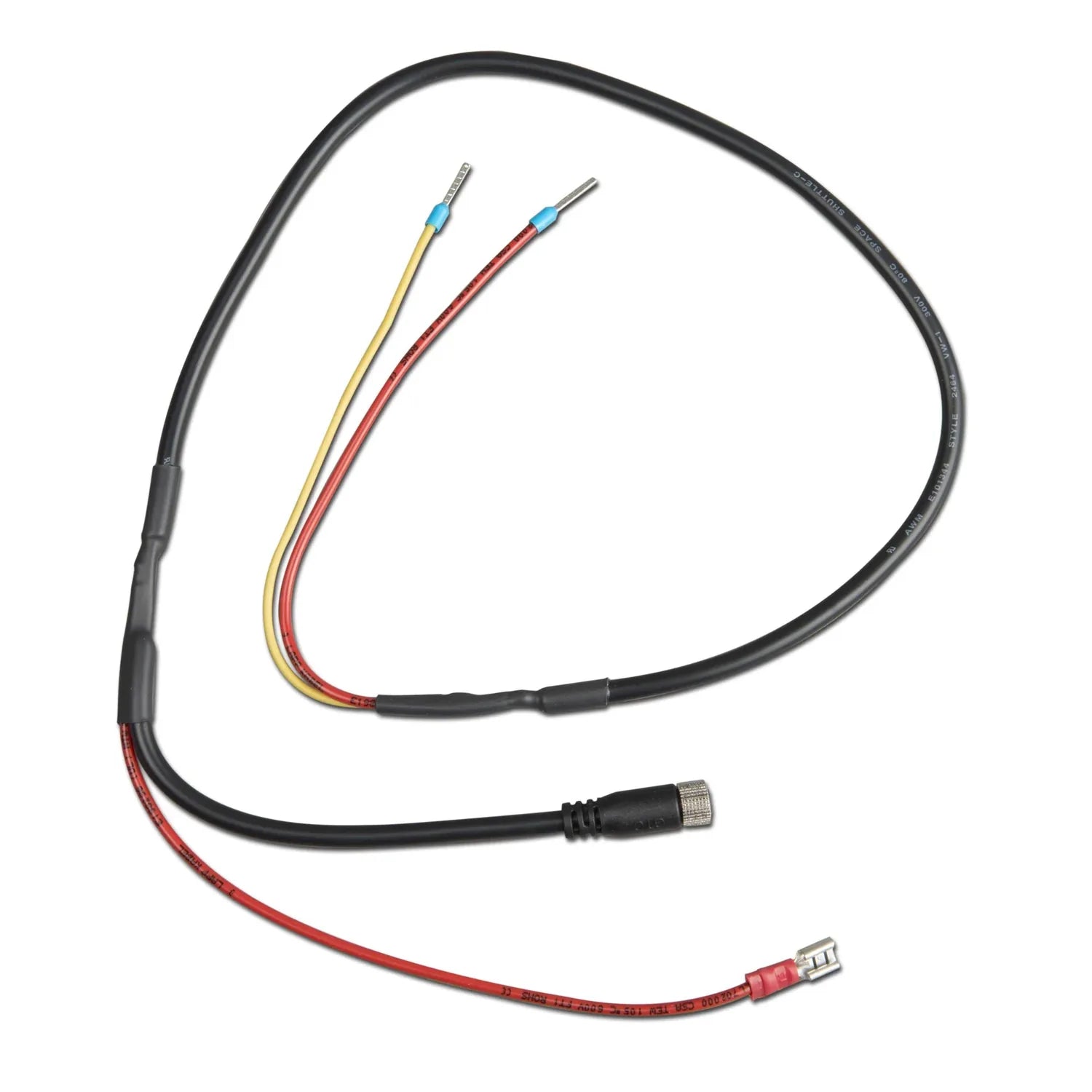

Victron VE.Bus BMS to BMS 12-200 Alternator Control Cable | ASS030510120

This cable is the physical link between the Victron VE.Bus BMS and the BMS 12-200 alternator charge controller. It lets the VE.Bus BMS signal the BMS 12-200 to stop or reduce alternator charging the moment a cell protection threshold is reached, so the two units act as one coordinated system rather than two separate devices guessing at each other's state.

Key features

• Function, dedicated control cable linking a VE.Bus BMS to a BMS 12-200 alternator charge controller
• Charge disconnect, allows the VE.Bus BMS to instruct the BMS 12-200 to stop alternator charging when a cell goes out of range
• Connection, plug and play, no extra wiring or configuration needed
• Weight, 0.11 kg
• SKU, ASS030510120

How it works

The VE.Bus BMS watches individual lithium cell voltage and temperature and disconnects loads or charge sources outside safe limits. The BMS 12-200 is Victron's alternator-side charge controller for lithium batteries, built to manage the high current an alternator can push without harming either the alternator or the cells. This cable carries the signal that lets the VE.Bus BMS assert control over the BMS 12-200's charge input, so an overvoltage or overtemperature event is handled before the battery protection relay has to open.

Applications

Used on marine vessels and motorhomes running a lithium house bank charged from the engine alternator, and in off-grid vehicle builds where a VE.Bus BMS and BMS 12-200 need to work together. It is a required accessory wherever these two Victron units are combined in a 12V lithium system.

What's in the box

• 1 x VE.Bus BMS to BMS 12-200 alternator control cable

Installation notes

Fit this cable as part of a complete Victron lithium system, ideally by someone familiar with Victron BMS architecture. Both the VE.Bus BMS and BMS 12-200 should be correctly configured before the cable is connected. Getting the wiring wrong in a lithium system can lead to uncontrolled charging or cell damage, so follow Victron's lithium system design guidelines.
