60W Constant Current LED Driver 1400mA Non-Dimmable | Boke BK-PQL060-1400
- Vendor
- Boke
- SKU
- 770034
- Availability
- In stock
- Weight
- 0.15 kg
£29.39inc VAT £24.49exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

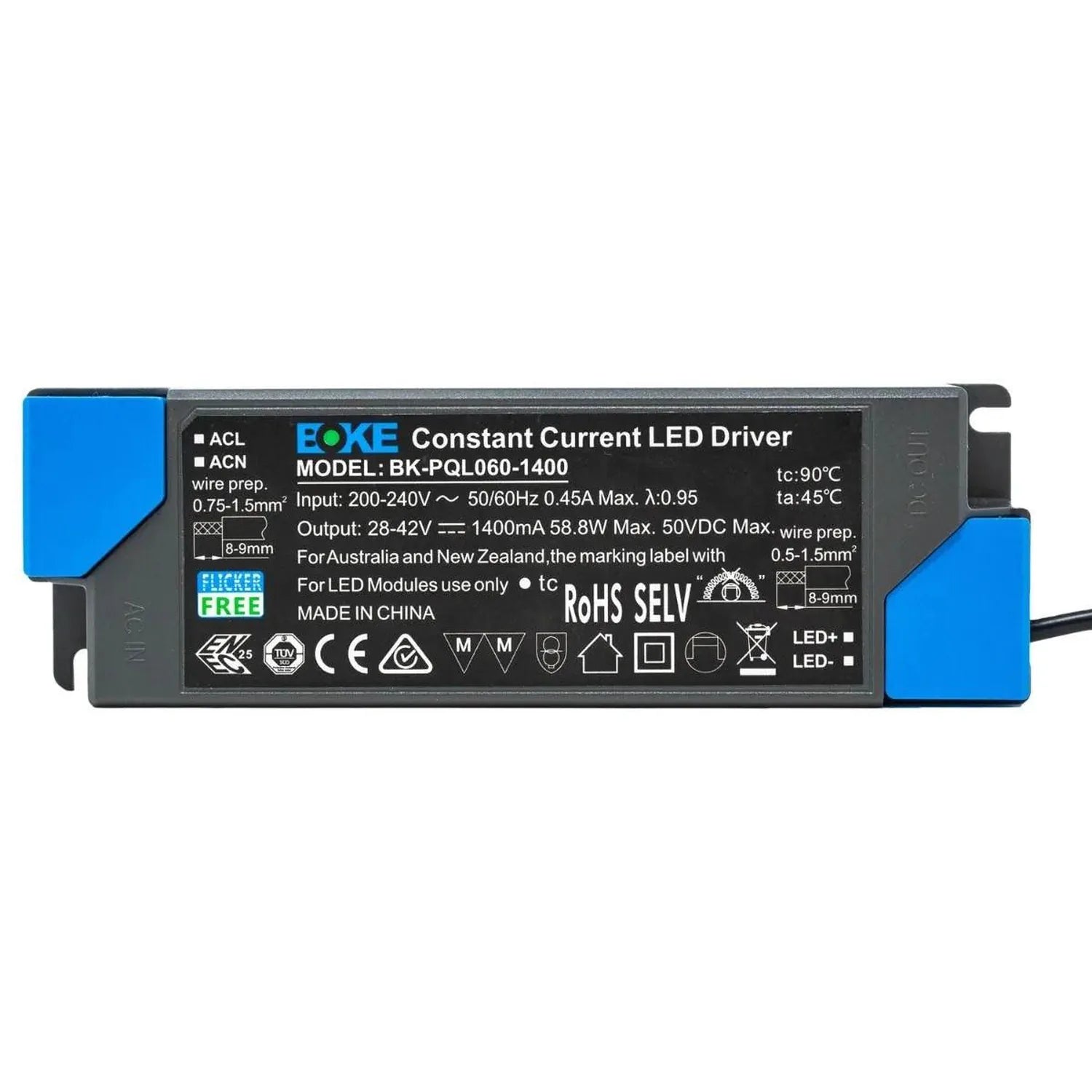

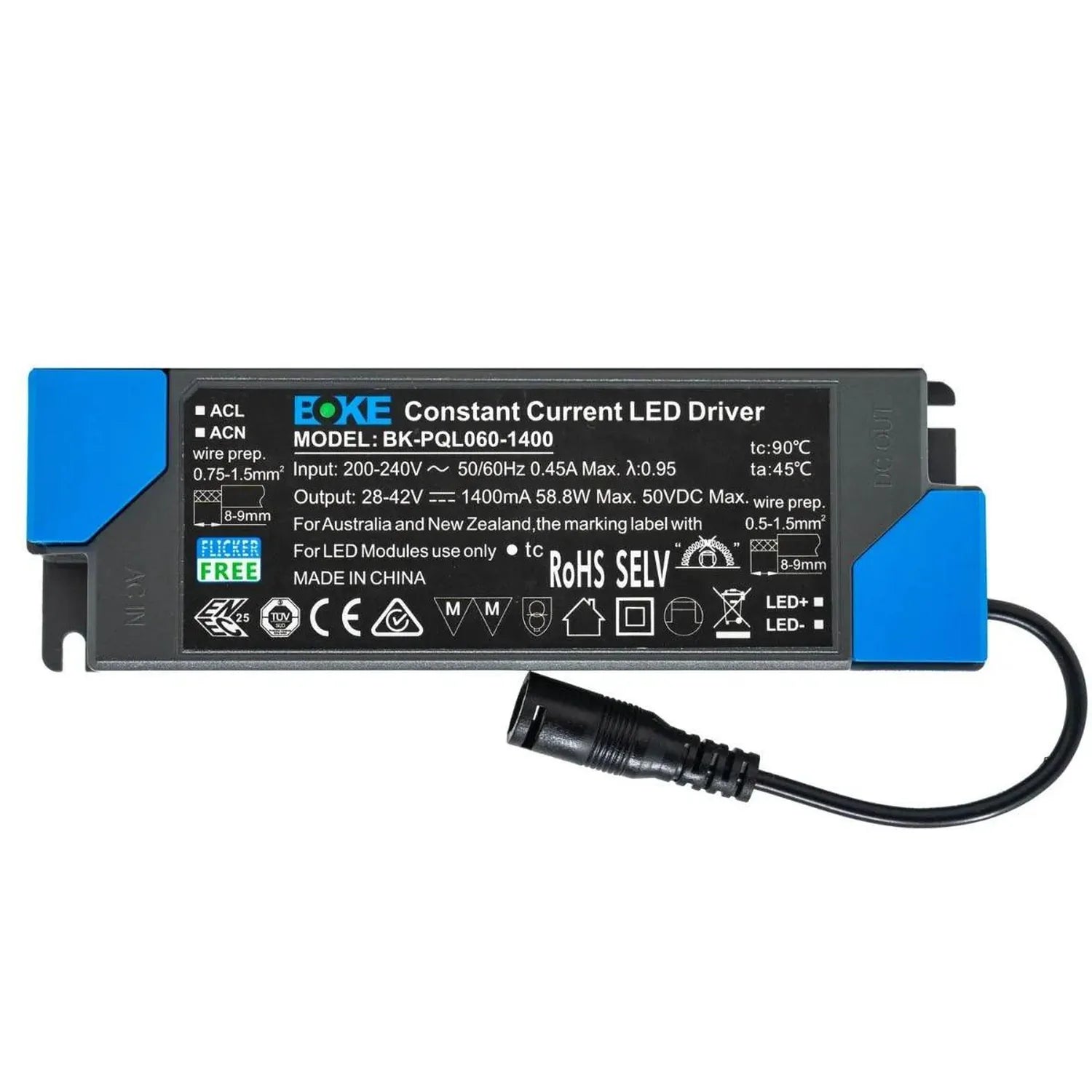

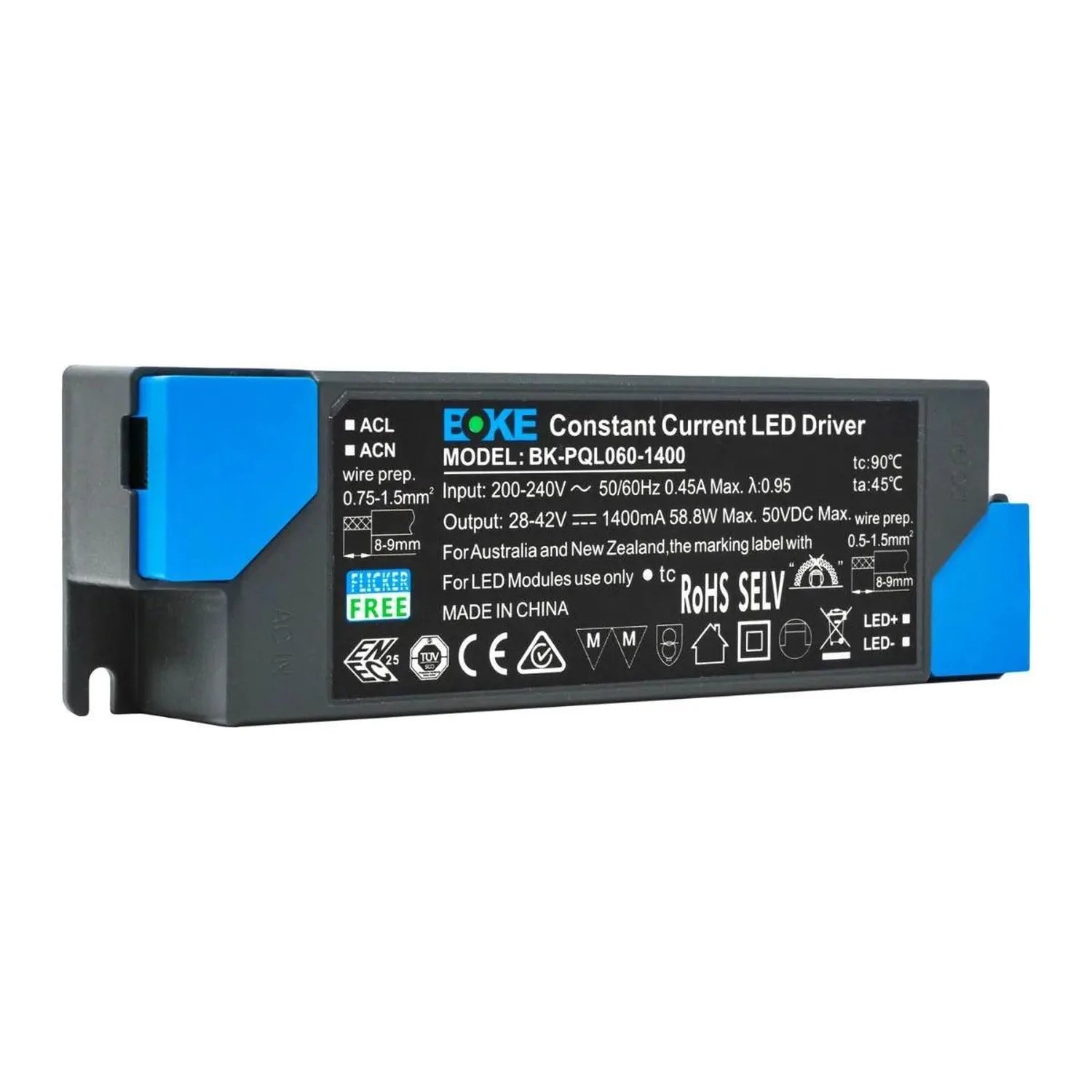

The Boke BK-PQL060-1400 is a non-dimmable 60W constant current LED driver that holds a steady 1400mA output across 28-42V DC. It suits LED panels, downlights, gear trays, modules and other commercial lighting. The driver is independent, with SELV and Class II design, so it is fitted outside enclosed luminaires rather than inside the light.
60W constant current LED driver features
- Output: 1.25-1.4A (1400mA nominal), 28-42V DC, up to 58.8W
- Input: 200-240V AC, 47-63Hz
- Efficiency: up to 89%, with power factor >0.95 and THD <10%
- Light quality: flicker-free output
- Protection: short circuit, overload and over temperature
- Durability: more than 50,000 switching cycles and a nominal lifetime of up to 100,000 hours
Where it fits
Commercial lighting is the main use. Panels, downlights, gear trays and LED modules running at 1400mA within the 28-42V DC window are all good matches. It is rated IP20. The input also withstands 380VAC for short durations, which helps on supplies prone to brief overvoltage.
No dimming is offered on this model. If your scheme needs dimming, choose a dimmable driver instead.
Emergency lighting
DC input is supported, and the driver works with central emergency systems.
Installation

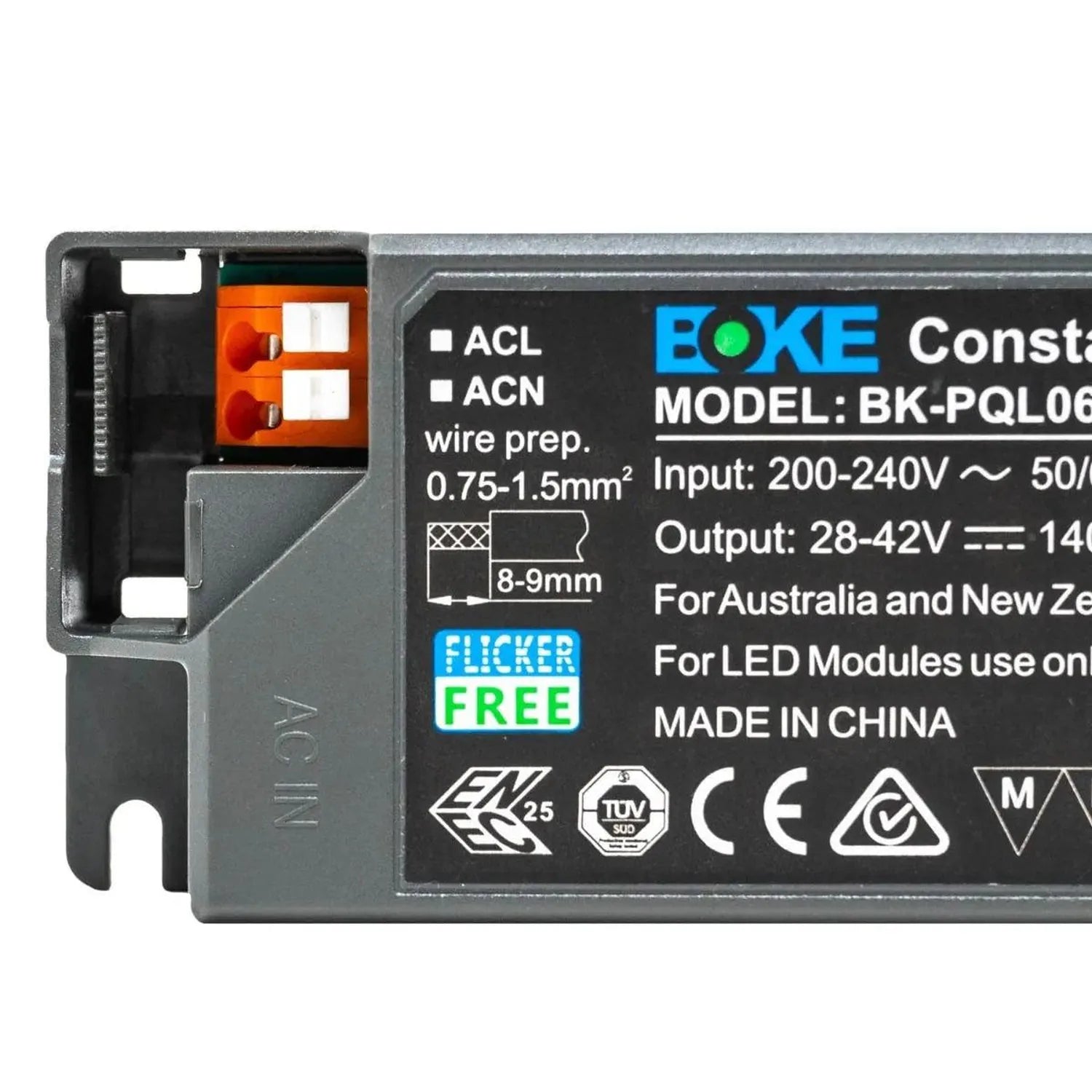

Wiring is quick. Screwless terminals take push-fit cable connections, so no screwdriver is needed at the terminal block.
- Screwless terminals with push-fit cable connections
- To be installed by a qualified electrician
- Independent driver, mounted outside enclosed luminaires
Certifications listed for this driver are ENEC, TUV, CE, RCM and CCC.
Technical Specifications 39 rows Show
| Brand | Boke |
| Model | BK-PQL060-1400 |
| Type | Constant Current LED Driver |
| Output current | 1.25 - 1.4A (1400mA nominal) |
| Output voltage | 28 - 42V DC |
| Output power | Up to 58.8W |
| Output current adjustment | N/A |
| Output current ripple LF | 1% |
| Output current accuracy | 5% |
| No load output voltage | 50V |
| Flicker | Modulation depth=0.510%(100Hz), PstLM=0.004, SVM=0.020 |
| Input voltage | 200 - 240V AC |
| Input voltage range | 180-264VAC 180-264VDC |
| Input voltage shock | <380VAC,1h |
| Input current | <0.45A(ACinput) |
| Frequency | 47 - 63Hz |
| Efficiency | Up to 89% |
| Power factor | >0.95 |
| THD | <10% |
| In-rush current | 8.7A peak, 202us duration (50% Ipeak) |
| Start / turn off | <0.5s(ACstart),<0.5s(DCstart),<0.3s(AC/DCswitchover),<0.5s(Turnoff) |
| Switching cycles | >50,000 switching cycles |
| Stand-by power | <0.5W |
| Withstand voltage | I/P-O/P:3750VAC |
| Mains surge capability | L-N:2KV |
| Leakage current | <0.7mA(230VAC&Fullload) |
| Protection | Short circuit, overload, over temperature |
| Design | SELV and Class II, independent driver (not for use inside the light) |
| Emergency support | Supported (Support DC input), central emergency system supported |
| IP rating | IP20 |
| Operating temperature | -20°C to +45°C |
| Case temperature | Tc=90 |
| Operating humidity | 5-85%RH, not condensed |
| Lifetime | Up to 100,000 hours |
| MTBF | 500,000H,MIL-HDBK-217F(25) |
| Acoustic noise | <25dB(30cm,Fullload) |
| Certifications | ENEC, TUV, CE, RCM, CCC |
| Safety standards | EN61347-1,EN61347-2-13,EN62384 |
| EMC standards | EN55015,EN61000-3-2,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11,EN61547 |
Manufacturer datasheet. Figures as published by the manufacturer.
