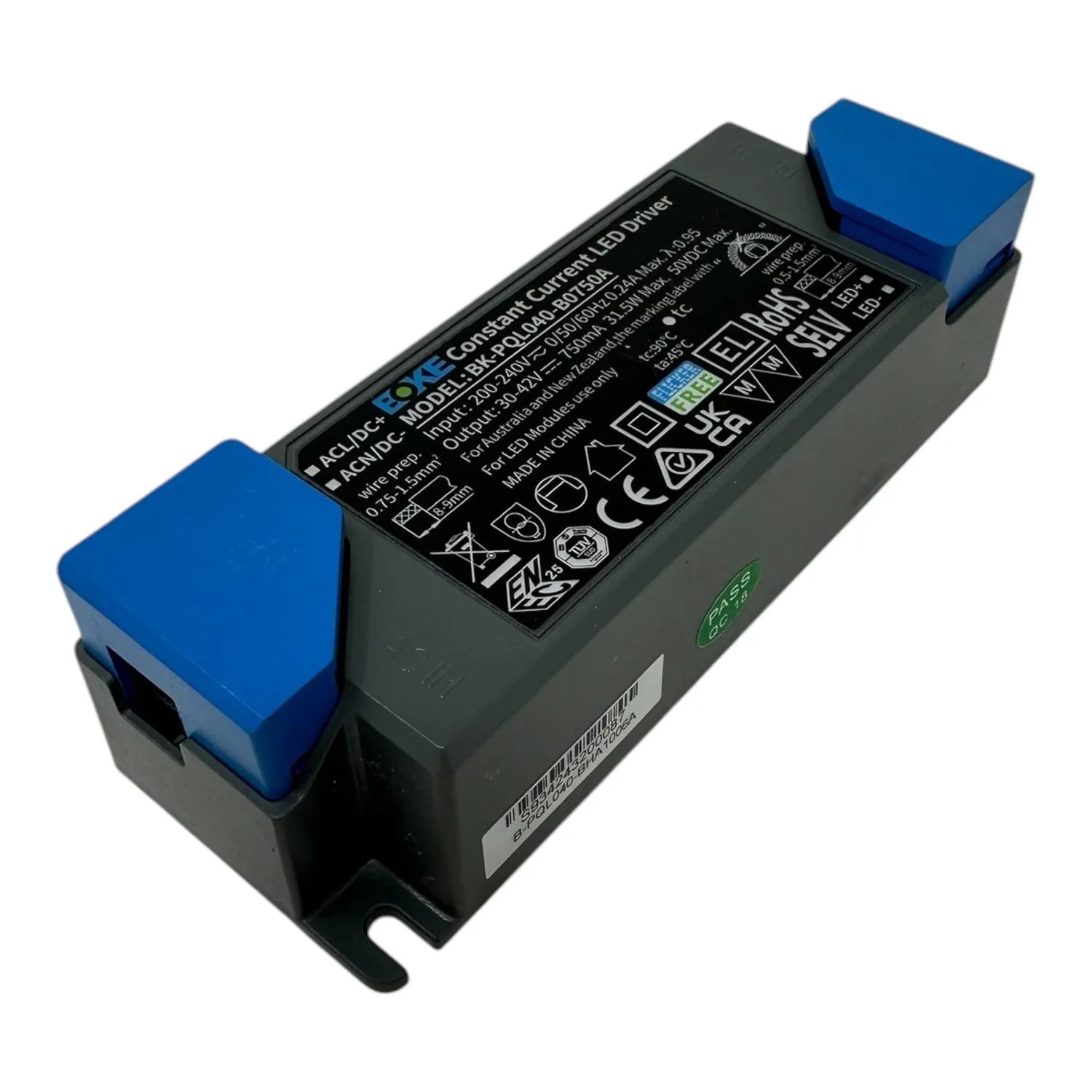

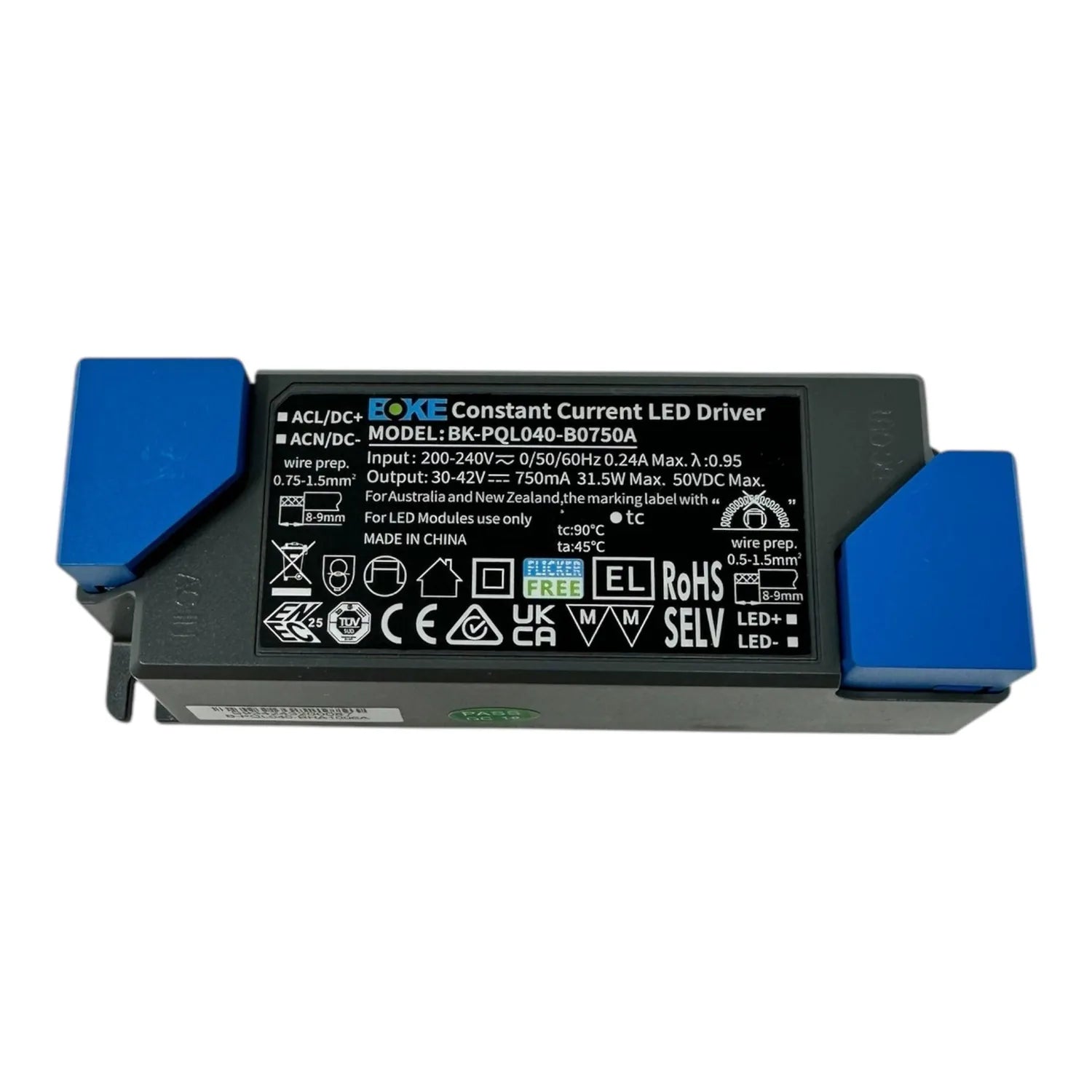

BOKE constant current LED driver with blue terminal connectors, showing specifications label and certification marks on black

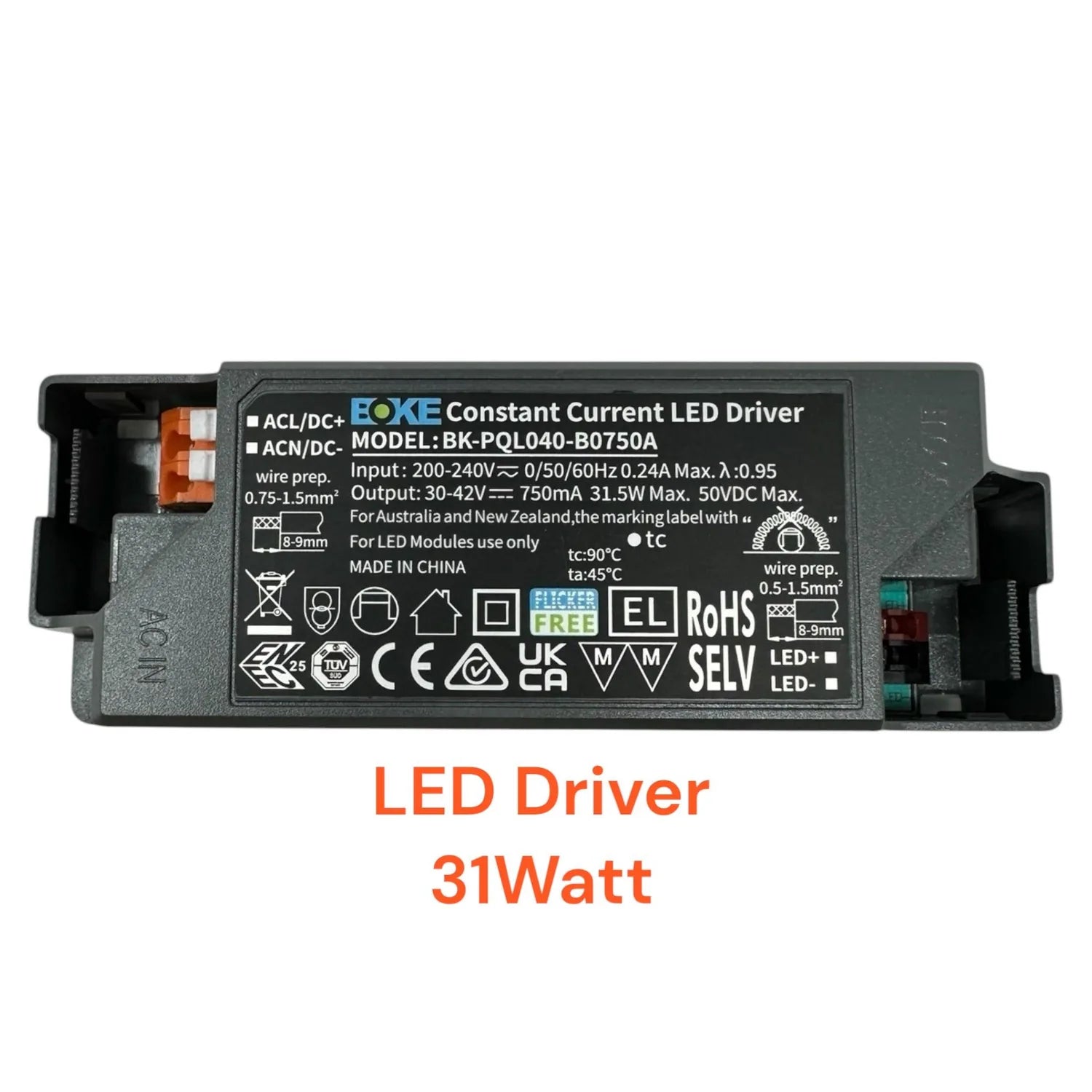

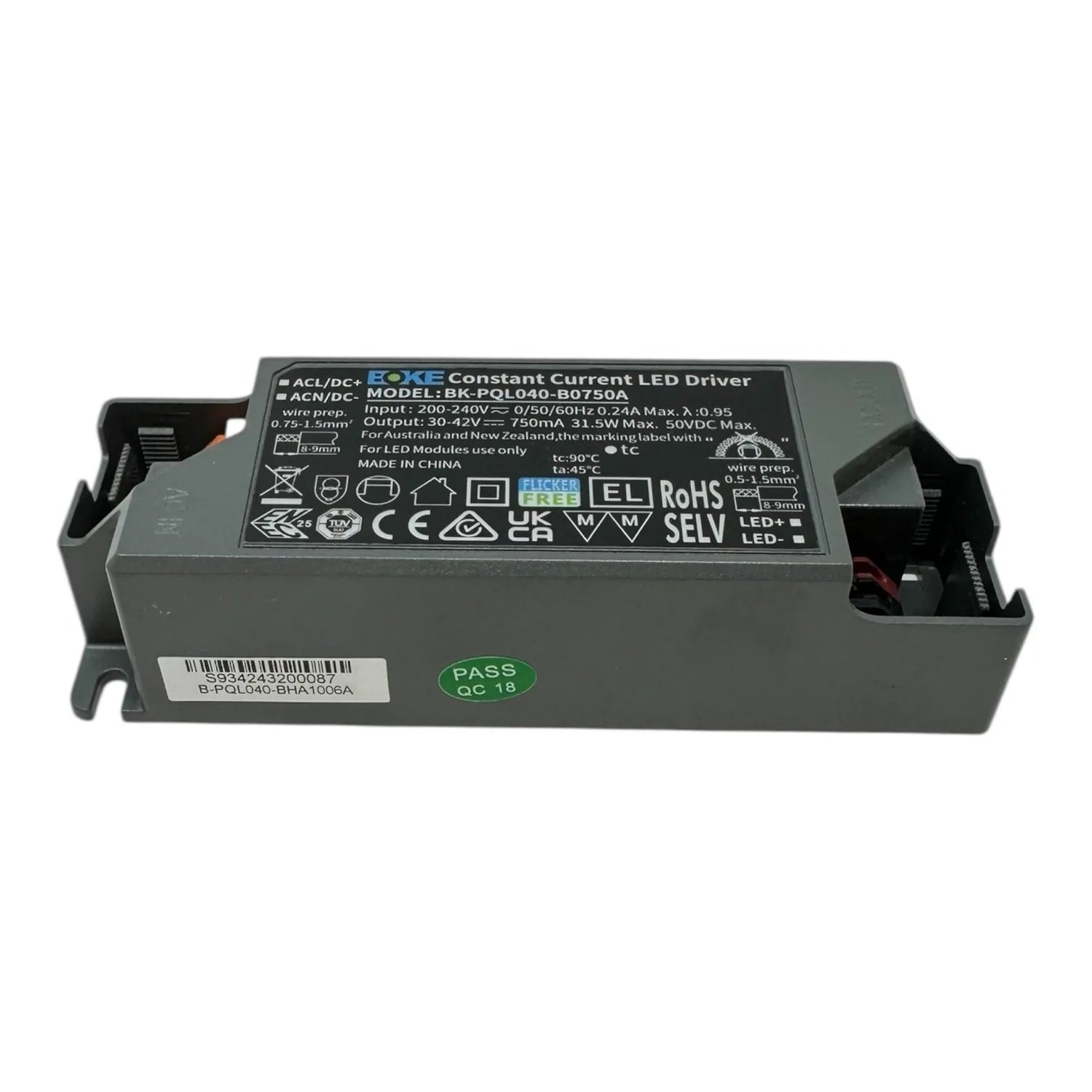

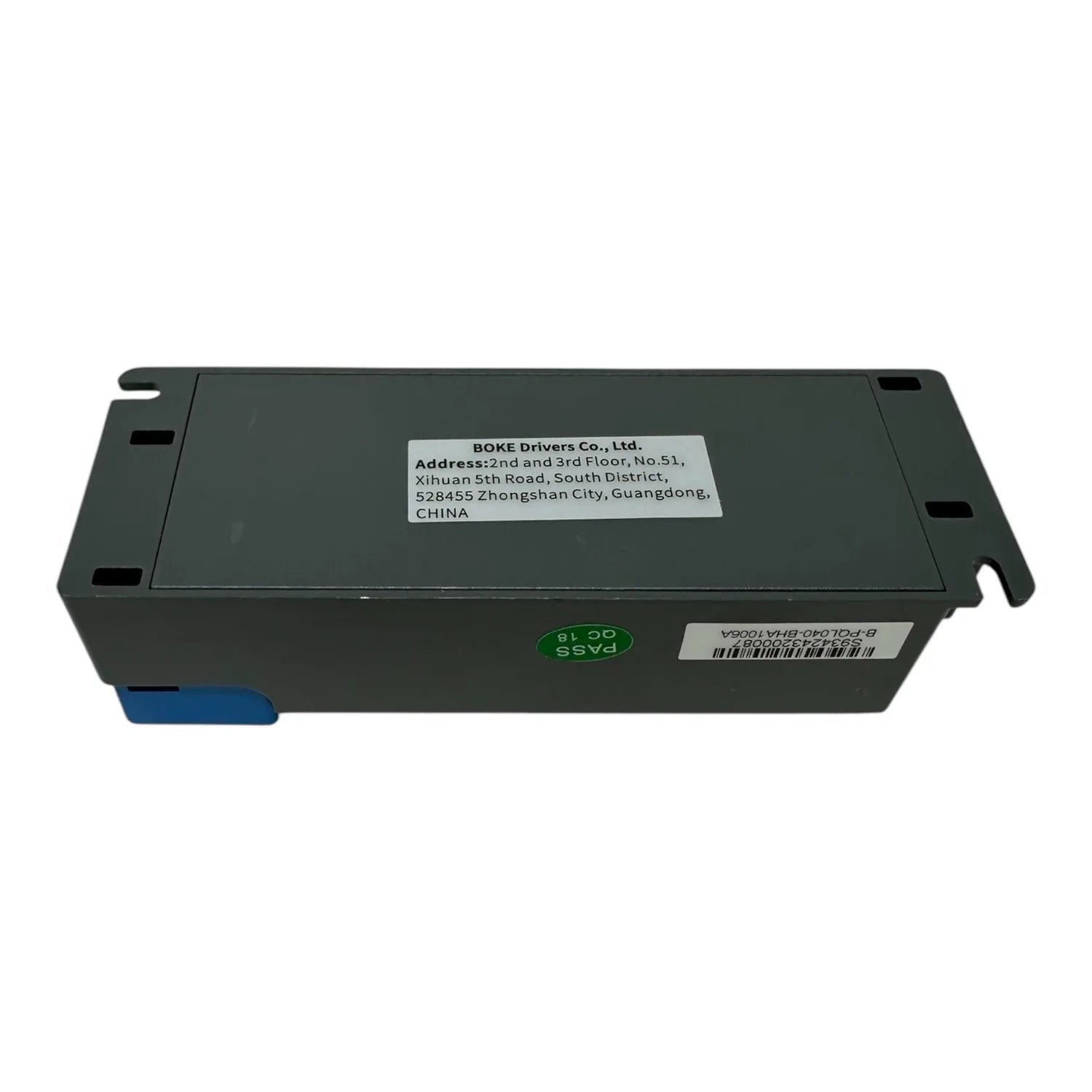

Boke Constant Current LED Driver 31.5W 30-42V Flicker-Free | BK-PQL040-B0750A

£6.25
Skip to product information
BOKE constant current LED driver with blue terminal connectors, showing specifications label and certification marks on black

Boke Constant Current LED Driver 31.5W 30-42V Flicker-Free | BK-PQL040-B0750A

Vendor
Boke
SKU
770039
Availability
In stock
Weight
0.15 kg

£6.25inc VAT £5.21exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This Boke constant current LED driver powers LED panels, tubes, downlights and spotlights. The BK-PQL040-B0750A delivers up to 31.5W at 30-42V DC from a 200-240V AC/DC supply, and its output is flicker-free. It is an independent driver built to SELV and Class II design, so it mounts outside the light fitting rather than inside it.

Boke constant current LED driver features

  • Output: 30-42V DC, 31.5W max
  • Input: 200-240V AC/DC, 50/60Hz
  • Flicker-free: output meets the ErP standard
  • Surge handling: mains surge capability up to 2KV, withstands 380VAC short-time shock
  • Protection: short-circuit and no-load
  • Life-time: nominal life-time up to 100,000 hours, backed by a 5-year guarantee

Where it fits

Offices, schools, shops and homes are the typical settings. The driver is rated IP20, which means it is for indoor use only. Pair it with panels, tubes, downlights or spotlights that need an external constant current supply.

One point to check before ordering. It is not for lights that already have a built-in driver.

Wiring and installation

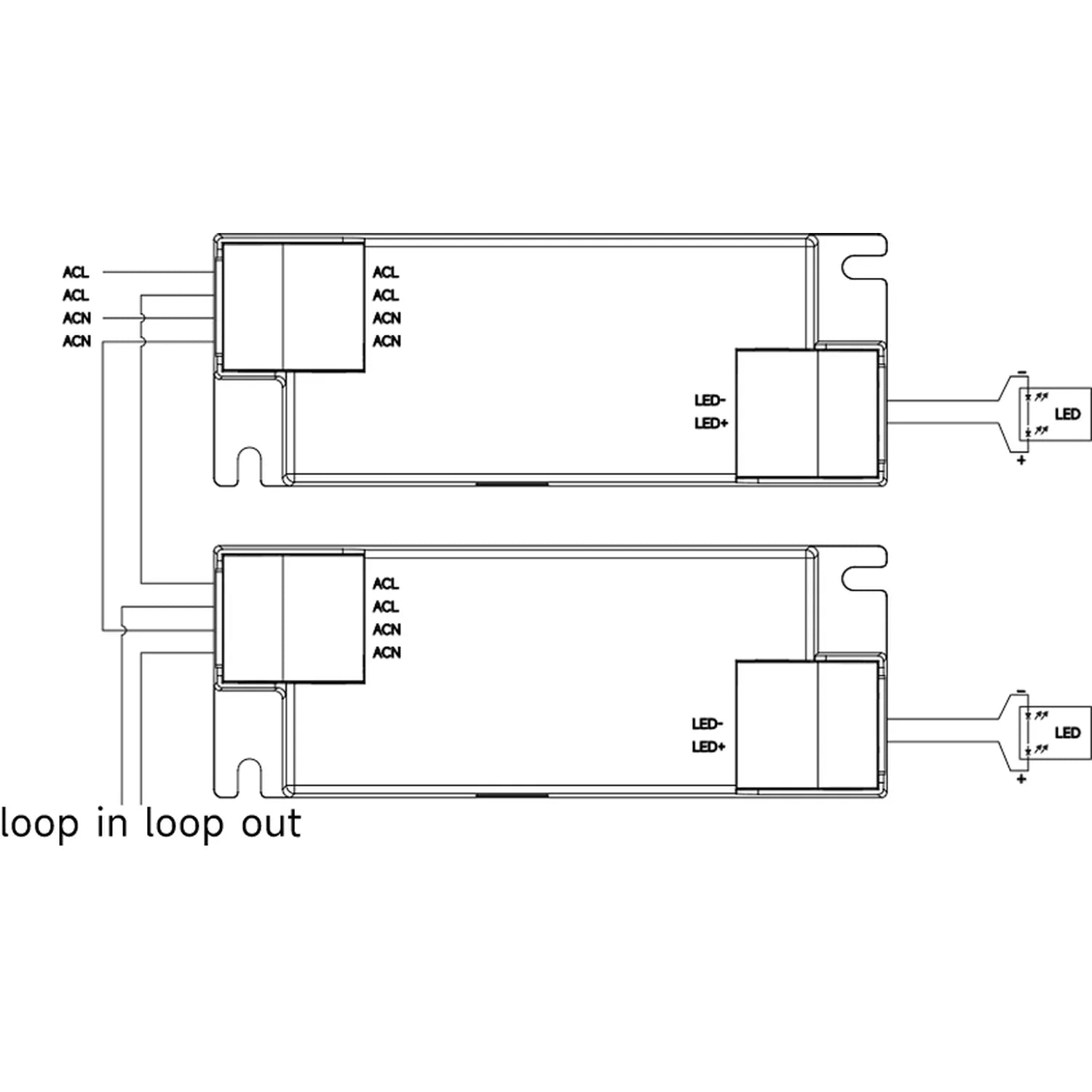

A dual input terminal lets you loop in and loop out between fittings without a junction box, which saves time on runs of several lights. The terminals are screw-free. Pushable strain relief holds the cable in place once it is connected.

Approvals

The driver carries CE, ENEC, UKCA, RCM and CCC certifications, with full safety and EMC standards listed in the specifications below.

Technical Specifications 22 rows Show
BrandBoke
ModelBK-PQL040-B0750A
SeriesPQL Series
Input voltage200-240V AC/DC
Input frequency50/60Hz
Output power31.5W Max
Output voltage30-42V DC
ProtectionShort-circuit, no-load
DesignSELV and Class II, independent driver for use outside the light
WiringDual input terminal, loop-in and loop-out without junction box
Surge protectionUp to 2KV
Withstand voltageI/P-O/P:3750V AC
Input voltage shockWithstands 380VAC high voltage short-time shock
Operating temperature-20°C to 50°C
Humidity (non-condensing)5-85% RH
Ingress protectionIP20
Life-timeNominal life-time up to 100,000 h
MTBF500,000H,MIL-HDBK-217F(25)
CertificationsCE, ENEC, UKCA, RCM, CCC
Safety standardsEN61347-1, EN61347-2-13, EN62384
EMC standardsEN55015, EN61000-3-2 , EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Guarantee5-year guarantee

Manufacturer datasheet. Figures as published by the manufacturer.
