40W Constant Current LED Driver 0.5-1.1A 28-42V | Boke BK-PBL040S-A1100AS
- Vendor
- Boke
- SKU
- 770054
- Availability
- In stock
- Weight
- 0.15 kg
£19.94inc VAT £16.62exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

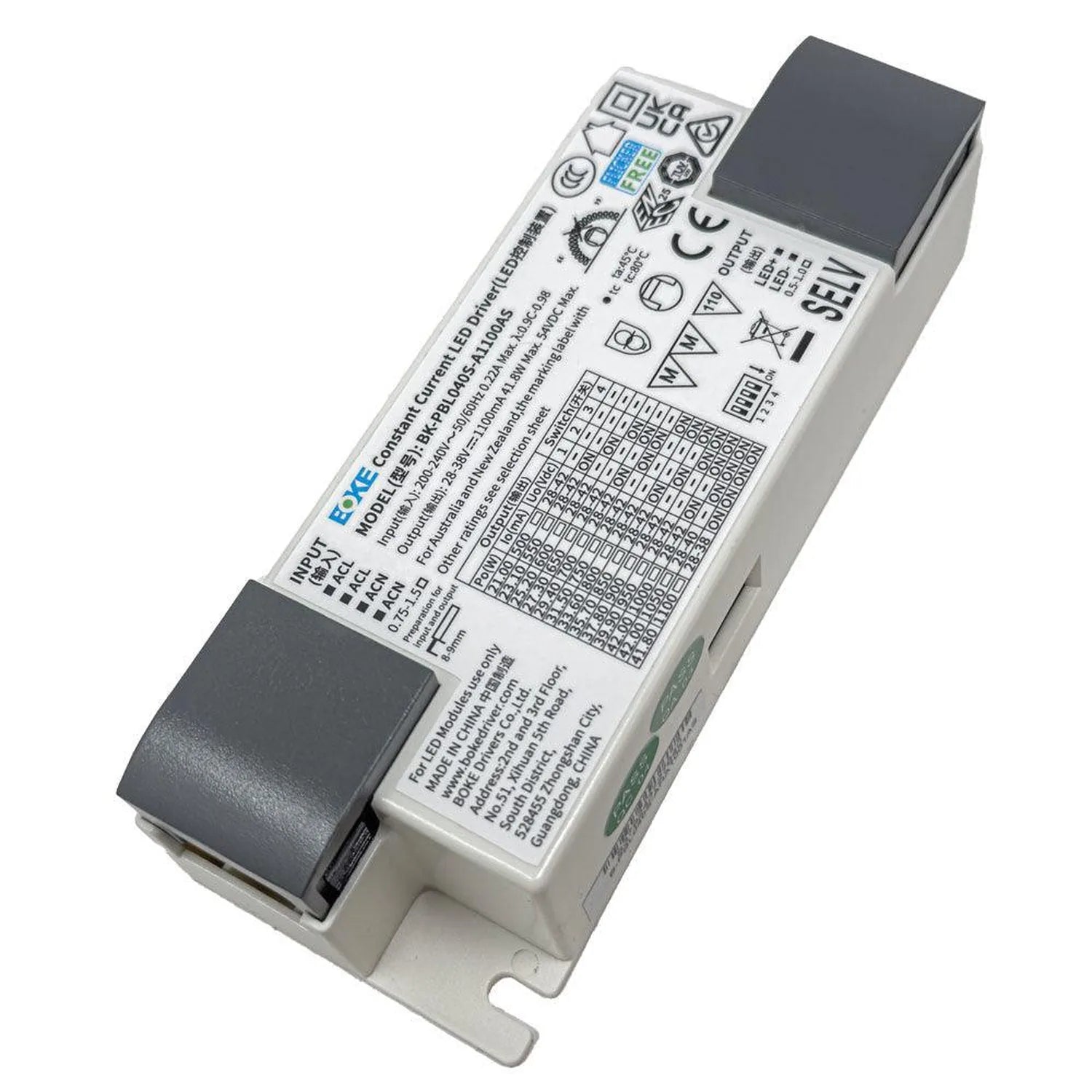

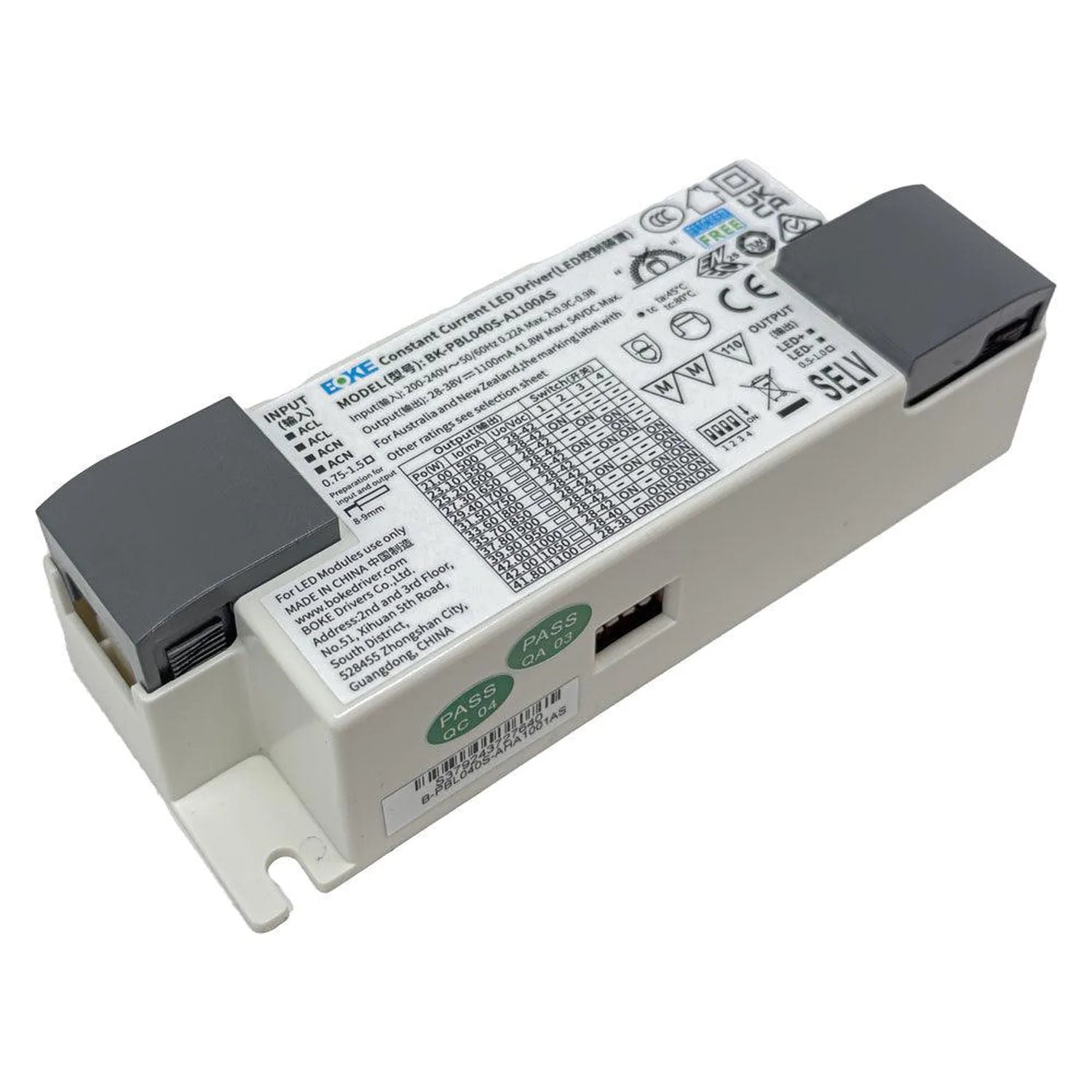

The Boke BK-PBL040S-A1100AS is a flicker-free 40W constant current LED driver for downlights, spotlights and panel lights. A 13-level DIP switch sets the output current anywhere from 0.5A to 1.1A, across an output voltage range of 28-42VDC. One stocked part can cover a wide spread of fittings.
40W constant current LED driver features
- Output: 28-42VDC, 0.5-1.1A, 41.8W max
- Input: 200-240VAC or 200-240VDC, 50/60Hz
- Efficiency: up to 93.5%, with a power factor of 0.98 and THD of 8%
- Flicker: flicker-free output that meets the ErP standard
- Surge: mains surge capability up to 2KV, and it withstands 380VAC short-time shock
- Protection: short-circuit and no-load
Where it is used
Offices, schools, shops and homes. Boke specifies this driver for the downlights, spotlights and panel lights found across those spaces, where a stable, flicker-free supply to the LED module matters for the people working or living under it.
Installation notes

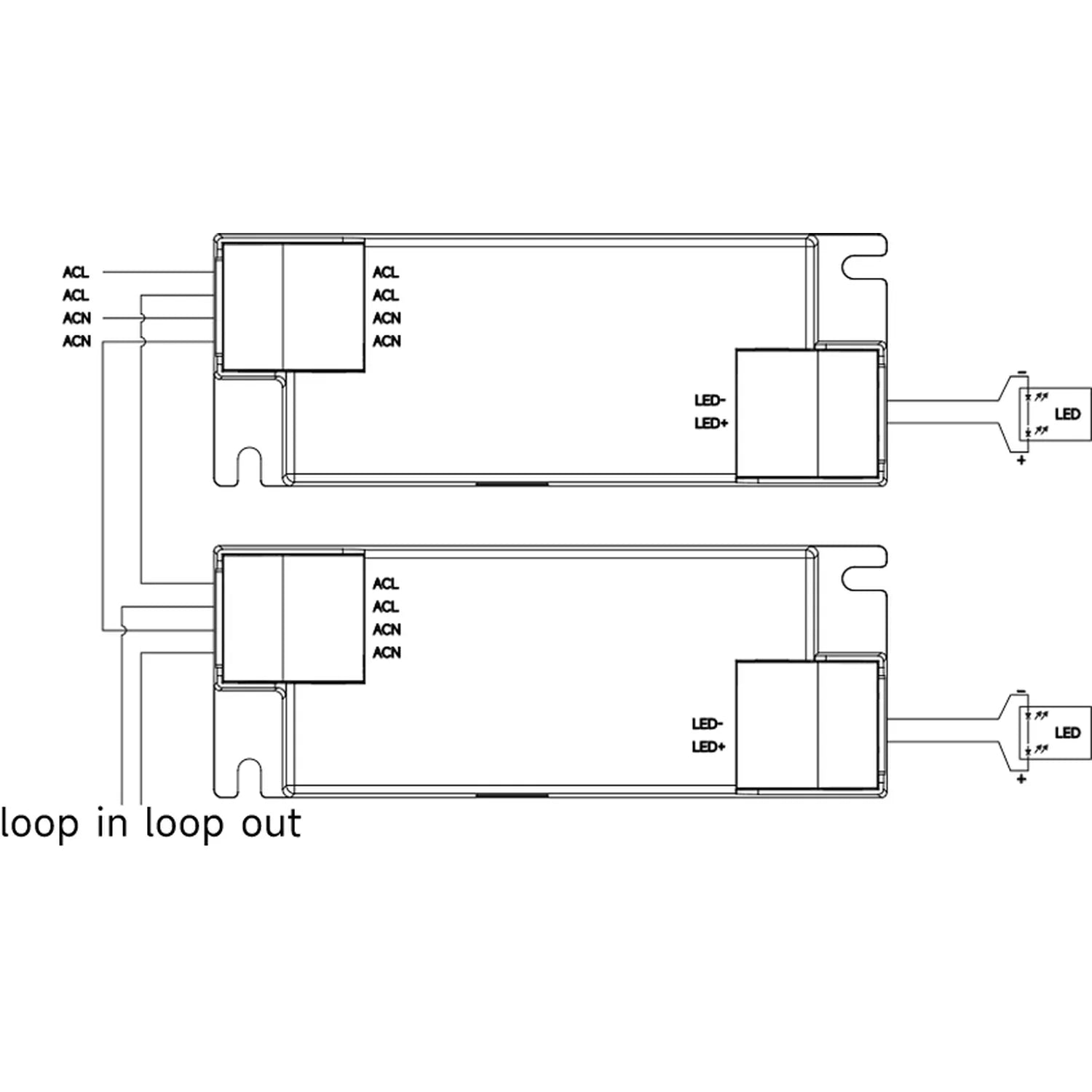

This is an independent driver of SELV and Class II design. It is made to sit outside the light fitting and is not for fitting inside the light. The dual input terminal supports loop-in and loop-out wiring, so runs of fittings can be connected without a junction box.
Terminals are screw-free with pushable strain relief. Where a junction box is wanted, the optional one takes cable up to 2.5mm2.

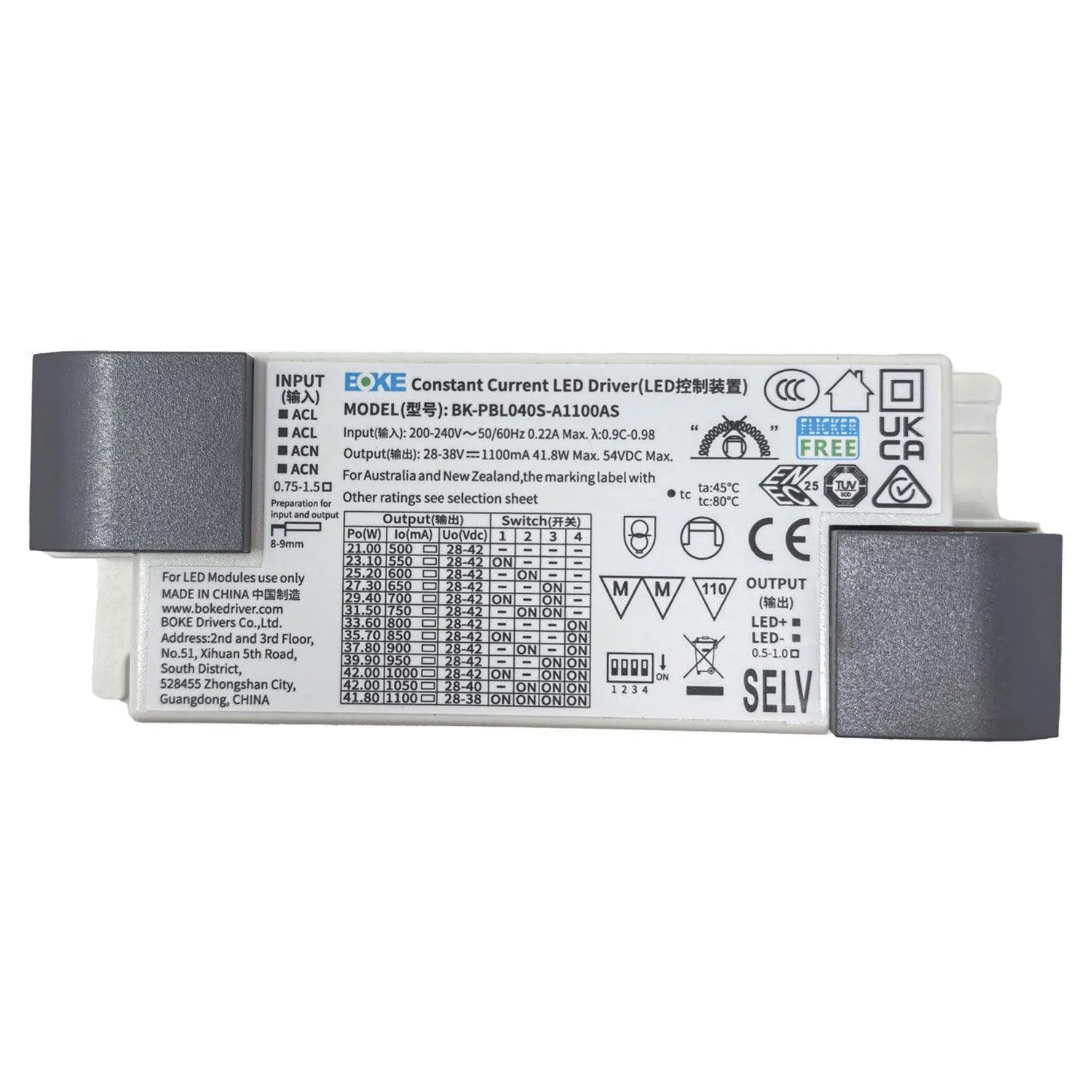

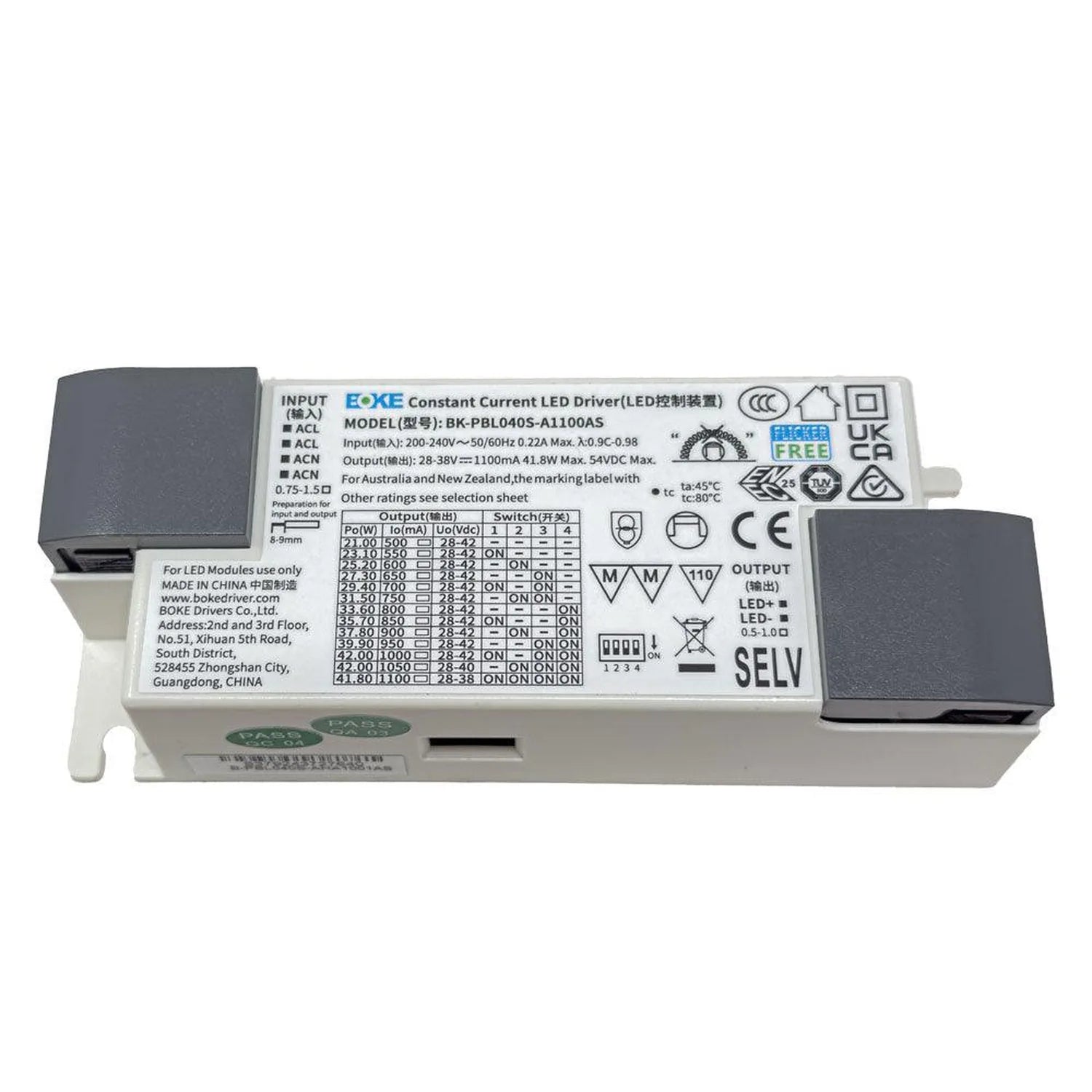

Setting the current

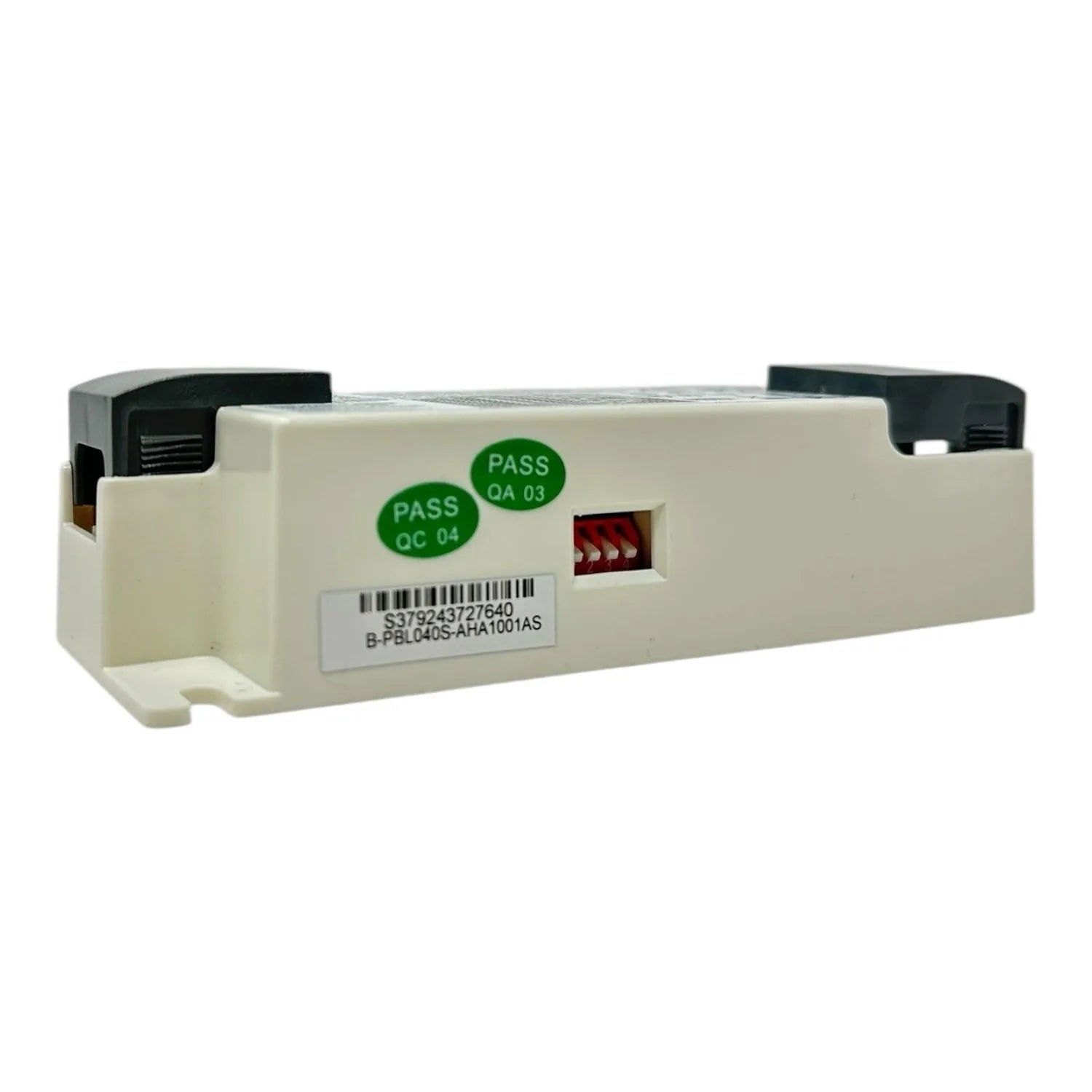

Match the DIP switch to the rated current of the LED load before powering up. Thirteen levels sit between 0.5A and 1.1A, with the output staying within 28-42VDC and 41.8W max.
Life and guarantee
Nominal life-time is up to 100,000 h. Boke backs the driver with a 5-year guarantee.
Technical Specifications 45 rows Show
| Brand | Boke |
| Model | BK-PBL040S-A1100AS |
| Regulation method | Constant Current |
| Rated output current range | 0.5-1.1A |
| Output current adjustment | DIP S.W(13 levels) |
| Rated output voltage range | 28-42VDC |
| Rated output power | 41.8W Max |
| Output current ripple LF | 1% |
| Output current accuracy | 5% |
| Line and load regulation | 5% |
| No load output voltage | 54VDC |
| Flicker (IEEE 1789) | Flickering percent=0.246%, Flicker index=0.009, Pst LM = 0.009, SVM = 0.009 |
| Rated input voltage range | 200-240VAC 200-240VDC |
| Input voltage range | 180-264VAC 180-264VDC |
| Input voltage shock | <380V AC |
| Input current | 0.22A (Rated input voltage) |
| Input frequency | 50/60Hz |
| Power factor | PF:0.98 |
| Input THD | 8% |
| Efficiency (max) | 93.5% |
| In-rush current | 19.1A peak ,220us duration(50 % Ipeak) |
| Start / turn off | <0.5s(AC start),<0.5s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
| Switching cycles | > 50,000 switching cycles |
| Power consumption (full load) | 44.7W |
| Mains surge capability | Up to 2KV |
| Withstand voltage | I/P-O/P:3750V AC |
| Leakage current | 0.2mA (230V AC & Full load) |
| Protection | Short-circuit, no-load |
| Emergency support | Optional |
| Operating temperature | Ta=-20-45 |
| Case temperature | Tc=80 |
| Operating humidity | 5-85% RH, non-condensing |
| Storage temp./humidity | -40-80, 5-85% RH, non-condensing |
| IP grade | IP20 |
| Acoustic noise | <25dB(30cm,Normaloperation) |
| MTBF | 500,000H,MIL-HDBK-217F(25) |
| Life-time | Nominal life-time up to 100,000 h |
| Dimensions | L123 x W46 x H30mm |
| Weight | 118g |
| Wire | Input 0.75-1.5mm2, strip length 8-9mm |
| Max. output wire length | 2 m |
| Certifications | CE, ENEC, UKCA, RCM, CCC |
| Safety standards | EN61347-1, EN61347-2-13, EN62384 |
| EMC standards | EN55015, EN61000-3-2 , EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Guarantee | 5-year guarantee |
Manufacturer datasheet. Figures as published by the manufacturer.
