Replacement LED Driver 7.2W 180mA 25-40V Non-Dimmable | Lifuid LF-GIR015YM0180H
- Vendor
- Lifuid
- SKU
- 770079
- Availability
- In stock
- Weight
- 0.15 kg
£4.71inc VAT £3.93exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

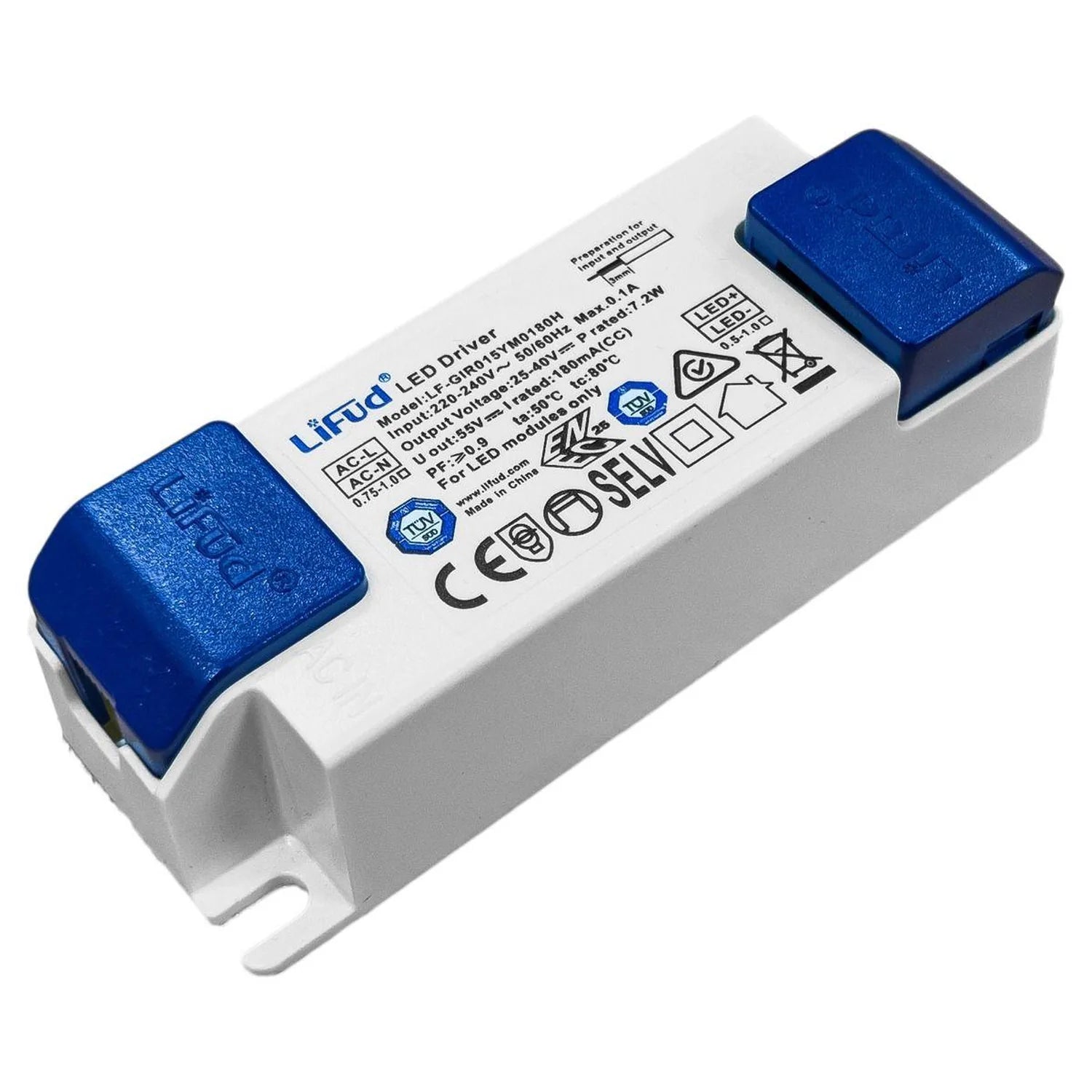

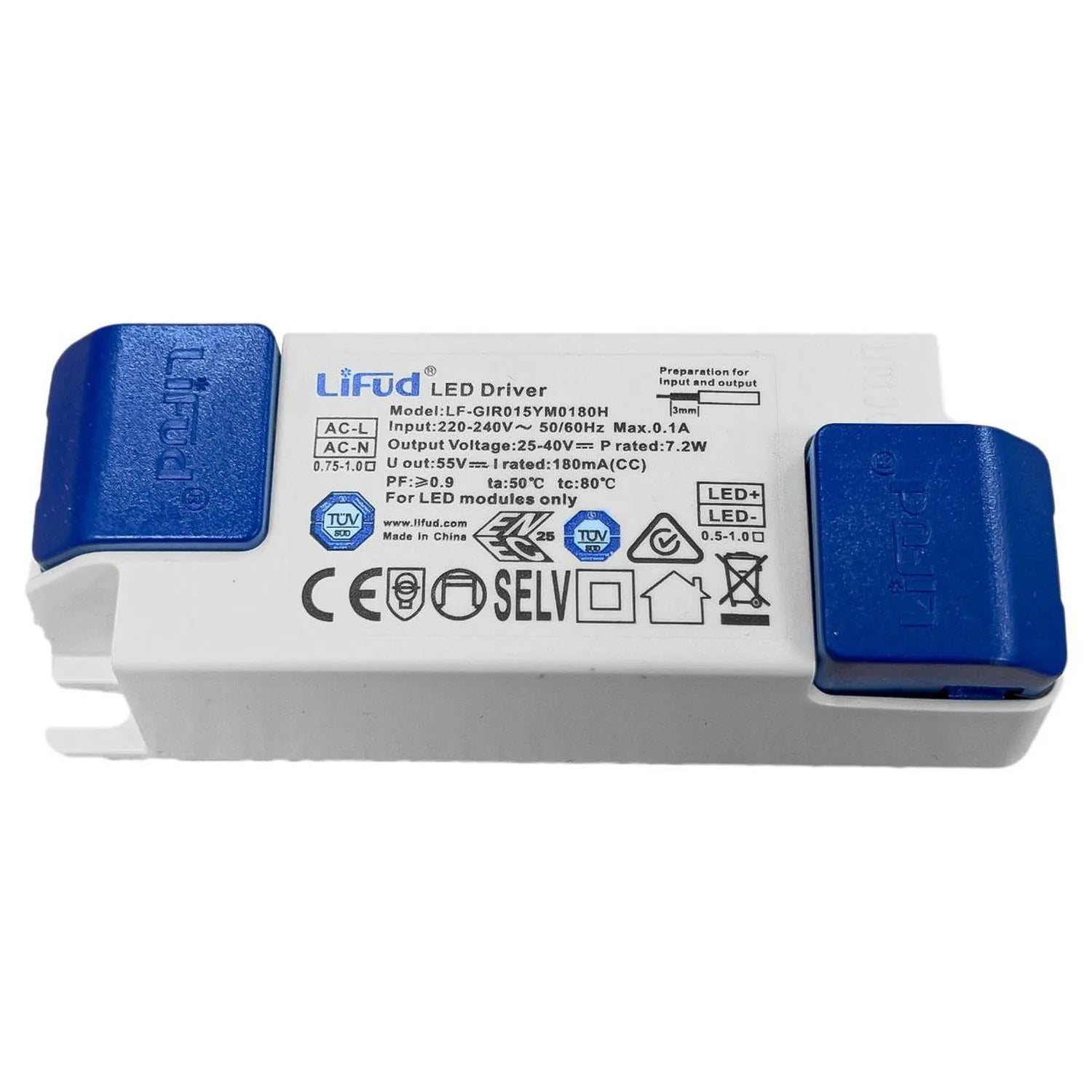

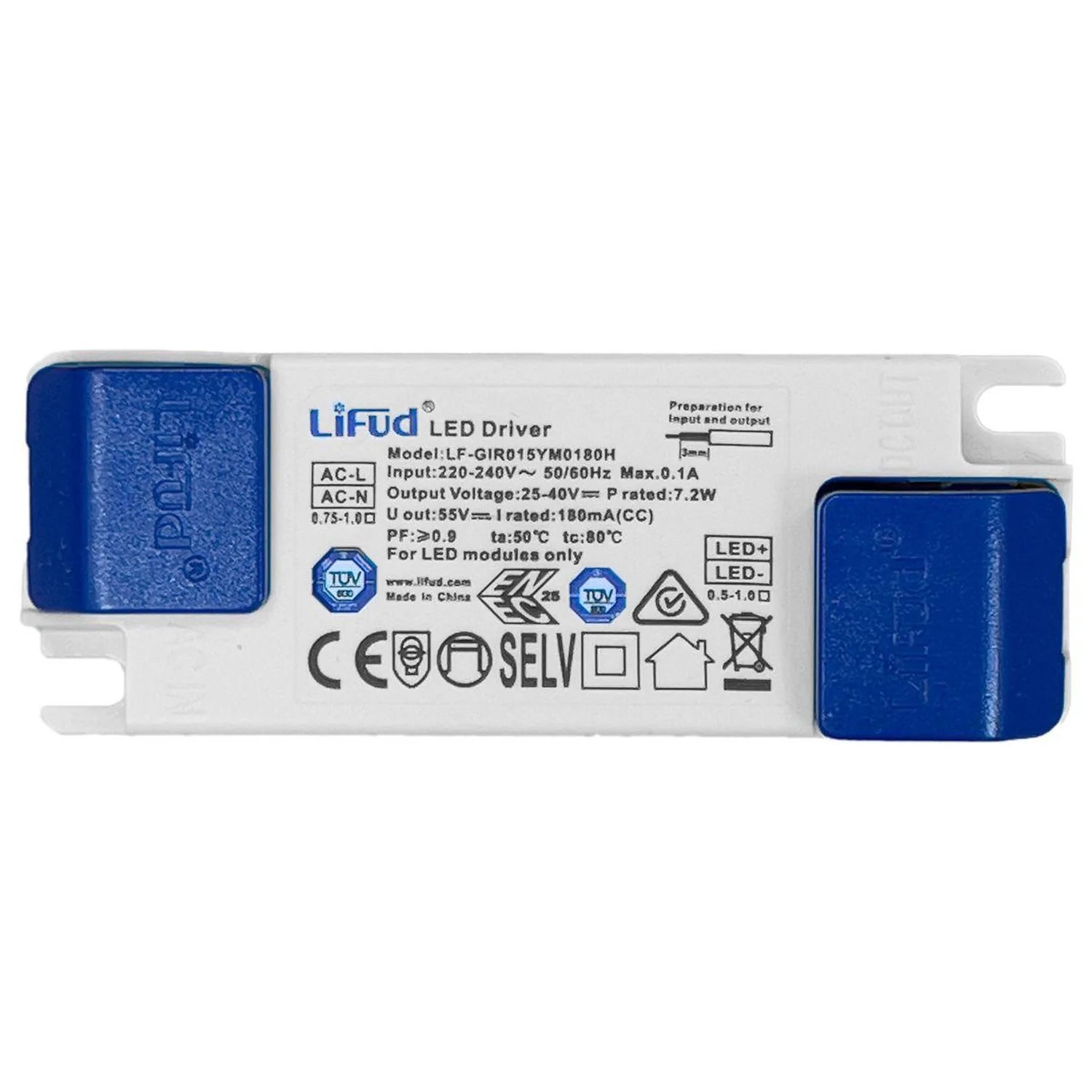

The Lifuid LF-GIR015YM0180H is a replacement constant current LED driver for fittings that need 180mA at 25-40Vdc. It runs from 220-240VAC mains and delivers 7.2watt to the LED load. It is non-dimmable, so it suits fittings that are simply switched on and off.
Replacement LED driver key features
- Output: 180mA constant current, 25-40Vdc
- No-load voltage: 55V maximum
- Input: 220-240Vac rated (180-264Vac max), 47Hz-63Hz
- Short-circuit protection: hiccup mode with automatic recovery
- Construction: isolated driver in a plastic case for Class II LED luminaires, IP20
- Certification: TUV, CB, CE, RCM, CCC
Where it fits
Use it to replace a failed driver in downlights, spotlights, small LED tubes and small flat panels, provided the LED load is rated for 180mA within the 25-40Vdc window. Check the label on the original driver before ordering. Current is the figure that matters most here.
Typical settings include office, decorative, commercial and residential lighting. This driver is for indoor use only.
Operating conditions
The working temperature range is -30 ~ +50, with humidity of 20-90% RH and no condensation. Net weight is 58g, small enough to sit inside most fitting housings or ceiling voids beside the luminaire.
Warranty
Lifuid covers the LF-GIR015YM0180H with a 5-year warranty, valid where the case temperature stays at or below the stated maximum of 78. Allow some airflow around the driver once installed.
Technical Specifications 28 rows Show
| Type | Isolated LED Driver for Class II LED Luminaire, plastic case |
| Model | LF-GIR015YM0180H |
| Series | LF-GIR015YM Series |
| Power | 7.2watt |
| Output current | 180mA |
| Output voltage | 25-40Vdc |
| Max. output voltage (no-load voltage) | 55V |
| Rated input voltage | AC220-240V |
| Max input voltage | 180-264Vac |
| Input frequency | 47Hz-63Hz |
| Dimmable | non-dimmable |
| Short-circuit | Hiccup mode (auto-recovery) |
| No-load power | Pin < 1W |
| Working temperature | -30 ~ +50 |
| Working humidity | 20-90% RH (no condensation) |
| Storage | -40 ~ +80; 10-90% RH (no condensation) |
| Atmospheric pressure | 86-106KPa |
| IP level | IP20 |
| Hi-pot test | I/P-O/P: 3.75KVac, < 5mA, 60S |
| Insulation resistance | I/P-O/P: 500VDC, >100M |
| Surge | Comply with IEC61000-4-5 (L/N:1KV) |
| EMI | EN55015, EN61000-3-2 |
| EMS | EN61000-4-2,3,4,5,6,8,11; EN61547 |
| Net weight | 58g |
| Packing | 160pcs/ctn |
| Certificate | TUV, CB, CE, RCM, CCC |
| Warranty | 5 years |
| Application | Indoor office lighting, decorative lighting, commercial lighting, residential lighting |
Manufacturer datasheet. Figures as published by the manufacturer.
