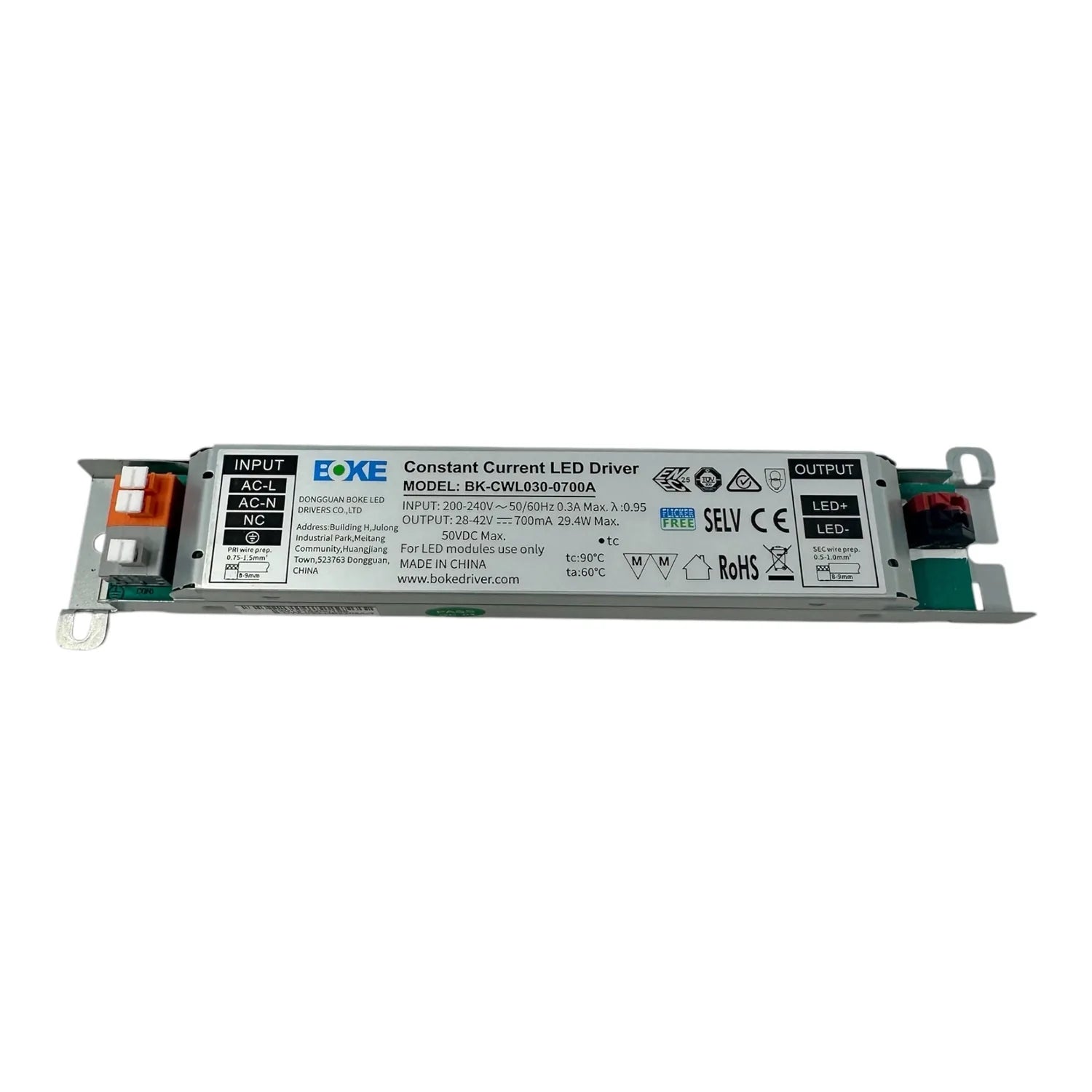

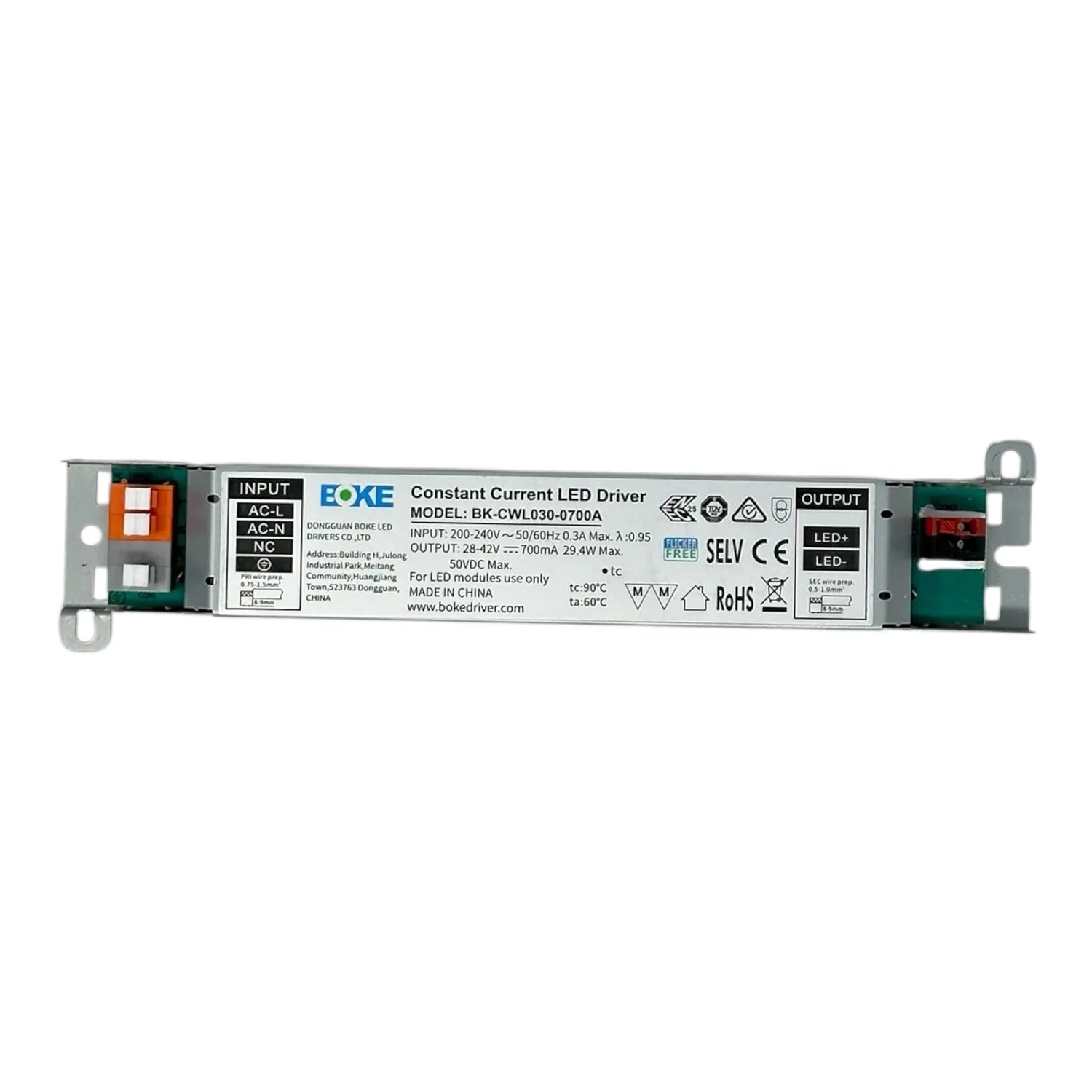

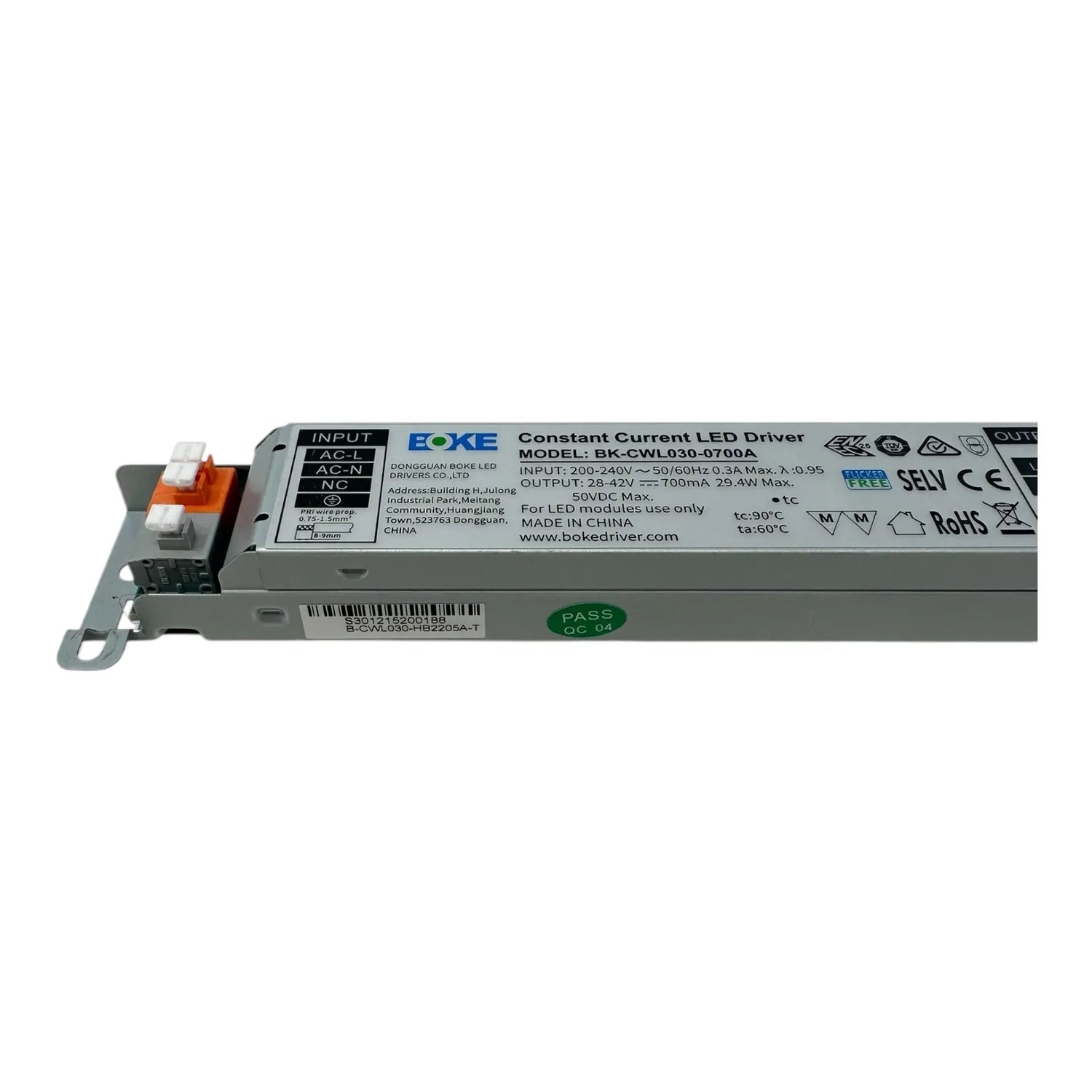

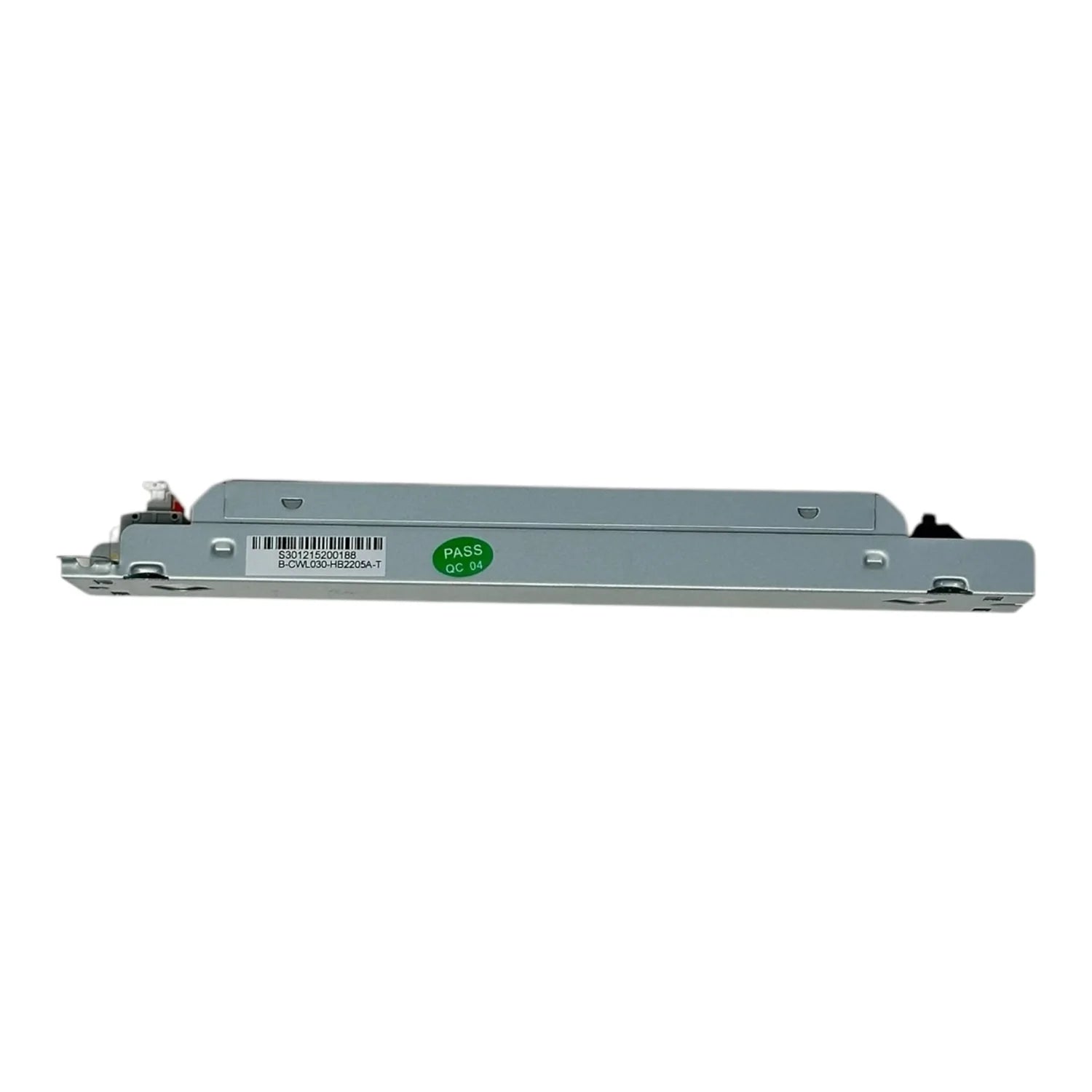

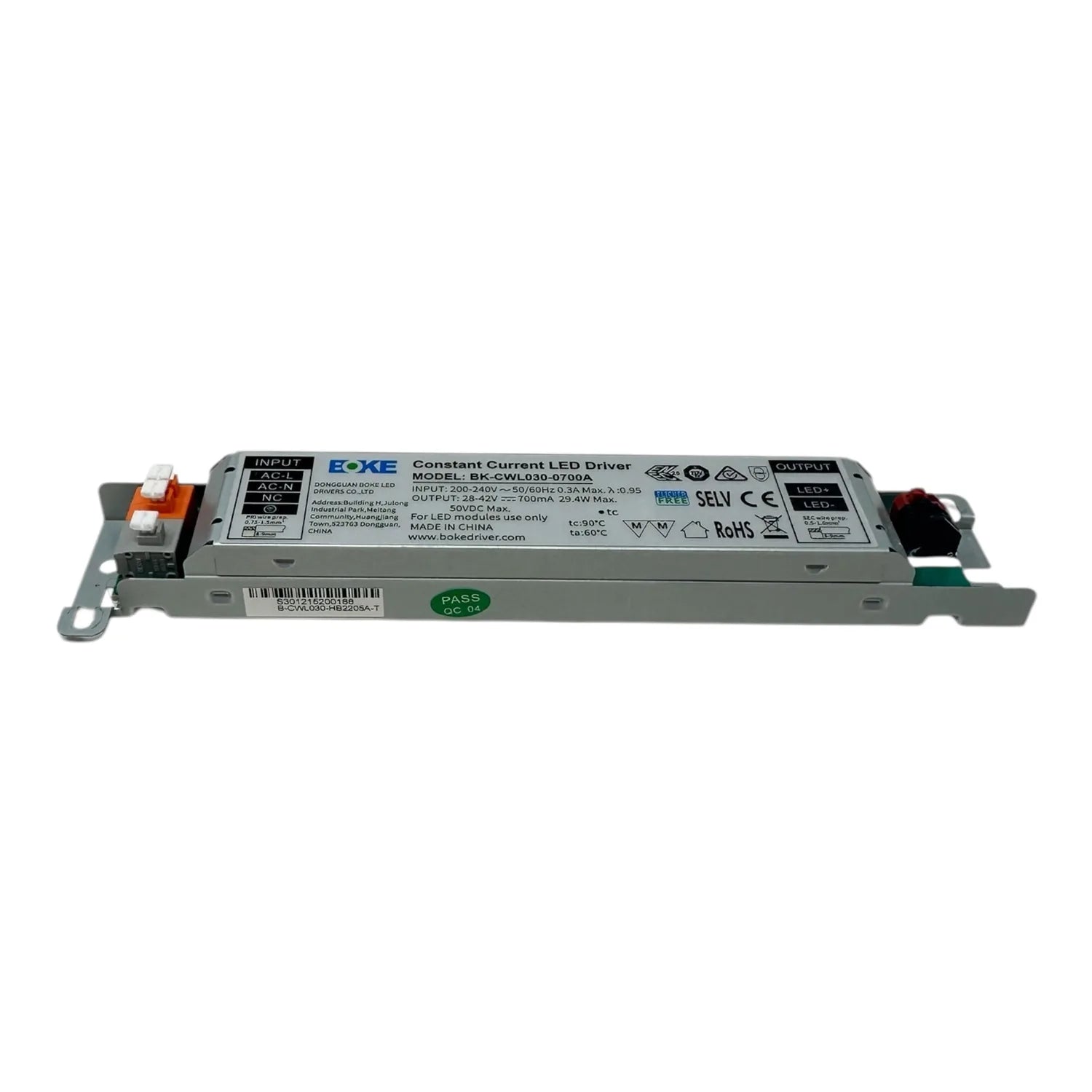

Replacement LED Driver 30W Constant Current 0.75A | Boke BK-CWL030-B0750A
- Vendor
- Boke
- SKU
- 21019201920
- Availability
- In stock
- Weight
- 0.15 kg
£7.61inc VAT £6.34exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
When an LED panel or downlight stops working, the driver is often the part at fault. Most of these fittings run from a removable driver, so swapping it out costs less than buying a whole new light. This Boke BK-CWL030-B0750A is a 30W constant current LED driver with a fixed 0.75A output across 28-42VDC. Match those figures to your old unit before you fit it.
Replacement LED driver key features
- Output: 28-42VDC at 0.75A fixed, no adjustment
- Power: 30W max
- Input: 200-240V AC/DC, 50/60Hz
- Protection: short-circuit and no-load protection, mains surge capability up to 2KV, withstands 380VAC short-time shock
- Light output: flicker-free, meets the ErP standard
- Rating: IP20, for indoor use
Where it fits
This is a SELV and Class I design, suitable for building into the luminaire itself. It measures L195*W30*H21mm, so check the space inside your fitting first. Indoor only. As part of the CWL Series, it also supports central and self-contained emergency systems.
Checking compatibility
Read the label on your existing driver. If it shows around 30W with a 28-42VDC output at up to 750mA, this Boke unit is the right replacement. The output current is fixed at 0.75A and cannot be adjusted, so it will not suit fittings that need a different current.
Lifespan and guarantee
Boke quotes a nominal life-time of up to 100,000 hours. A 5-year guarantee covers it. Certifications: CE, ENEC, UKCA, RCM and CCC.
Technical Specifications 40 rows Show
| Brand | Boke |
| Model | BK-CWL030-B0750A |
| Series | CWL Series |
| Regulation method | Constant Current |
| Input voltage | 200-240V AC/DC |
| Input voltage range | 180-264VAC 180-264VDC |
| Input current | <0.21A (Rated input voltage) |
| Input frequency | 50/60Hz |
| Power factor (typ.) | PF: 0.98 |
| Input THD (typ.) | 9% |
| Efficiency (typ.) | 89% |
| In-rush current | 12.38A peak ,264us duration(50 % Ipeak) |
| Switching cycles | > 100,000 switching cycles |
| Output power | 30W Max |
| Output voltage | 28-42VDC |
| Output current | 0.75A fixed (no adjustment) |
| Output current accuracy | 3% |
| Line and load regulation | 5% |
| No load output voltage | 50VDC |
| Flicker (IEEE 1789) | Flickering percent=0.136%(100Hz), Flicker index=0.000(100Hz), Pst LM = 0.000, SVM = 0.001 |
| Surge protection | Up to 2KV |
| Withstand voltage | I/P-O/P:3750VAC,I/P-FG:1750VAC,O/P-FG:500VAC |
| Leakage current | 0.35mA |
| Emergency support | Central and self-contained emergency systems supported |
| EL compatibility | IEC 61347-2- 13 Annex J , compatible with EN 60598-2-22 and EN 50172 |
| Ingress protection | IP20 |
| Operating temperature | Ta=-20-60 |
| Case temperature | Tc=90 |
| Operating humidity | 5-85% RH, not condensed |
| MTBF | 500,000H,MIL-HDBK-217F(25) |
| Life-time | Nominal life-time up to 100,000 h |
| Acoustic noise | <25dB(30cm, Normal operation) |
| Dimensions | L195*W30*H21mm |
| Weight | 129g |
| Input terminal | DA250 |
| Certifications | CE, ENEC, UKCA, RCM, CCC |
| Safety standards | EN61347-1, EN61347-2-13, EN62384 |
| EMC standards | EN55015, EN61000-3-2 , EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Guarantee | 5-year guarantee |
| Design | SELV and Class I design, suitable for use built-in of the luminaires |
Manufacturer datasheet. Figures as published by the manufacturer.
