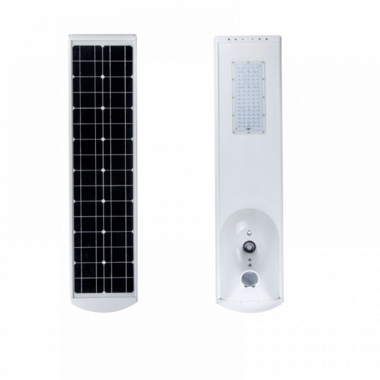

AUTONOMOUS LED SOLAR STREET LIGHT 60WATT. INTEGRATED PHOTOVOLTAIC PANEL

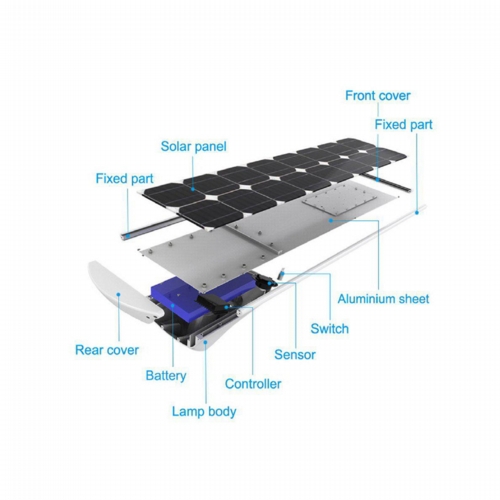

Voltacon Solar LED Street light uses the latest technology of photovoltaic panels, lithium-ion batteries, and high-power LED chips. The innovative design encapsulates in a waterproof, IP65 aluminum housing all the electronics for up to 24 hours of continuous light output.

The installers do not have to worry about complicated wiring and special mounting structures for the solar panel. The LED Street light is mounted directly on the post with two M10X80 brackets and stainless steel screws.

SAFE INSTALLATION WITHOUT EXTERNAL ELECTRICAL WIRES

It is worth mentioning that the electrical connections  (which are IP67 rates) are implemented under the solar panels. The interconnections between the battery charges, the Li-On battery and the LED array are pre-made by the factory.

INTELLIGENT POWER MANAGEMENT FOR EXTENDED LIGHT OUTPUT

The integrated light sensor feeds a signal to the charger controller and the LED Driver. According to the daylight level, the LED Street light will lit gradually from 0% to 100%. The full light output is available only at night (when it is completely dark).

 PRODUCT FEATURES

• Install LED Street Lights anywhere without mains voltage
• Single pole installation with adjustable angle.

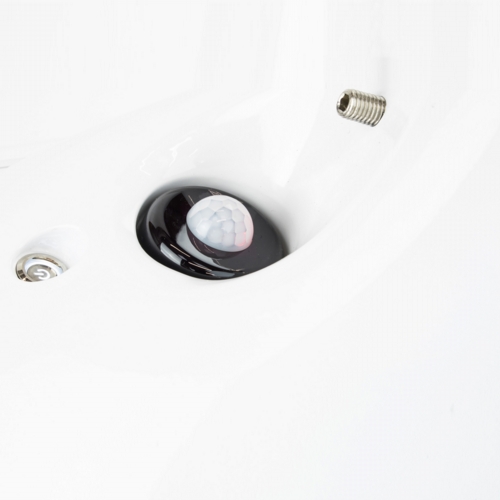

• Smart sensors and integrated photocell
• Lithium battery with over 10-year life expectancy

OPERATING HOURS

The operation is fully automated and can safely provide enough light for 1.5 days. There is adequate recharge time and back up power each night.

We use a dimming function that adjusts the light according to the installation site and solar insolation levels.

TECHNICAL AND OPERATIONAL FEATURES

1.Total Flux(lm): 6800LM

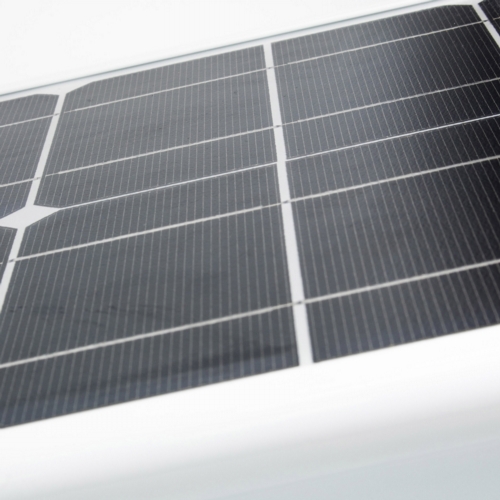

2.Solar Panel:18V 48W (monocrystalline)

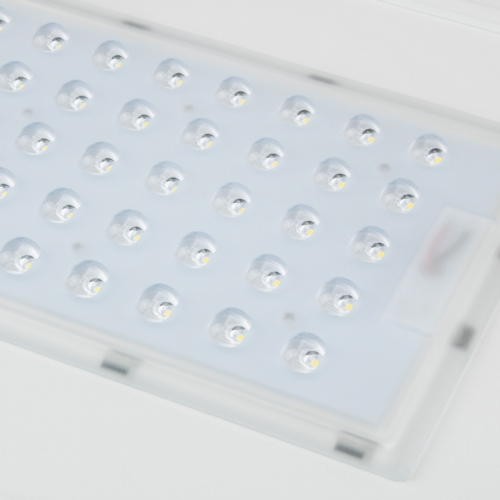

3.Led Chip: 80LEDs Philips3030
4.Battery:LiFePO4 Lithium 12.8V 21AH
5.Install height:5-7M
6.Lighting time: 6-12hours/Day ( 3 Rainy days)
7.Working Temperature: 0°C～+45°C
8.Solar Panel Conversion Efficiency : 20%
9.Beam Angle: 60°x150°
10.Insatllation Pole Diameter: Φ60mm
11.Control Type: Light Sensor+Motion sensor
12.Product size:1148*287*178mm

EAN: 0610877899692
