All LED Street Lights

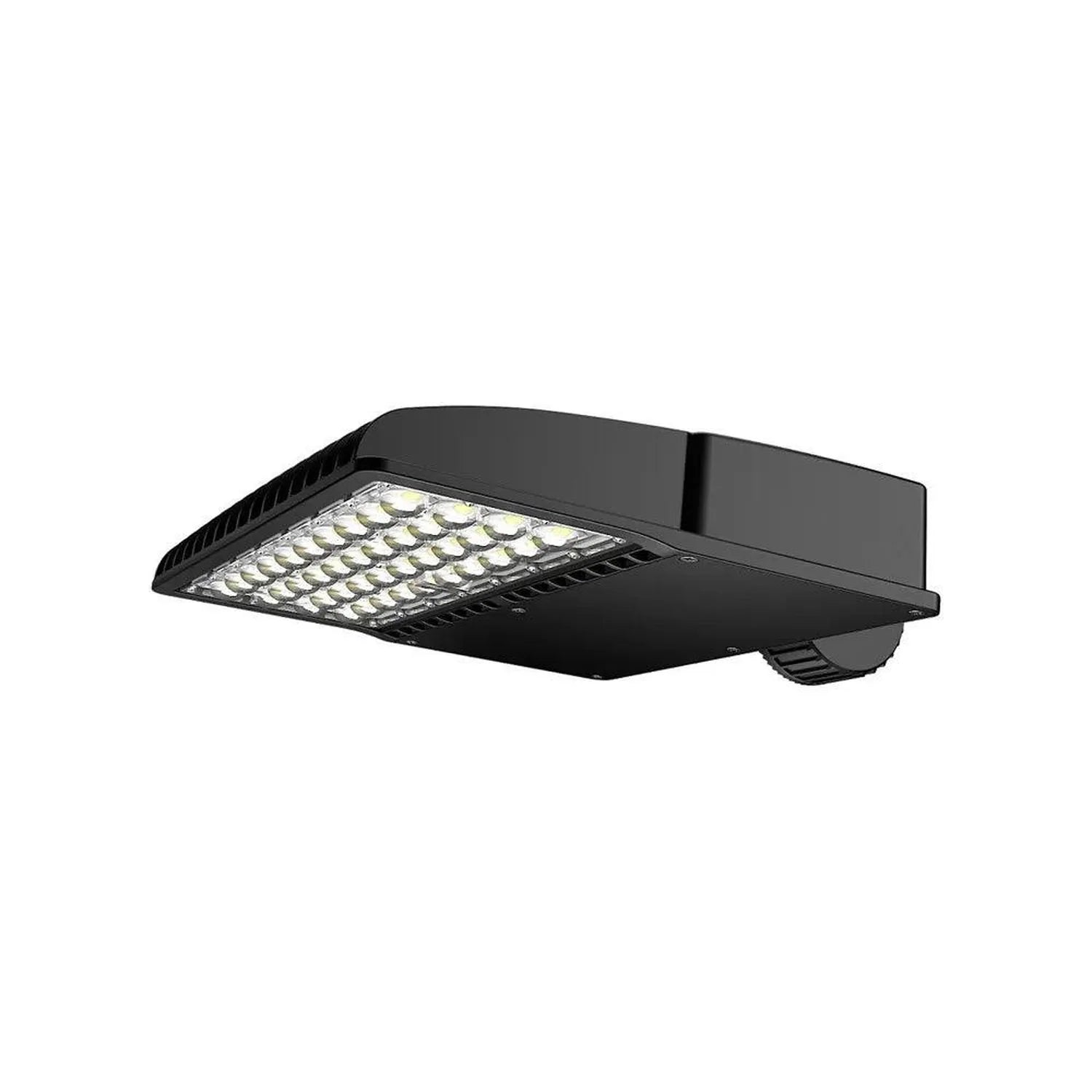

Black rectangular LED street light with angled light panel and ventilation fins, mounted fixture shown against white backgrou

120W LED Street Light 17400lm IP65 4000K | Ledison Atlas

No / Slip-Fitter Mount
£140.65
Skip to product information
Black rectangular LED street light with angled light panel and ventilation fins, mounted fixture shown against white backgrou

120W LED Street Light 17400lm IP65 4000K | Ledison Atlas

Vendor
Ledison
SKU
604161
Availability
In stock
Weight
5.0 kg

£140.65inc VAT £117.21exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Ledison Atlas is a 120W LED street light with an output of 17400 lumens at 4000K natural white. It suits roads, motorways, car parks and other outdoor areas, and it can be fixed to a pole or a wall. An IP67 photocell is available as an option for dusk-to-dawn switching.

120W LED street light features

  • Output: 120 watts and 17400 lumens
  • Ingress protection: IP65
  • Input voltage: 100-265Volt
  • Beam distribution: Type I, II, III, IV, V
  • Lifetime and warranty: 80,000 hours average lifetime, 5-year warranty
  • Control: dimmable

Housing and optics

The heatsink is magnesium alloy with large fins. It is finished with electrophoresis and TGIC powder paint to resist corrosion, including from salty water, which matters on coastal sites.

Every LED chip has its own toughened glass lens. The light spreads evenly, so you avoid dark patches between one lighting point and the next.

Mounting and photocell options

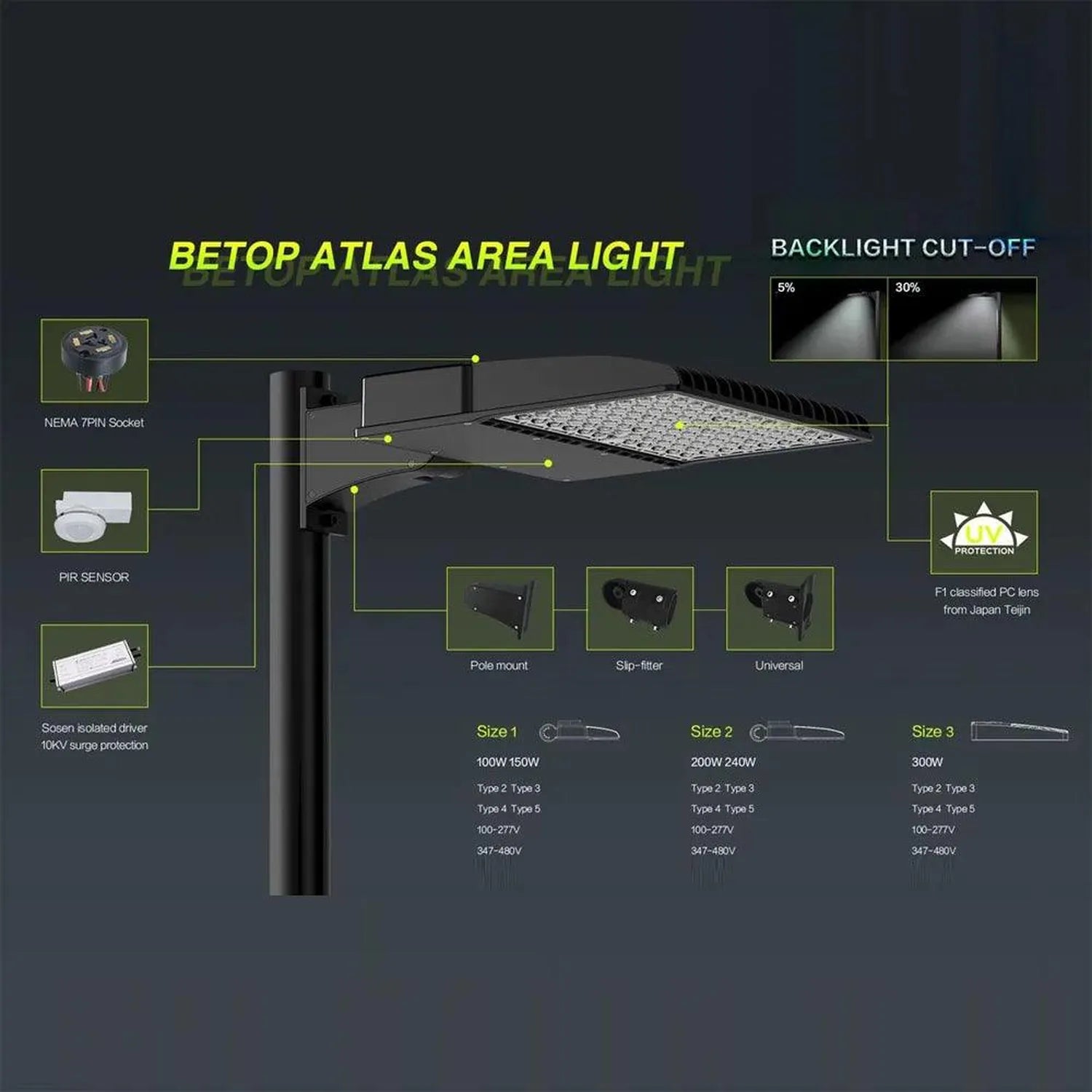

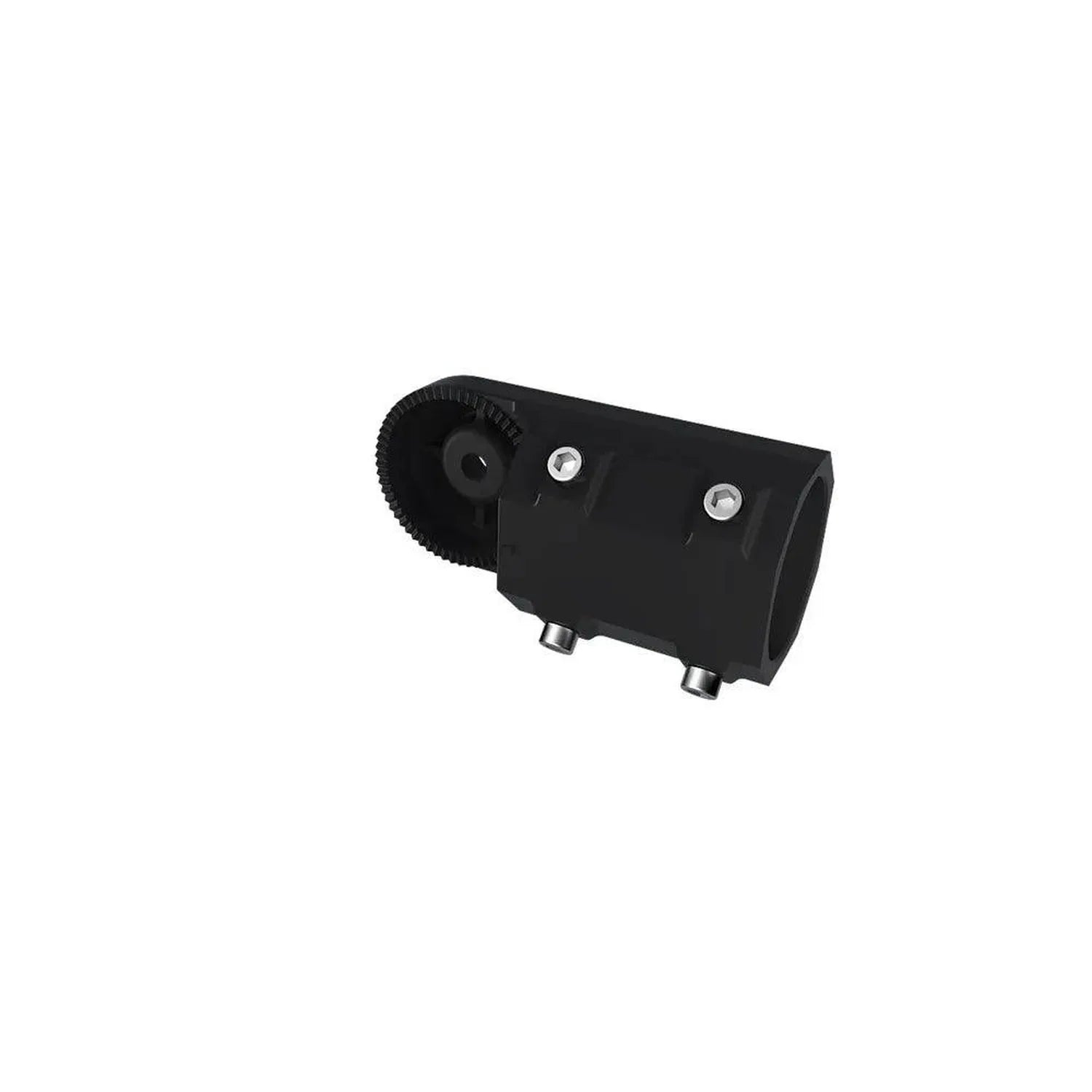

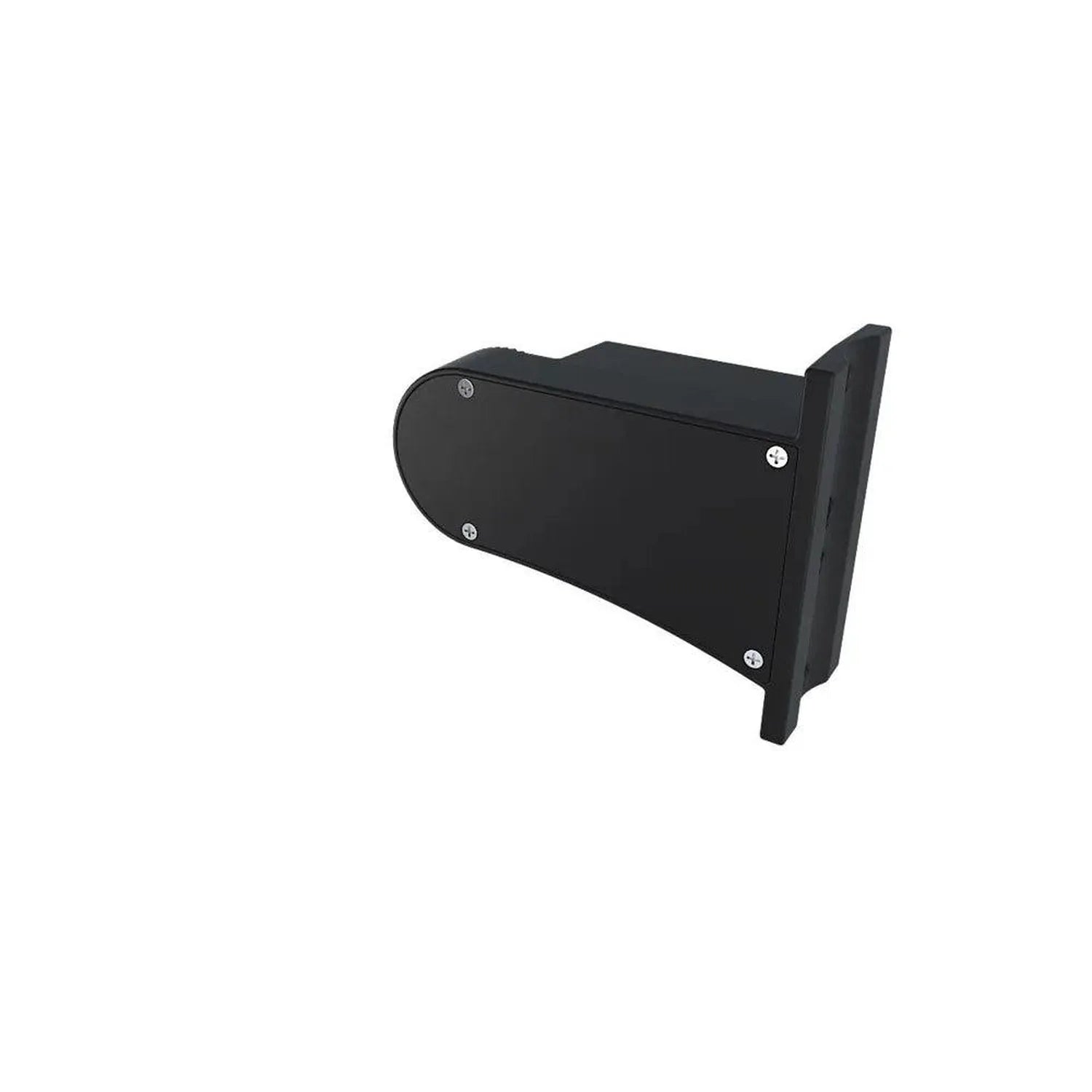

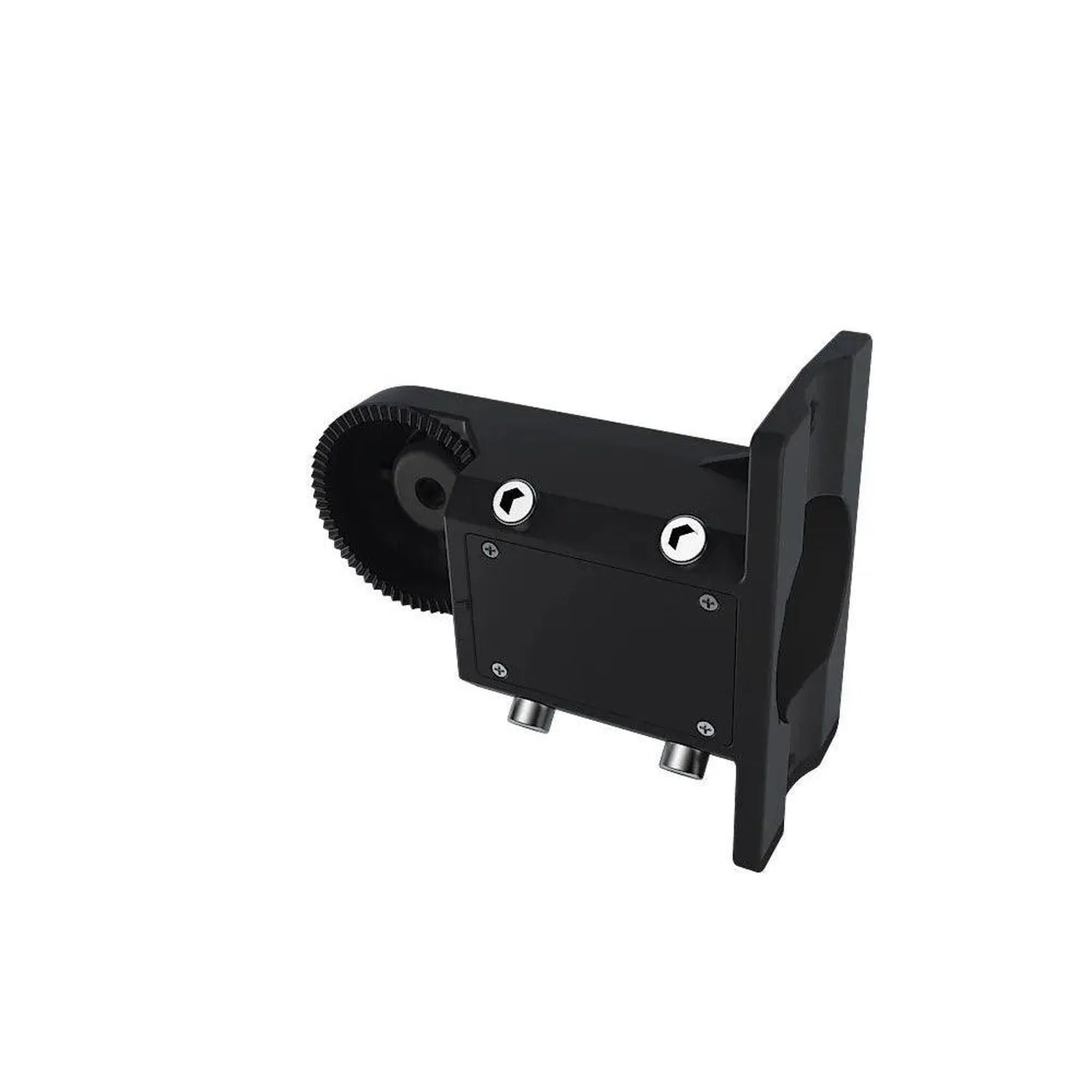

Four mounting kits are offered: slip-fitter, wall bracket, square pole and round pole. The fitting can also go directly onto poles up to 70mm diameter. A universal mounting bracket (BT-AL-UV) and a NEMA 3pin base (JL-230F) come supplied.

Want automatic switching? Add the JL-205C photocell sensor. It is rated IP67 and turns the light on at dusk and off at dawn, with no separate timer needed.

Where it fits

Typical installations include public roads, motorways, car parks and general outdoor areas where you need even, consistent coverage from a pole or wall-mounted fitting.

Technical Specifications 20 rows Show
FittingStreet light
Wattage (rated)120 Watt
Luminous flux17400lm
Colour rendering indexRa70
Voltage100-265Volt
Line frequency50/60Hz
IP ratingIP65
Beam angleType I, II, III, IV, V
Dimensions350x300x82mm
HousingMagnesium alloy heatsink, electrophoresis and TGIC powder paint
DimmableYES
Colour temperature4000K
LensMicro magnify toughness glass on each chip
MountingSquare poles, round poles, walls or directly on poles up to 70mm diameter
Supplied withUniversal mounting bracket BT-AL-UV, NEMA 3pin base JL-230F
Photocell (option)JL-205C, IP67
Average lifetime80,000 hours
Operating temperature-40 OC to 50 OC
CertificationROHS Compliant, CE, UL
Warranty5 years

Manufacturer datasheet. Figures as published by the manufacturer.
