240W LED Street Light 34800lm IP65 4000K | Ledison Atlas

No / Slip-Fitter Mount
£175.34
Skip to product information
Black rectangular LED street light fixture with multiple light modules mounted on pole, product shot against white background

240W LED Street Light 34800lm IP65 4000K | Ledison Atlas

Vendor
Ledison
SKU
604169
Availability
In stock
Weight
5.0 kg

£175.34inc VAT £146.12exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

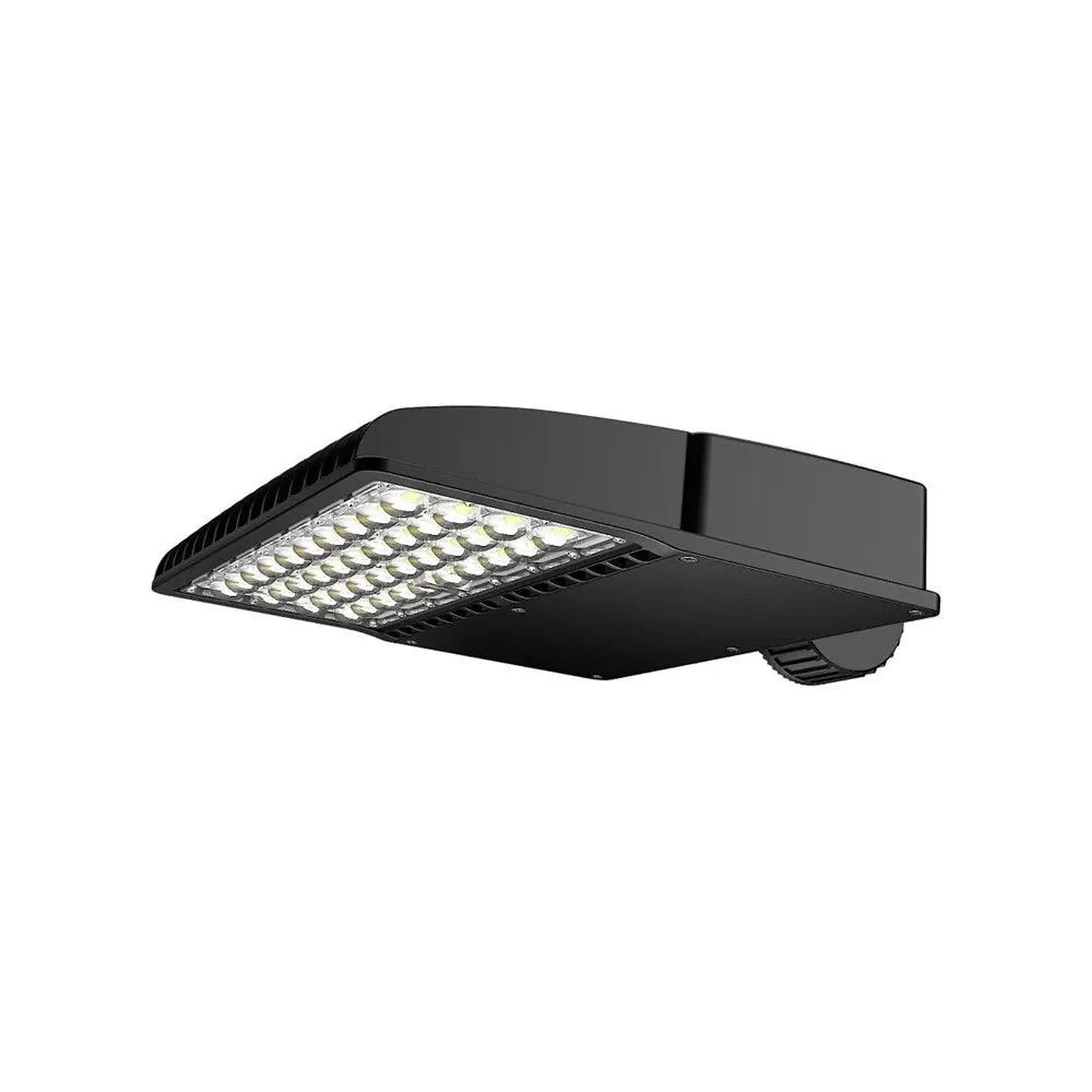

The Ledison Atlas is a 240W LED street light for roads, motorways, car parks and other outdoor areas. It puts out 34800 lumens at 4000K natural white, from an IP65 housing that can go on a pole or a wall. Want it to run itself? Add the optional IP67 photocell.

240W LED street light features

  • Output: 240 watts, 34800 lumens, 4000K natural white.
  • Ingress protection: IP65 fitting, with an IP67 photocell sensor available as an option.
  • Supply: 100-265Volt input. Dimmable.
  • Optics: a toughened glass lens over each LED chip, with beam distribution options Type I, II, III, IV, V.

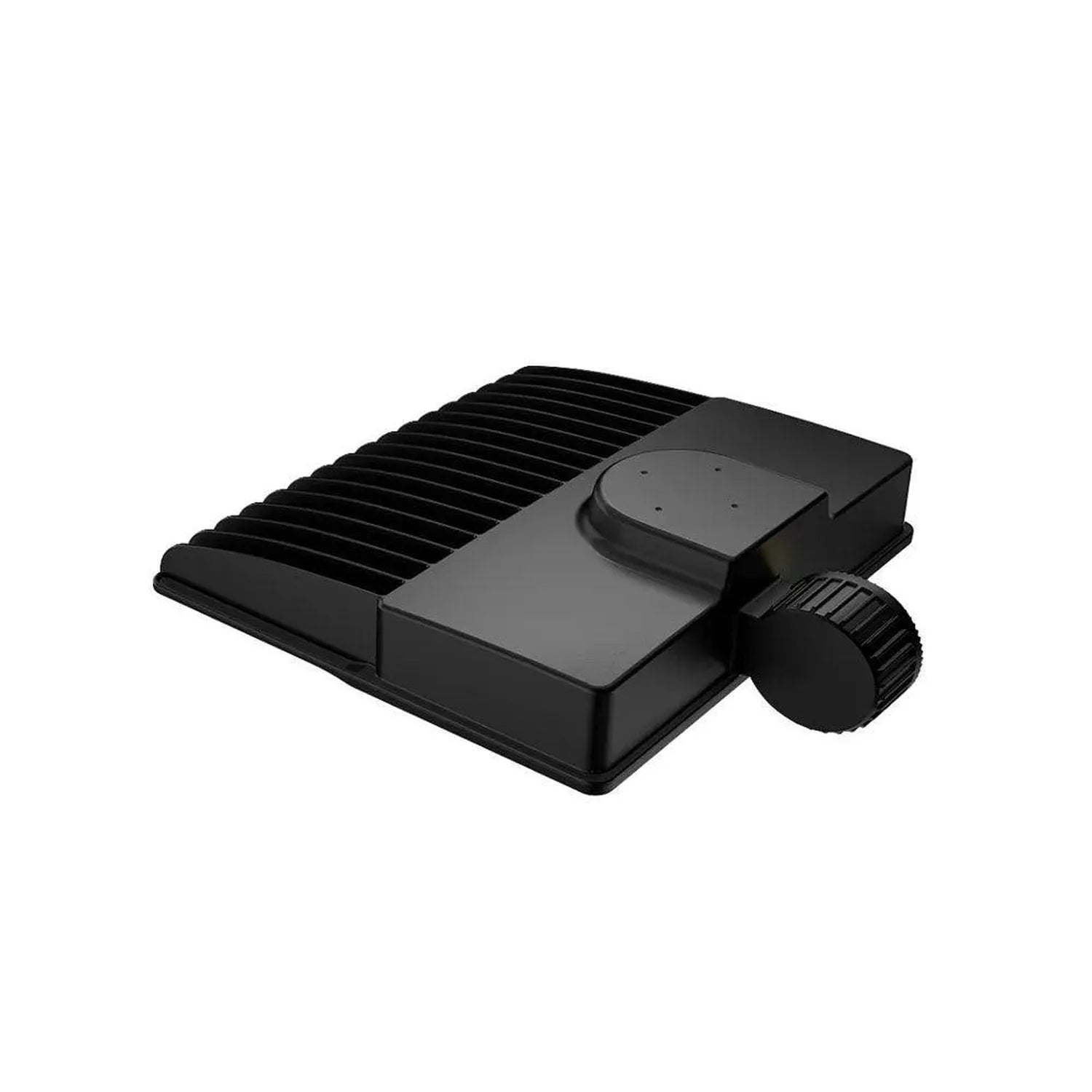

  • Housing: magnesium alloy heatsink with large fins, finished in electrophoresis and TGIC powder paint to resist corrosion, salty water included.
  • Service life: 80,000 hours average lifetime, backed by a 5-year warranty.

Where it fits

Spacing matters on a road or car park, and dark patches between columns are what people notice. The individual lenses on each chip spread the light evenly so those gaps between lighting points are avoided. Coastal sites are covered too, since the paint finish is specified against salty water.

Mounting and options

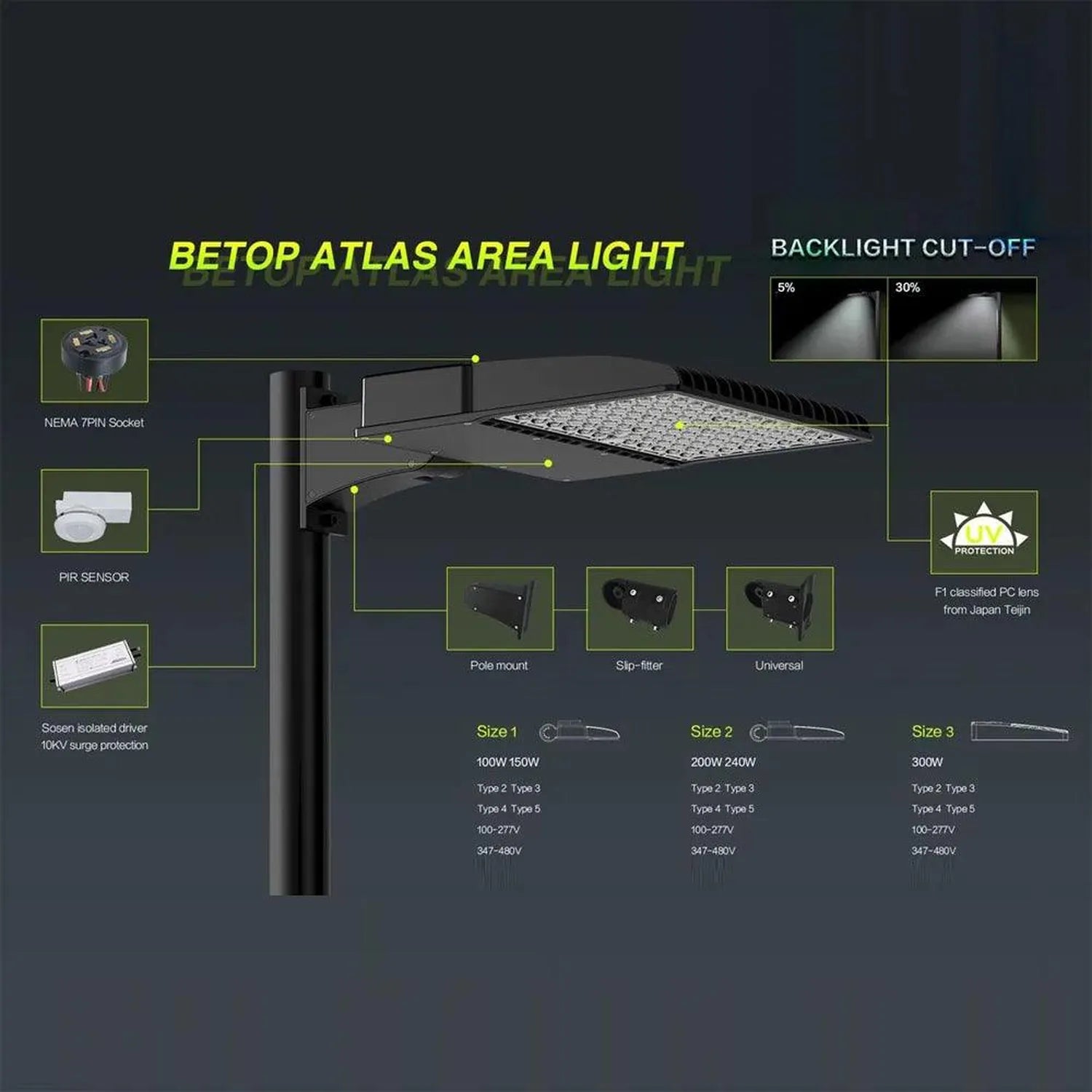

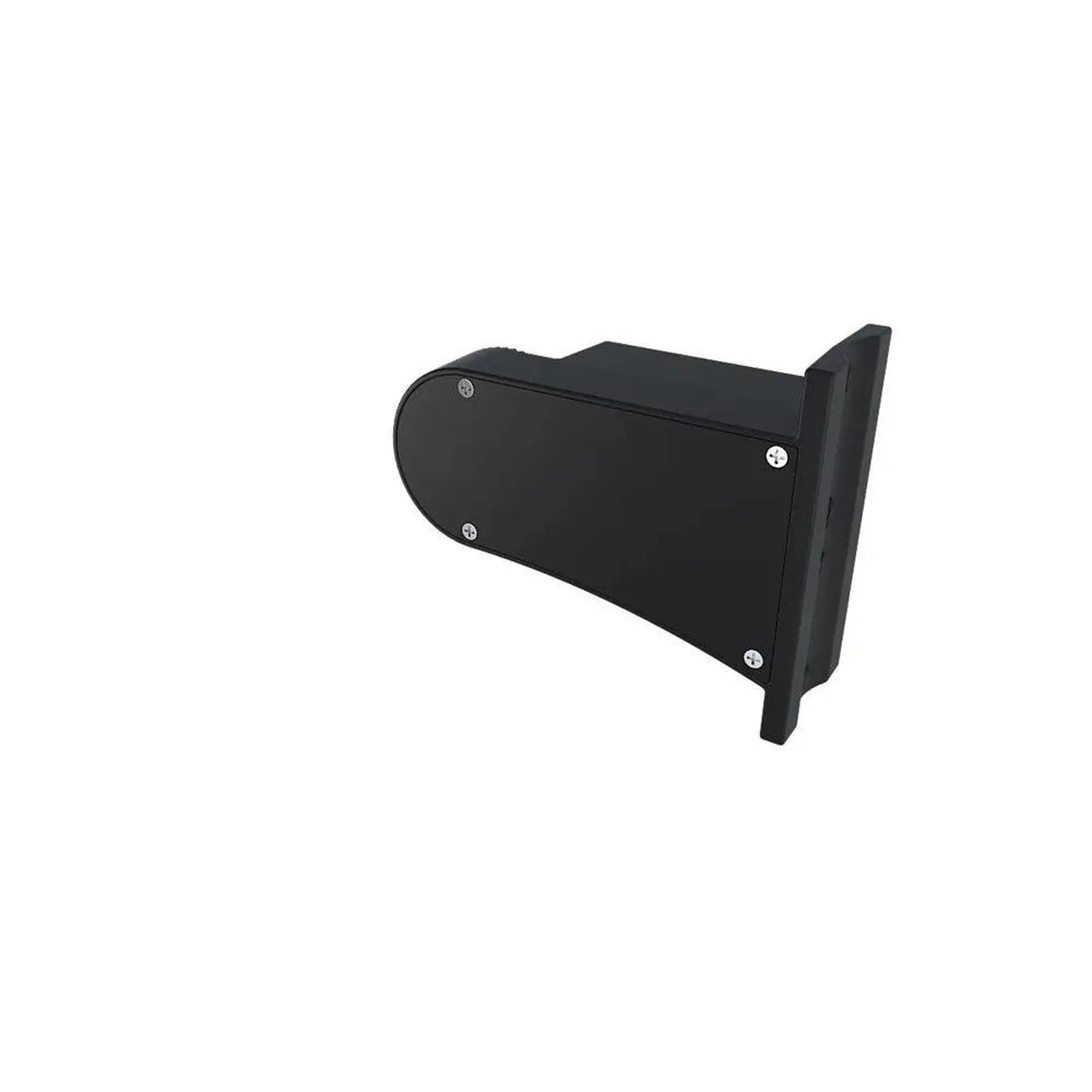

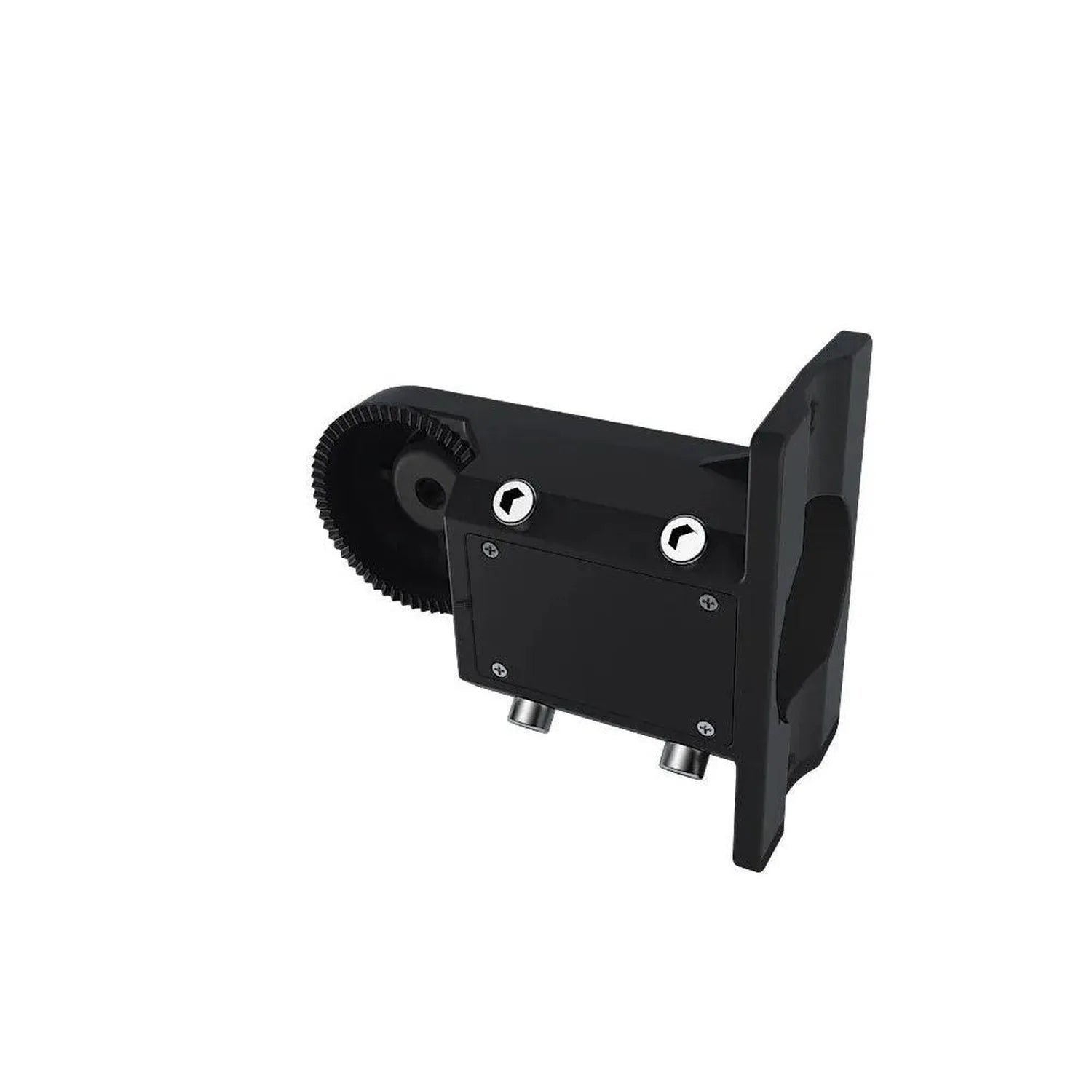

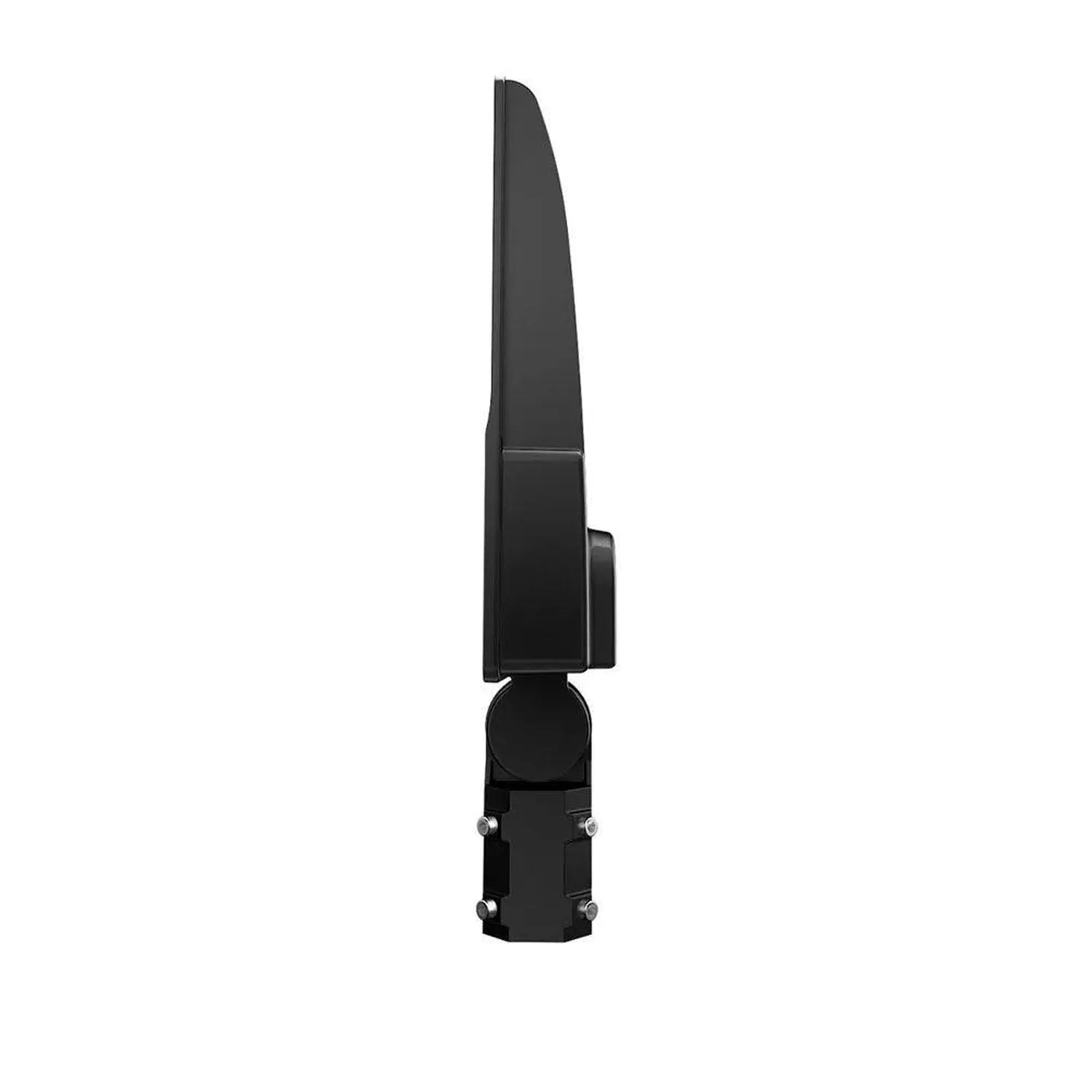

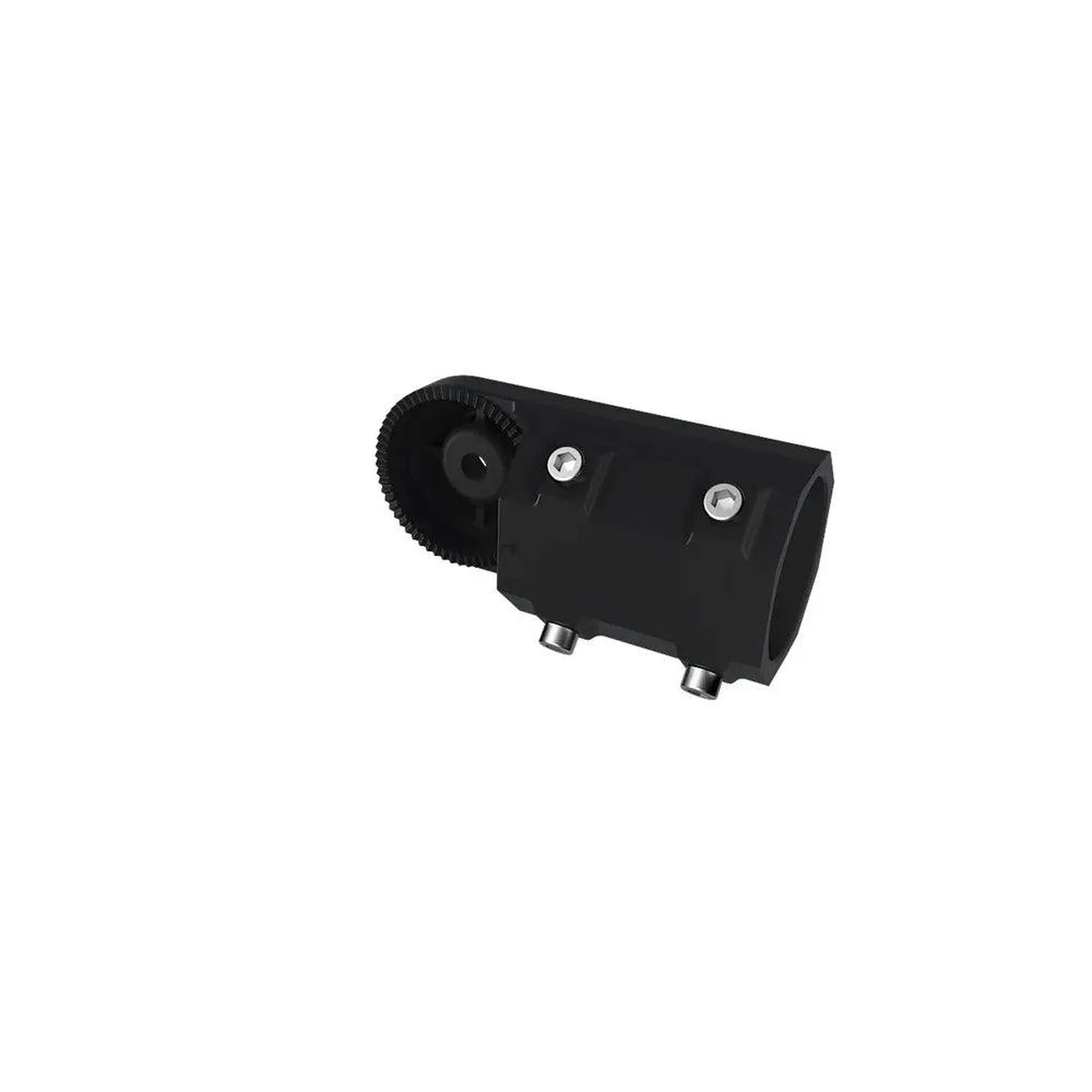

Four mounting kits are offered: square pole, round pole, wall, or a slip-fitter that goes directly onto poles up to 70mm diameter. Pick the one that matches your column or wall.

Dusk to dawn switching

The IP67 photocell sensor is an add-on. Fit it and the light switches on at dusk and off at dawn, with no timer to set.

Supplied with

  • Universal mounting bracket BT-AL-UV
  • NEMA 3pin base JL-230F
Technical Specifications 20 rows Show
FittingStreet light
Wattage (rated)240 Watt
Luminous flux34800lm
Colour rendering indexRa70
Voltage100-265Volt
Line frequency50/60Hz
IP ratingIP65
Beam angleType I, II, III, IV, V
Dimensions436x340x82mm
HousingMagnesium alloy heatsink, electrophoresis and TGIC powder paint
DimmableYES
Colour temperature4000K
LensMicro magnify toughness glass on each chip
MountingSquare poles, round poles, walls or directly on poles up to 70mm diameter
Supplied withUniversal mounting bracket BT-AL-UV, NEMA 3pin base JL-230F
Photocell (option)JL-205C, IP67
Average lifetime80,000 hours
Operating temperature-40 OC to 50 OC
CertificationROHS Compliant, CE, UL
Warranty5 years

Manufacturer datasheet. Figures as published by the manufacturer.
