200W LED Street Light 29000lm IP65 4000K | Ledison Atlas
- Vendor
- Ledison
- SKU
- 604165
- Availability
- In stock
- Weight
- 5.0 kg
£163.79inc VAT £136.49exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

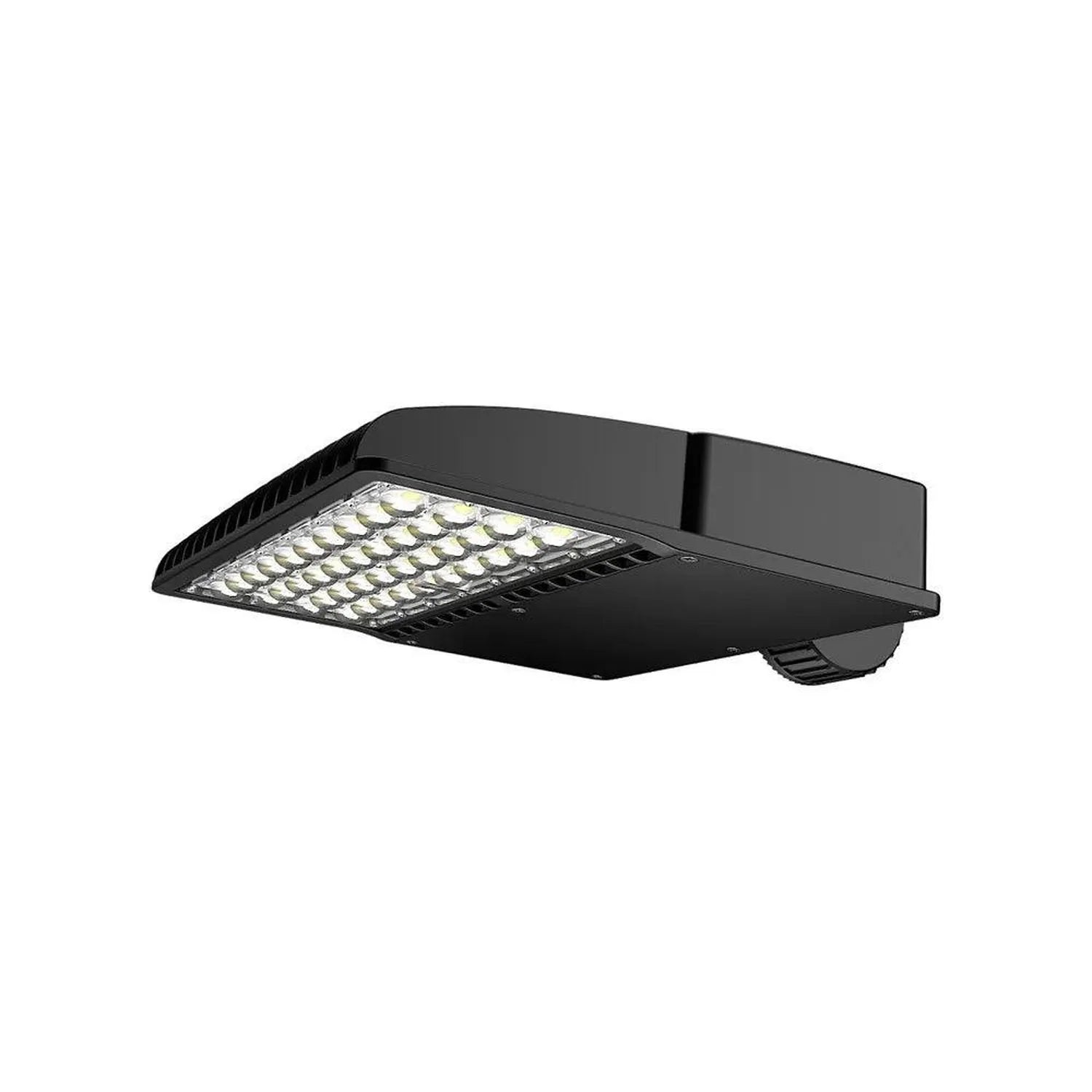

The Ledison Atlas is a 200W LED street light producing 29000lm of 4000K natural white light. It suits roads, motorways, car parks and other outdoor areas, and carries an IP65 rating. Mount it on a pole or a wall.
Atlas 200W LED street light features
- Output: 200 watts and 29000 lumens at 4000K natural white
- Protection: IP65 rated
- Input voltage: 100-265Volt, and the fitting is dimmable
- Beam distribution: Type I, II, III, IV and V

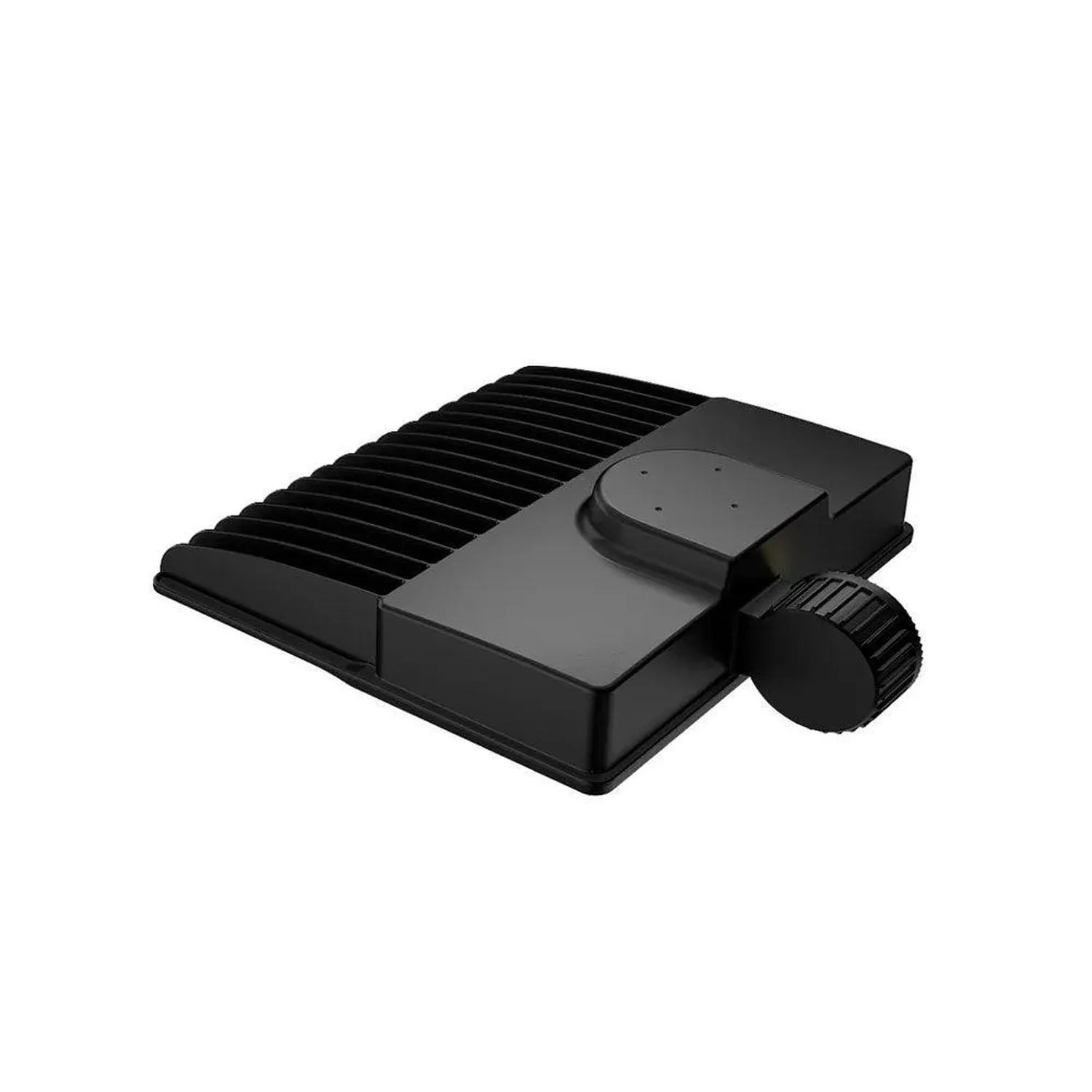

- Heatsink: large-finned magnesium alloy, treated with electrophoresis and TGIC powder paint to resist corrosion, salty water included
- Lifetime and warranty: 80,000 hours average lifetime, 5-year warranty
Optics
Every LED chip has its own toughened glass lens. The lenses spread light evenly across the ground, so you avoid dark patches between one lighting point and the next.
Mounting and control options

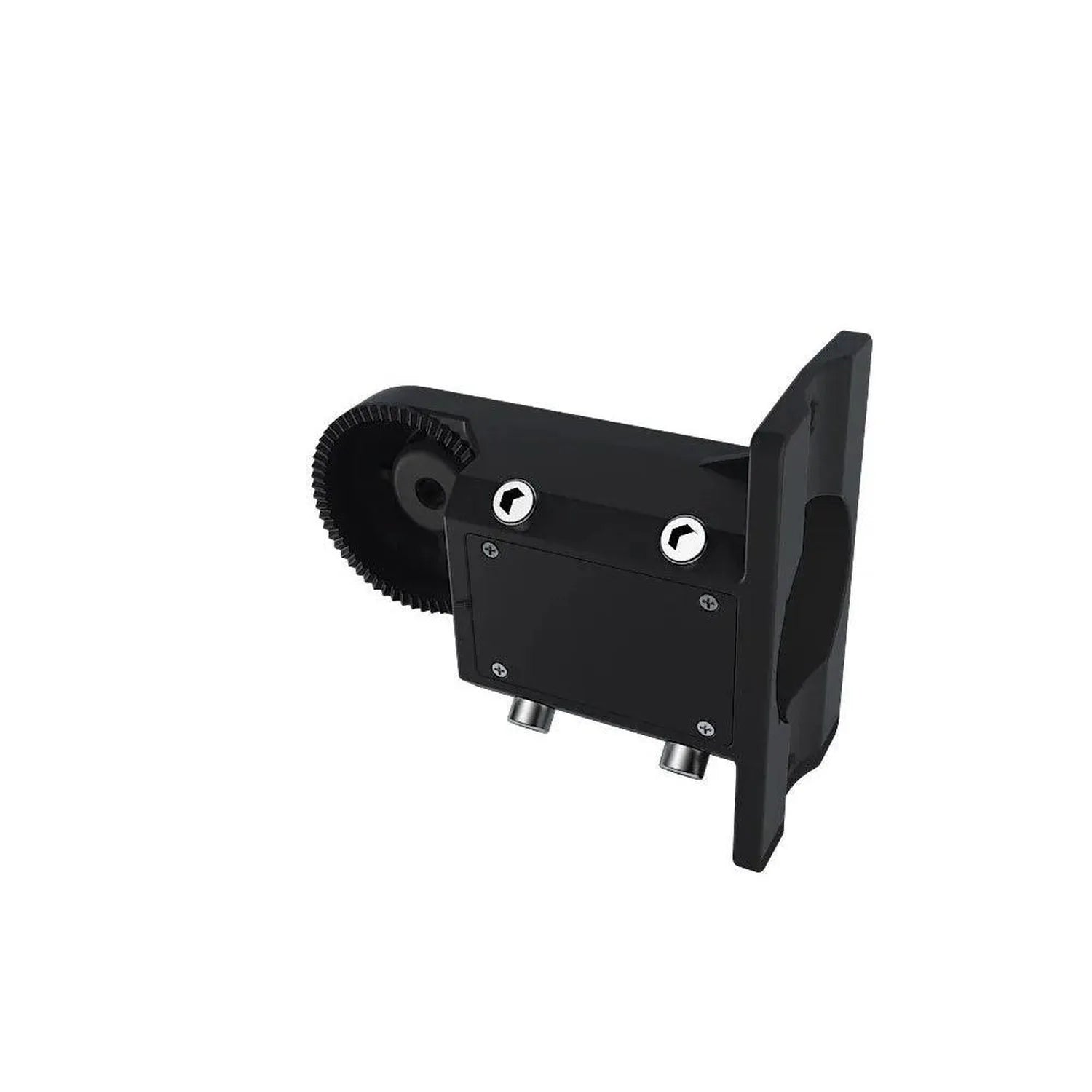

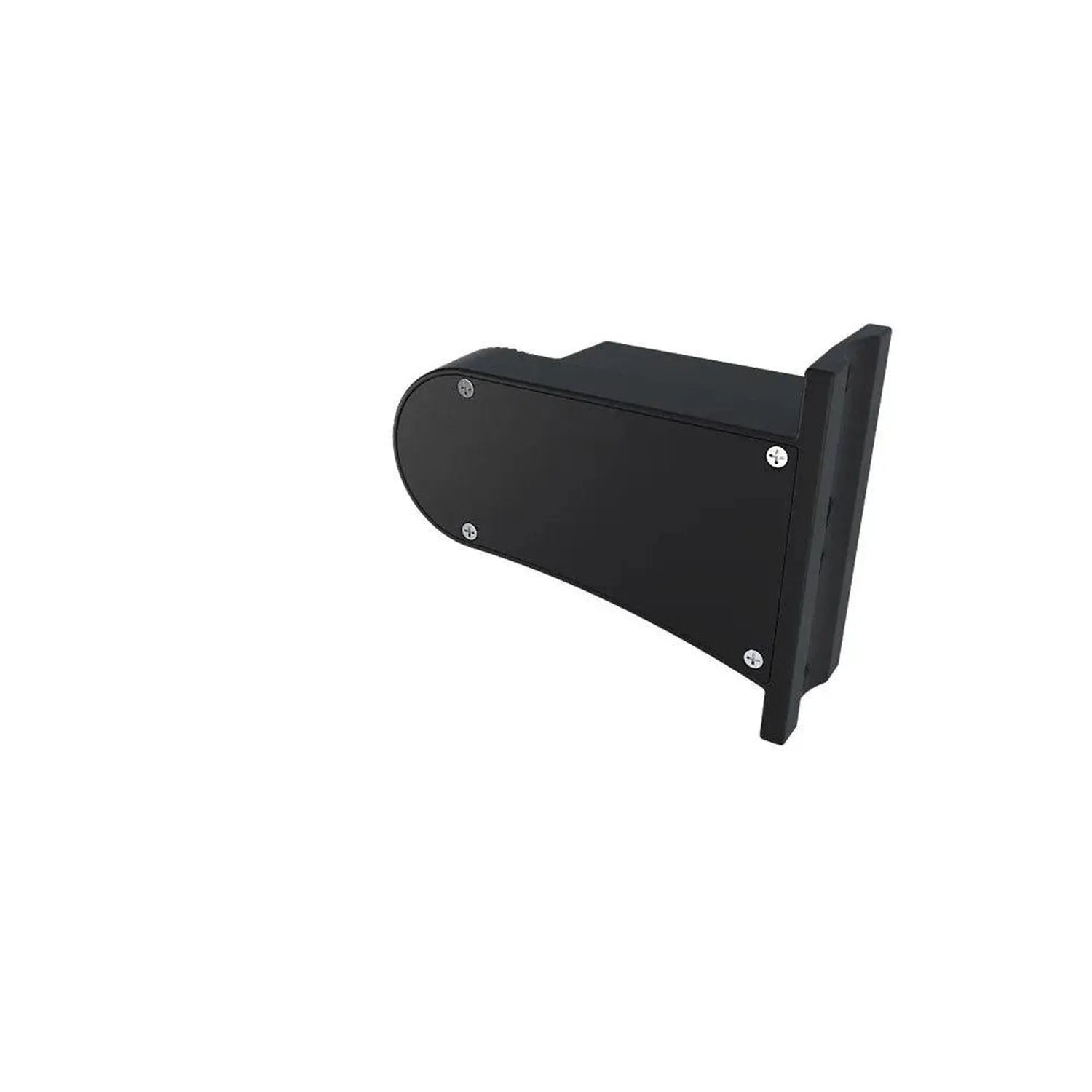

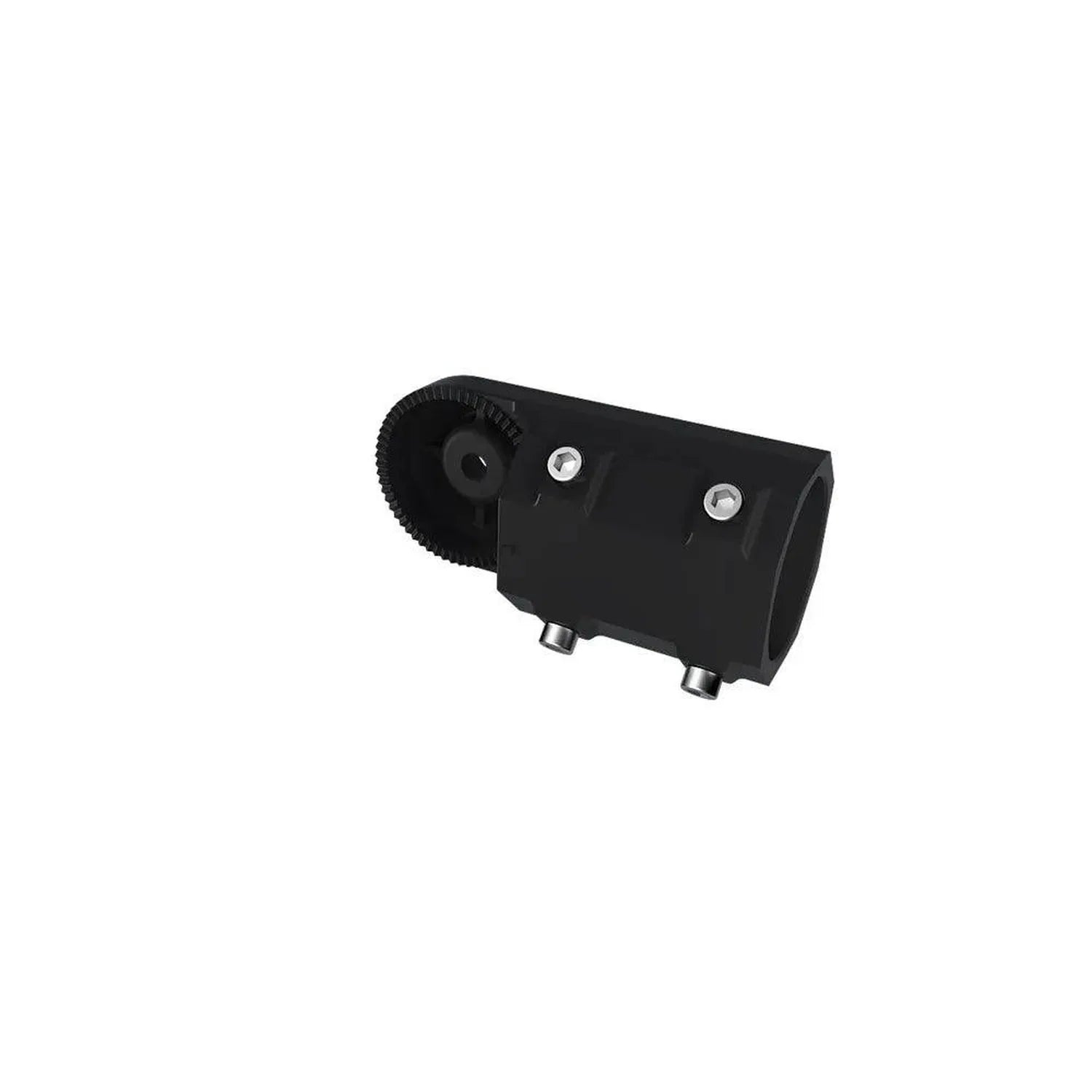

Four mounting kits are available: slip-fitter, wall bracket, square pole and round pole. The slip-fitter fits directly onto poles up to 70mm diameter. Pick whichever matches the site.
You can also add an IP67 photocell sensor (JL-205C). It switches the light on at dusk and off again at dawn, which removes the need for a separate timer on the circuit.
Supplied with
- Universal mounting bracket BT-AL-UV
- NEMA 3pin base JL-230F
Where it fits
Street lighting for public roads and motorways is the obvious use. Car parks, yards and access roads work just as well, and the corrosion-resistant finish makes the Atlas a sensible choice near the coast, where salt in the air attacks lesser coatings.
Technical Specifications 20 rows Show
| Fitting | Street light |
| Wattage (rated) | 200 Watt |
| Luminous flux | 29000lm |
| Colour rendering index | Ra70 |
| Voltage | 100-265Volt |
| Line frequency | 50/60Hz |
| IP rating | IP65 |
| Beam angle | Type I, II, III, IV, V |
| Dimensions | 436x340x82mm |
| Housing | Magnesium alloy heatsink, electrophoresis and TGIC powder paint |
| Dimmable | YES |
| Colour temperature | 4000K |
| Lens | Micro magnify toughness glass on each chip |
| Mounting | Square poles, round poles, walls or directly on poles up to 70mm diameter |
| Supplied with | Universal mounting bracket BT-AL-UV, NEMA 3pin base JL-230F |
| Photocell (option) | JL-205C, IP67 |
| Average lifetime | 80,000 hours |
| Operating temperature | -40 OC to 50 OC |
| Certification | ROHS Compliant, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
